if i were to use this motherboard would i be able to connect to my wifi at home wirelessly without having to install anything or use ethernet?

Yes but for best results use the included antennas and not have many interfering structures.

HKD$1,290^.83

VAT-Inclusive Price

HKD$383.14 Shipping

Limit 99999 per customer.

Ships from United States.

Most customers receive within 9-17 days.

Add to wish list

Sold by BeachAudio

Top Rated

4.4 (8,540 seller ratings)

Shipped by BeachAudio

Best Sellers

Deal Targets

Top Rated

3.2 (2,118 total ratings)

HKD$2,237^.37
+ HKD$389.31 Shipping

BTE Outlet

3.5 (1,429 total ratings)

HKD$1,527^.99
+ HKD$1,253.25 Shipping

Meet Your Seller

BeachAudio

See Seller Store

Main image of ASUS PRIME B760M-A AX LGA 1700(Intel 12th&13th Gen) microATX motherboard (PCIe 4.0, 2xM.2 slots, DDR5,Realtek 2.5 Gb LAN,WiFi 6, DP,rear USB 3.2 Gen 2, front USB 3.2 Gen 1 Type-C

Alt view image 2 of 3 - ASUS PRIME B760M-A AX LGA 1700(Intel 12th&13th Gen) microATX motherboard (PCIe 4.0, 2xM.2 slots, DDR5,Realtek 2.5 Gb LAN,WiFi 6, DP,rear USB 3.2 Gen 2, front USB 3.2 Gen 1 Type-C

Alt view image 3 of 3 - ASUS PRIME B760M-A AX LGA 1700(Intel 12th&13th Gen) microATX motherboard (PCIe 4.0, 2xM.2 slots, DDR5,Realtek 2.5 Gb LAN,WiFi 6, DP,rear USB 3.2 Gen 2, front USB 3.2 Gen 1 Type-C

Shop All ASUS Products | Visit BeachAudio Store

ASUS PRIME B760M-A AX LGA 1700(Intel 12th&13th Gen) microATX motherboard (PCIe 4.0, 2xM.2 slots, DDR5,Realtek 2.5 Gb LAN,WiFi 6, DP,rear USB 3.2 Gen 2, front USB 3.2 Gen 1 Type-C

(5) Write a Review

Intel LGA 1700 Socket: Ready for 13th Gen and 12th Gen Intel processors.
Ultrafast Connectivity: PCIe 4.0, DDR5, two M.2 slots, Realtek 2.5Gb Ethernet, Wi-Fi 6, rear USB 3.2 Gen 2, front USB 3.2 Gen 1 Type-C.
Comprehensive Cooling: VRM heatsink, M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+.
ASUS OptiMem II: Careful routing of traces and vias, plus ground layer optimizations to preserve signal integrity for improved memory overclocking.
Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardware.
CEC Tier II ready.
DDR5 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/ 5400/5200/5000/4800MHz Non-ECC, Un-buffered Memory*

Overview

Specs

Reviews (5)

Model
Brand	ASUS
Model	PRIME B760M-A AX
Part Number	90MB1EI0-MVAAY0

Supported CPU
CPU Socket Type	LGA 1700
CPU Type	Intel Socket LGA1700 for 13th Gen Intel Core Processors & 12th Gen Intel Core, Pentium Gold and Celeron Processors* Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0** * Refer to www.asus.com for CPU support list. ** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.

Chipsets
Chipset	Intel B760

Memory
Number of Memory Slots	4x288pin (DDR5)
Memory Standard	DDR5 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800MHz Non-ECC, Un-buffered Memory* * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/ * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
Maximum Memory Supported	256GB
Channel Supported	Dual Channel
Memory Feature	Supports Intel Extreme Memory Profile (XMP) OptiMem II

Expansion Slots
PCI Express 4.0 x16	Intel 13th & 12th Gen Processors 1 x PCIe 4.0 x16 slot Intel B760 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode) 2 x PCIe 4.0 x16 slots (support x1 mode) Note: To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.

Storage Devices
Serial ATA (SATA)	6 x SATA 6Gb/s
M.2	Intel 13th & 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) Intel B760 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
SATA RAID	Intel Rapid Storage Technology supports SATA RAID 0/1/5/10.

Onboard Audio
Audio Chipset	Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Audio Channels	7.1 Channels

Onboard LAN
LAN Chipset	1 x Realtek 2.5Gb Ethernet
Max LAN Speed	2.5Gbps
Wireless LAN	Wi-Fi 6 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) Supports 2.4/5GHz frequency band
Bluetooth	Bluetooth v5.2* *The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.

Rear Panel Ports

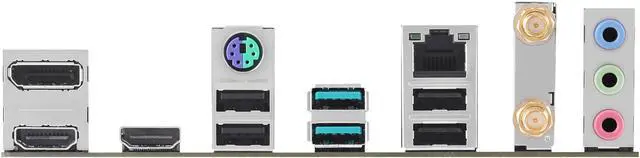

Back I/O Ports	2 x USB 3.2 Gen 2 ports (2 x Type-A ) 4 x USB 2.0 ports (4 x Type-A) 1 x DisplayPort 2 x HDMI ports 1 x Wi-Fi Module 1 x Realtek 2.5Gb Ethernet port 3 x Audio jacks 1 x PS/2 Keyboard/Mouse combo port

Internal I/O Connectors
Onboard USB	2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports 2 x USB 3.2 Gen 1 connector (supports USB Type-C) 2 x USB 2.0 headers support additional 4 USB 2.0 ports
Other Connectors	Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 2 x 4-pin Chassis Fan headers Storage related 2 x M.2 slots (Key M) 6 x SATA 6Gb/s ports Miscellaneous 3 x Aura Addressable Gen 2 headers 1 x Aura RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x LPT header 1 x S/PDIF Out header 1 x SPI TPM header (14-1pin) 1 x 20-3 pin System Panel header with Chassis intrude function

Software Feature
Windows 11	Supported

Physical Spec
Form Factor	Micro ATX
Dimensions (W x L)	9.6" x 9.6"
Power Pin	1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector

Features
Features	ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage Protection - SafeSlot Core+ - Stainless-Steel Back I/O ASUS Q-Design - Q-DIMM - Q-LED Core - Q-Slot ASUS Thermal Solution - M.2 heatsink - VRM heatsink design ASUS EZ DIY - ProCool AURA Sync - Aura RGB header - Addressable Gen 2 headers

Packaging
Package Contents	Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x ASUS Wi-Fi moving antenna 1 x I/O Shield 1 x M.2 Rubber Package 1 x Screw package for M.2 SSD Documentation 1 x User guide

Additional Information
First Listed on Newegg	March 15, 2023
