Features
- Internal HD Mini SAS cable is specifically designed to connect a 12 Gbps host or RAID controller with SFF-8643 to 4 discrete SATA drives
- SFF8643 to SATA Cable Provides reliable internal connectivity between a high density RAID controller card and direct attached storage devices with a SATA plug
- Hybrid versions of HD MiniSAS cable with a 36 pin SFF 8643 connector and 4 x 7 pin SATA connectors provides both 3 Gbps and 6 Gbps compatibility while migrating to a to 12 Gbps storage area network system

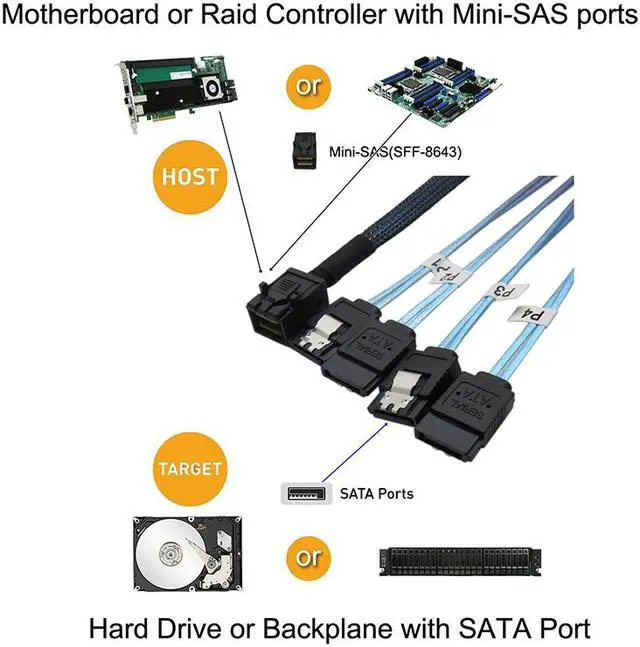

- Forward HD Mini SAS cable has an internal SFF-8643 (HOST) HD Mini-SAS 36 pin connector and 4 x SATA 7 pin (TARGET) drive connectors;

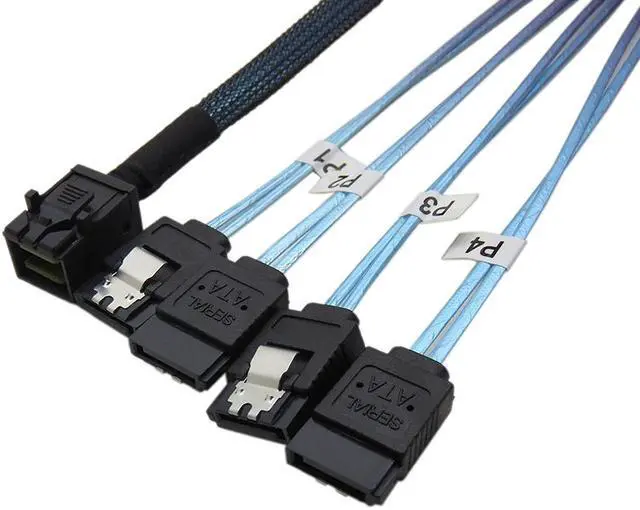

- Target drive SATA connectors with stainless steel latches to provide a secure connection
- Includes acetate cloth tape over slim ribbon cables for strain relief to protect cables without rigidity

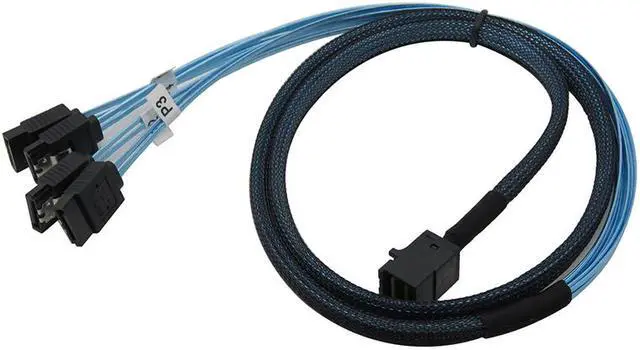

- Woven mesh sheath covers half of the cable for easy routing

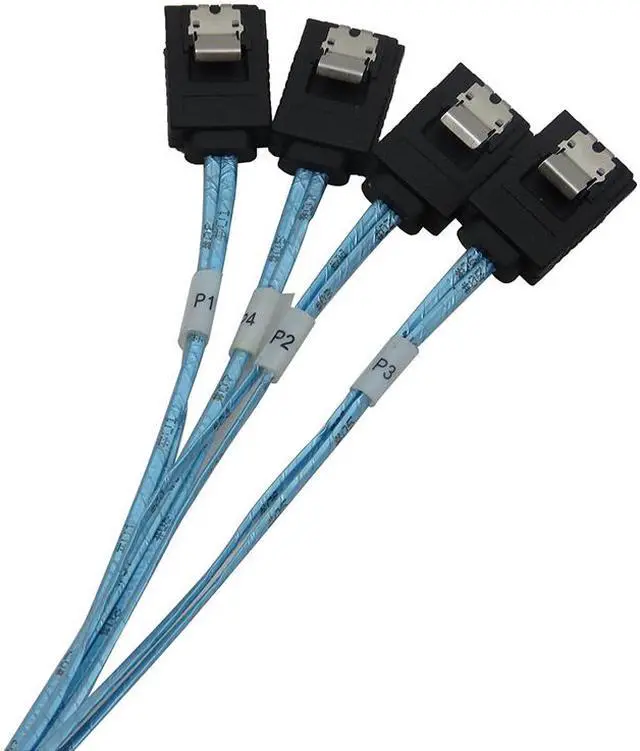

- P1 to P4 markers provide easy ID after installation
- Compatible with the Adaptec RAID 71605,7895 Storage Controllers
- SFF-8643 to SATA forward cable

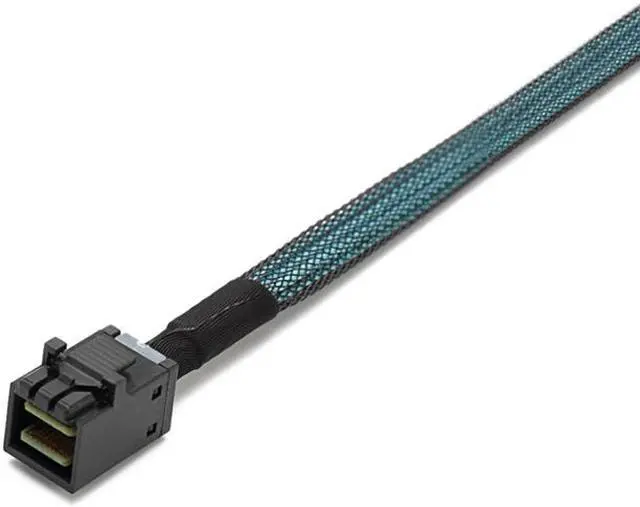

- SFF-8643 male header for host

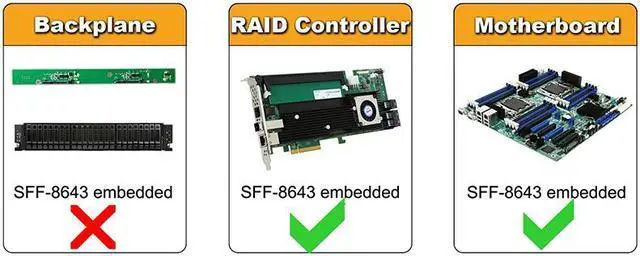

- Support SFF-8643 embedded motherboard,RAID controller card etc.
- Does not support backplane
- 4X SATA female header for target devices
- Support SATA 7Pin embedded 2.5"/3.5" HDD and SSD
- For Data Transmission only
- Does not support IDE HDD
- P1 to P4 markers provide easy ID after installation
- Aluminum foil shield SATA cable, improve transmission performance
- Woven mesh sheath covers half of the cable for easy routing
Specification
| Type | SFF-8643 to 4X SATA Forward Cable |
|---|---|
| Connector-A | SFF-8643 Male with Latch Locking for Host |
| Connector-B | 4x SATA Female with Latch Locking for target |
| Data Transfer Speed | 6Gbps per Port |
| Cable Length | 3.3 Feet |
| Cable Color | Blue Cable with Black Sleeved |
