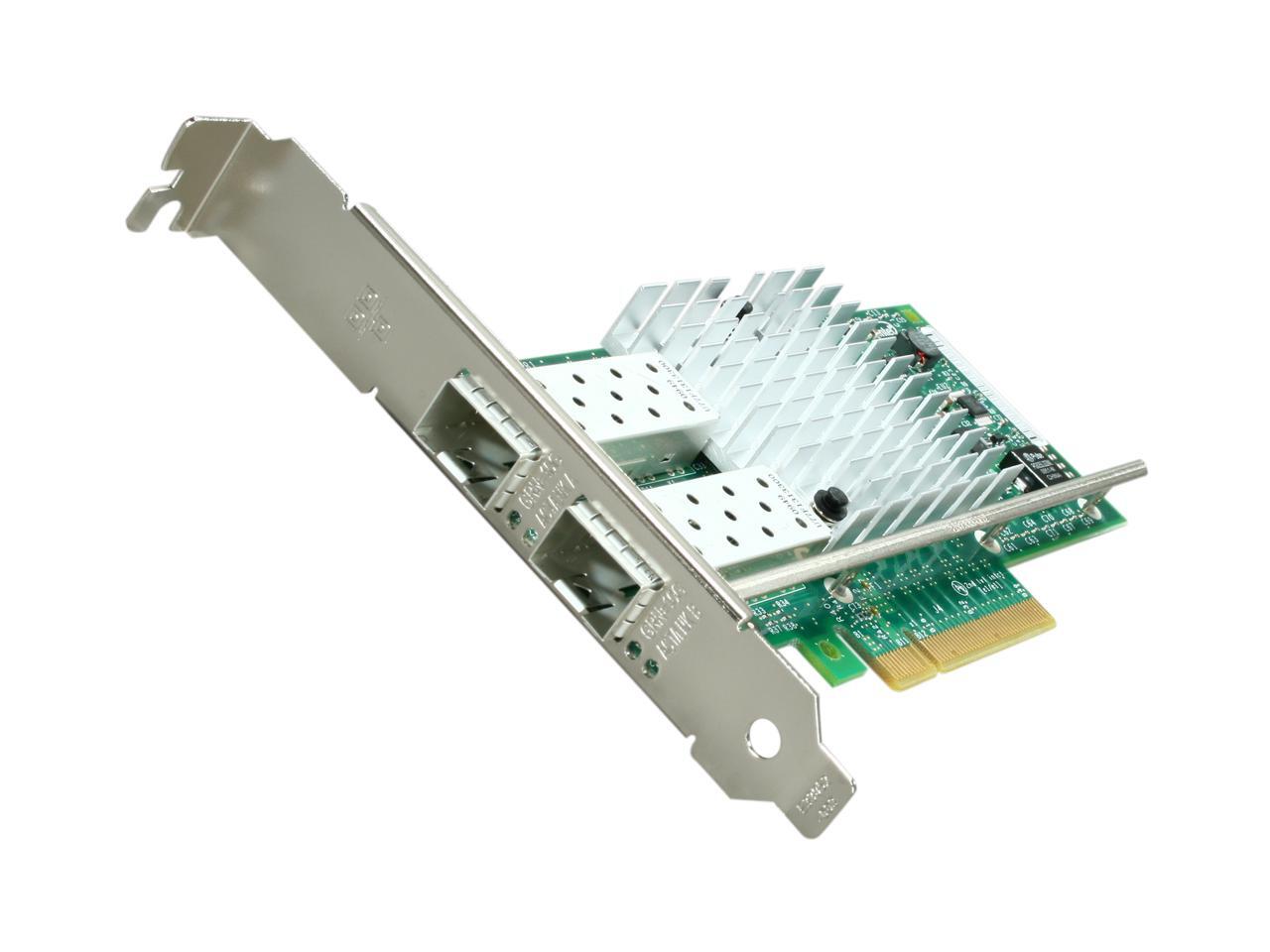

Intel E10G42BTDA Server Adapter X520-DA2 10Gbps PCI Express 2.0 x8 2 x SFP+

Ships from United States.

Sold and Shipped by Newegg

Purchases from these Sellers are generally covered under our Newegg Marketplace Guarantee.
Marketplace Seller
  • 10Gbps
  • 2 x SFP+

LOADING... LOADING...
  • Overview
  • Specifications
  • Warranty & Returns
  • Reviews

Inter Ethernet Converged Network Adapter X520

Dual- and Single-Port 10 Gigabit SFP+ Ethernet Converged Network Adapters Provide Ultimate Flexibility and Scalability in Virtual and Unified Storage Environments

Inter

Intel's family of adapters, the Intel Ethernet Converged Network Adapter X520 with SFP+ connectivity, are the most flexible and scalable Ethernet adapters for today's demanding data center environments. Data center networks are being pushed to their limits. The escalating deployments of servers with multi-core processors and demanding applications such as High Performance Computing (HPC), database clusters, and video-on-demand are driving the need for 10 Gbps connections- Customers require flexible and scalable I/O solutions to meet the rigorous requirements of running mission-critical applications in virtualized and unified storage environments.

Powered by Intel's third-generation 10 GbE network controller, the Intel Ethernet 82599 10 Gigabit Ethernet Controller, the X520 adapter family addresses the demanding needs of the next-generation data center by providing unmatched features for visualization, flexibility for LAN and SAN networking, and proven, reliable performance.

Best Choice for Visualization
The explosive growth in visualization is leading to an increasing demand for network performance. With more Virtual Machines (VMs) running on each multi-core server, networking traffic is dramatically increased, with each VM competing for available I/O bandwidth. Intel's family of Intel Ethernet Converged Network Adapter X520 addresses networking bottlenecks in virtualized environments. These adapters enable network-intensive applications to achieve the performance expected in a virtualized environment.

Inter

The Intel Ethernet X520 family of adapters provides the best networking performance available in the industry, whether the physical port is configured in an emulation mode using the virtual switch in the Virtual Machine Monitor (VMM), or is directly assigned to a virtual machine. In the emulation mode, Intel's I/O technology. Virtual Machine Device queues (VMDq) optimizes network performance by offloading data sorting and copying from the software Virtual Switch in the VMM to the Intel Ethernet 82599 10 Gigabit Controller. This configuration is best suited for a large number of VMs running standard applications that have limited bandwidth and latency requirements.

For mission-critical applications, where| dedicated I/O is required for maximum network performance, users can assign a dedicated virtual adapter port to a VM. Using the PCI-SIG SR-IOV capability on an Intel Ethernet X520 adapter provides direct VM connectivity and data protection across VMs. SR-IOV technology enables the data to bypass the software virtual switch and provides near-native performance. It assigns either physical or virtual I/O ports to individual VMs directly. This technology is best suited for applications that demand the highest I/O throughput and lowest latency performance such as database, storage, financial and other applications.

PCI-SIG SR-IOV is a mechanism for devices to advertise their ability to be directly assigned to multiple virtual machines. SR-IOV enables the partitioning of a PCI Express* (PCIe) function into many virtual interfaces for the purpose of sharing the resources of a PCIe device in a virtual environment These virtual interfaces are called Virtual Functions. Each virtual function can support a unique and separate data path for 1/0-related functions within the PCIe hierarchy. Use of SR-IOV with a networking device, for example, enables the bandwidth of a single port (function) to be partitioned into smaller slices that can be allocated to specific VMs, or guests, via a standard interface.

Inter

Unified Networking and Storage
The family of Intel Ethernet X520 adapters lowers your data center total cost of ownership (TCO) by providing the ability to route LAN and SAN traffic over a single fabric.

Support for Fiber Channel over Ethernet (FCoE)
FCoE encapsulates Fiber Channel frames over standard Ethernet networks, enabling Fiber Channel to take advantage of 10 GbE networks while preserving its native protocol. The X5Z0 adapters offer FCoE hardware acceleration to provide performance comparable to FC HBAs. The adapters support Data Center Bridging, also known as Converged Enhanced Ethernet (CEE), which enables customers to configure traffic classes and priorities to deliver a lossless Ethernet fabric. An Intel Ethernet Converged Network Adapter X5Z0 reduces TCO by eliminating redundant fabrics and saves the cost of expensive FC HBAs and FC switch ports.

Support for iSCSI
The adapters provide complete support for proven native OS and VMM iSCSI initiators as well as iSCSI boot. Historically, CRC3ZC computation has degraded system performance, but now with the CRC instruction set included in the latest Intel Xeon processors, CRC validation is possible with minimal impact to network throughput while delivering superior data integrity.

The Intel Ethernet family of X520 adapters do it all: 10 Gigabit LAN, FCoE, and iSCSI; truly delivering on the promise of unified networking.

Reliable Performance
The family of X5Z0 adapters includes a number of advanced features that enable it to provide industry-leading performance and reliability.

Security Optimizations
The adapters support IPsec offload for Microsoft's* Network Access Protection (NAP), Active Directory,* and future security capabilities in Windows 7*. An X5Z0 adapter enables customers to run a secure network environment without sacrificing performance.

PCIev2.0(5GT/s)
PCIe vZ.O (5 GT/s) support enables customers to take full advantage of 10 GbE by providing a maximum of 20 Gbps bi-directional throughput per port on a single dual port card.

Designed For Multi-core Processors
Support for technologies such as multiple queues, receive-side scaling, multiple MSI-X vectors, and Low Latency Interrupts enable the X520 adapters to provide high-performance, 10 Gigabit connectivity in multi-core server blades. These technologies distribute network processing across multiple CPU cores, improving overall performance.

For today's demanding virtualized data center environments, the new family of X5Z0 adapters deliver ultimate flexibility and scalability.

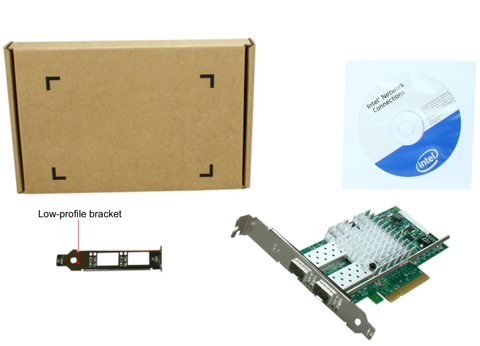

What's in the Box

Inter




Learn more about the Intel E10G42BTDA

Warranty, Returns, And Additional Information
  • Return Policies*
    • Return for refund within: 30 days
    • Returns are subject to restocking fees and return shipping fees. Please click here to learn more about restocking fees and return shipping fees.
  • This item is covered by Newegg.com's International Order Return Policy.
  • *Subject to applicable law
Ownership: 1 day to 1 week
Verified Owner
5/ 5
Great Product!!

Pros: Seller was quick and very responsive to all my questions.

Cons: None!

0 out of 3 people found this review helpful. Did you?
Ownership: 1 month to 1 year
Verified Owner
5/ 5
Works Great

Pros: Simple install, comes with both regular and low-profile brackets, very fast

Cons: Expensive

Other Thoughts: Two of these are directly connecting two servers together, DRBD disk replication for two Proxmox nodes.
iperf measures the connection at 9.41 Gbps

3 out of 3 people found this review helpful. Did you?
Ownership: 1 week to 1 month
Verified Owner
5/ 5
Smokin fast 10Gbps SFP+ dual port adapter

Pros: Working like a champ in my vSphere 5.5 home lab. Pushing max theoretical 10G throughput (roughly 9.7Gbps) using iperf VM to VM on different hypervisor hosts hooked to a HP procurve 2910al w/ 2 J9008 dual port 10G SFP+ modules. I used a direct attached copper (DAC)/twinax cables I got off the infamous bidding site we all know and love for about 1/3 of the price of typical 3m twinax cables and they were HP branded/part numbered as well.

Cons: None that I know of thus far other than reputable 10G switches are pricey still, at roughly $200 per 10G port you really can't gripe too much for the adapter though if you plan to use twinax and for-go the cost of optics which is great for short-haul.

4 out of 4 people found this review helpful. Did you?
Ownership: more than 1 year
3/ 5
Firmware locked optics

Pros: These cards work well. Very well supported open source drivers, and well maintained by Intel. They generally Just Work.

Cons: Artificially firmware locked to Intel optics. Absolutely unforgivable in a datacenter environment. Want to migrate that Twinax connected server across the room and need to swap to LR optics? You're out of luck and you better hope the entire ops team realizes this before scheduling anything. Lord help you if you find you're out of the right length twinax and need to get a server up quickly during an emergency!

Latest Linux drivers have a module load parameter you can use to disable this ridiculous firmware check. However, if you run these cards w/ a statically compiled kernel you must modify the driver source to get around the vendor lock.

Other Thoughts: Great performance, well supported, but absolutely inexcusable artificial vendor-lock for optics. Look at picking up the Supermicro branded versions of these cards (no firmware lock), or looking elsewhere at Myrinet for a company that makes extremely well performing cards that don't play games that make operations hell.

If you run Linux and can live with using loadable modules, you can also disable this check.

No Intel, I am not going to stock a bin of optics just for you in every location.

23 out of 23 people found this review helpful. Did you?
Ownership: 1 month to 1 year
5/ 5
Works

Pros: Generally available to consumers. Working fine with GBIC transceiver by Axiom, model E10GSFPSR-AX and multi mode fiber cable in Windows 2008 R2 with Intel driver version 17.0.200.2 on Supermicro X8DTU-F linked to HP switch.

Cons: 10G still too expensive.

1 out of 1 people found this review helpful. Did you?
Ownership: 1 week to 1 month
Verified Owner
5/ 5
Faster than quad gigabit

Pros: When feeding 3Gbaud traffic with standard 1500byte frames thru this NIC, performance is better due to interrupt offloading capabilities, compared to Intel Quad-port gigabit NICs.

Cons: None to mention.

Did you find this review helpful?
Ownership: 1 month to 1 year
Verified Owner
5/ 5
Excellent for Nexenta + ESXi

Pros: Extremely pleased with these, but I did my homework before purchasing. They compose a VMware vSphere 5 storage network.

2x Dell 8024F switches
5x Dell R710s with one of these cards in each server (ESXi 5 hosts)
1x Dell c2100 Server running NFS off of Nexenta CE 3.1.3 with 2 of these cards in it (one PCI based as sold here and another that is a mezzanine card) for an aggregate 40Gbps throughput to/from the SAN.
tons of Cisco SFP-H10GB-CU3M/SFP-H10GB-CU1M cables used for connectivity.

These were chosen for compatibility/reliability as we planned to build our own SAN solution after pricing every storage vendor we could fathom. We ended up spending a fraction of the quotes we were offered and got more for our $.

Shipping as always was remarkably fast w/ NewEgg.

Cons: Cost? They can be had elsewhere for substantially less.

Other Thoughts: Do your homework and buy the right cables, etc for these and you won't regret it.

2 out of 2 people found this review helpful. Did you?
Ownership: 1 month to 1 year
5/ 5
EXTREMELY fast.

Pros: Installed several of these in different platforms. No compatibility problems with Windows server, VMware ESX 5 or QNAP SAN.

Cons: The are pricey, 10x fast as gigabit, but more than 10x the cost of gigabit.

Other Thoughts: If you are going to use these with SFP+ direct connect cables DO NOT BUY AN OFF BRAND CABLE! These cables have firmware chips in them that negotiate the connection. Get either the Cisco or Netgear cables they have here at Newegg.

5 out of 7 people found this review helpful. Did you?
