NETGEAR
BUSINESS

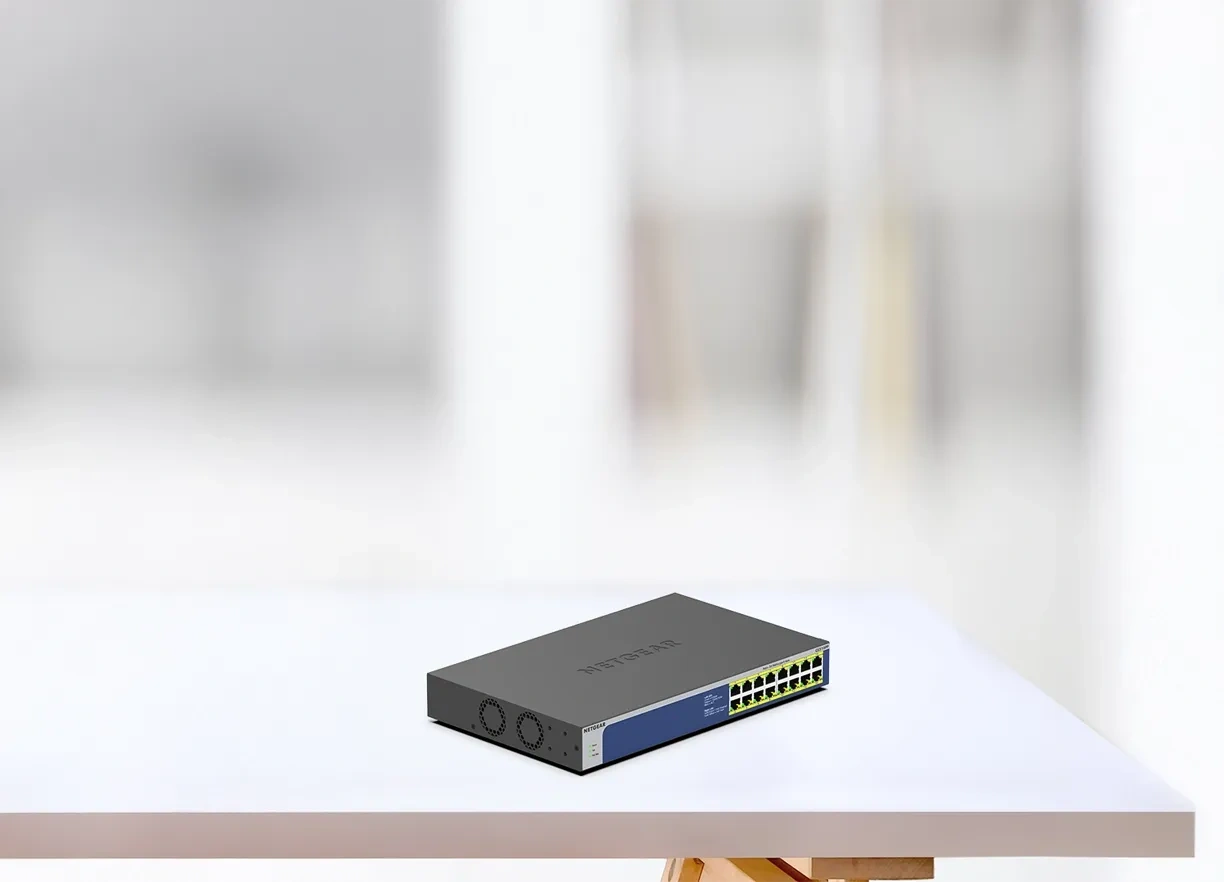

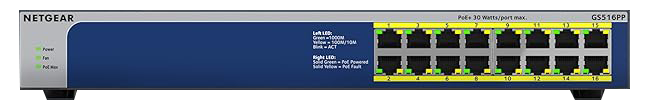

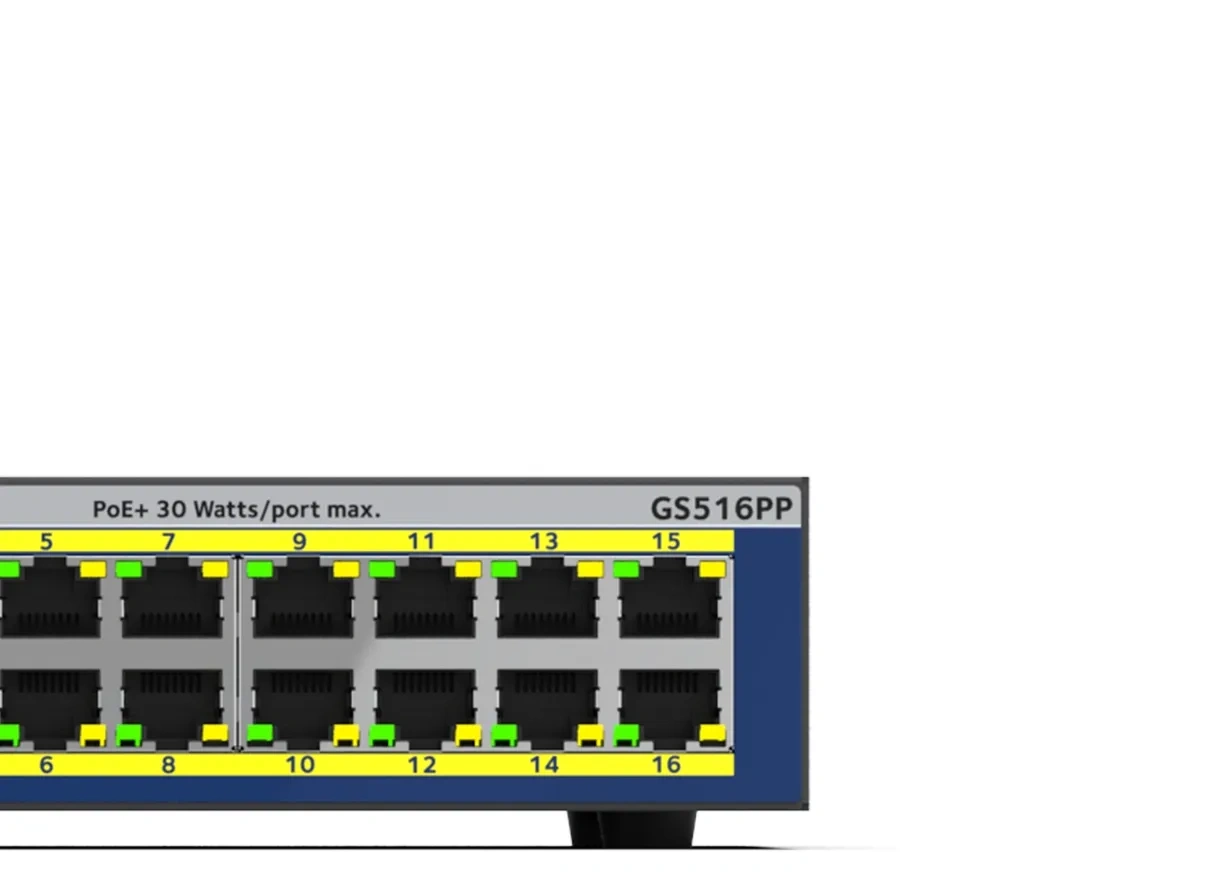

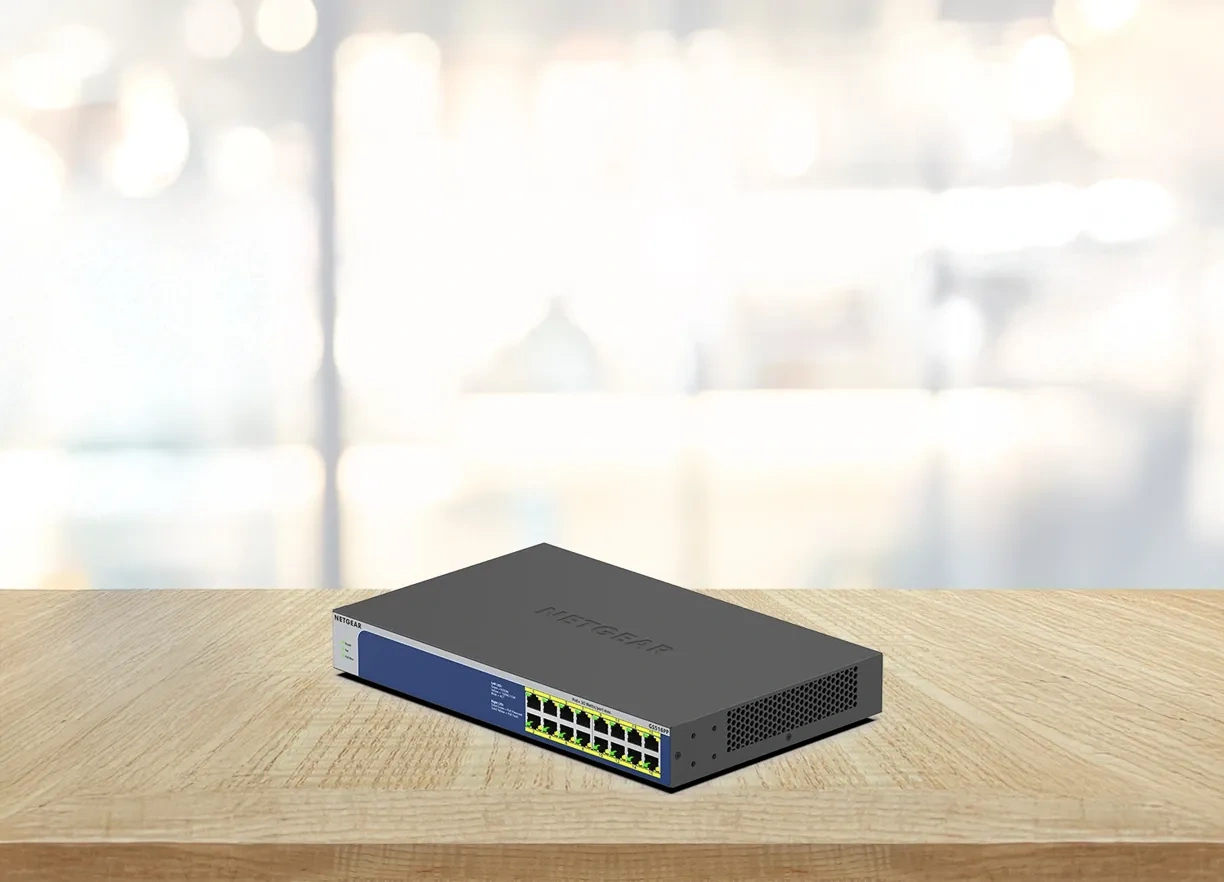

16 Port Gigabit Unmanaged Switch with PoE+ (260W)
[ GS516PP ]
Instant Networking
Plug-and-play setup, get reliable and secure Internet connectivity immediately.
Convenient Power-over-Ethernet
One cable for both power and connectivity. 16 PoE+ ports with 260W total power budget. 30W per port.
Power Efficient
Each port uses only the power it needs thanks to auto-balancing.
Designed for Zero-Noise Operation
Passively cooled fanless design to protect your business environment.
Compare Similar NETGEAR Switch Models
|
Technical Specifications |
GS516PP |
GS516UP |
GS524PP |
GS524UP |
| 10/100/1000 Mbps Ports (Auto Uplink) | 16 | 16 | 24 | 24 |
| Enclosure | Metal | Metal | Metal | Metal |
| Connector Type | Metal | Metal | Metal | Metal |
| Form Factor | Desktop / Rack mount | Desktop / Rack mount | Desktop / Rack mount | Desktop / Rack mount |
| Power On/Off Switch | NA | NA | NA | NA |
|
PoE Configuration |
||||
| 802.3at PoE+ Ports | 16 | 8 | 24 | 8 |
| 802.3bt PoE++ Type 3 Ports | 0 | 8 | 0 | 16 |
| Pre-802.3bt Compatible | N/A | Yes | N/A | Yes |
| PoE Max Power Per Port | 30W | 60W | 30W | 60W |
| Total PoE Power Budget | 260W | 380W | 300W | 480W |
|
Performance Specifications |
||||
| Bandwidth (Non-Blocking) | 32 Gbps | 32 Gbps | 48 Gbps | 48 Gbps |
| Packet Buffer Memory | 192 KB | 192 KB | 192 KB | 192 KB |
| Jumbo Frame Support | 9,216 bytes | 9,216 bytes | 9,216 bytes | 9,216 bytes |
| Queue WRR Ratio | 1:2:4:8 | 1:2:4:8 | 1:2:4:8 | 1:2:4:8 |
| Forwarding Rate (64-byte packets) | 1,488,000 pps | 1,488,000 pps | 1,488,000 pps | 1,488,000 pps |
| Latency (64-byte packets) | < 12 µsec | < 12 µsec | < 12 µsec | < 12 µsec |
| MAC Address Table Size | 8K | 8K | 8K | 8K |
| Auto MDI/MDI-X | Yes | Yes | Yes | Yes |
| Auto-sensing Half/Full Duplex | Yes | Yes | Yes | Yes |
| MTBF @ 25°C | 2,415,333.9 hrs | 1,213,791.0 hrs | 1,457,063 hrs | 809,853.3 hrs |
