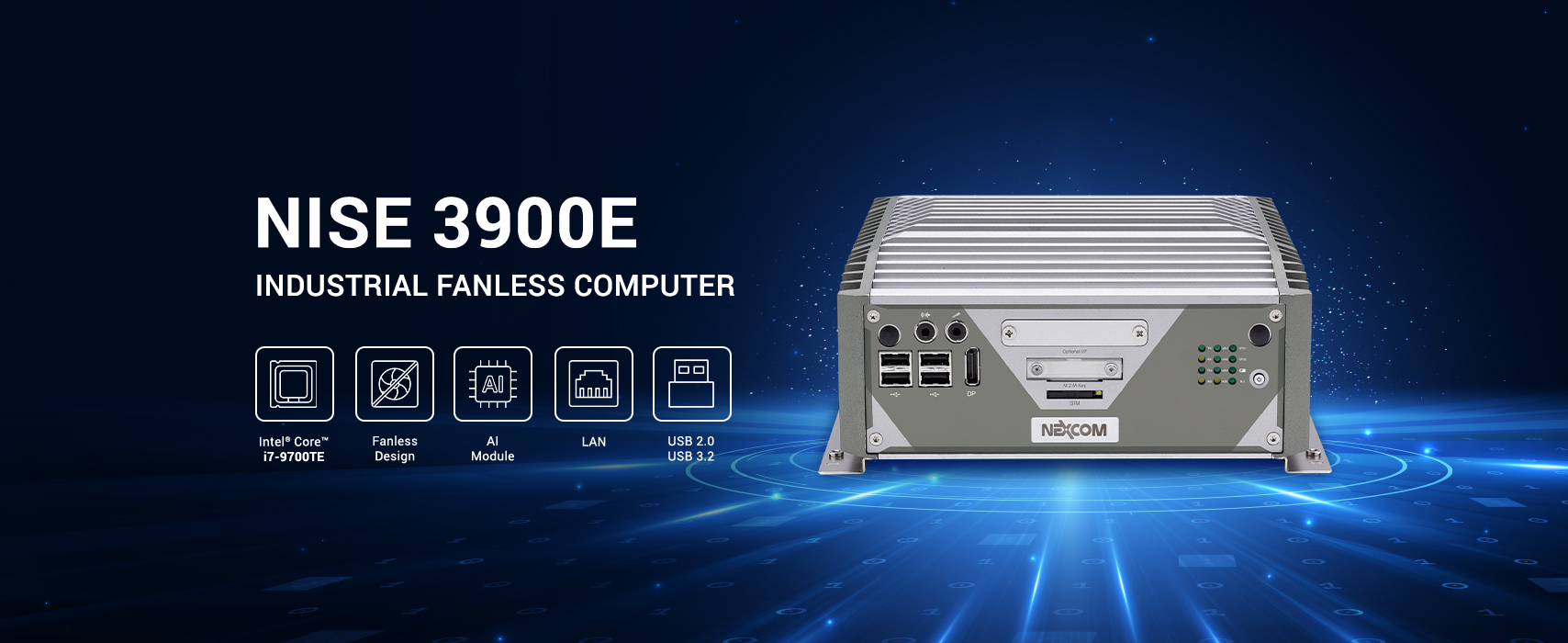

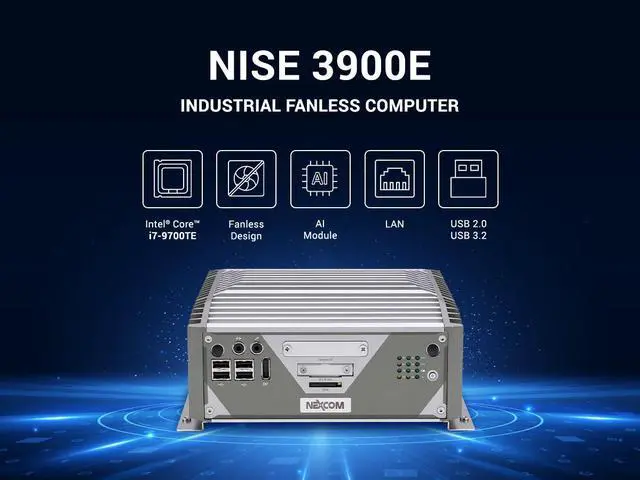

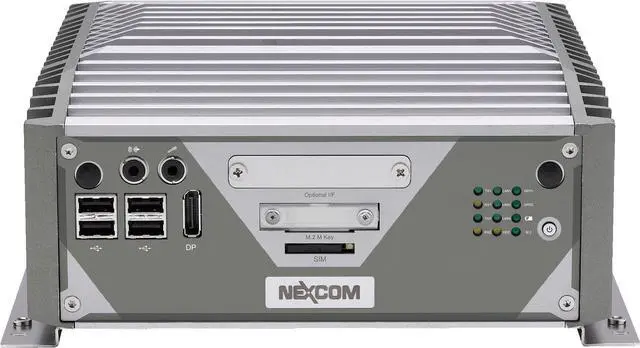

NexAIoT Industrial PC | Factory Automation NISE Hi-Performance Line NISE 3900E Intel® Core i7-9700TE 1.8GHz

Powered by 8th & 9th Gen Intel® Core i3/i5/i7 processors, the NISE 3900E is a fanless system engineered for industrial applications requiring robust CPU performance. With a wide DC input range of 9-30V and ATX power mode, it operates reliably from -5°C to 55°C. Designed for enhanced expandability, the NISE 3900E features a PCIe x4 expansion slot to support advanced industrial computing.

AIoT Software Free Download https://www.aiotcloud.dev/en/community-version

Fanless Systems Delivering High Performance for Industrial Applications

The NEXCOM NISE 3900E fanless system integrates high computing power, expandability, and connectivity for industrial needs. Equipped with 8th and 9th Gen Intel® Core i3/i5/i7 processors and Intel® Q370 Chipset, it provides advanced processing for industrial applications. With robust expandability and connectivity, it supports CNC control, machine inspection, and edge server solutions.

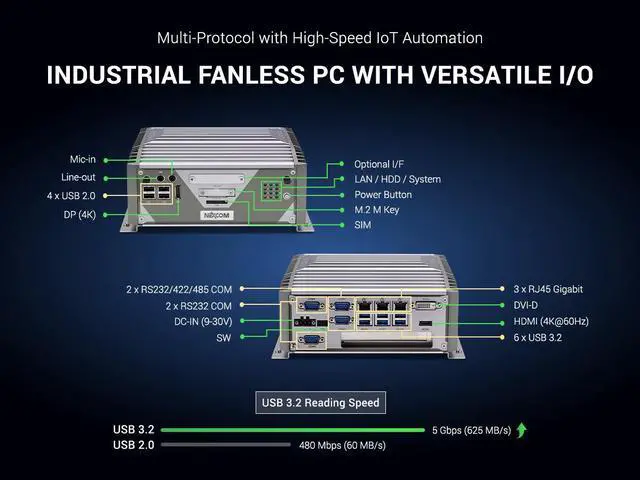

The NISE 3900E fanless system supports automatic optical inspection machines with robust connectivity. Featuring six USB 3.1 Gen 1 and three GbE LAN ports, it seamlessly integrates with high-speed cameras for industrial image processing applications.

The NISE 3900E serves as an efficient IoT Edge Server solution. In edge computing, it collects and analyzes data from factory devices in real-time, transmitting essential data remotely to optimize network traffic.

Specifications
CPU Support -

• Supports 8th & 9th Gen Intel® Core i3/i5/i7 LGA 1151 Socket Processors

- Chipset -

• Intel® Q370 Platform Controller Hub

- Power Requirements -

• Supports 9-30V DC Input, ATX Power Mode

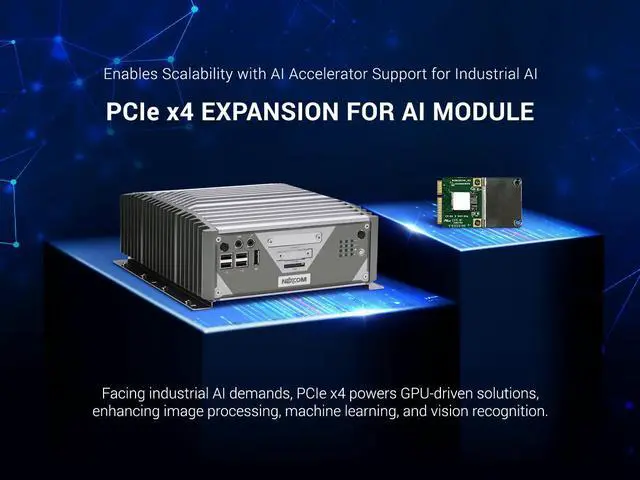

- Expansion Slot -

• One PCIe x4 Expansion Slot (Supports Cards up to 169mm, 10W Max)

- Display Option -

• 1 x DVI-D, 1 x DP, 1 x HDMI with Independent Display Support

- Network -

• Three Intel® GbE LAN Ports with WoL, Teaming, and PXE Support

- USB Interface -

• 6 x USB 3.1 Gen 1, 4 x USB 2.0

- Dimensions -

• 215mm (W) x 272mm (D) x 94mm (H) without Wall Mount Bracket

- Environment -

• Supports -5°C to 55°C Extended Operating Temperature
