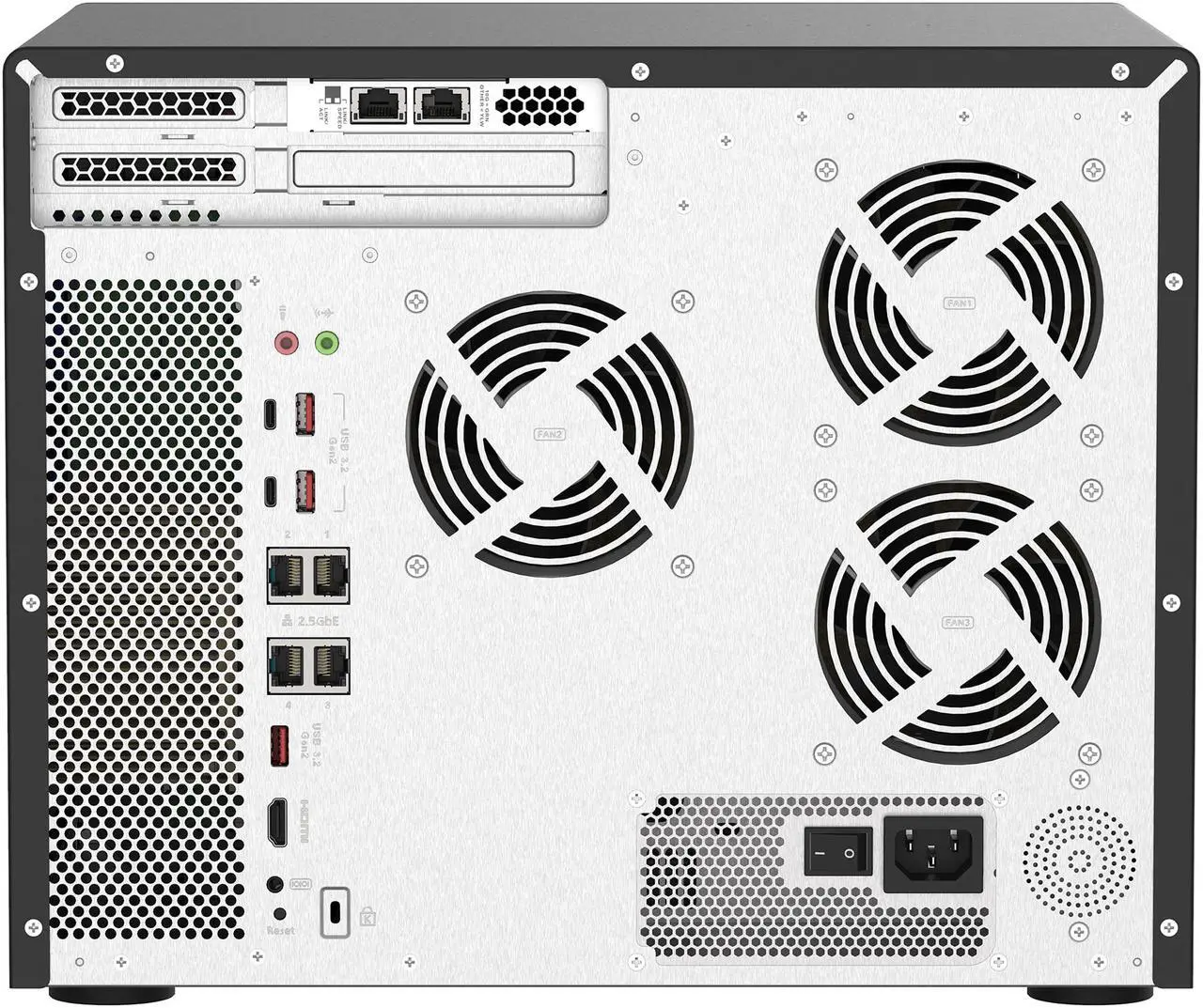

Ports	1 x HDMI 1.4b / 2 x 10GbE / 2 x USB 3.2 Gen 2 Type-C / 4 x 2.5GbE / 4 x USB 3.2 Gen 2
Port RJ-45	4 x 2.5 GbE + 2 x 10GbE
Port USB	2 x USB 3.2 Gen 2 Type-C, 4 x USB 3.2 Gen 2 Type-A
Port Others	2 x M.2 22110/2280 NVMe PCIe Gen3 x4 slots 1 x HDMI 1.4b (up to 4096 x 2160 @ 30Hz) 1 x 3.5 mm dynamic microphone jacks 1 x 3.5mm line out jack (for amplifiers or speakers)
HDD Interface	12 x 3.5" SATA 6Gb/s, 3Gb/s + 4 x 2.5" SATA 6Gb/s, 3Gb/s

Form Factor	16-Bay
Processor	Intel Xeon W-1250 6-core 3.3 GHz processor (boost up to 4.7 GHz)
Installed Memory	32GB DDR4
Max Memory Capacity	128GB
Memory Slot	4 x DDR4 DIMM

Power	550W PSU, 100~240V Power Consumption: HDD Sleep Mode 91.26 W Power Consumption: Operating Mode, Typical 108.67 W
Power Consumption	108.67 W (Access) 91.26 W (HDD Hibernation)

Temperature	Operating temperature: 0 - 40°C (32°F - 104°F)
Humidity	Relative Humidity: 5-95% RH non-condensing, wet bulb: 27°C (80.6°F)

Dimensions & Weight
Dimensions	11.96" x 14.56" x 12.59"
Weight	29.56 lbs.

Item#: N82E16822099110

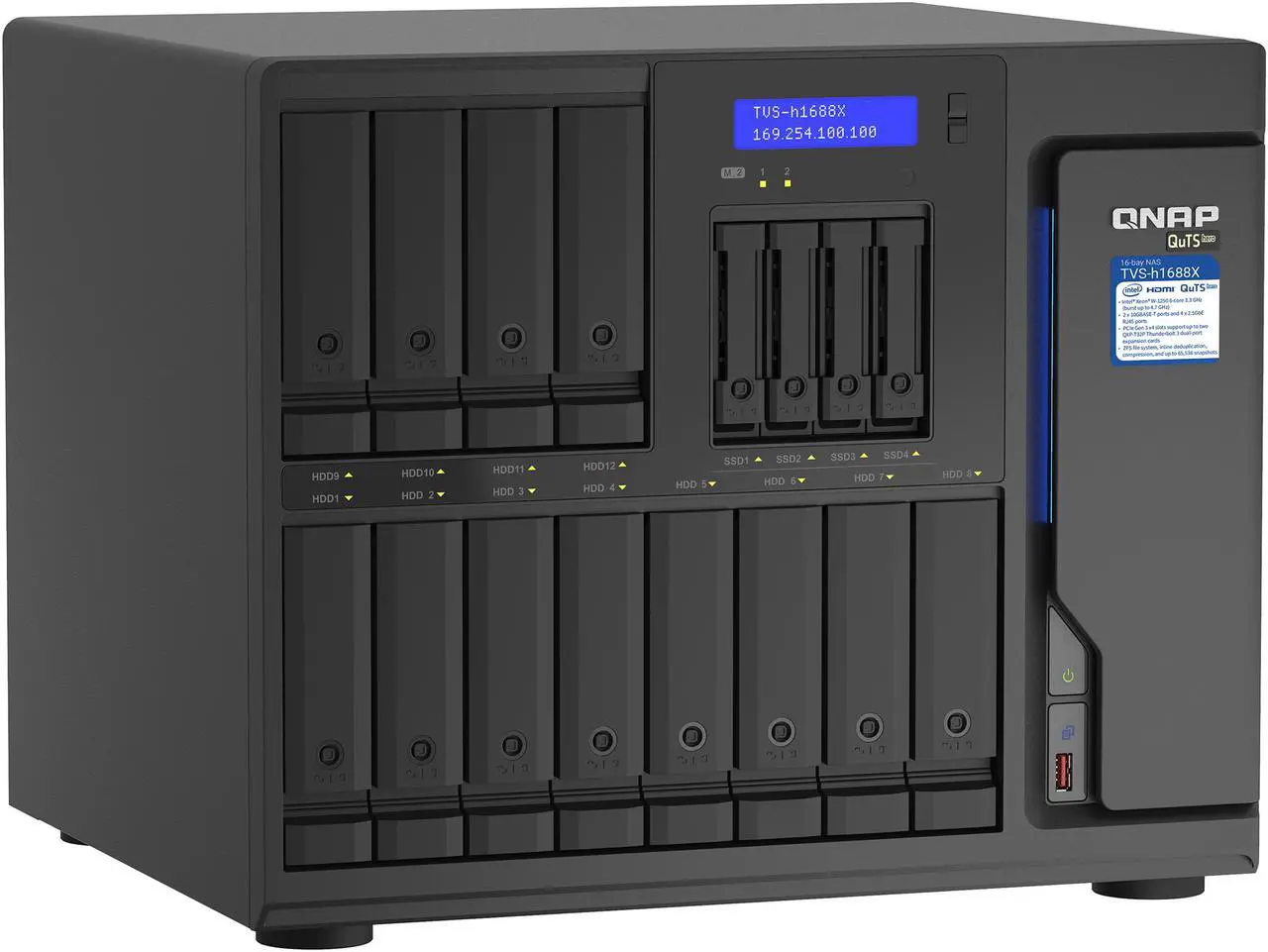

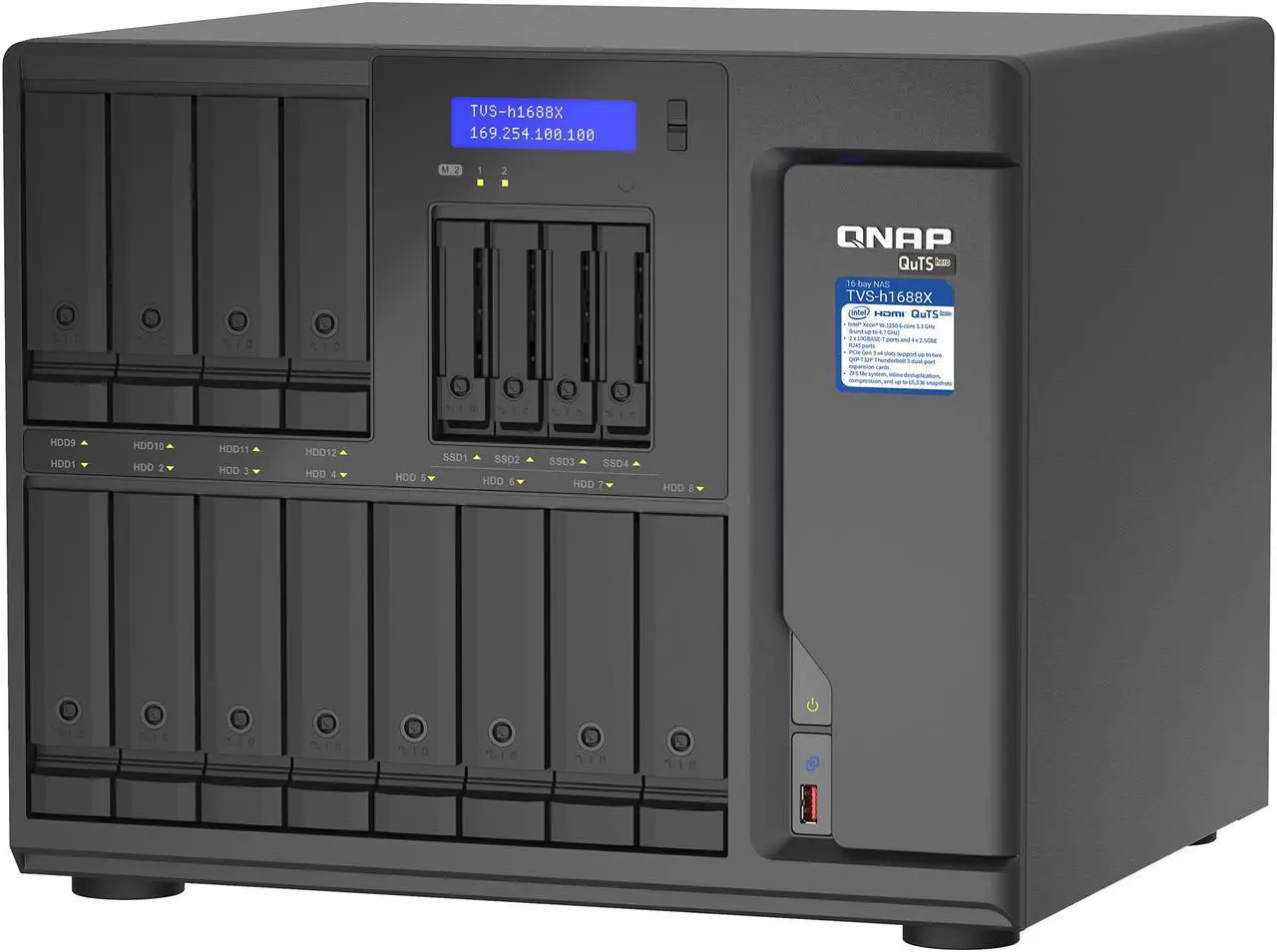

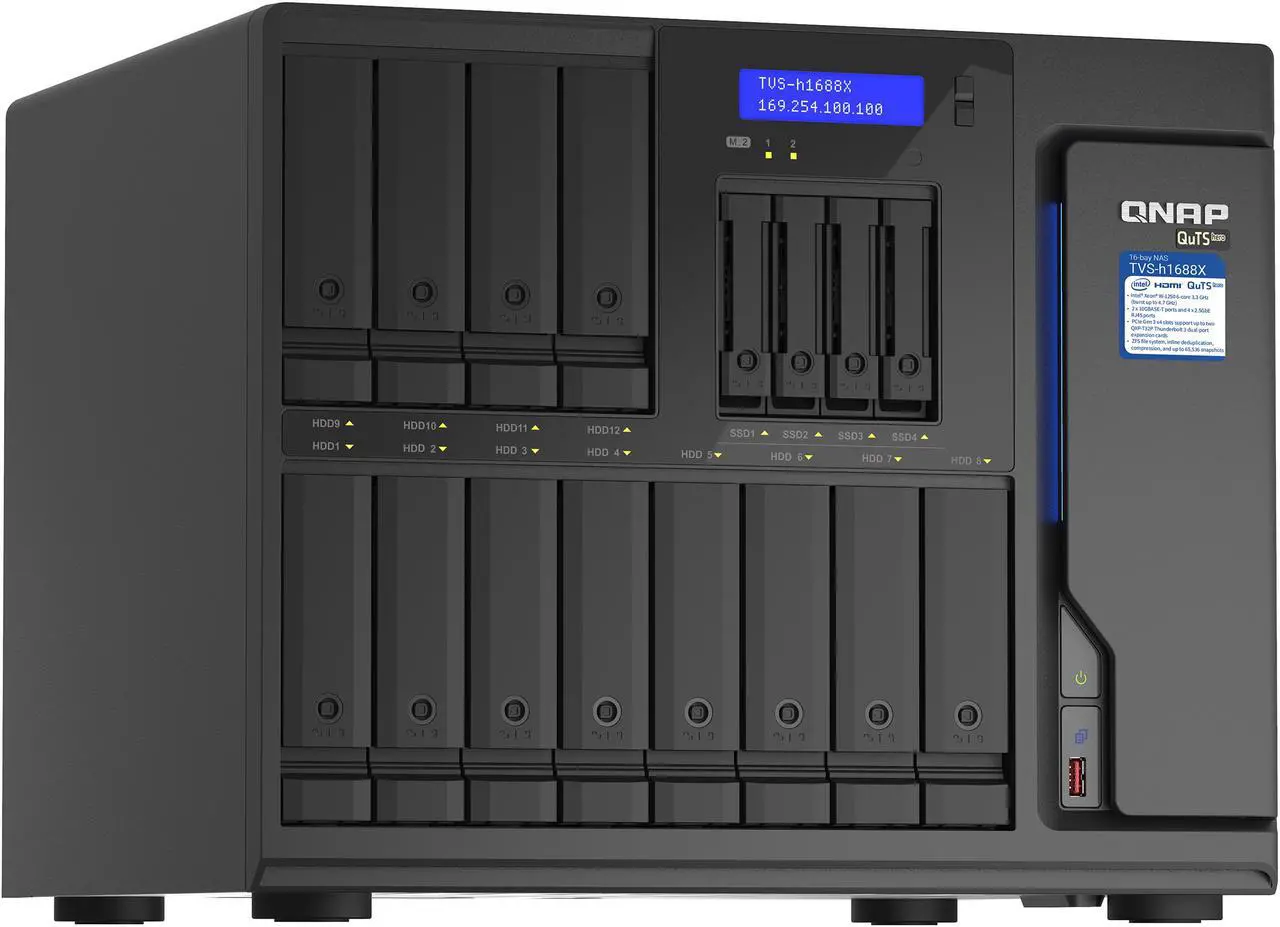

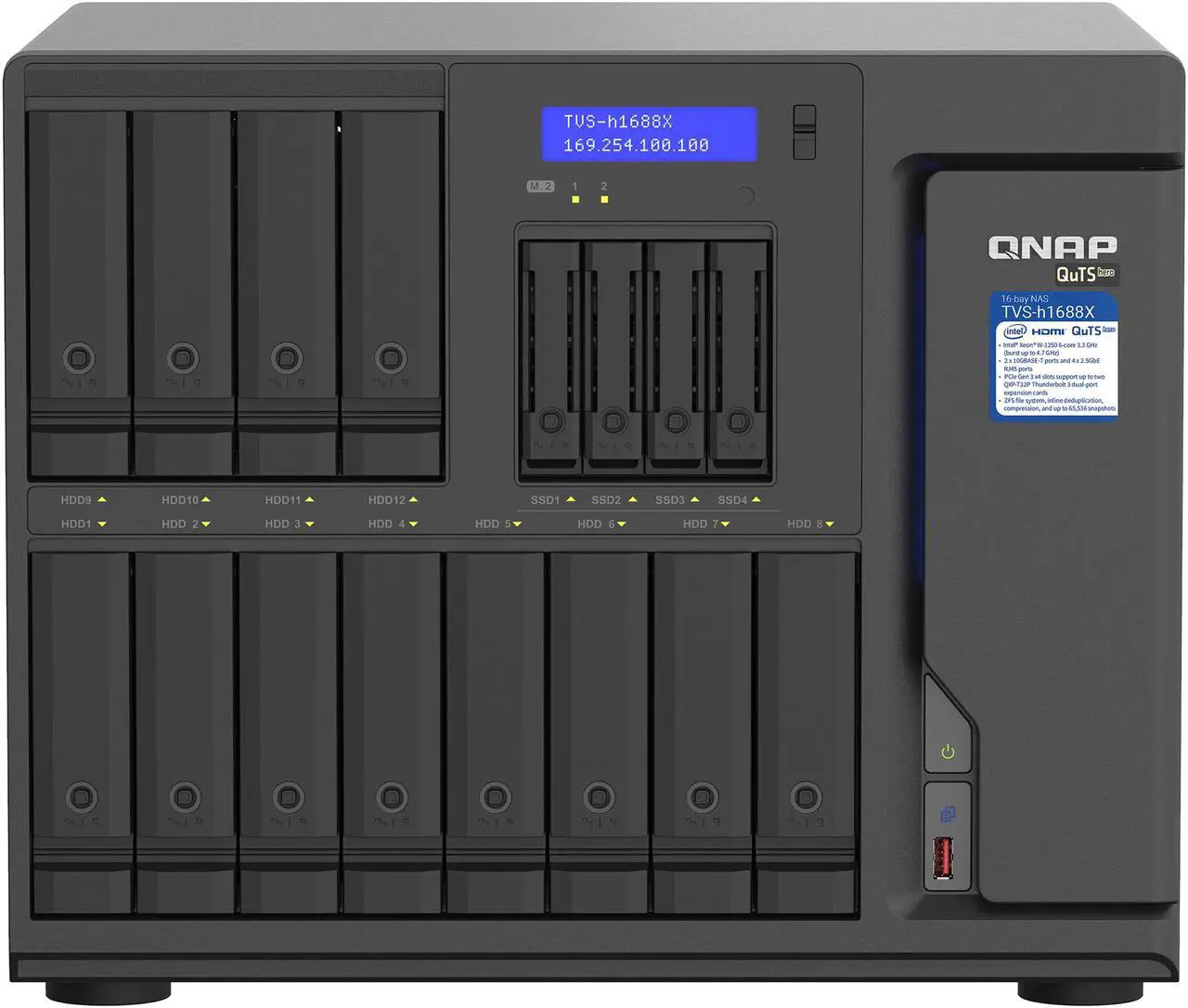

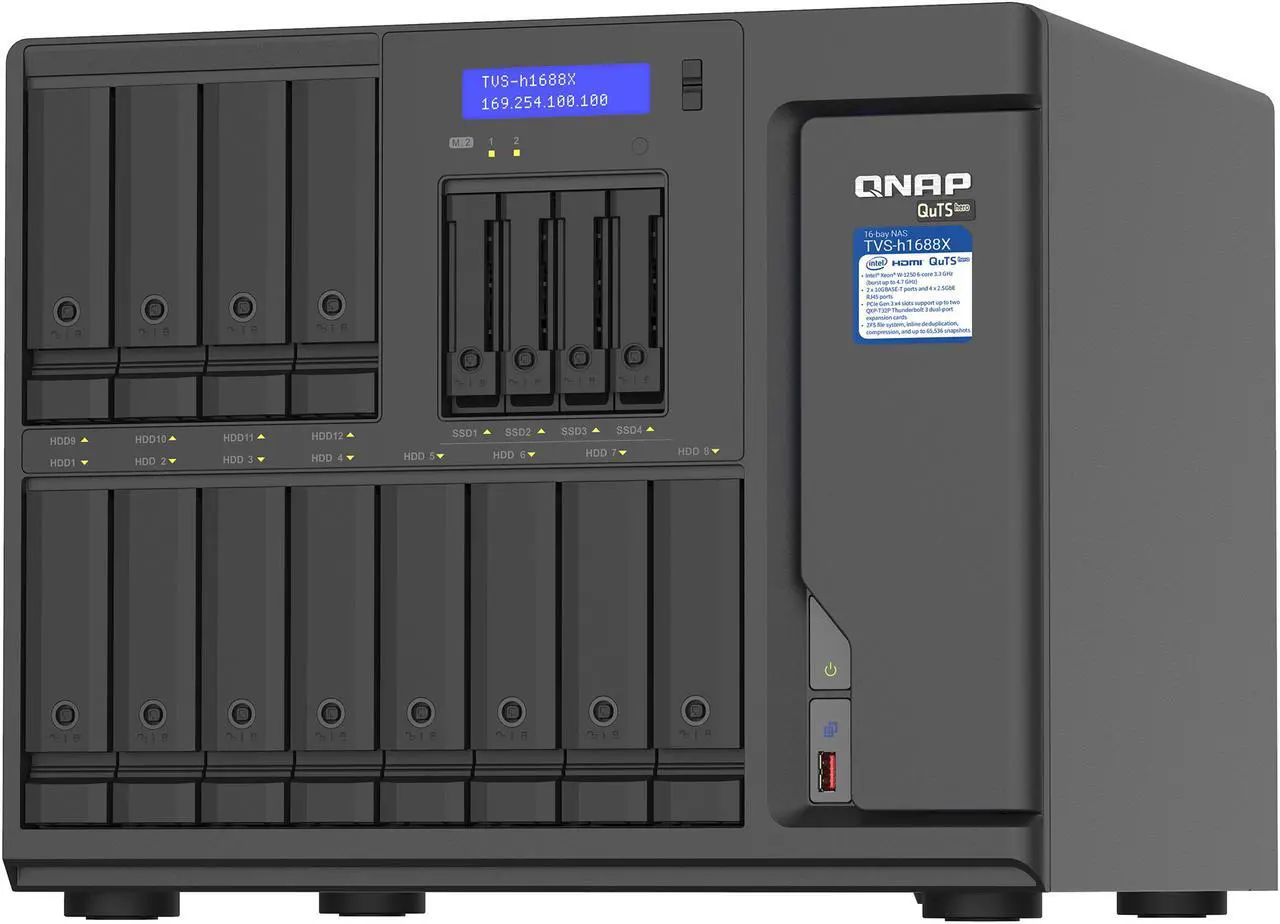

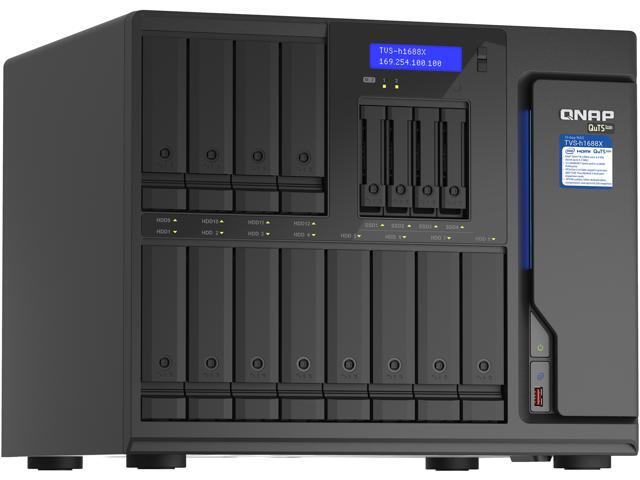

QNAP TVS-H1688X-W1250-32G-US Diskless System Network Storage
