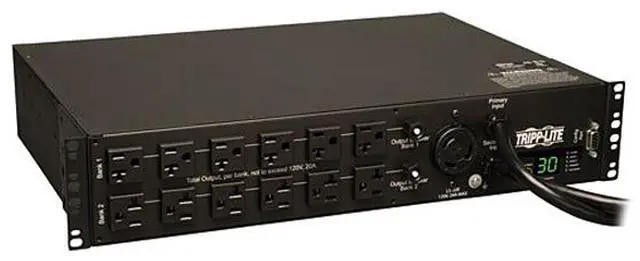

Tripp Lite Metered PDU with ATS, 2.9 kW Single-Phase 120V Outlets (24 x 5-15/20R, 1 x L5-30R), 2 x L5-30P, 2 x 10 Feet Cords, 2U Rack-Mount, TAA (PDUMH30AT)

Single phase 30A 120V Auto Transfer Switch / ATS PDU; Highly reliable Solid State Switching
Separate primary & secondary inputs connect to any two compatible power sources
2U horizontal rackmount; 2 x L5-30P inputs; 24 x 5-15/20R & 1 x L5-30R outlets
Digital meter reports voltage, kW load level and output amperage in 4 load segments
TAA-Compliant

Overview

Specs

Reviews

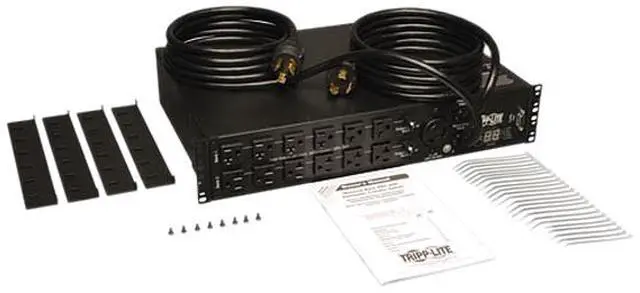

MAIN OVERVIEW FEATURES: Input Receptacles: 2 x NEMA L5-30POutput Receptacles: 24 x NEMA 5-15/20R,1 x NEMA L5-30RInput Voltage: 120 V ACInput Voltage Range: 100 V AC - 127 V ACOutput Voltage: 100 V AC,120 V AC,127 V ACMounting Orientation: HorizontalPlacement: Wall,RackRack Height: 2UHeight: 3.5"Width: 17.5"Depth: 12.5"Weight (Approximate): 13.80 lbPackage Contents: Metered PDUMH30AT 25-Outlets PDUInstallable Plug-retention ShelvesRackmount Installation BracketsCable TiesEnvironmentally Friendly: YesEnvironmental Certification: RoHSTAA Compliant: YesLimited Warranty: 2 Year

Type	Switched, Metered
Rack Size	2U
Style	Rackmount

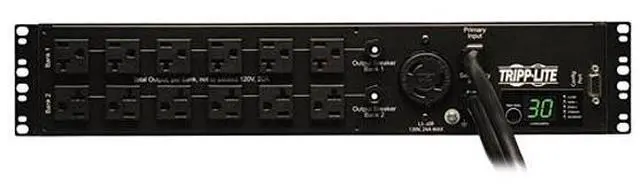

Front Panel LEDs	Primary and Secondary input connection. Digital current meter display shows the amount of power consumption in amps for entire PDU output.
Certifications	Tested to UL 60950 (USA, Canada), Class A (Emissions), NOM (Mexico), RoHS Complaint
ROHS	Yes

Input Voltage	100V, 120V, 127V
Maximum Input Current	30A

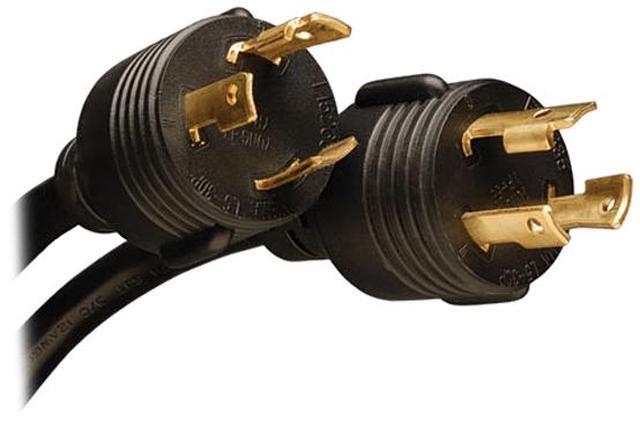

Input Connector(s)	NEMA L5-30P
Cord Length	10 ft.

Output Voltage	100V, 120V, 127V
Output Frequency	60Hz

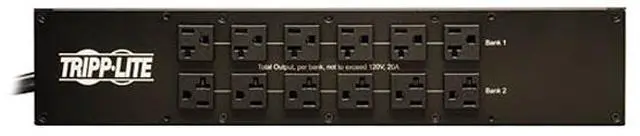

Output Connector(s)	24 x 5-15/20R & 1 x L5-30R outlets
Overload Protection	2 x 20A output breakers protect 12 x 5-15/20R outlets each

Operating Elevation	0 - 10,000 Feet (0 - 3000 m)
Storage Temperature	-15 to 50 degrees Celsius
Storage Relative Humidity	5-95% non-condensing

Dimensions	3.41" x 17.32" x 11.89"
Weight	13.71 lbs.
