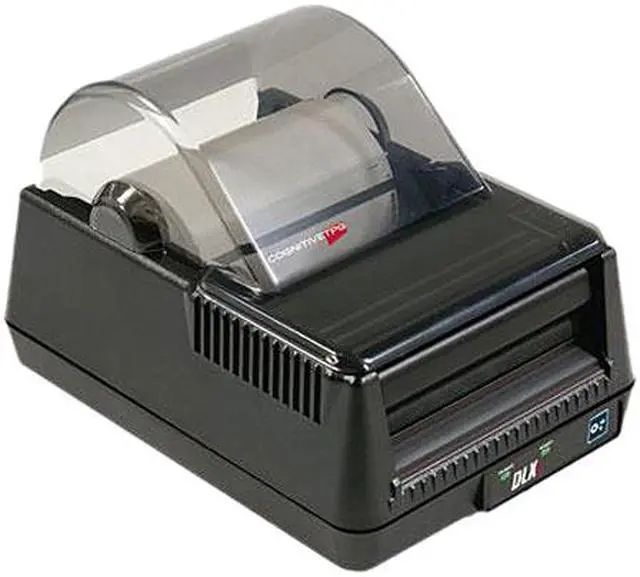

Cognitive TPG DLXi 4" Desktop Direct Thermal Label Printer, 203 dpi, USB/Serial/Mini Cent Parallel/Ethernet - DBD42-2085-G1E
- 203 dpi @ 5 ips
- Robust and rugged are the hallmarks of our thermal label printers
- The DLXi combines this legendary reliability with the latest communication interfaces and performance
- Designed to operate in challenging environments, the DLXi offers an easy to use and seamless migration from our earlier models
- Same metal frame and construction of legacy printers
- Most combined interfaces on one unit, including a standard USB-A Host port
- CPL, EcPL and ZcPL programming language resident
- Includes: Power supply, US cord, USB cable
+
+
Overview
Specs
Reviews
Built to last...designed to connect.
Robust and rugged are the hallmarks of the Blaster and Advantage LX thermal label printers. CognitiveTPG is carrying on this tradition with the introduction of its latest desktop thermal label printer, the DLXi. The DLXi combines legendary reliability with the latest communication interfaces and performance. The DLXi is designed to operate in challenging environments while providing a seamless migration to the latest technology and performance.
CognitiveTPG DLXi Thermal Desktop Label Printer
Robust and rugged are the hallmarks of our thermal label printers. The DLXi combines this legendary reliability with the latest communication interfaces and performance. Designed to operate in challenging environments, the DLXi offers an easy to use and seamless migration from our earlier models.
Key Features
- Robust field-proven metal frame and print mechanism construction
- All common interfaces on one unit for maximum flexibility
- Includes standard printer language emulations for a seamless installation
- Same metal frame and construction of legacy printers
- Most combined interfaces on one unit, including a standard USB-A Host port
- Fast print speeds up to 5 inches per second (127mm/sec)
- CPL, EcPL and ZcPL programming language resident
- Standard 2-year warranty
Industries
Hospitality
Distribution
Services
Transportation & Logistics
Retail
Manufacturing
Healthcare
GovernmentHighlights
Stand-Alone Application
Use the USB A port to attach scanner or keyboard for on-demand labeling
Most Standard Communication Interfaces on One Printer
The most standard communication interfaces you'll find on a single printer
The Printer You can Stand On
Built on the same design as the legendary Blaster and AdvantageLX, the DLXi is the most robust and reliable desktop label printer on the market
Metal vs. Plastic
One touch will tell you that this is not a plastic-component printer. We understand the environments and workload these printers endure, which is why we use solid metal framing, print mechanisms, and components to give this printer rugged and industrial strength to stand up to some of the most challenging environments. See why they call it the "printer you can stand on."
Interfaces Provide Versatility
The DLXi offers the most communication interfaces offered on a desktop printer
(Serial, Parallel, Ethernet, USB-B and USB-A). The USB-A Port allows it to host a wide variety of devices as well as offering easy to use updates and stored formats.
TECHNICAL SPECIFICATIONS
| 2-Inch Model | 4-Inch Model | ||
| Method | Direct Thermal or Thermal Transfer | Direct Thermal or Thermal Transfer | |
| Width (max) | 2.2" (56mm) | 4.1" (104mm) | |
| Length (max) | 322" (8179mm) | 322" (8179mm) at 203dpi | |
| Speed (max) | 5ips (127mm/sec) | 5ips (127mm/sec) | |
| Resolution | 203dpi (8dpmm) | 203dpi (8dpmm) | |
| MEDIA | |||
| Width | 1" - 2.4" (25mm - 61mm) | 2" - 4.25" (50mm - 108mm) | |
| Roll Diameter | 4.7" (119mm) | 4.7" (119mm) | |
| Ribbon Length (TT only) | 3150" (80m) | 3150" (80m) | |
| Indexing | Black bar, notch, and gap | Black bar, notch, and gap | |
| Media Caliper | 005" - 0.01" (0.127mm - 0.254mm) | 0.005" - 0.008" (0.172mm - 0.2mm) | |
| BARCODES |
|||
| 29 standard bar codes, including Add2, Add5, Codabar, Code39, Code93, Code 128A/B/C, D2of5, I2of5, EAN8/8+, EAN13/13+, EAN128, Maxicode mode 0, MSI/MSI1, PDF417, Plessey, Postnet, UPCA/A+, DataMatrix, Aztec, QR Code, RSS | |||
| FONTS |
|||
| Bitmapped | Seven (7) styles with up to 10 x 10 magnification, variable boldness and spacing | ||
| International | Sans serif font in 7pt. sizes, up to 4 x 4 magnification, variable boldness and spacing | ||
| Scalable Smooth Fonts | Three Ultra Font styles for smooth characters in any size and boldness | ||
| Rotations | 0, 90, 180, & 270 degrees | ||
| GRAPHICS |
|||
| PCX and BMP formats | |||
| MEMORY |
|||
| RAM - 16MB, Flash - 8MB | |||
| COMMUNICATIONS | |||
| Available Combinations | Serial (DB9), USB-A & B | Serial (DB9), Parallel (1284C), USB-A & B | |
| Parallel (1284C), USB -A & B | Serial (DB9), Parallel (1284C), Ethernet, USB-A & B | ||
| Serial (DB9), Ethernet, USB-A & B | |||
