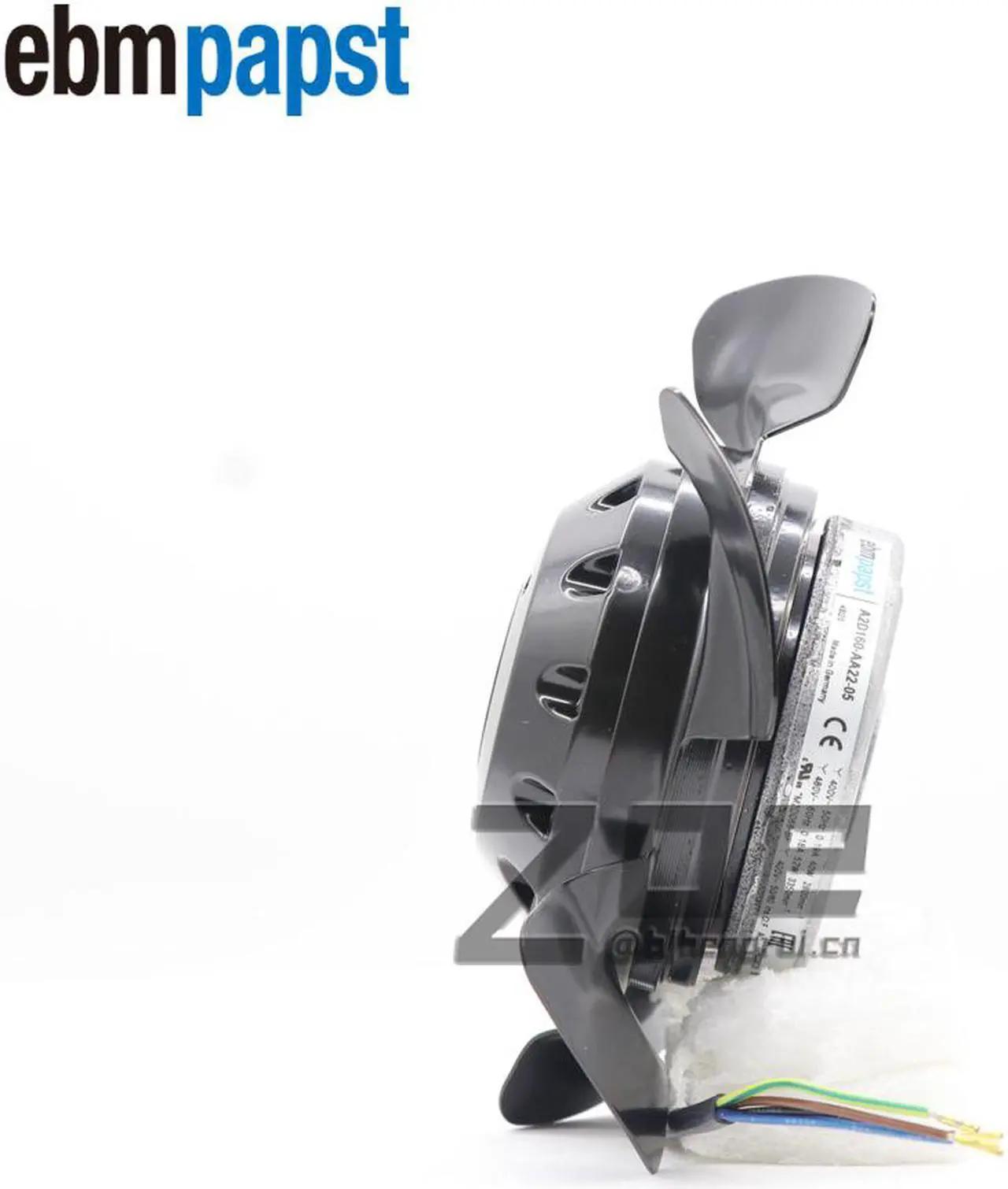

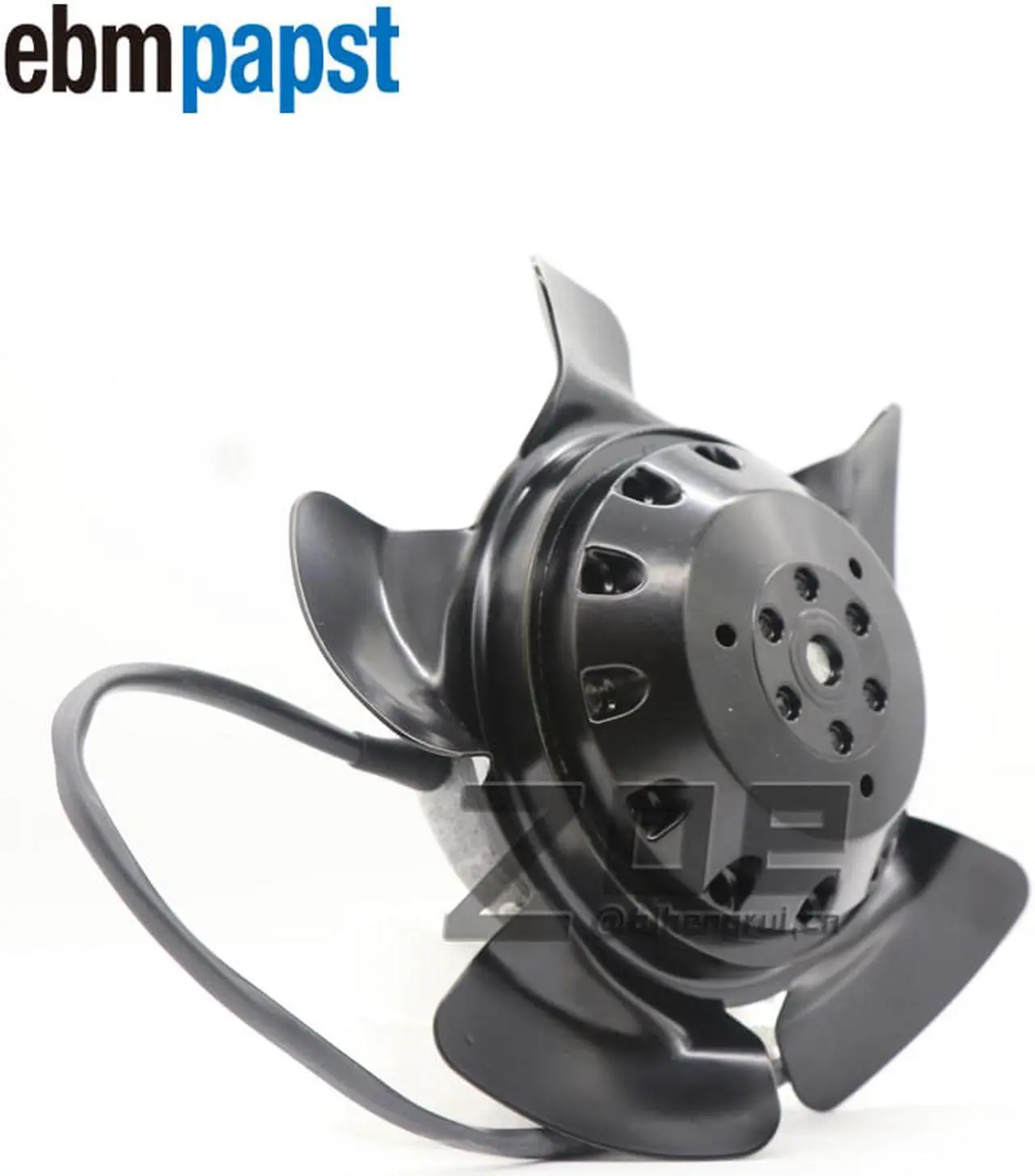

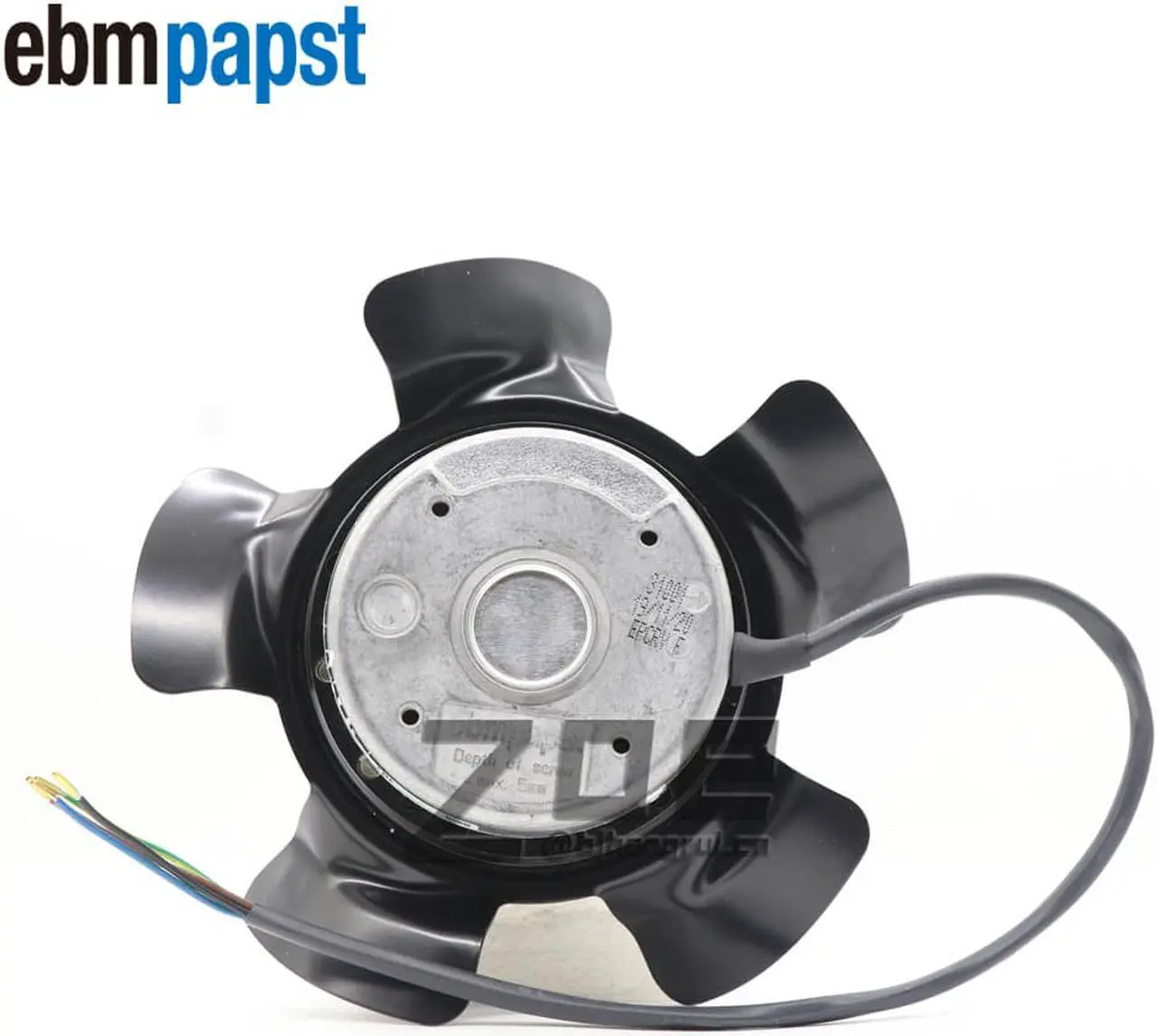

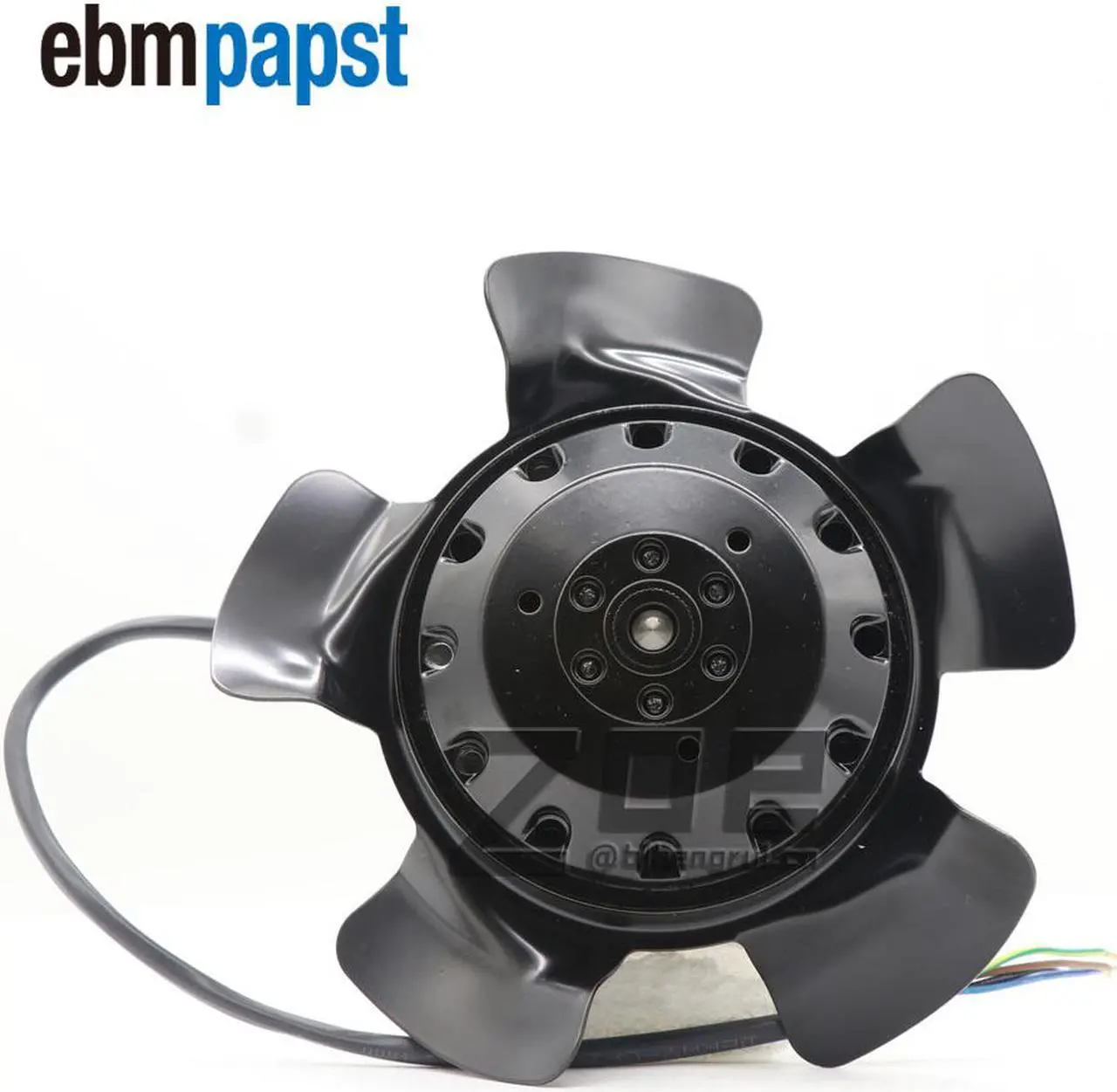

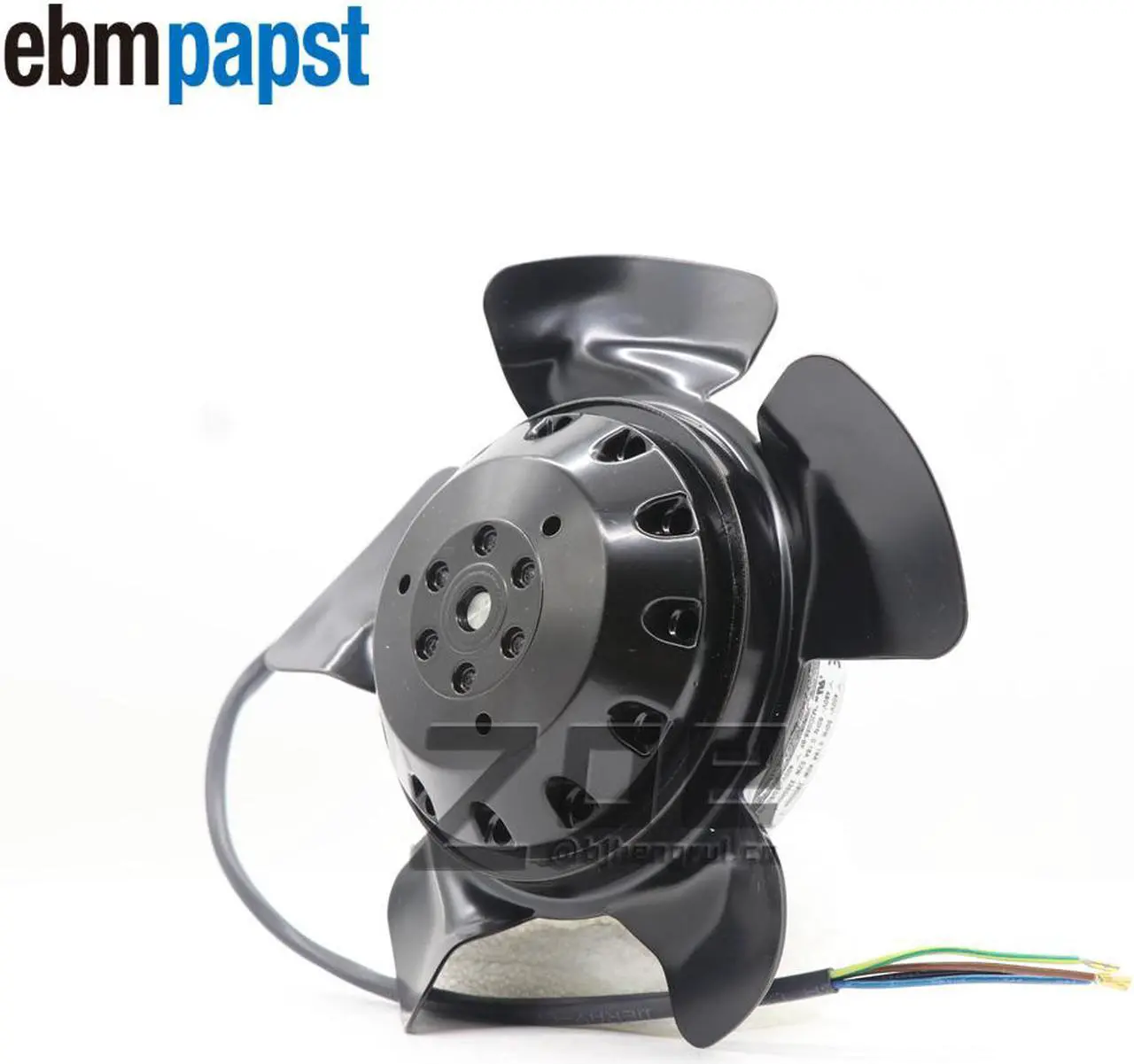

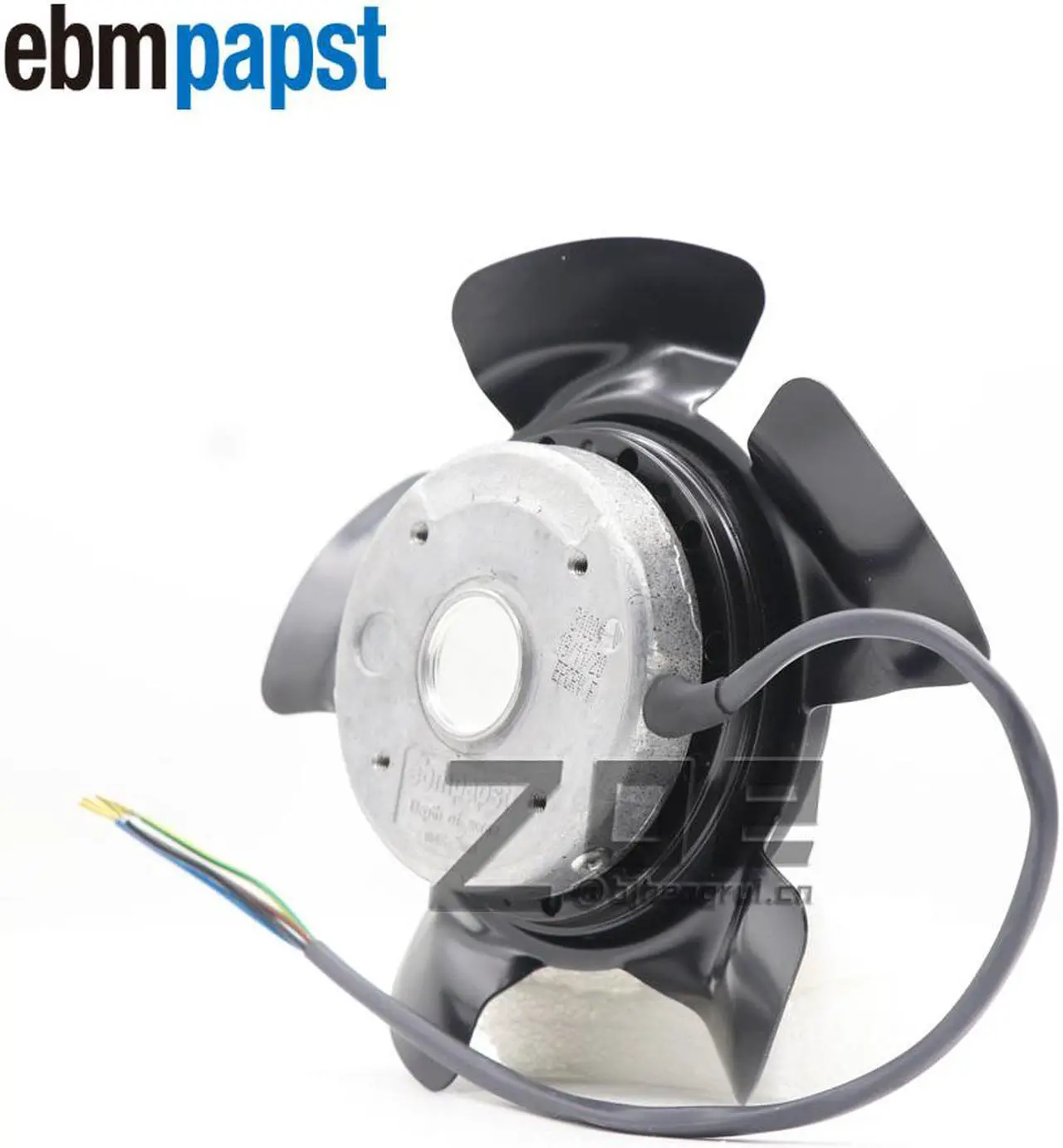

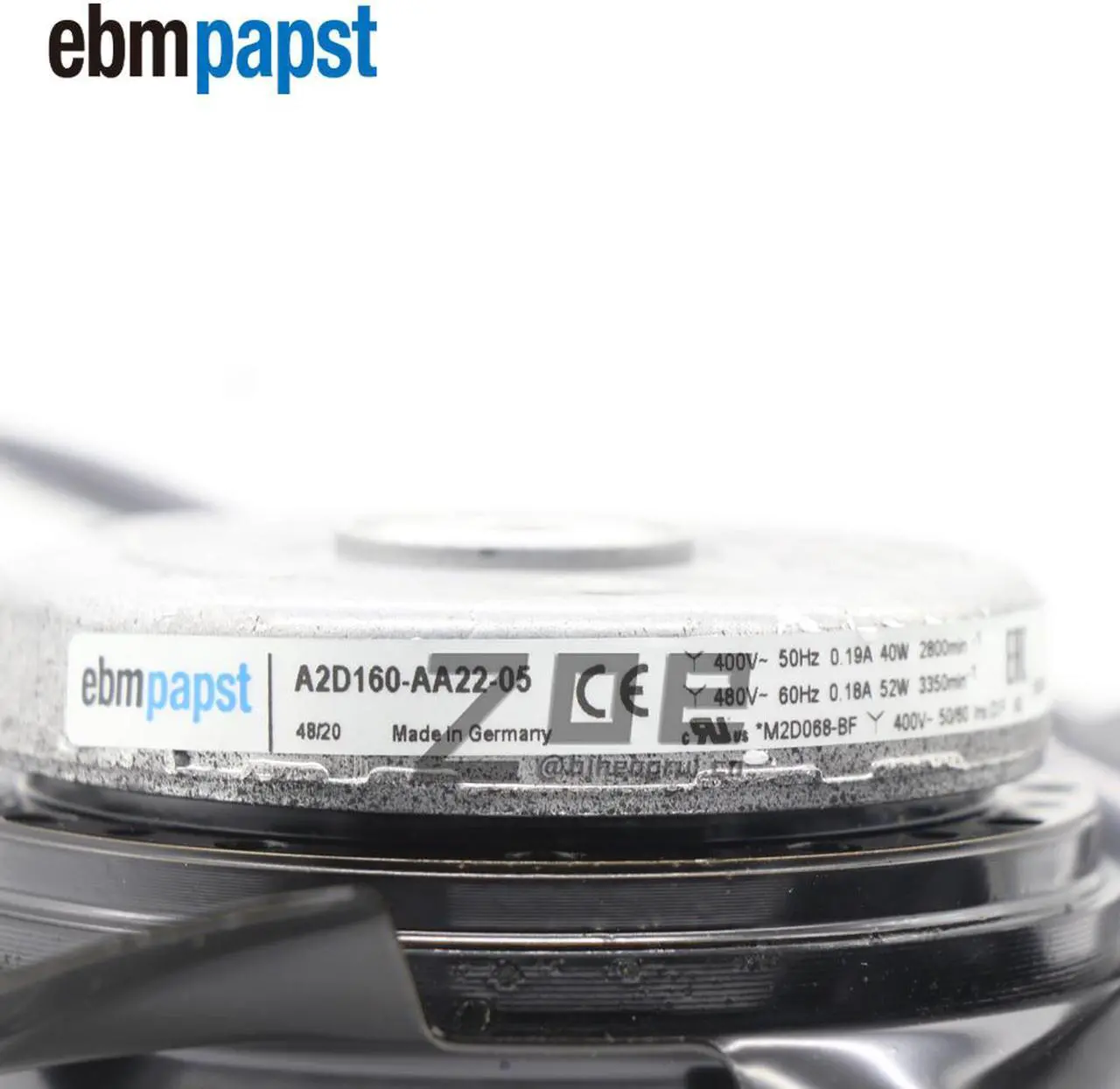

Ebmpapst A2D160-AA22-05 Ac Axial Fan 400Vac 161X62.5Mm 335M3/h Ball Bearing 2800Rpm
- Condition: 100% new and good quality;
- Brand:ebmpapst ;Model: A2D160-AA22-05;
- 400VAC/480VAC; 50Hz/60Hz;2800min-1/3350min-1 ;40W/52W;
- We are professional Fan supplier,All products are New original genuine. Please rest assured to purchase, About the product parameters , please check and understand them carefully ,if not please feel free to contact us, we are pleased with serve for you.
+
+
Overview
Specs
Reviews
Nominal data
Type A2D160-AA22-05
Motor M2D068-BC
Phase 3~ 3~
Nominal voltage VAC 400 480
Connection Y Y
Frequency Hz 50 60
Type of data definition cs cs
Valid for approval / standard CE CE
Speed min-1 2800 3350
Power input W 40 52
Current draw A 0.19 0.18
Min. ambient temperature °C -25 -25
Technical features
Mass: 1.2 kg
Size: 160 mm
Surface of rotor: Coated in black
Material of blades: Sheet steel, galvanised
Number of blades: 5
Direction of air flow: "A"
Direction of rotation: Clockwise, seen on rotor
Type of protection: IP 44
Insulation: class "F"
Humidity class: F2-2
Mounting position: Shaft horizontal or rotor on bottom; rotor on top on request
Condensate discharge holes: Rotor-side
Operation mode: S1
Motor bearing: Ball bearing
Cable exit: Lateral
Protection class: I (if protective earth is connected by customer)
Product conforming to standard: EN 60335-1
Approval: UL 1004-1; CSA C 22.2 Nr. 100
PACKAGE: Fan * 1 pcs
Type A2D160-AA22-05
Motor M2D068-BC
Phase 3~ 3~
Nominal voltage VAC 400 480
Connection Y Y
Frequency Hz 50 60
Type of data definition cs cs
Valid for approval / standard CE CE
Speed min-1 2800 3350
Power input W 40 52
Current draw A 0.19 0.18
Min. ambient temperature °C -25 -25
Technical features
Mass: 1.2 kg
Size: 160 mm
Surface of rotor: Coated in black
Material of blades: Sheet steel, galvanised
Number of blades: 5
Direction of air flow: "A"
Direction of rotation: Clockwise, seen on rotor
Type of protection: IP 44
Insulation: class "F"
Humidity class: F2-2
Mounting position: Shaft horizontal or rotor on bottom; rotor on top on request
Condensate discharge holes: Rotor-side
Operation mode: S1
Motor bearing: Ball bearing
Cable exit: Lateral
Protection class: I (if protective earth is connected by customer)
Product conforming to standard: EN 60335-1
Approval: UL 1004-1; CSA C 22.2 Nr. 100
PACKAGE: Fan * 1 pcs
