Is this motherboard compatible with a mini ATX build?

The motherboard has a Micro ATX form factor.

Can this motherboard support Intel's 12th generation CPUs?

Yes, this motherboard supports Intel's 12th generation CPUs.

Can this motherboard support DDR5 RAM?

Yes, this motherboard supports DDR5 RAM.

will a PCIe 4 slot support a PCIe 2 video card?

Yes, a PCIe 4.0 slot will support a PCIe 2.0 video card. PCIe slots are backward compatible, meaning you can use older generation PCIe cards in newer generation slots.

is this board rev 1x ? compatible with intel 14th gen cpu?

I bought mine before the 14th gen came out, but just purchased a similar Gigabyte board and just needed to update the BIOS to run a 14th gen i7 on it. use Q-flash+ to update the BIOS via usb before installing the CPU. Finding instructions was not easy, as the MB manual didn't address it, but i found this manual did (won't let me add a link, so just google this and it should be the first link, from the gigabyte download site): mb_manual_z690-features_n.pdf

₪753^.47

VAT-Inclusive Price

Limit 5 per customer.

Ships from Canada.

Most customers receive within 4-17 days.

Add to wish list

Sold by BTE Outlet

3.5 (1,429 seller ratings)

Shipped by BTE Outlet

Best Sellers

BeachAudio

Top Rated

4.4 (8,539 total ratings)

₪631^.87
+ ₪247.45 Shipping

Meet Your Seller

BTE Outlet

See Seller Store

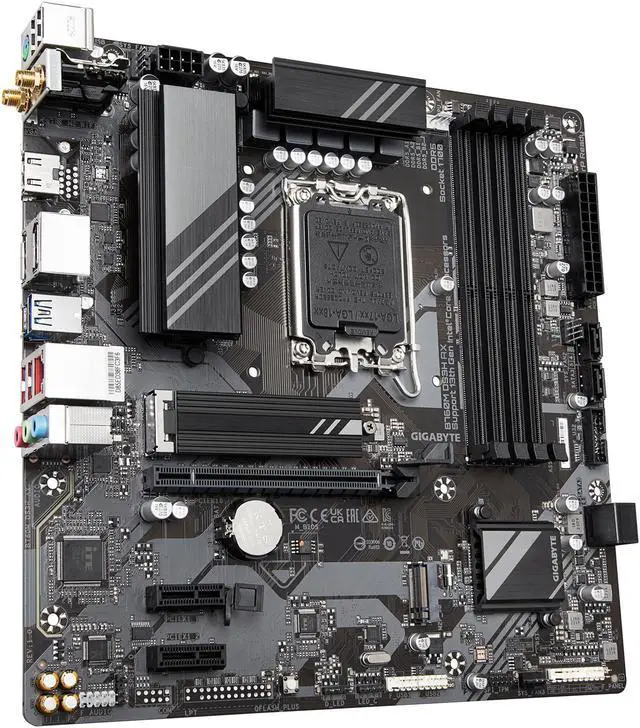

Main image of GIGABYTE B760M DS3H AX LGA 1700 Intel B760 M-ATX Motherboard with DDR5, 2* M.2, PCIe 4.0, USB 3.2 Gen 2 Type-C, WiFi 6E, 2.5GbE LAN, Q-Flash Plus, PCIe EZ-Latch

Alt view image 2 of 5 - GIGABYTE B760M DS3H AX LGA 1700 Intel B760 M-ATX Motherboard with DDR5, 2* M.2, PCIe 4.0, USB 3.2 Gen 2 Type-C, WiFi 6E, 2.5GbE LAN, Q-Flash Plus, PCIe EZ-Latch

Alt view image 3 of 5 - GIGABYTE B760M DS3H AX LGA 1700 Intel B760 M-ATX Motherboard with DDR5, 2* M.2, PCIe 4.0, USB 3.2 Gen 2 Type-C, WiFi 6E, 2.5GbE LAN, Q-Flash Plus, PCIe EZ-Latch

Alt view image 4 of 5 - GIGABYTE B760M DS3H AX LGA 1700 Intel B760 M-ATX Motherboard with DDR5, 2* M.2, PCIe 4.0, USB 3.2 Gen 2 Type-C, WiFi 6E, 2.5GbE LAN, Q-Flash Plus, PCIe EZ-Latch

Alt view image 5 of 5 - GIGABYTE B760M DS3H AX LGA 1700 Intel B760 M-ATX Motherboard with DDR5, 2* M.2, PCIe 4.0, USB 3.2 Gen 2 Type-C, WiFi 6E, 2.5GbE LAN, Q-Flash Plus, PCIe EZ-Latch

Customer images

Shop All GIGABYTE Products | Visit BTE Outlet Store

GIGABYTE B760M DS3H AX LGA 1700 Intel B760 M-ATX Motherboard with DDR5, 2* M.2, PCIe 4.0, USB 3.2 Gen 2 Type-C, WiFi 6E, 2.5GbE LAN, Q-Flash Plus, PCIe EZ-Latch

(135)(17) Write a Review

Option: B760M DS3H AX

B760I AORUS PRO DDR4
B760M DS3H AX
B760M C
B760 DS3H AX
B760M GAMING PLUS WIFI DDR4

Intel LGA 1700 Socket: Supports 13th and 12th Gen Intel Core Series Processors
DDR5 Compatible: Dual Channel DDR5, 4 DIMMs
Sturdy Power Design: 6+2+1 Hybrid Digital VRM Design
Comprehensive Thermal Design: M.2 Thermal Guard
Next Gen Connectivity: PCIe 4.0, NVMe PCIe 4.0 x2 M.2, USB 3.2 Gen 2 Type-C
Fast Networking: 2.5GbE LAN, WiFi 6E
Fine Tuning Features: RGB FUSION 2.0, Supports Addressable LED & RGB LED Strips, Smart Fan 6, Q-Flash Plus Update BIOS without installing, CPU, Memory, and GPU

Specs

Reviews (135)

Learn more about the GIGABYTE B760M DS3H AX

Model
Brand	GIGABYTE
Model	B760M DS3H AX

Supported CPU
CPU Socket Type	LGA 1700
CPU Type	Support for the 13th and 12th Generation Intel Core, Pentium Gold and Celeron Processors

Chipsets
Chipset	Intel B760

Memory
Number of Memory Slots	4x288pin (DDR5)
Memory Standard	Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules
Maximum Memory Supported	128GB
Channel Supported	Dual Channel
Memory Feature	4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules

Expansion Slots
PCI Express 4.0 x16	1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
PCI Express x1	2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1

Storage Devices
Serial ATA (SATA)	4 x SATA 6Gb/s
M.2	CPU: 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
SATA RAID	0/1/5/10

Onboard Audio
Audio Chipset	Realtek Audio CODEC High Definition Audio
Audio Channels	2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

Onboard LAN
LAN Chipset	Realtek 2.5GbE LAN chip
Max LAN Speed	2.5Gbps
Wireless LAN	Wi-Fi 6E
Bluetooth	Yes

Rear Panel Ports

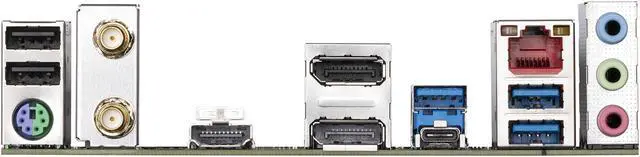

Back I/O Ports	2 x USB 2.0/1.1 ports 1 x PS/2 keyboard/mouse port 2 x SMA antenna connectors (2T2R) 1 x HDMI port 2 x DisplayPorts 3 x USB 3.2 Gen 1 ports 1 x USB Type-C port, with USB 3.2 Gen 2 support 1 x RJ-45 port 3 x audio jacks

Internal I/O Connectors
Onboard USB	1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers
Other Connectors	1 x CPU fan header 3 x system fan headers 1 x addressable LED strip header 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x S/PDIF Out header 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper

Software Feature
Windows 11	Supported

Physical Spec
Form Factor	Micro ATX
Dimensions (W x L)	24.4cm x 24.4cm
Power Pin	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector

Features
Features	Unique Features: Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus BIOS: 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
