GLOTRENDS M.2 PCIe NVMe 4.0/3.0 Adapter with 0.4 Inch Thick M.2 Heatsink for M.2 PCIe SSD (NVMe and AHCI), PCI-E GEN4 Full Speed, Desktop PC Installation (PA09-HS10)

In stock.
Ships from China.
Most customers receive within 9-31 days.
  • Add an M.2 PCIe NVMe adapter card on the free X4/X8/X16 PCI-Express lane, you will get an extra M.2 slot for M.2 PCIe SSD.
  • Full release the speed of PCIe 4.0/3.0 M.2 PCIe SSD, such as 64Gbps M.2 PCIe 4.0 SSD: Samsung 980, Pro WD Black SN850, Sabrent Rocket 4 Plus, Sabrent Rocket Q4, Crucial P5 Plus, and 32Gbps M.2 PCIe 3.0 SSD: Samsung 980/ 970 PRO/ 970 EVO Plus/ 970 EVO, etc.
  • 5°C- 20°C cooling effect M.2 heatsink (Varies depending on the environment) keeps your M.2 PCIe SSD under good performance even full-load operation.
  • Widely OS compatibility, no driver required for Windows 11/10/8, Windows Server 2012 R2, Linux, Fedora, SUSE, Ubuntu, and Red Hat. Support OS booting from M.2 PCIe SSD.
Overview
Specs
Reviews

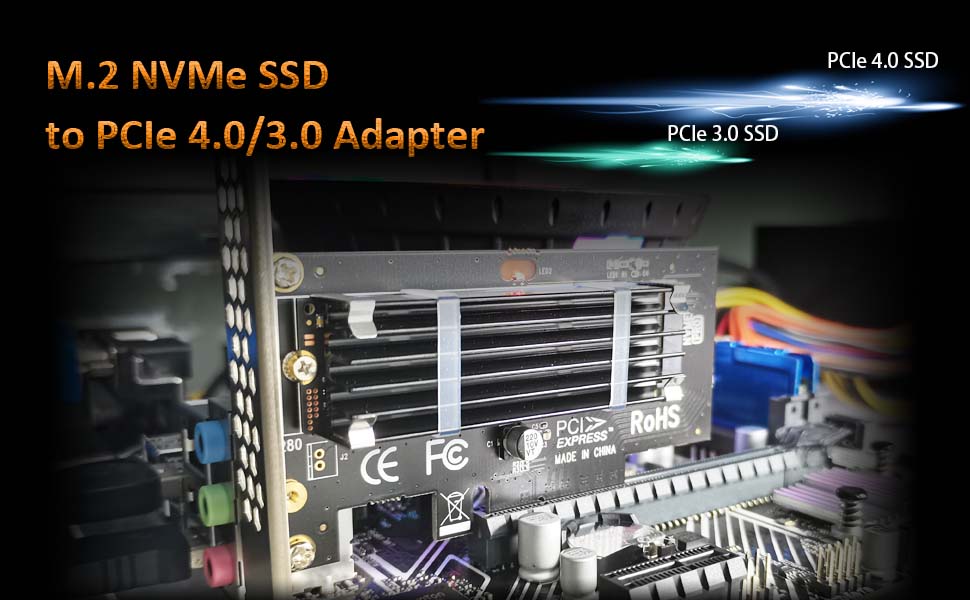

M.2 PCIe 4.0/3.0 Adapter with 0.4 Inch Thick M.2 Heatsink
  • Add an M.2 PCIe NVMe adapter card on the free X4/X8/X16 PCI-Express lane, you will get an extra M.2 slot for M.2 PCIe SSD.
  • Full release the speed of PCIe 4.0/3.0 M.2 PCIe SSD, such as 64Gbps M.2 PCIe 4.0 SSD: Samsung 980, Pro WD Black SN850, Sabrent Rocket 4 Plus, Sabrent Rocket Q4, Crucial P5 Plus, and 32Gbps M.2 PCIe 3.0 SSD: Samsung 980/ 970 PRO/ 970 EVO Plus/ 970 EVO, etc.
m.2 pcie nvme 4.0 3.0 adapter
Model: PA09-HS10
Internal Interface PCI-E X4
External Interface Key M or Key B+M
Max Bandwidth 64Gbps for PCIe 4.0/ 32Gbps for PCIe 3.0
PCI-E Compatibility PCI-E 4.0/3.0/2.0
M.2 Compatibility PCI-E NVMe SSD and PCI-E AHCI SSD
Form Factor 2230/2242/2260/2280
Groove Heatsink 2.75*0.87*0.4 inch
PC Case Bracket Regular Profile Bracket and Low Profile Bracket
OS Compatibility Windows 10/8, Windows Server 2012 R2, Linux, Fedora, SUSE, Ubuntu, Red Hat
Extra Driver Required Windows 7, Windows Server 2008 R2
m.2 pcie nvme 4.0 3.0 adapter
SSD Compatibility:
  • M.2 PCI-E NVMe SSD (Key M and Key B+M)
  • M.2 PCI-E AHCI SSD (Key M)

Note: Can not support M.2 NGFF SATA SSD.

m.2 pcie nvme 4.0 3.0 adapter
OS Compatibility
  • Windows 10/8
  • Windows Server 2012 R2
  • Linux
  • Fedora
  • SUSE
  • Ubuntu
  • Red Hat
  • Windows 7 (Need extra driver)
  • Windows Server 2008 R2 (Need extra driver)
m.2 pcie nvme 4.0 3.0 adapter
M.2 PCI-E 4.0 Speed Testing
  • CPU: Intel I5-11400
  • MB: ASUS H510M-F
  • SSD: Samsung 980 PRO
  • OS: Windows 10



M.2 PCI-E 4.0 SSD (incomplete):



  • WD Black SN850
  • Sabrent Rocket 4 Plus, Sabrent Rocket Q4
  • Samsung 980 PRO
  • Silicon Power US70, Plextor: M10P(GN), Transcend PCIe SSD 240S, Crucial P5 Plus, etc.
m.2 pcie nvme 4.0 3.0 adapter
M.2 PCI-E 3.0 Speed Testing
  • CPU: Intel I5-11400
  • MB: ASUS H510M-F
  • SSD: Samsung 970 EVO
  • OS: Windows 10



M.2 PCI-E 3.0 SSD (incomplete):



  • Samsung: 980/ 970 PRO/ 970 EVO Plus/ 970 EVO
  • Intel Optane SSD P1600X Series , Intel SSD 6 Series
  • Western Digital: WD_BLACK SN750 SE, WD Blue SN550, WD Green SN350
  • Any M.2 PCI-E Key M SSD.
m.2 pcie nvme 4.0 3.0 adapter

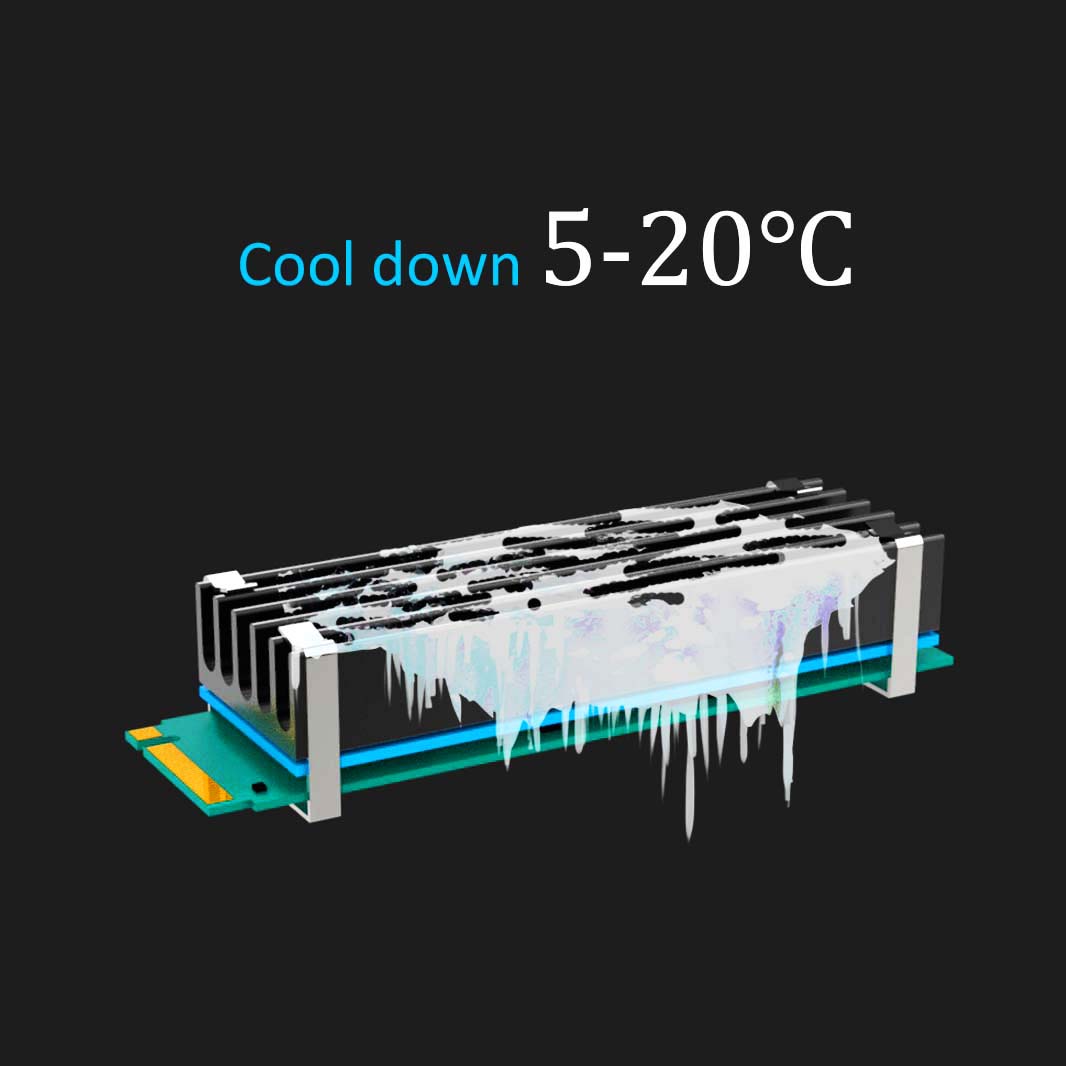

5°C- 20°C cooling effect M.2 Heatsink
  • Aluminum body
  • Groove Design
  • Weight: 0.28oz
  • Size: 2.75*0.87*0.4 inch

5°C- 20°C cooling effect (Varies depending on the environment).

m.2 pcie nvme 4.0 3.0 adapter
Thermal Pad

To conduct heat from M.2 SSD to M.2 heatsink, the thermal pad is put between M.2 SSD and M.2 Heatsink.

  • Low viscosity
  • Thermal conductivity
  • Insulation

Note: Remove both sides of transparent films of the thermal pad before using.

m.2 pcie nvme 4.0 3.0 adapter
Unique dual installation solution

Metal clips + rubber bands for M.2 SSD installation. No need to worry about rubber bands material aging or SSD long time high-temperature operation.

m.2 pcie nvme 4.0 3.0 adapter
Package Including:
  1. M.2 PCIe Adapter
  2. SSD Srew Nut
  3. Low Profile Bracket
  4. Screw Driver
  5. Regular Profile Bracket
  6. Thermal Pad
  7. M.2 Heatsink
  8. 2x Rubber Band
  9. 2 x Metal Clips
  10. SSD Cleaning Towel
m.2 pcie nvme 4.0 3.0 adapter
Installation Steps:
  1. Clean SDD surface with the cleaning towel, No need to remove the label on SSD
  2. Tear off the transparent film on both sides of the thermal pad
  3. The thermal pad is placed on the SSD, and the heatsink is placed on the thermal pad
  4. Secure heatsink to SSD via metal clips and rubber bands
  5. Fix SSD on addon card with screw
  6. Plug addon card into the motherboard
Products
Use for M.2 PCIe SSD to PCIe X4 M.2 PCIe SSD to PCIe X1 2 x M.2 PCIe SSD to PCIe X8 2 x M.2 PCIe SSD to PCIe X4 M.2 PCIe SSD to PCIe X4 + M.2 SATA SSD to SATA III M.2 PCIe SSD to PCIe X4 + M.2 SATA SSD to SATA III
Fit for M.2 PCIe SSD M.2 PCIe SSD 2 x M.2 PCIe SSD 2 x M.2 PCIe SSD M.2 PCIe SSD + M.2 NGFF SATA SSD M.2 PCIe SSD + M.2 NGFF SATA SSD
Internal Interface PCI-E X4 PCI-E X1 PCI-E X8 PCI-E X4 PCI-E X4 + SATA III PCI-E X4 + SATA III
External Interface M Key M Key 2 x M Key 2 x M Key M Key and B+M Key M Key and B+M Key
Form Factor 2230/2242/2260/2280 2230/2242/2260/2280 2230/2242/2260/2280/22110 2230/2242/2260/2280/22110 2230/2242/2260/2280 2230/2242/2260/2280/22110
Protocol PCI-E 4.0/3.0/2.0 PCI-E 4.0/3.0/2.0 PCI-E 4.0/3.0/2.0 PCI-E 3.0/2.0 PCI-E 4.0/3.0/2.0 + SATA I/II/III PCI-E 4.0/3.0/2.0 + SATA I/II/III
Installation Regular and Low Profile Regular and Low Profile Regular and Low Profile Regular and Low Profile Regular and Low Profile Regular Profile
Cooling Solution 0.12" Heatsink 0.4" Heatsink Heatsink Heatsink 2 x 0.12" Heatsink FAN
Accessories M.2 Standoff and M.2 Screw M.2 Standoff and M.2 Screw 2 x M.2 Standoff and M.2 Screw 2 x M.2 Standoff and M.2 Screw 2 x M.2 Standoff and M.2 Screw 2 x M.2 Standoff and M.2 Screw
