2 x 2.4GHz 5GHz 5.8GHz Dual Band WiFi RP-SMA Male Antenna+2 x 35CM U.FL/IPEX to RP SMA Female Pigtail Cable for Mini PCIe Card Wireless Routers PC Repeater Desktop FPV UAV Drone PS4 Build
- High gain- This dual band wifi antenna provides broad coverage to extend wireless range to dead spot and make the signal be better and longer range. Compatible with- these omnidirectional antennas only use for MINI PCI-E Interface, Do Not Use for M.2 (NGFF) Interface.
- This Connector Type for the cable Antenna: U.fl A=2.0mm (U.FL:A=2.0mm B=0.5mm MHF3:A=1.4mm B=0.4mm MHF4: A=1.5mm B=0.45mm)
- Note: First attach the antennas to the WiFi card. In the video, it looks easy. Don’t believe videos. It usually takes a little bit of persuasion to “convince” the two together. The connectors are tiny.
+
+
Overview
Specs
Reviews
2 x 2.4GH z 5GHz 5.8GH z Dual Band WiFi RP-SMA Male Antenna+2 x 35CM U. FL/IPEX to RP SMA Female Pigtail Cable for Mini PCIe Card Wireless Routers PC Repeater Desktop FPV UAV Drone PS4 Build Features: High gain- This dual band wifi antenna provides broad coverage to extend wireless range to dead spot and make the signal be better and longer range. Compatible with- these omnidirectional antennas only use for MINI PCI-E Interface, Do Not Use for M. 2 (NGFF) Interface.
Note: First attach the antennas to the WiFi card. In the video, it looks easy. Don’t believe videos. It usually takes a little bit of persuasion to “convince” the two together. The connectors are tiny.

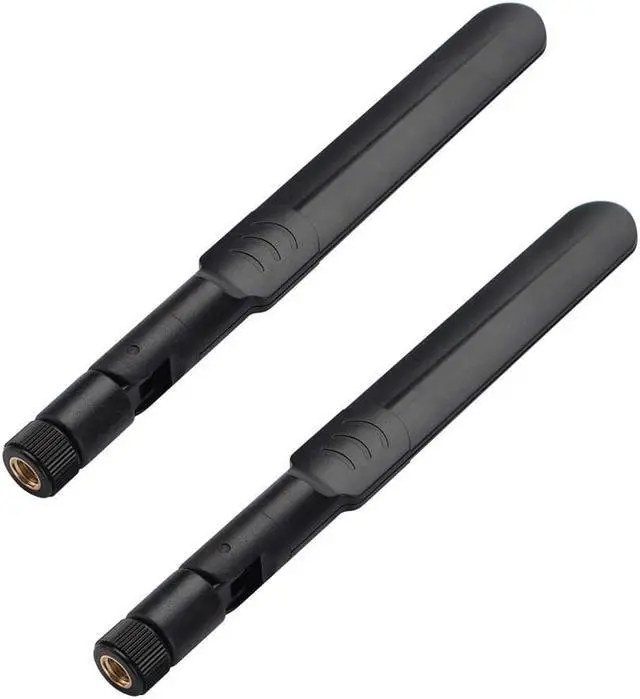

Specifications: Antenna
Specifications:
Color: Black
Radiation: Omni-directional
Gain: 6dBi
Frequency Range (MHz): 2400-2500 & 5725-5850
Connector Type: RP-SMA Male (Hole)
Angle Adjustable: 90° 135° 180°
Dimension: 16cm/ 6.3 ” (Unbend) / 13.5 cm/ 5.31 ” (Bend)
Wight: 13.5 g / 0.48 oz per antenna
Input Impedance (O): 50 VSWR = 1.5 Pigtail

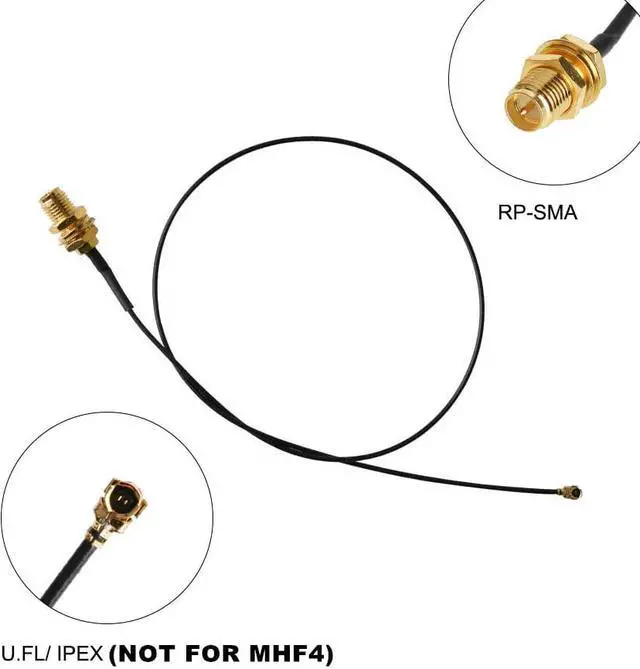

Cable Specifications:
Color: Black
& Gold Length: 35cm / 14''
Wight: 4.4 g / 0.17 oz per pigtail cable
Connector Type: U. fl / IPEX to RP-SMA Female (Pin) U.
FL: A= 2.0 mm B= 0.5 mm
MHF3: A= 1.4 mm B= 0.4 mm
MHF4: A= 1.5 mm B= 0.45 mm This Connector Type for the cable
Antenna: U. fl A= 2.0 mm
Package include: 2 X Dual Band WiFi RP-SMA Male Antenna 2 X U. FL/IPEX to RP SMA Female Pigtail Cable
Note: First attach the antennas to the WiFi card. In the video, it looks easy. Don’t believe videos. It usually takes a little bit of persuasion to “convince” the two together. The connectors are tiny.
Specifications: Antenna
Specifications:
Color: Black
Radiation: Omni-directional
Gain: 6dBi
Frequency Range (MHz): 2400-2500 & 5725-5850
Connector Type: RP-SMA Male (Hole)
Angle Adjustable: 90° 135° 180°
Dimension: 16cm/ 6.3 ” (Unbend) / 13.5 cm/ 5.31 ” (Bend)
Wight: 13.5 g / 0.48 oz per antenna
Input Impedance (O): 50 VSWR = 1.5 Pigtail
Cable Specifications:
Color: Black
& Gold Length: 35cm / 14''
Wight: 4.4 g / 0.17 oz per pigtail cable
Connector Type: U. fl / IPEX to RP-SMA Female (Pin) U.
FL: A= 2.0 mm B= 0.5 mm
MHF3: A= 1.4 mm B= 0.4 mm
MHF4: A= 1.5 mm B= 0.45 mm This Connector Type for the cable
Antenna: U. fl A= 2.0 mm
Package include: 2 X Dual Band WiFi RP-SMA Male Antenna 2 X U. FL/IPEX to RP SMA Female Pigtail Cable
