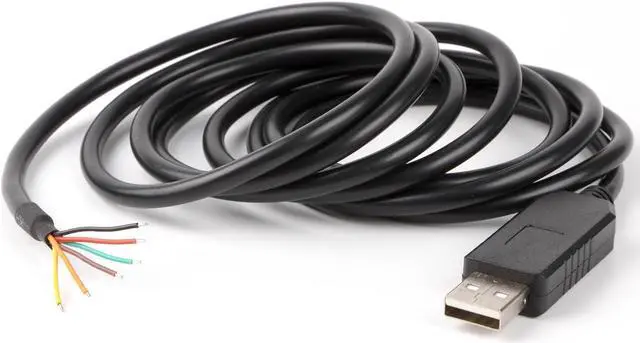

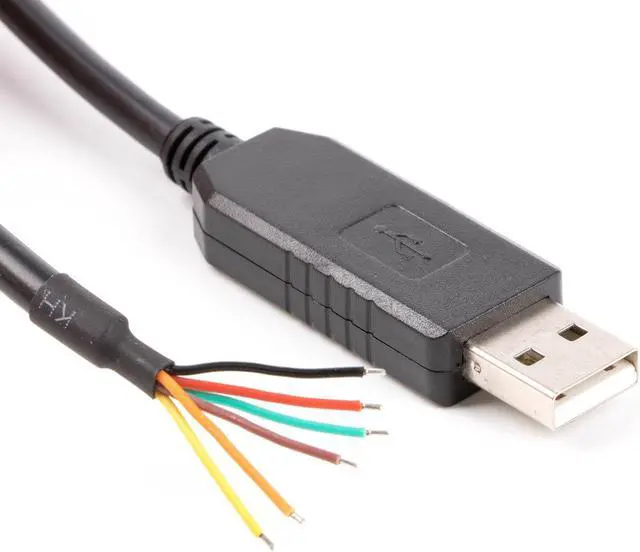

BONAEVER FT232RL Chip USB to 5v TTL UART Serial Cable, wire end, 6ft, TTL-232R-5V-WE compatible

Features:

USB to UART cable with +5V TTL level UART signals. Wire ended output allow most flexible connection

Connect directly to a microcontroller UART or I/O pins. +5V TTL output allows external logic to be powered from the USB port

Overmolded FT232R chipset provides single chip USB to asynchronous serial data transfer interface. Works with all Windows and Mac OS versions

6 outputs provide Tx, Rx, RTS#, CTS#, VCC and GND. Data transfer rates from 300 baud to 3 Mbaud at TTL levels

Replace MAX232 type level shifters allowing for direct connection of products to PC via USB

USB UART TTL +5V adapter cable, wire end
USB2.0 uart ttl adapter cable, +5v logic level
USB2.0 full speed support, 12M

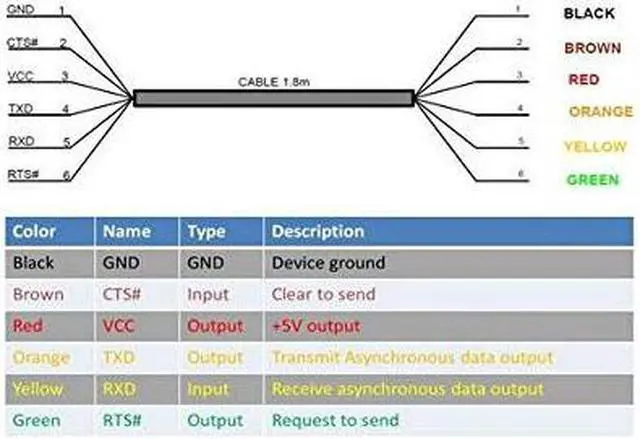

Standard pinput(6C): Orange-TXD, Yellow-RXD, Green-RTS, Brown-CTS, black-GND, Red-VCC
FT232RL USB TTL wire end cable
Support Win 7 8 10, Android, Mac, Linux, Win CE full range OS
6FT, PVC jacket

Drivers are available which allow FT232RL devices to work with the following operating systems:

Windows Server 2008 R2
Windows 7
Windows 7 x64
Windows Server 2008
Windows Server 2008 x64
Windows Vista
Windows Vista x64
Windows Server 2003
Windows Server 2003 x64
Windows XP
Windows XP x64
Windows ME
Windows 98
Linux
Mac OS X
Mac OS 9
Mac OS 8
Windows CE.NET (Version 4.2 and greater)
Android
Package:
1X5V 6P FT232RL CHIP TTL WIRE END CABLE
