Type | Intel ATX 12 V |
---|
Maximum Power | 750 W |
---|

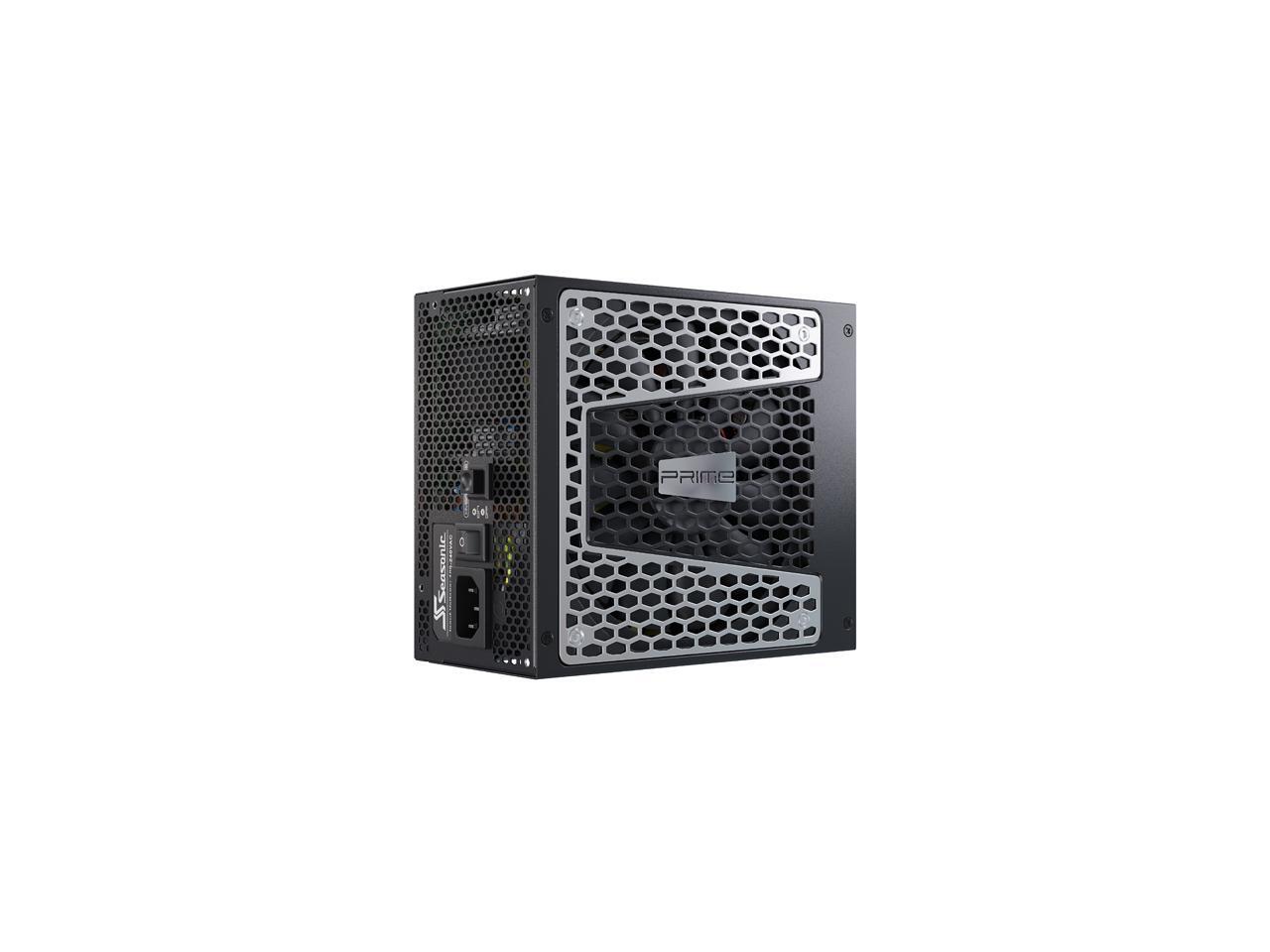

Fans | 135mm Fluid Dynamic Bearing Fan w/ Hybrid Fan Control |
---|
PFC | Active |
---|
Main Connector | 20+4Pin |
---|
+12V Rails | Single |
---|
PCI-Express Connector | 4 x 6+2-Pin |
---|
SATA Power Connector | 10 |
---|

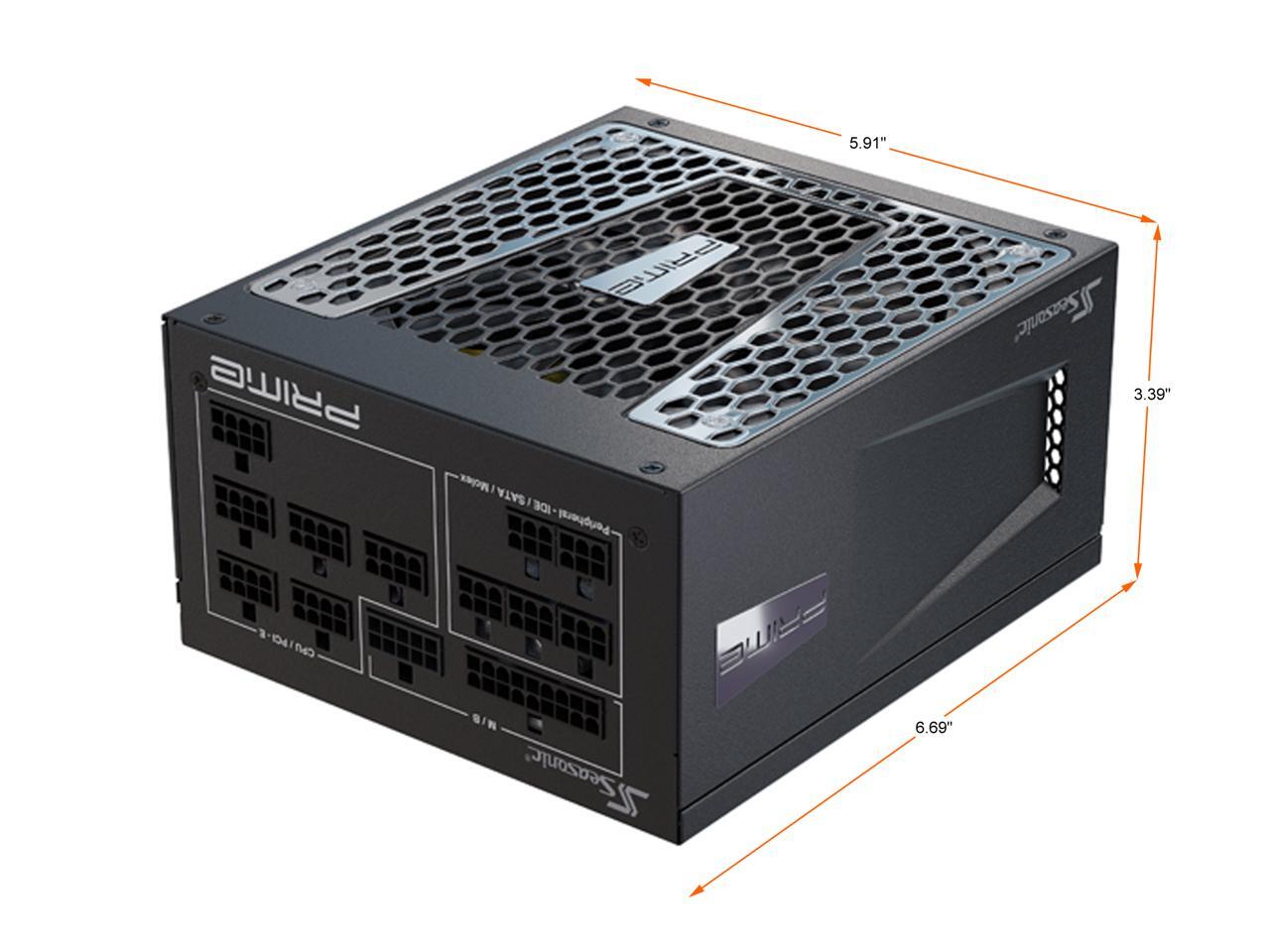

Max PSU Length | 170 mm |
---|
Modular | Full Modular |
---|
Efficiency | 94% @ 50% Load |
---|
Energy-Efficient | 80 PLUS TITANIUM Certified |
---|
PSU Noise Level | Cybenetics A++ |
---|
Over Voltage Protection | Yes |
---|
Protection | OPP, OVP, UVP, OCP, OTP, SCP |
---|

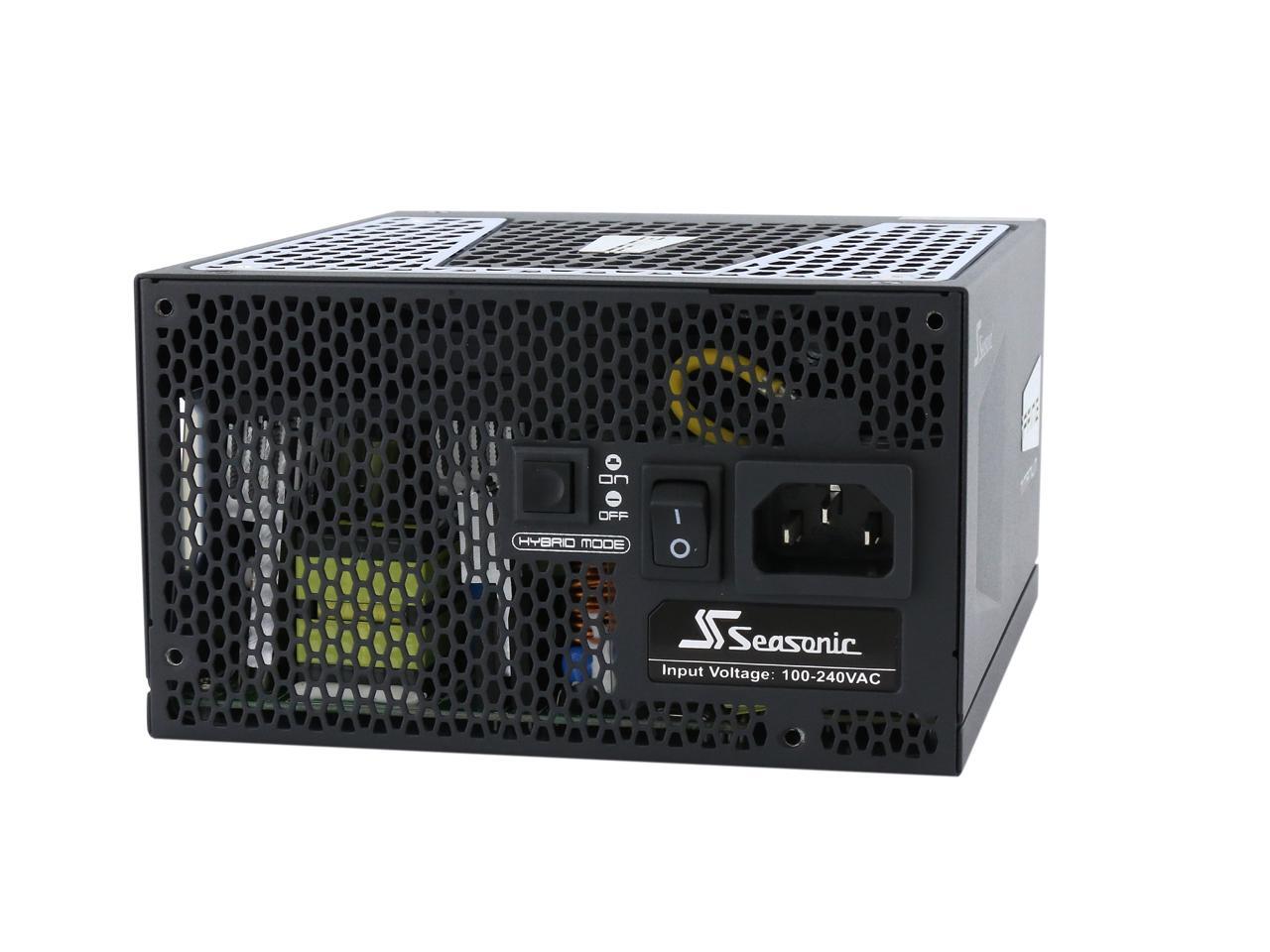

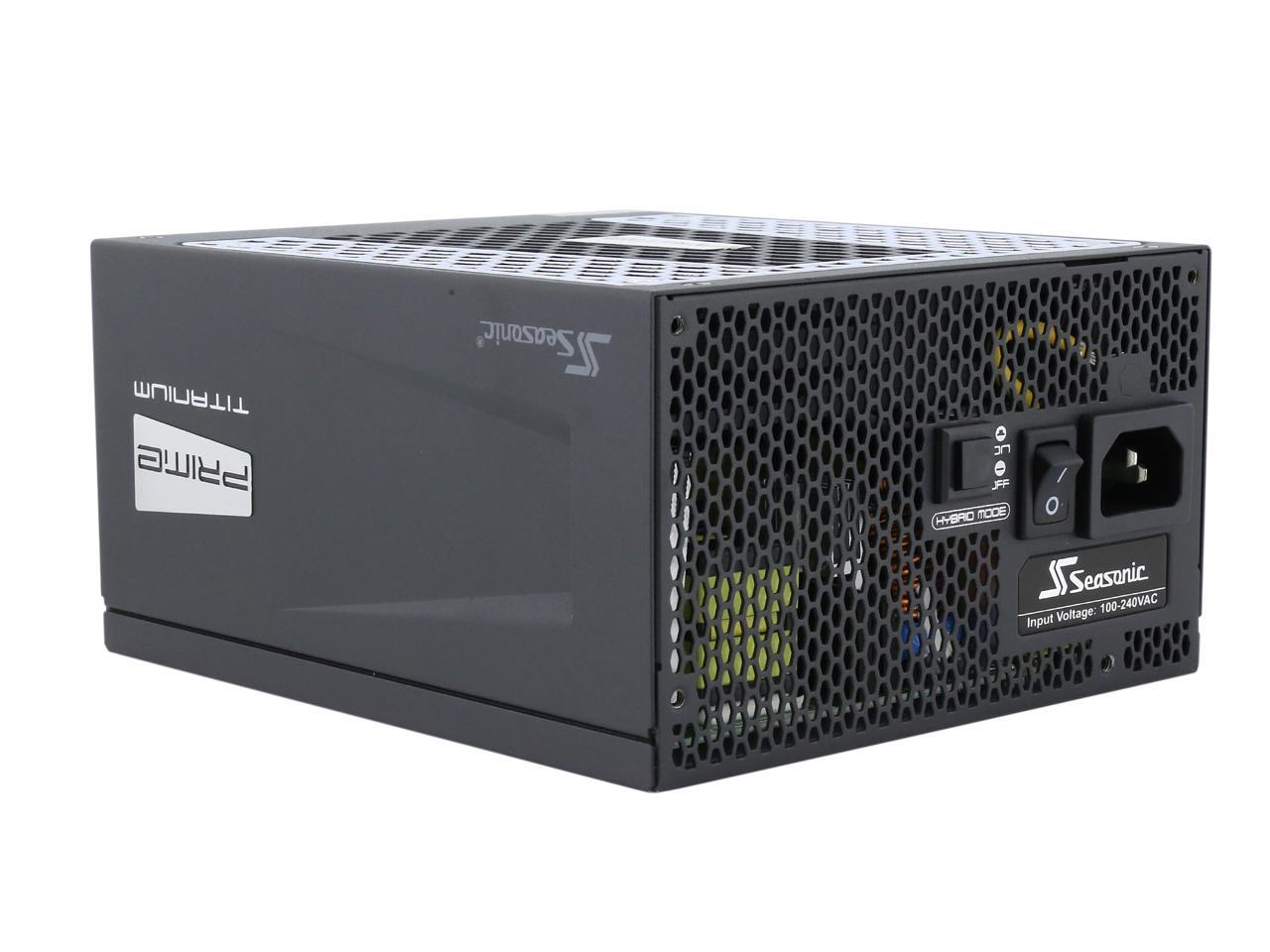

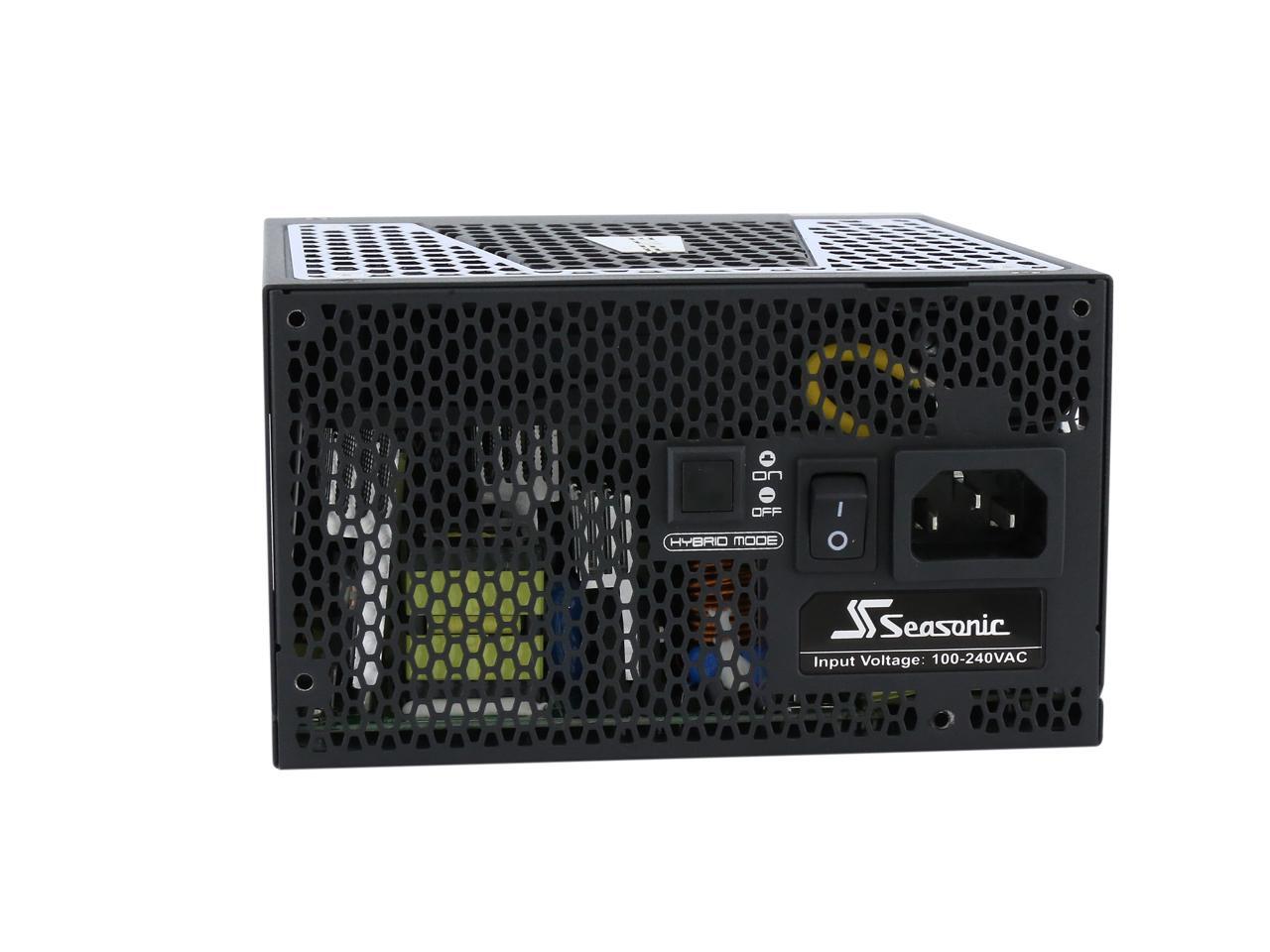

Input Voltage | 100 - 240 V |
---|
Input Frequency Range | 50/60 Hz |
---|
Input Current | 9.5 - 4.5 A |
---|

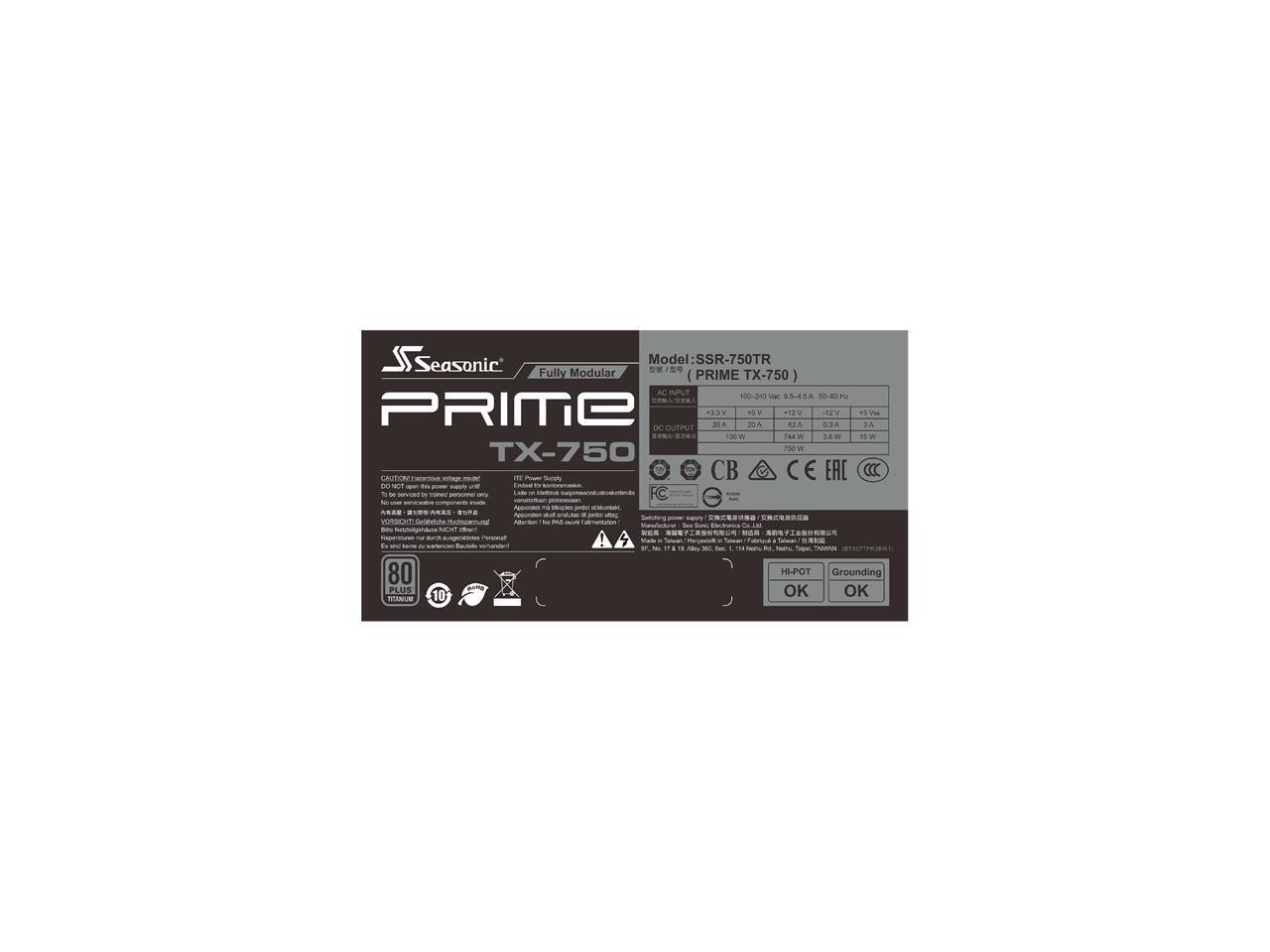

Output | +3.3V@20A, +5V@20A, +12V@62A, -12V@0.3A, +5VSB@3A |
---|
MTBF | 150,000 hours MTBF @ 25 degree C, excl. fan |
---|
Approvals | Safety and EMC: cTUVus, TUV, CB, CCC, BSMI, EAC, CE Environmental Compliance: Energy Star, RoHS, WEEE, ErP Lot 6, REACH |
---|

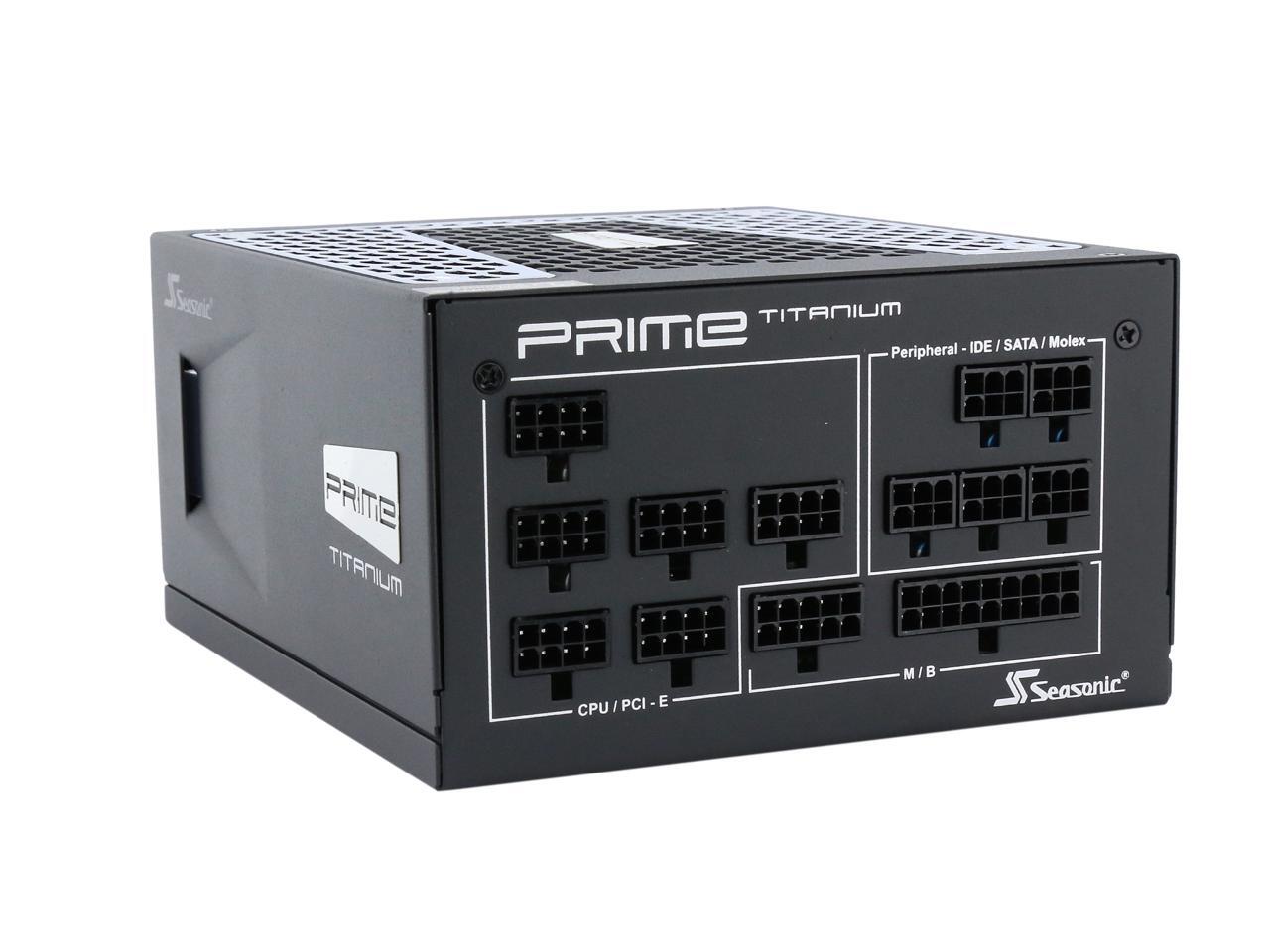

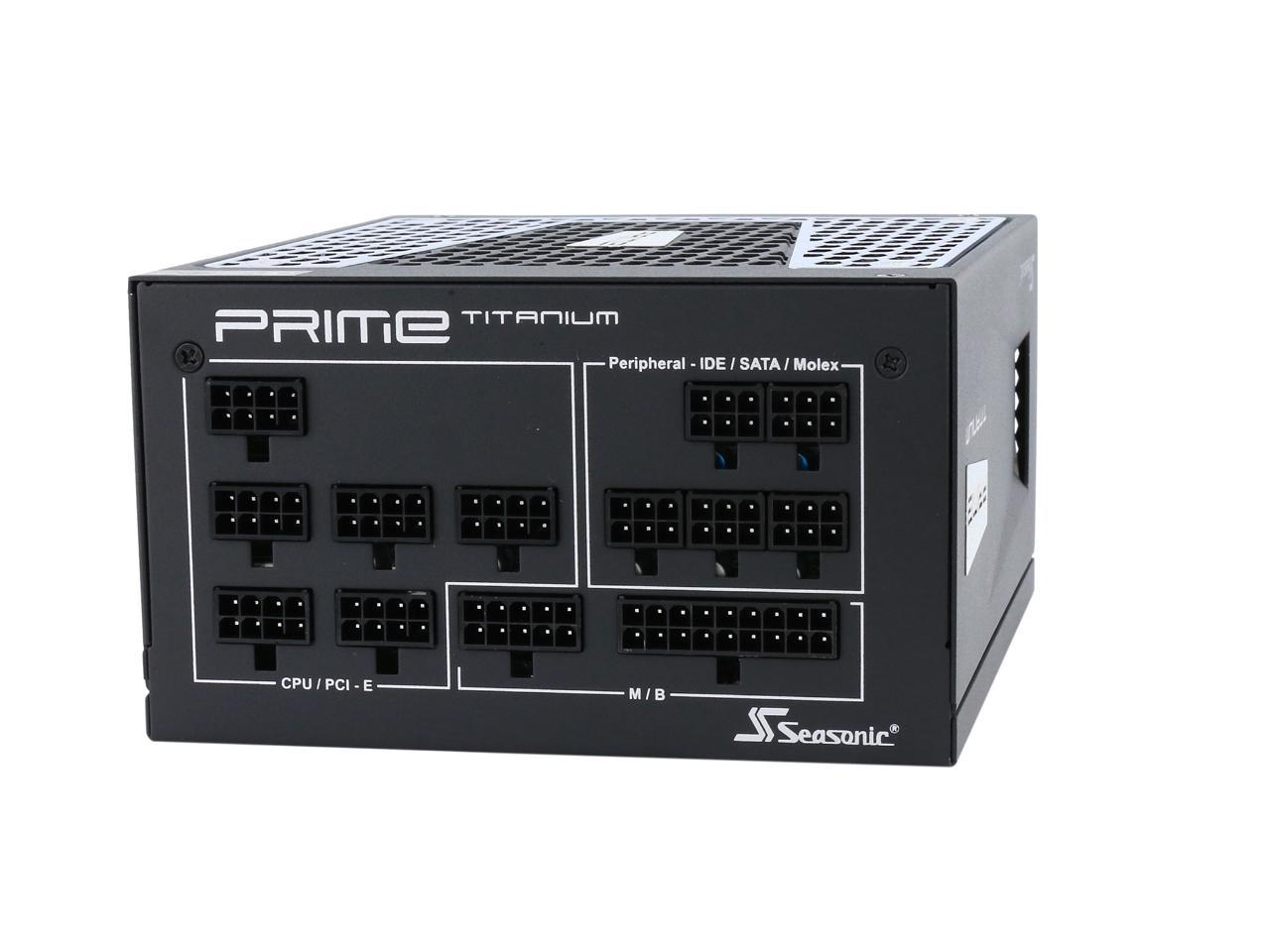

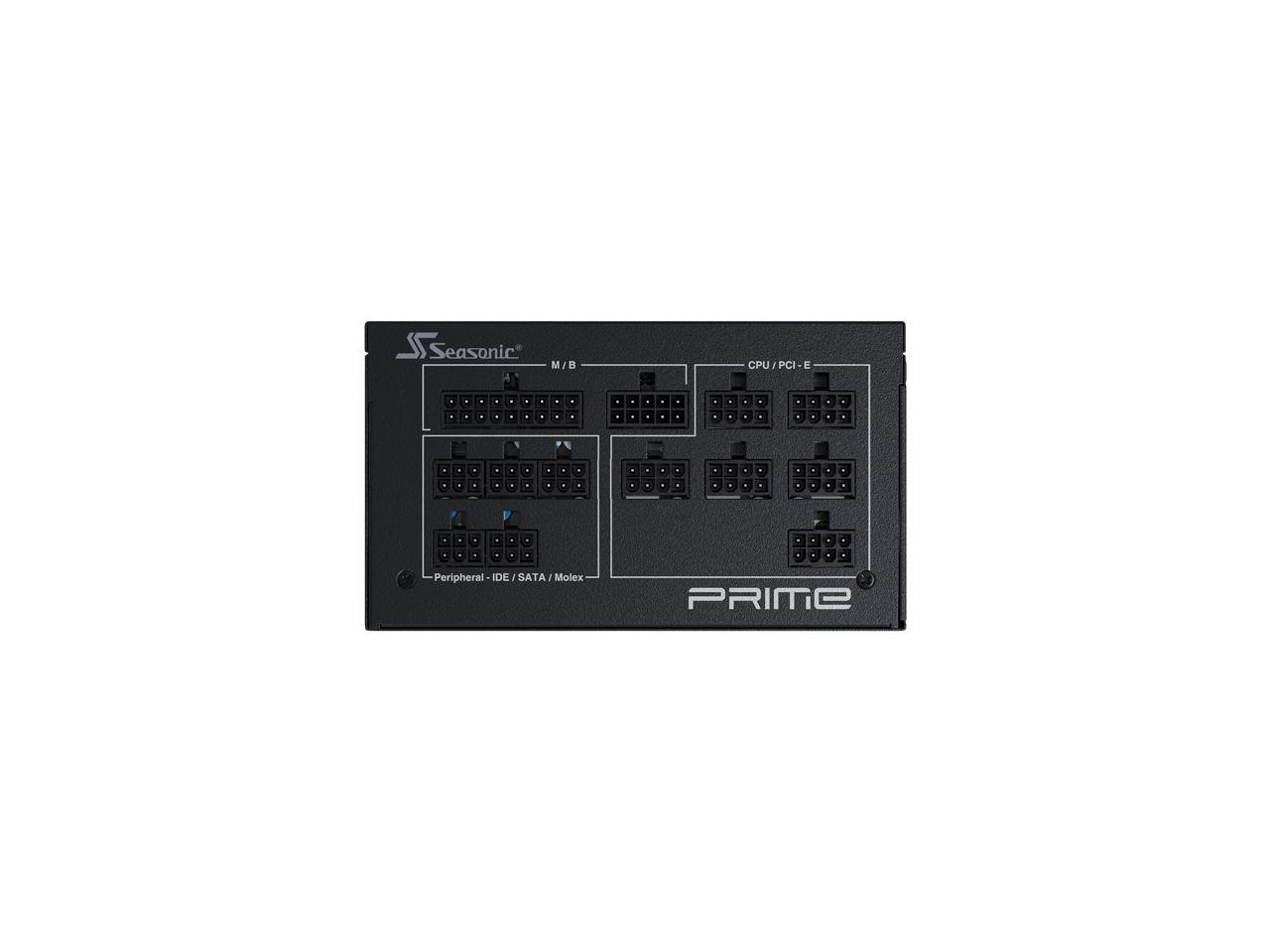

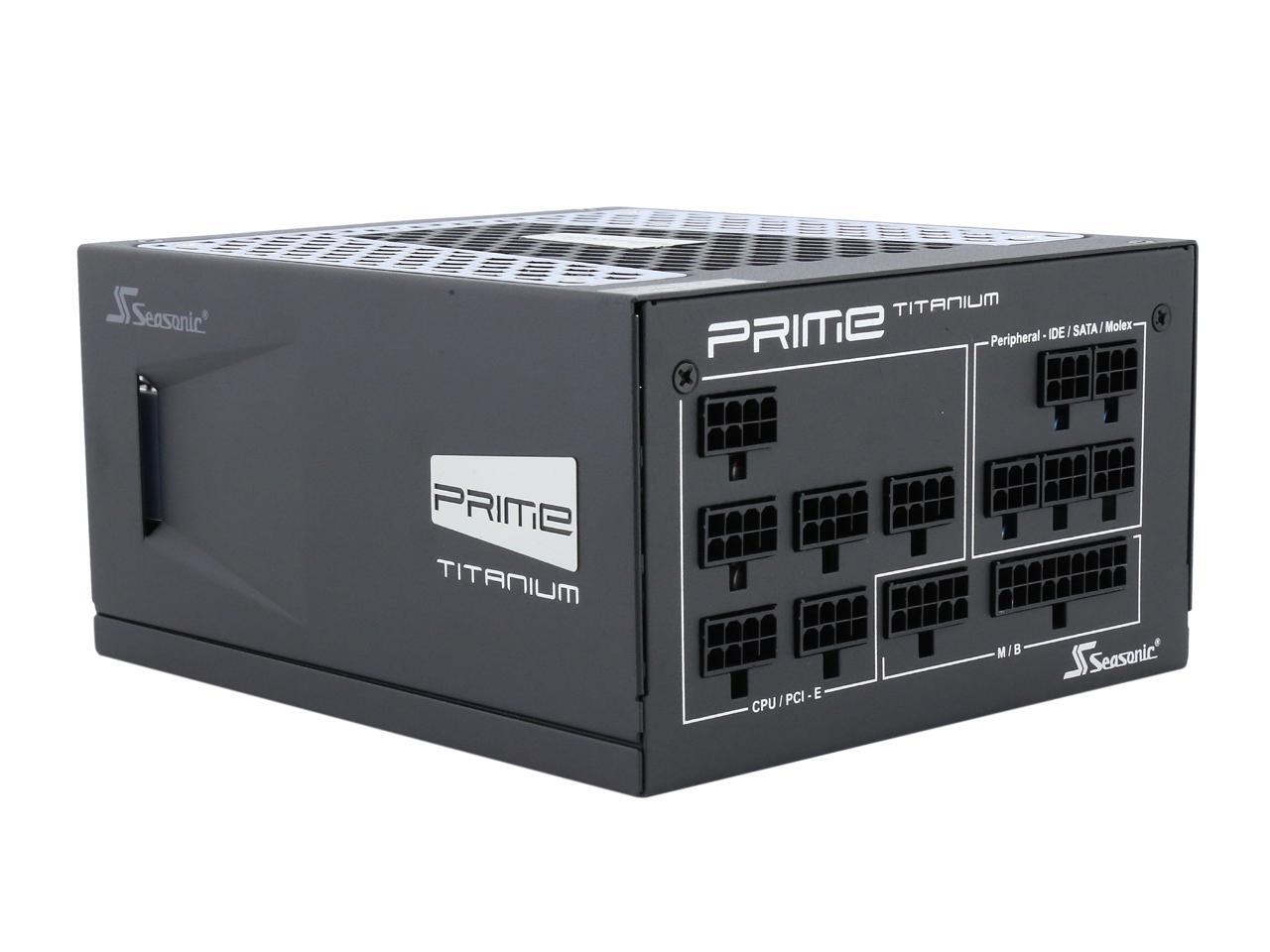

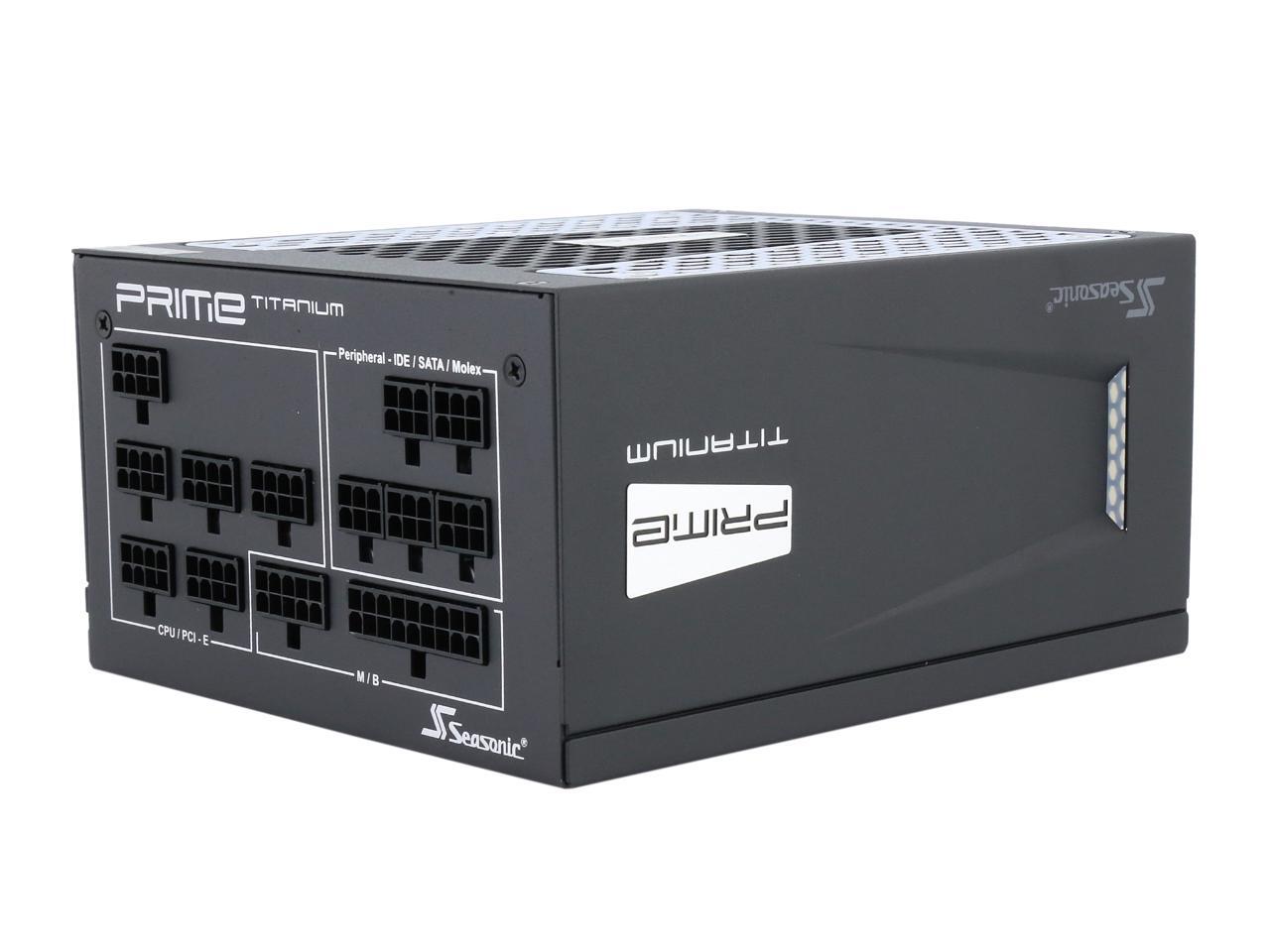

Connectors | 1 x Main Power (20/24 pins) 2 x CPU (4/8 pins) 4 x PCIe (6/8 Pins) 10 x SATA 3 x Peripheral |
---|

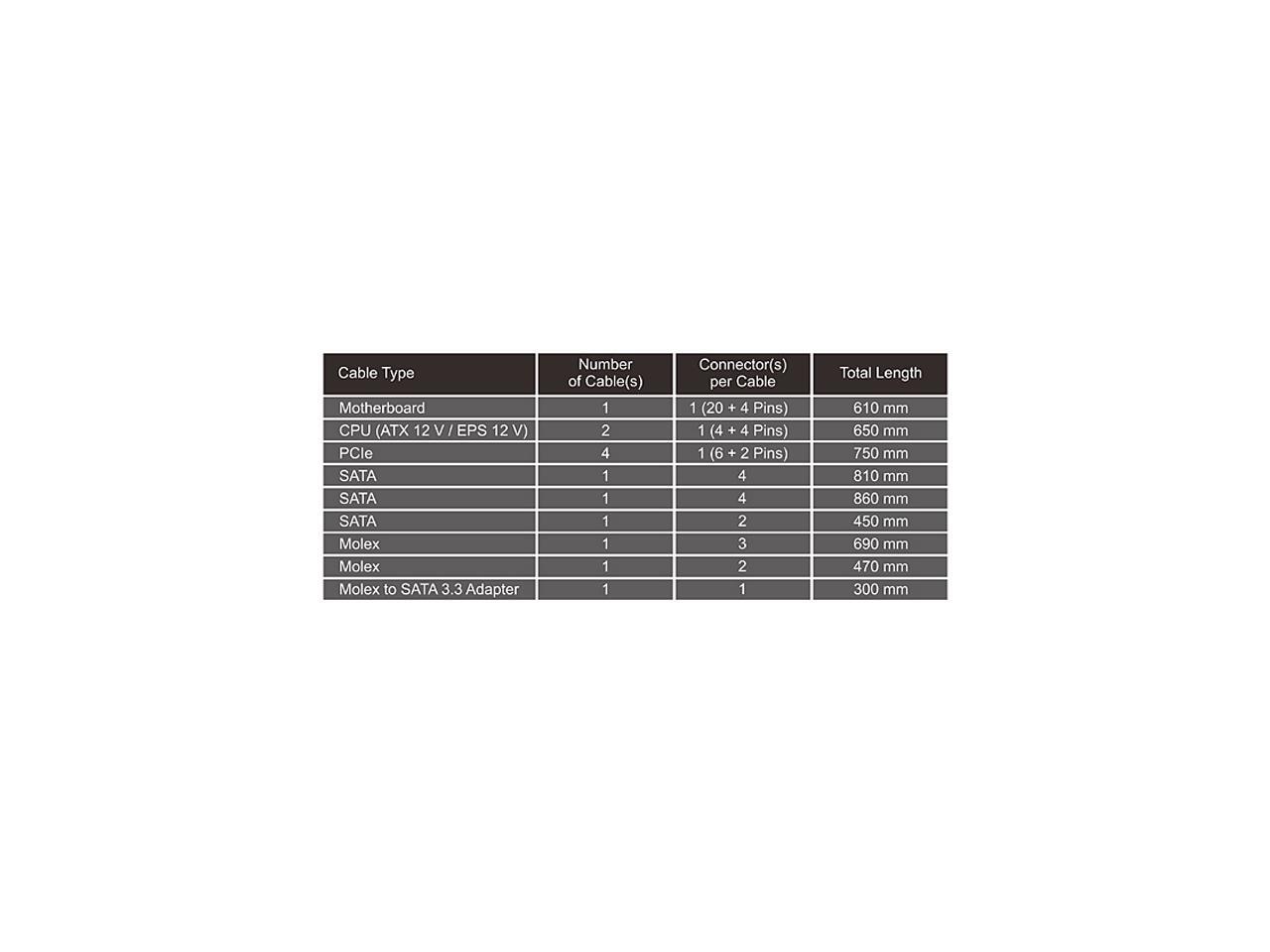

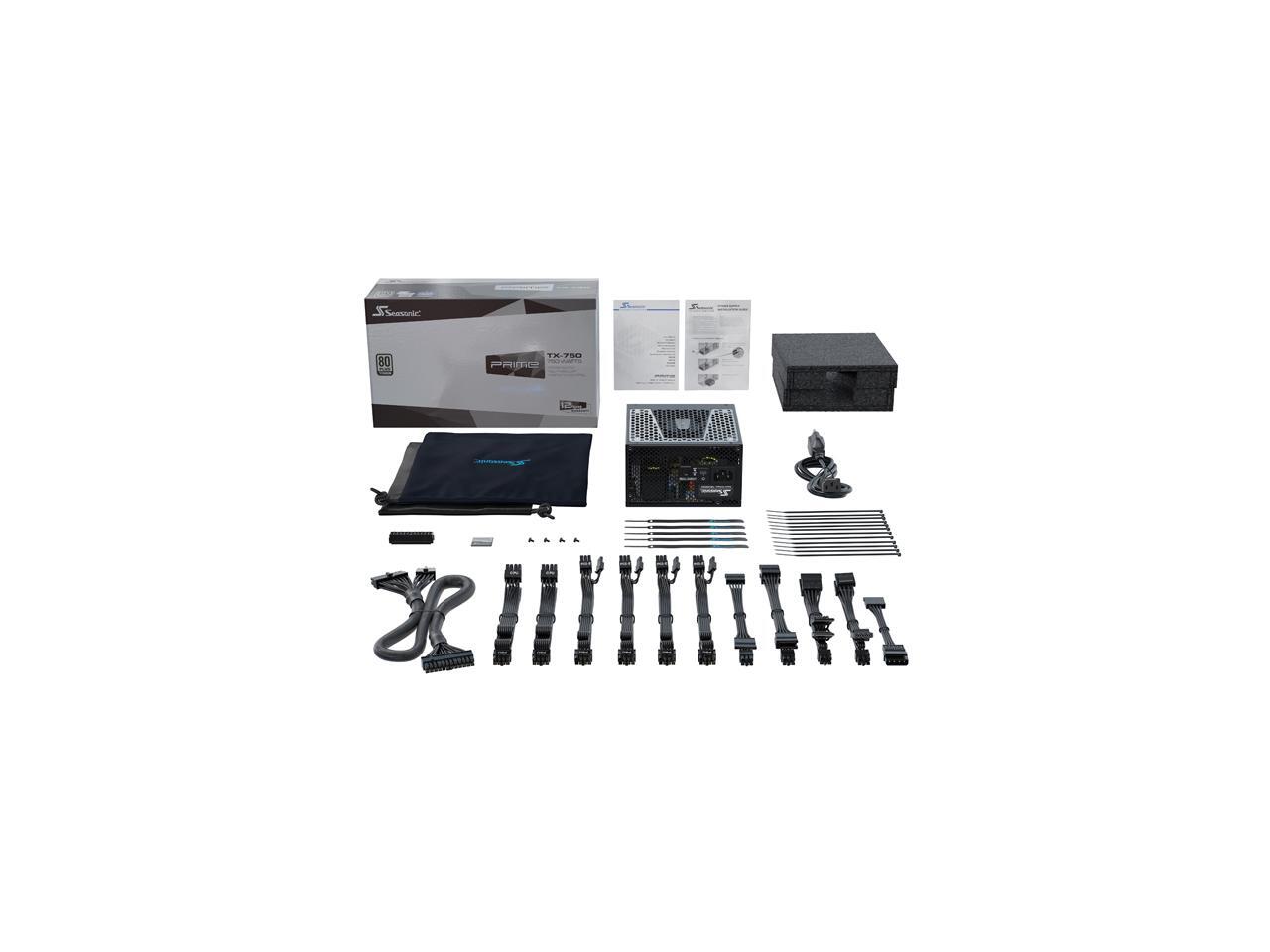

Cable Spec | 20+4Pin MB: One cable (610mm) 4+4Pin CPU: Two cables (650mm) PCI-E 6+2Pin: Four cables (750mm) 4 x SATA: Two cables (810, 860mm) 2 x SATA: One cable (450mm) 3 x Molex: One cable (690mm) Molex to SATA 3.3 Adapter: One cable (300mm) |
---|
