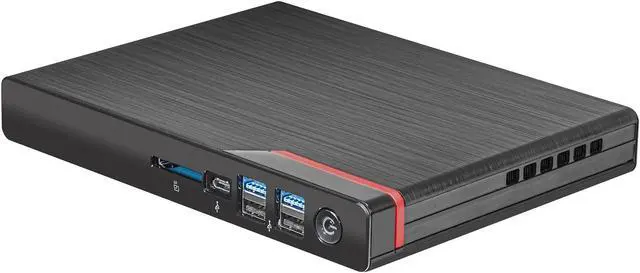

ASRock MARS 4500U Mini / Booksize Barebone System

(3) Write a Review
  • AMD Ryzen 5 4500U (6C6T, Turbo 4.0GHz)
  • 2 x 260Pin SO-DIMM DDR4 3200
Specs
Reviews (3)

Learn more about the ASRock MARS 4500U

Model
Brand ASRock
Model MARS 4500U
CPU Supported
CPU Type AMD Ryzen 5 4500U (6C6T, Turbo 4.0GHz)
Memory Supported
Memory installed No Memory
Memory slot 2 x 260Pin SO-DIMM
Memory Type Supported DDR4 3200
Max Memory Supported 64GB (non-ECC)
Dual Channel Memory Supported Yes
Expansion Slots
Other 1 x M.2 (key E 2230) Slot for Wi-Fi + BT Module
Intel AX200 Wi-Fi 6 Module
Storage
Hard Drive Installed No Hard Drive
Serial ATA 1 x SATA 6Gb 2.5-inch 7mm/9.5mm Hard Drive
M.2 1 x Ultra M.2 (2280) PCIe Gen3 x4 & SATA 6Gb
Graphics
Intergrated Graphics AMD Radeon Graphics
Audio
Onboard Audio Realtek ALC233-VB2
Communications
Max LAN Speed 10/100/1000Mbps
Wireless LAN Intel AX200 Wi-Fi 6 Module

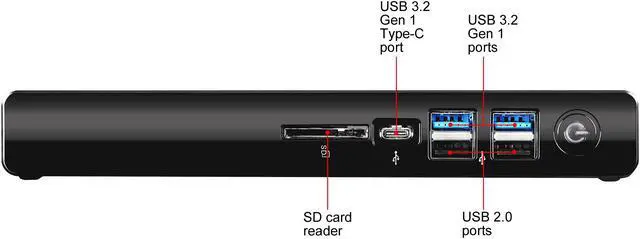

Front Panel Ports
Front USB 1 x USB 3.2 Gen1 Type-C (5Gbps)
2 x USB 3.2 Gen1 Type-A (5Gbps)
2 x USB 2.0
Card Reader 1 x SD Card Reader
Back Panel Ports
VGA 1 x D-Sub (1920x1080)
HDMI 1 x HDMI (4K@60Hz)
Rear USB 2 x USB 3.2 Gen1 Type-A
RJ45 1 x RJ45 Gigabit LAN
Rear Audio Ports 1 x Line Out, 1 x Microphone
Power Supply

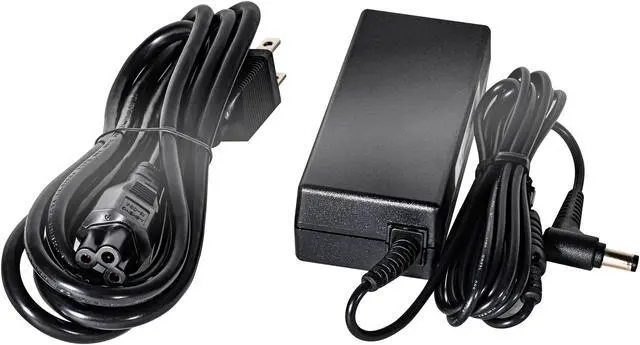

Power Supply 65W/19V Adapter
Physical SPEC
Dimensions 1.02" x 7.64" x 5.91"
Features
Features AMD Ryzen 4000U Series APU

Dual Channel DDR4-3200MHz Memory

HDMI, D-Sub

Ultra M.2 2280 Slot (NVMe)

2.5" SATA 6Gb Hard Drive

M.2 For Wi-Fi

1 x USB 3.2 Gen1 Type-C

4 x USB 3.2 Gen1 Type-A + 2 x USB 2.0

SD Card Reader

26mm Height, 0.7 Liter Compact size
Additional Information
First Listed on Newegg November 25, 2020
