Brand | ASRock |
---|---|
Model | X870 Pro-A WiFi |
CPU Socket Type | AM5 |
---|---|
CPU Type | Ryzen 7000 Series / Ryzen 8000 Series / Ryzen 9000 Series |
Chipset | AMD X870 |
---|
Number of Memory Slots | 4x288pin (DDR5) |
---|---|
Memory Standard | Up to 8000+(OC) |
Maximum Memory Supported | 256GB |
Channel Supported | Dual Channel |
ECC Supported | Yes |
Buffer Supported | Un-buffered |
PCI Express 5.0 x16 | 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode |
---|---|
PCI Express 4.0 x16 | 1 x PCIe 4.0 x16 Slot (PCIE3), supports x4 mode 1 x PCIe 4.0 x16 Slot (PCIE2), supports x1 mode 1 x PCIe 4.0 x16 Slot (PCIE4), supports x1 mode |
Serial ATA (SATA) | 4 x SATA 6Gb/s |
---|---|
M.2 | 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode* 1 x M.2 Socket (M2_2, Key M), supports type 2280 SATA3 6.0 Gb/s & PCIe Gen3x2 (16 Gb/s) modes* 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode* *Supports NVMe SSD as boot disks M2_1 is the first priority for M.2 installation. M2_1 will run at Gen5x4 with 9000 and 7000 series processors and Gen4x4 with 8000 (Phoenix 1 and Phoenix 2) series processors. If SATA3_3 or SATA3_4 is occupied, M2_2 will be disabled. |
SATA RAID | Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices* *Requires additional M.2 NVMe expansion cards to support RAID 10 |
Audio Chipset | Realtek ALC897 |
---|---|
Audio Channels | 7.1 Channels |
Max LAN Speed | 2.5Gbps |
---|---|
Wireless LAN | Wi-Fi 802.11 be |
Bluetooth | Bluetooth 5.4 |

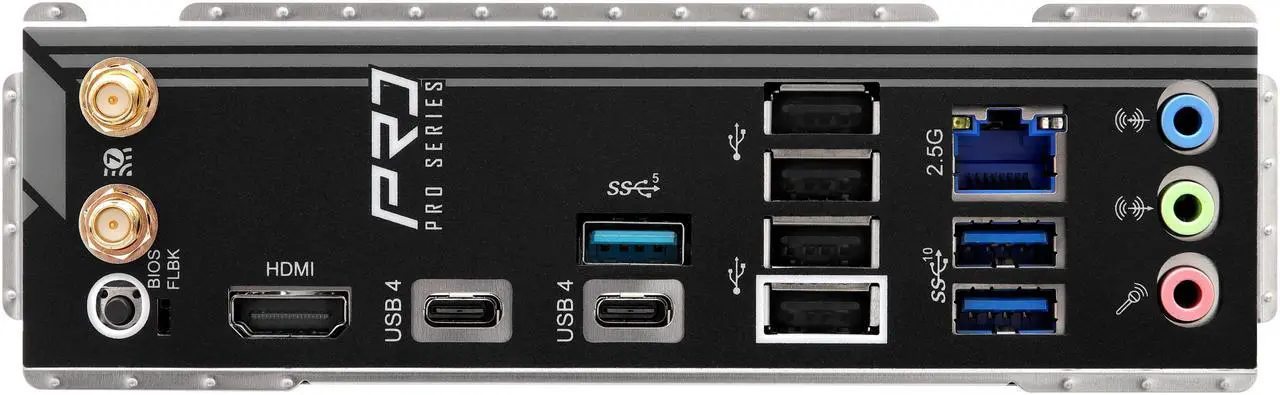

Back I/O Ports | 2 x Antenna Ports 1 x HDMI Port 2 x USB4 Type-C Ports (40 Gb/s)* 2 x USB 3.2 Gen2 Type-A Ports (10 Gb/s) 1 x USB 3.2 Gen1 Type-A Port 4 x USB 2.0 Ports 1 x RJ-45 LAN Port 1 x BIOS Flashback Button HD Audio Jacks: Line in / Front Speaker / Microphone *Supports USB PD 3.0 up to 5V@3A (15W) charging |
---|
Onboard USB | 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) 1 x Front Panel Type C USB 3.2 Gen1 Header |
---|---|
Other Connectors | 1 x SPI TPM Header 1 x Power LED and Speaker Header 1 x RGB LED Header* 3 x Addressable LED Headers** 2 x CPU Fan Connectors (4-pin) (Smart Fan Speed Control)*** 3 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)*** 1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)*** 1 x Front Panel Audio Connector *Supports in total up to 12V/3A, 36W LED Strip **Support in total up to 5V/3A, 15W LED Strip ***CPU_FAN1 supports the fan power up to 1A (12W). CPU_FAN2, CHA_FAN1~3 and AIO_PUMP support the fan power up to 3A (36W). CPU_FAN2, CHA_FAN1~3 and AIO_PUMP can auto detect if 3-pin or 4-pin fan is in use. |
Form Factor | ATX |
---|---|
Dimensions (W x L) | 12.0" x 9.6" |
Power Pin | 1 x 24 pin ATX Power Connector 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector) |
BIOS Feature | 512Mb AMI UEFI Legal BIOS with GUI support |
---|---|
Software | Software - ASRock Motherboard Utility (A-Tuning) - ASRock Dragon 2.5G LAN Software - ASRock Polychrome SYNC UEFI - ASRock EZ Mode - ASRock Full HD UEFI - ASRock Auto Driver Installer - ASRock Instant Flash |
Windows 11 | Supported |

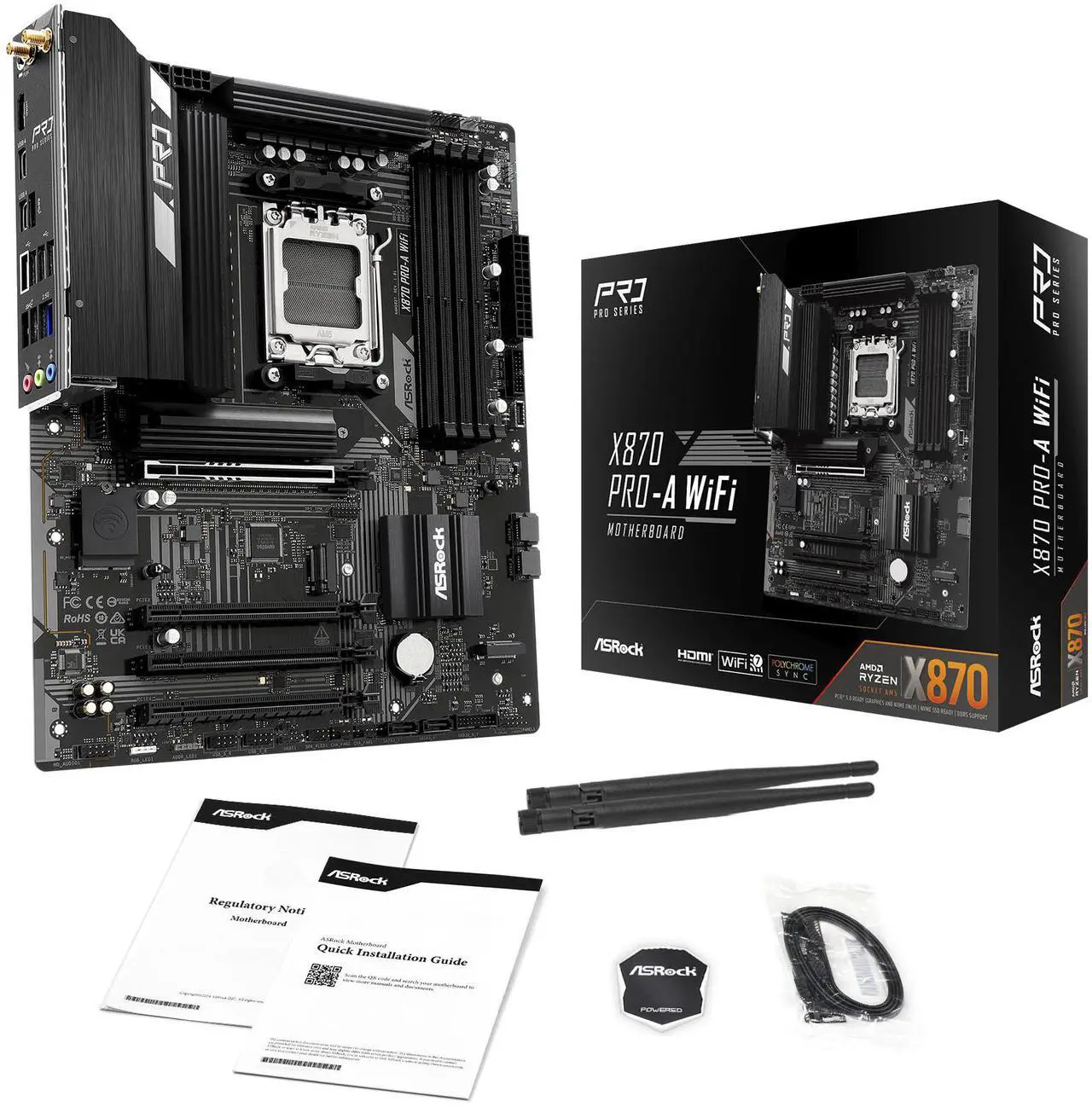

Package Contents | 2 x SATA Data Cables 2 x ASRock WiFi 2.4/5/6 GHz Antennas 1 x ARGB Splitter Cable |
---|
Date First Available | June 19, 2025 |
---|
