MAIN OVERVIEW FEATURES: Connectivity Technology: WiredKVM Technology: AnalogNumber of Computers Supported: 1Number of Local Users Supported: 1Number of Remote Users Supported: 1Maximum Operating Distance: 984.25 ftGraphic Mode: WUXGAMaximum Video Resolution: 1920 x 1200Network (RJ-45): YesUSB: YesVGA: YesProprietary Interface: YesNumber of VGA Ports: 2Number of Network (RJ-45) Ports: 2Number of USB Ports: 4Form Factor: Rack-mountablePackage Contents: CE770 KVM Console/Extender2 x Power Adapter1 x Rack Mount Kit2 x Grounding Wires1 x User Manual1 x Quick Start Guide1 x USB KVM Cable (1.8m)Environmentally Friendly: YesEnvironmental Certification: RoHS,WEEE
Learn more about the ATEN CE770
Model
Brand
ATEN
Model
CE770
Details
Type
D-Sub, USB
PC Connectors
DB-9, RJ-45, SPHD-17, Mini Stereo Jack
Console Connectors
HDB-15, USB, Mini Stereo Jack
Computer Connections
2 Ports
Monitor Connections
1 Port
Video Resolution
1920 x 1200 @ 60Hz (300 ft); 1280 x 1024 @ 60Hz ( 900 ft)
PC Selection
Push Buttons/OSD
Features
Power Features
Amps: 700 mA Local 1A remote Voltage: 5.3 VDC Power Consumption: 3.5 W / 12 BTU/h Local 5.1 W / 17.4 BTU/h Remote
Features
Local and Remote Units connect at distances up to 900 ft using Cat 5e cable Dual console operation - control your system from either the local or remote consoles De-skew Function - automatically synchronizes the time delay of RGB signals for distance compensation Built-in ASIC for greater reliability and compatibility Auto Signal Compensation (ASC) RS-232 serial ports - allow you to connect to a serial terminal, or a serial devices Sun/Mac keyboard support and emulation Audio Enabled - supports stereo speakers and microphone USB over current detection and prevention Pushbutton operating mode selection (Local Unit only)- select between Local and Auto operating modes, with the press of a single button Built-in 8KV/15KV ESD protection(Contact voltage 8KV; Air voltage 15KV) and 2KV surge protection High resolution video - up to 1920 x 1200@60Hz (300ft), or 1280 x 1024@60Hz (900 ft) No loss in audio quality up to 900 ft Supports Wide Screen formats VGA, SVGA, SXGA (1280 x 1024), UXGA (1600 x 1200), WUXGA (1920 x 1200) and multi-sync monitors; The local unit determines DDC; DDC2; DDC2B settings Hot pluggable Rack mountable Easy to install - no software required - simply connecting the cables to the devices is all it takes
Dimensions & Weight
Dimensions
7.8" x 3.1" x 1"
Weight
2.2 lbs.
Package Contents
Package Contents

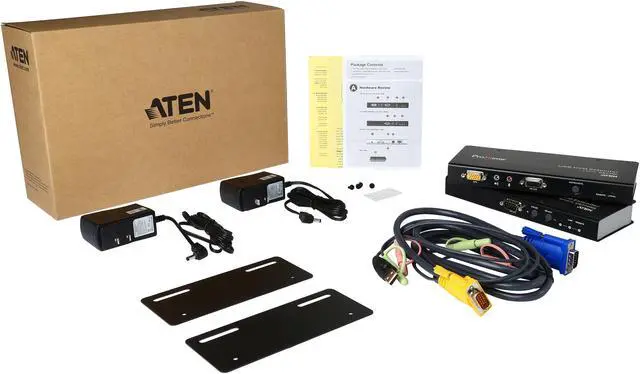

1x CE770L USB KVM Extender (Local Unit) 1x CE770R USB KVM Extender (Remote Unit) 1x USB KVM Cable (6 ft) 2x Power Adapter 1x Rack Mount Kits 2x Grounding Wire 1x User Manual 1x Quick Start Guide
