Features

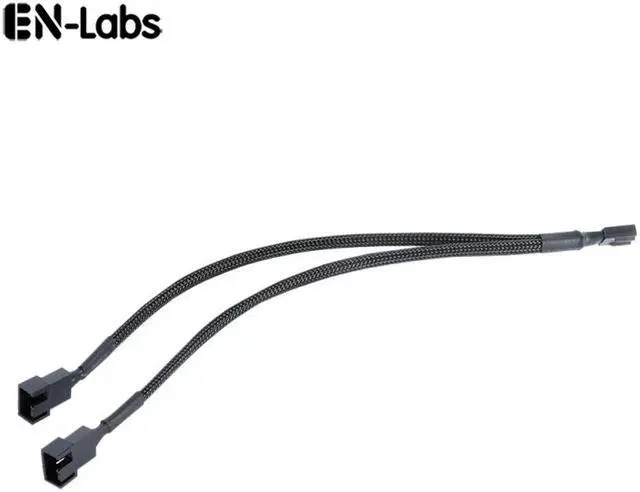

- Connects 2 computer case fans to a single motherboard fan header;
1 to 2 fan converter cable connects an additional fan to increase airflow in your computer case; - Motherboard 4-Pin receptacle connects to the 4-Pin header on the motherboard and splits the signal to 2 PWM fans;
- Fans can spin at the same speed using software from a motherboard equipped with PWM control;

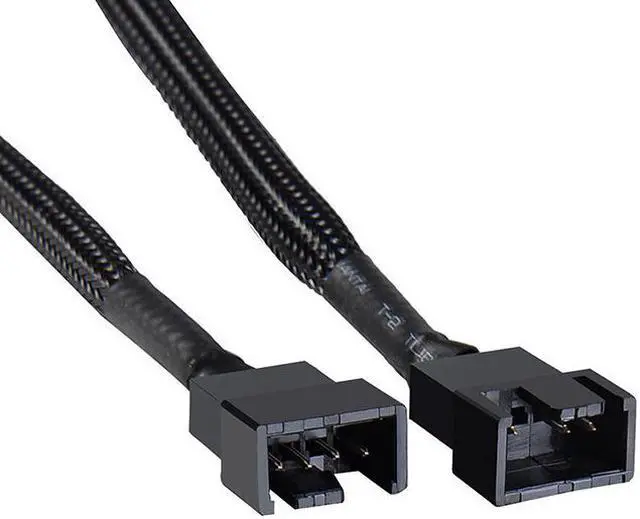

- MASTER/SLAVE FAN PLUGS have a 4 pin fan connector a wire that sends the RPM signal to the motherboard connector for synchronizing the fan speed with the other fan. The other 3 pin fan connector omits the RPM signal pin for tandem fan speeds with both fans;
- 3-PIN & 4-PIN FAN COMPATIBLE with popular brands of computer case cooling fans Corsair Air Series AF120 80mm / Series AF140 High Airflow, Cooler Master Blade Master 80 / Master 92, Cooler Master Hyper 212 EVO 120mm, Cooler Master JetFlo 120mm, Cooler Master SickleFlow 120mm, Cooler Master MegaFlow 200mm, Noctua NF-F12, Thermaltake WATER 3.0 Dual 240
Note:
- 3pin fans are run in full speed, no PWM function
- Only the fan on 4-pins connector is used for monitoring.
- All connected fans are following the same PWM signa, speed control is the same for all fans when use fan controller software like AI stuite/Xspert FAN and EASY TUNE, etc
- PWM capable connectors must necessarily be 4-pin, but not all 4-pin motherboard connectors implement or enable the PWM signal modulation by default. Please carefully consult your motherboard documentation in this respect.

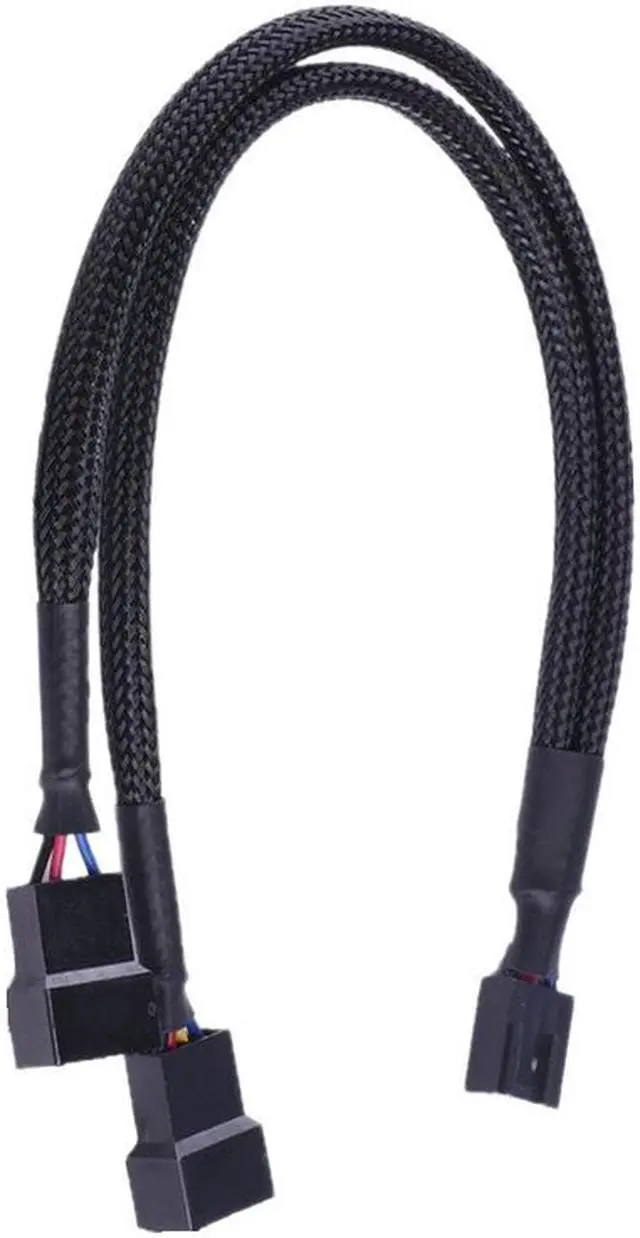

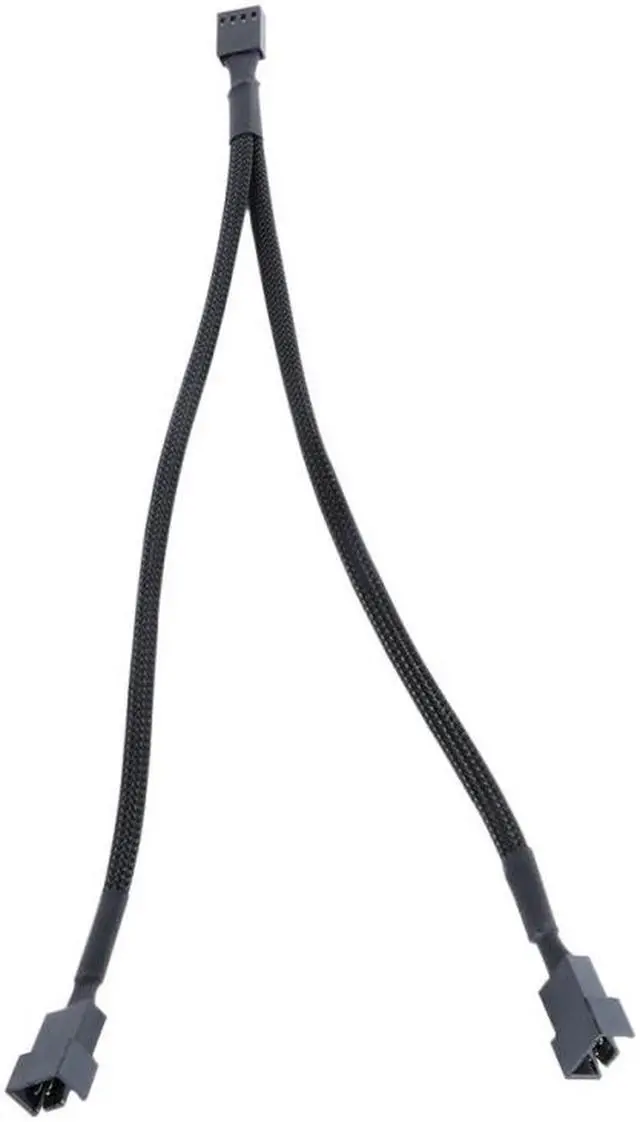

- PWM 4pin to 2 ports fanout splitter cable
- Supports two fans connect to motherboard CPU_FAN header

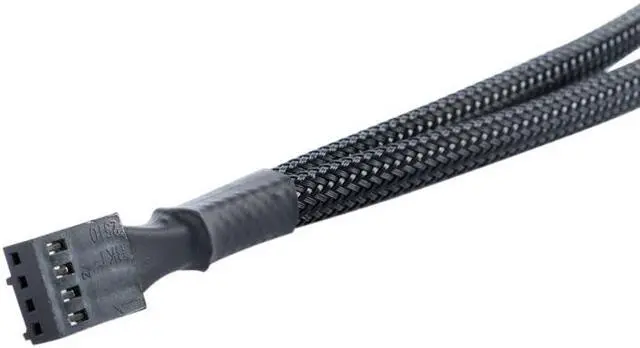

- PWM TX4 4Pin header connect to motherboard CPU_FAN or SYS_FAN
- Just one header include 4 wires for PWM control
- The other header just include 3 wires
- Please make sure the header with full 4pin tips always connect fan preferentially
Specification
| Type | PWM Fan Power Splitter Cable |
|---|---|
| Cable Length | 10 Inches |
| Conductor | 22AWG Copper |
| Connector A | 1 x 4pin PWM fan TX4 Female |
| Connector B | 2 x 4pin PWM Fan TX4 Male |
| Power supports | Motherboard CPU_FAN or SYS_FAN |
| Compatible | Compatible with 3-Pin & 4-Pin Fan |
