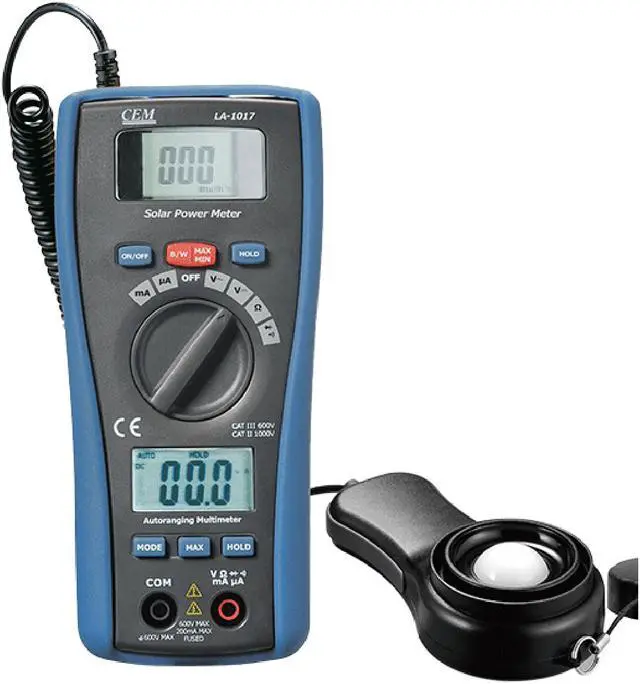

CEM LA-1017 Solar Power Meter Sunlight Tester/DMM Digital Multimeter
Notice:
The standard package don't include batteries.Because,the international air shipping forbid to ship liquid,powder and batteries,we can not put them in the package box.Hope you can understand buy them in your local store or supermarket.
At the same time, please forgive us that we are unable to provide the English user manual. If you need it, please contact the customer service after purchase.
Thanks for your support!
Solar Power Meter & DMM
Sunlight measurement up to 1999w/m 2 or 634BTU/(ft 2 *h)
High accuracy and rapid response
Data HOLD function to hold measurement values
Unit and sign display for easy reading
Measuring unit selection among w/m 2 and BTU/(ft 2 *h)
Manual scale selection
Direct reading with no adjustments needed
Maximum and minimum values
Low battery indication
Features
High accuracy and rapid response
Data HOLD function to hold measurement values
Unit and sign display for easy reading
Measuring unit selection among w/m 2 and BTU/(ft 2 *h)
Manual scale selection
Direct reading with no adjustments needed
Maximum and minimum values
Low battery indication
Size (H x W x D): 162mm x 74.5mm x 44mm
Weight: 308g
Specifications
Function
Max Range
Basic Accuracy
Voltage DC
600V
±0.5%
Voltage AC
600V
±1.2%
Current DC
200mA
±1.5%
Current AC
200mA
±2.0%
Resistance
20MO
±0.8%
Continuity Test
Beep if less than 100O
Solar Power Meter
Display
3-1/2 digits LCD with maximum reading 1999.
Range
1999W/m2,634BTU/(ft2*h)
Resolution
1W/m2; 1BTU/(ft2*h).
Accuracy
Typically within ±10W/m2 [±3BTU/(ft2*h)]or ±5%
Sampling time
Approx 0.25 second.
