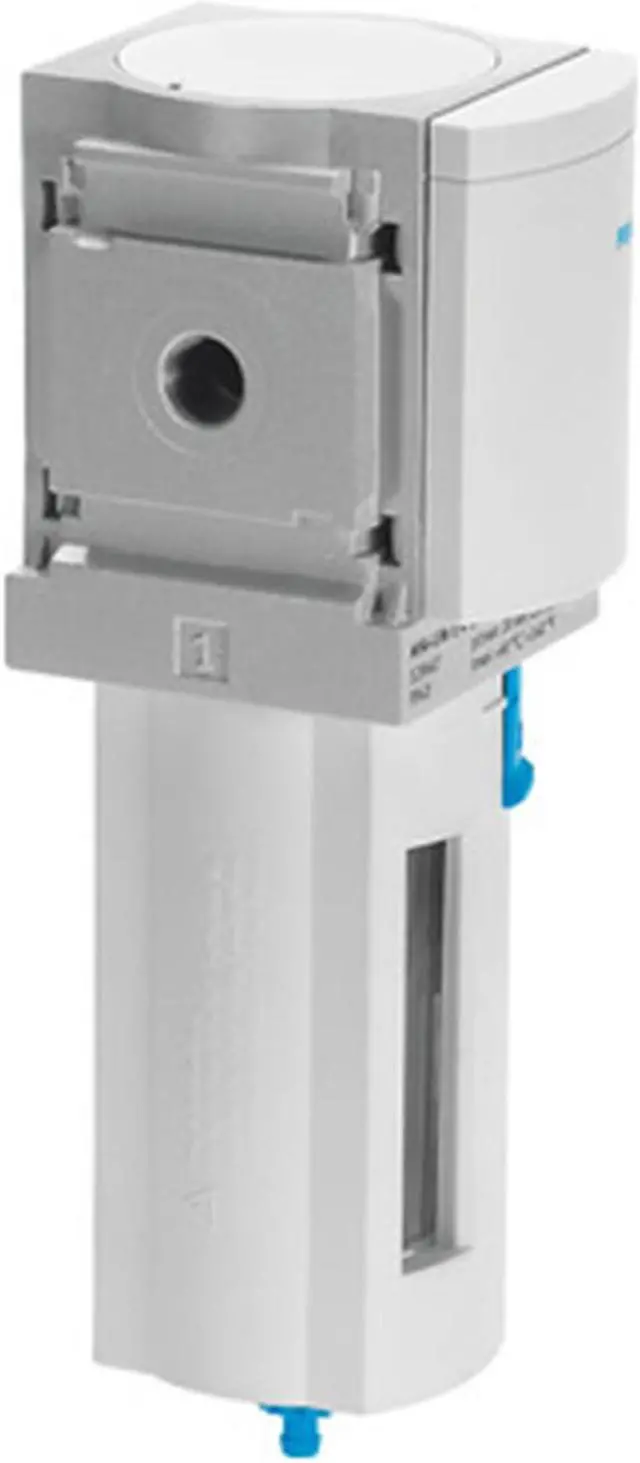

FESTO MS6N-LFM-1/2-BRV Fine Filter 531855 Size 6 New
- FESTO MS6N-LFM-1/2-BRV Fine Filter 531855 Size 6 New
+
+
Overview
Specs
Reviews
Series
MS
For use in the food industry
See supplementary material information
Size
6
Type code
MS6N-LFM
Design
Fiber filter
Grade of filtration
1 µm
Condensate drain
Fully automatic
Symbol
00991520
Operating pressure
2 bar ... 12 bar
Air quality class at the output
Compressed air as per ISO 8573-1:2010 [5:7:3]
Max. standard flow rate for air quality class
950 l/min
Min. standard flow rate for air quality class
140 l/min
Filter efficiency
99.99 %
Max. condensate volume
38 ml
Bowl guard
Plastic bowl guard
Corrosion resistance class (CRC)
2 - Moderate corrosion stress
Temperature of medium
5 °C ... 60 °C
Ambient temperature
5 °C ... 60 °C
Storage temperature
-10 °C ... 60 °C
Residual oil content
0.5 mg/m3
Mounting position
Vertical +/- 5°
Pneumatic connection 1
1/2 NPT
Pneumatic connection 2
1/2 NPT
Housing material
Die-cast aluminum
Compressed air filter material
Borosilicate fiber
Material of bowl
PC
Seals material
NBR
Product weight
600 g
