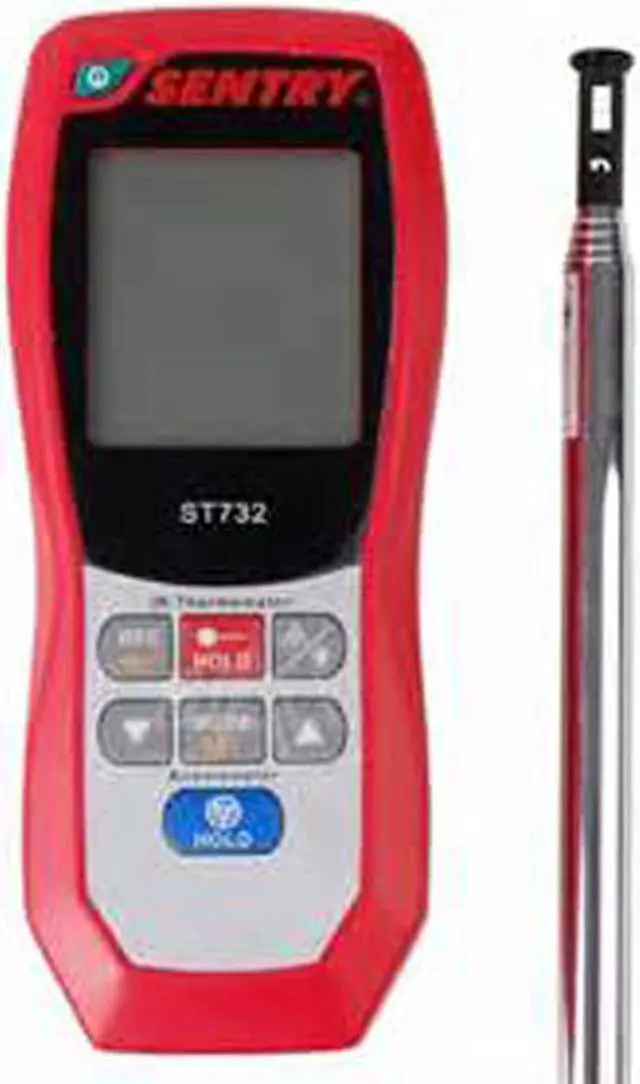

SENTRY ST-732 Hot Wire IR thermo-Anemometer Air Velocity Air Flow Temperature
- Test Equipment
+
+
Overview
Specs
Reviews
Features Simultaneous display of air velocity plus ambient temperatures Combination of hot wire and standard thermister, deliver rapid and precise measurements event at low velocity Wide range measurement of air velocity
Multi-functions for measurement: m/s, km/h, ft/min, knots, mile/h, CMM (732/733), CFM (732/733) Infrared thermometer measures remote surface temperature to 537.5 °C( 999.5 °F) with 8:1 (730/732)/ 30:1 (733) distance to spot ratio Data hold and record / recall maximum, minimum and average reading Auto power off after 10 minutes of idle (30 minutes with AC power) Specification Specifications ST730 ST732 ST733
Measurement Air Velocity: m/s, ft/mim, km/h, mile/h, knots
Temperature: °C and °F
Air Velocity: m/s, ft/mim, km/h, mile/h, knots
Air Flow: CMM,
CFM Temperature: °C and °F Air Velocity Range 0.00 ~ 40.00 m/s, 0.1 ~ 7874.0 ft/min, 0.00 ~ 144.00 km/h, 0.00 ~ 89.50 mile/h, 0.00 ~ 77.75 knots Air Velocity Resolution 0.01 m/s, 0.1 ft/min, 0.01 km/h, 0.01 mile/h, 0.01 knots Air Velocity Accuracy ±( 0.03 ms+3% of reading); ±( 5.9 ft/min+3% of reading); ±( 0.11 km/h+3% of reading); ±( 0.07 mile/h+3% of reading); ±( 0.06 knots+3% of reading) IRT Temp. Range -32~ 537.5 °C (- 25.6 ~ 999.5 °F) IRT Accuracy -32~-20°C (- 25.6 ~-4°F): ±3°C (± 5.4 °F), -20~100°C
(-4~212°F): ±2°C (± 3.6 °F), 100~ 537.5 °C (212~ 999.5 °F): ±2% D/S Ratio 8:1 8:1 30:1 Emissivity 0.95 fixed 0.95 fixed 0.10 ~ 1.00 Adj. Sample Time Approx. 0.5 sec. Operation Temperature 0~50°C (32~122°F); 10~90% RH Weight 320 g ( 11.29 oz. ) 320 g ( 11.29 oz. ) 310 g ( 10.93 oz.
) Dimension Main: 184 x 70 x 40 mm ( 7.24 x 2.76 x 1.57 inch)
Telescope probe: approx. 1800 mm ( 70.87 inch) include wire rod Accessories 9V Battery, Instruction manual, Carrying case, AC adapter, USB cable, CD (732/733) Function Table Model Name ST730 ST732 ST733 Data Logging (2000 points) no yes yes Time Interval no yes yes PC Interface (USB) no yes yes AC Power yes yes yes Max / Min / Avg yes yes yes Applications Environmental testing Ventilation system Refrigerated case Fans / Motors / Blowers Far distance temp. monitor Flow hoods Air conveyors Furnace velocity
Multi-functions for measurement: m/s, km/h, ft/min, knots, mile/h, CMM (732/733), CFM (732/733) Infrared thermometer measures remote surface temperature to 537.5 °C( 999.5 °F) with 8:1 (730/732)/ 30:1 (733) distance to spot ratio Data hold and record / recall maximum, minimum and average reading Auto power off after 10 minutes of idle (30 minutes with AC power) Specification Specifications ST730 ST732 ST733
Measurement Air Velocity: m/s, ft/mim, km/h, mile/h, knots
Temperature: °C and °F
Air Velocity: m/s, ft/mim, km/h, mile/h, knots
Air Flow: CMM,
CFM Temperature: °C and °F Air Velocity Range 0.00 ~ 40.00 m/s, 0.1 ~ 7874.0 ft/min, 0.00 ~ 144.00 km/h, 0.00 ~ 89.50 mile/h, 0.00 ~ 77.75 knots Air Velocity Resolution 0.01 m/s, 0.1 ft/min, 0.01 km/h, 0.01 mile/h, 0.01 knots Air Velocity Accuracy ±( 0.03 ms+3% of reading); ±( 5.9 ft/min+3% of reading); ±( 0.11 km/h+3% of reading); ±( 0.07 mile/h+3% of reading); ±( 0.06 knots+3% of reading) IRT Temp. Range -32~ 537.5 °C (- 25.6 ~ 999.5 °F) IRT Accuracy -32~-20°C (- 25.6 ~-4°F): ±3°C (± 5.4 °F), -20~100°C
(-4~212°F): ±2°C (± 3.6 °F), 100~ 537.5 °C (212~ 999.5 °F): ±2% D/S Ratio 8:1 8:1 30:1 Emissivity 0.95 fixed 0.95 fixed 0.10 ~ 1.00 Adj. Sample Time Approx. 0.5 sec. Operation Temperature 0~50°C (32~122°F); 10~90% RH Weight 320 g ( 11.29 oz. ) 320 g ( 11.29 oz. ) 310 g ( 10.93 oz.
) Dimension Main: 184 x 70 x 40 mm ( 7.24 x 2.76 x 1.57 inch)
Telescope probe: approx. 1800 mm ( 70.87 inch) include wire rod Accessories 9V Battery, Instruction manual, Carrying case, AC adapter, USB cable, CD (732/733) Function Table Model Name ST730 ST732 ST733 Data Logging (2000 points) no yes yes Time Interval no yes yes PC Interface (USB) no yes yes AC Power yes yes yes Max / Min / Avg yes yes yes Applications Environmental testing Ventilation system Refrigerated case Fans / Motors / Blowers Far distance temp. monitor Flow hoods Air conveyors Furnace velocity
