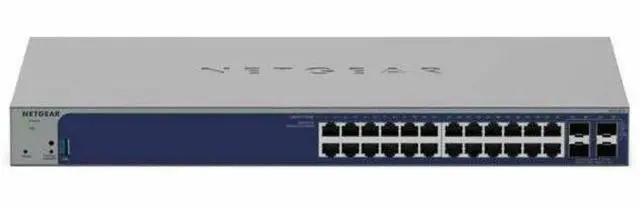

NETGEAR 24-Port Gigabit Smart Switch w/optional Remote/Cloud Management and 4 SFP+ Ports | GS728TX-300NAS
- 4 Dedicated 10G SFP+ ports, not only providing high-speed fiber uplinks, but also uplink redundancy and failover, improving reliability and availability for the network.
- Quiet rack mounting operation with 26.80dBA to 37.3dBA at 25°C (77°F) ambient.
- Layer 3 static routing with 32 routes (IPv4 and IPv6) for interVLAN local routing.
+
+
Specs
Reviews
Learn more about the Netgear Inc. GS728TXv3
| Brand | NETGEAR |
|---|---|
| Series | Smart w/optional Cloud |
| Model | GS728TXv3 |
| Part Number | GS728TX-300NAS |
| Format | Rackmount |
|---|---|
| Network Management Type | Smart |
| Primary Ports | 24 x RJ45 + 4 x SFP |
|---|---|
| Primary Port Speed | 10/100/1000Mbps |
| Management Feature | Cloud/Remote management Insight mobile app & Insight Cloud Portal management uPnP Discovery Lite Command-line Interface (CLI) Networking monitoring Data/performance logs Centralized network configuration/policies (network-centric management) Device auto-join and configure (zero-touch provisioning) Multi-site, multi-network single pane-of-glass view Multi-switch, multi-port concurrent configuration Network/global password (for all Insight Managed devices on a network) Password management Configurable management VLAN Admin access control via RADIUS and TACACS+ IPv6 management SNTP client over UDP port 123 SNMP v1/v2c SNMP v3 with multiple IP addresses RMON group 1,2,3,9 Port mirroring: ingress and egress Many-to-one port mirroring: 28 Web browser-based graphical user interface (GUI) Dual software (firmware) image Cable test utility TLS/HTTPS Web-based access (version): v1.2 and v1.3 File transfers (uploads, downloads): TFTP / HTTP HTTP upload/download (firmware) Syslog (RFC 3164) USB port for firmware and config upload/download |
|---|
| Protocols | IEEE 802.3 Ethernet IEEE 802.3u 100BASE-T IEEE 802.3ab 1000BASE-T IEEE 802.3af PoE IEEE 802.3at PoE+ IEEE 802.3az Energy Efficient Ethernet (EEE) IEEE 802.3ad Trunking (LACP) IEEE 802.3z Gigabit Ethernet 1000BASE-SX/LX IEEE 802.3x Full-Duplex Flow Control IEEE 802.1Q VLAN Tagging IEEE 802.1AB LLDP with ANSI/TIA-1057 (LLDP-MED) IEEE 802.1p Class of Service IEEE 802.1D Spanning Tree (STP) IEEE 802.1s Multiple Spanning Tree (MSTP) IEEE 802.1w Rapid Spanning Tree (RSTP) IEEE 802.1x RADIUS Network Access Control |
|---|---|
| Security | IEEE 802.1x Guest VLAN RADIUS-based VLAN assignment via .1x MAC-based .1x RADIUS accounting Access Control Lists (ACLs): L2 / L3 / L4 IP-based ACLs (IPv4 and IPv6) MAC-based ACLs TCP/UDP-based ACLs MAC lockdown MAC lockdown by the number of MACs Control MAC # Dynamic learned entries: 16384 Control MAC # static entries: 256 IEEE 802.1x RADIUS port access authentication Port-based security by locked MAC addresses Dynamic ARP inspection Broadcast, unicast, multicast DoS protection DoS attacks prevention Network storm protection, DoS Broadcast, unicast, multicast DoS protection DoS attacks prevention |
| PoE | No |
| QoS | Port-based rate limiting: Ingress and egress Port-based QoS Support for IPv6 fields DiffServ QoS: Ingress IEEE 802.1p COS Destination MAC and IP IPv4 and v6 DSCP IPv4 and IPv6 ToS TCP/UDP-based Weighted Round Robin (WRR) Strict priority queue technology Auto-VoIP VLAN / Auto-Voice VLAN: Based on OUI bytes (default database and user-based OUIs) in the phone source MAC address Auto-VoIP: Based on protocols (SIP). Prioritzes traffic to a higher queue Voice VLAN: Based on either VLAN ID or 802.1p priority, packets are passed onto the connecting VoIP phone using LLDP-MED Auto-Video VLAN |
| Layer | 3 |
| Layer 2 Features | Services - VLANs IEEE 802.1Q VLAN tagging IP-based VLANs MAC-based VLANs Auto-VoIP VLAN / Auto-Voice VLAN: Based on OUI bytes (default database and user-based OUIs) in the phone source MAC address Auto-VoIP: Based on protocols (SIP). Prioritizes traffic to a higher queue Voice VLAN: Based on either VLAN ID or 802.1p priority, packets are passed onto the connecting VoIP phone using LLDP-MED Auto-Video VLAN Auto WiFi VLAN and Auto Camera VLAN: Based on inputed OUIs GARP with GVRP Private VLAN Services - Availability Broadcast, multicast, unknown unicast storm control IEEE 802.3ad - LAGs (LACP) IEEE 802.3x (full duplex and flow control) IEEE 802.1D Spanning Tree Protocol IEEE 802.1w Rapid Spanning Tree Protocol IEEE 802.1s Multiple Spanning Tree Protocol Layer 2 DHCP Relay Services - Multicast Filtering IGMP snooping (v1, v2 and v3) MLD snooping support (v1 and v2) IGMP snooping querier (v2) MLD snooping querier (v1) Multicast VLAN Registration (MVR) |
| Layer 3 Features | Services - DHCP DHCP client DHCP snooping DHCP Server, DHCP IPv6 Server, DHCP Relay, DHCP IPv6 Relay Services - Routing IPv4 static routing: 32 IPv6 static routing: 32 VLAN routing Host ARP table (number of entries): 512 ARP ICMP Router Discovery Protocol (IRDP) Number of IP VLAN interfaces (routed VLANs): 15 |
| Max Power Consumption | Max power without PoE: 26 W |
|---|
| Dimensions | 440 x 257 x 43 mm (17.3 x 10.1 x 1.7 in) |
|---|---|
| Weight | 3.08kg (6.79 lb) |
| First Listed on Newegg | June 27, 2025 |
|---|
