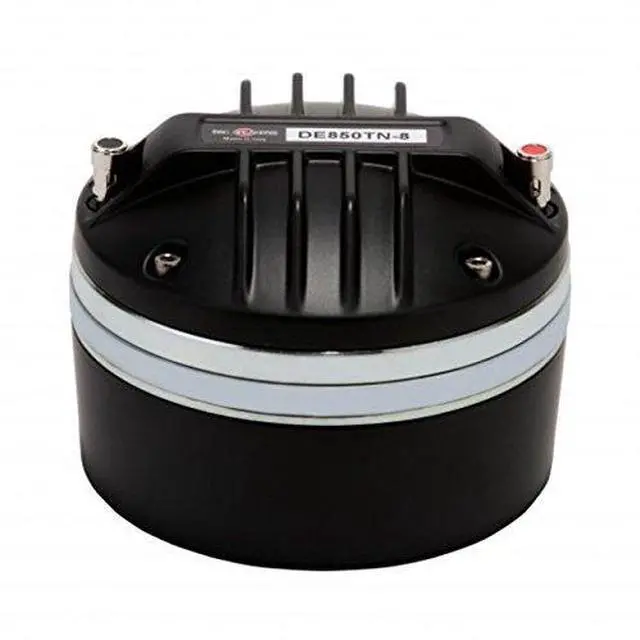

* 500 - 18000 Hz response* 108 dB sensitivity* Neodymium magnet assembly w / shorting copper cap* 220 W continuous program power capacity* 2-in horn throat diameter* 75 mm (3 in) aluminium voice coil* Titanium diaphragm*
Throat diameter: 50 mm ( 2.0 in)*
Nominal impedance: 8
Ohms* Minimum impedance: 8.5
Ohms* Nominal power handling: 110
W* Continuous power handling: 220
W* Sensitivity (1W / 1m): 108.0 dB*
Frequency range: 1 - 18 kHz*
Recommended crossover: 1.0 kHz*
Voice coil diameter: 75 mm ( 3.0 in)*
Winding material: Aluminium*
Inductance: 0.14 mH*
Diaphragm material: Titanium*
Flux density: 1.85
T* Magnet material: Neodymium Ring* Mounting & Shipping Info* Four M6 holes 90 Degrees on 102 mm (4 in) diameter*
Overall diameter: 124 mm ( 4.9 in)*
Depth: 88 mm ( 3.46 in)*
Net weight: 2.5 kg ( 5.5 lb)*
Shipping units: 4*
Shipping weight: 10.6 kg ( 23.3 lb)*
Shipping box: 300x160x230 mm ( 11.8 x 6.3 x 9.1 in)*
Replacement Diaphragm: MMD3CTN8M
Throat diameter: 50 mm ( 2.0 in)*
Nominal impedance: 8
Ohms* Minimum impedance: 8.5
Ohms* Nominal power handling: 110
W* Continuous power handling: 220
W* Sensitivity (1W / 1m): 108.0 dB*
Frequency range: 1 - 18 kHz*
Recommended crossover: 1.0 kHz*
Voice coil diameter: 75 mm ( 3.0 in)*
Winding material: Aluminium*
Inductance: 0.14 mH*
Diaphragm material: Titanium*
Flux density: 1.85
T* Magnet material: Neodymium Ring* Mounting & Shipping Info* Four M6 holes 90 Degrees on 102 mm (4 in) diameter*
Overall diameter: 124 mm ( 4.9 in)*
Depth: 88 mm ( 3.46 in)*
Net weight: 2.5 kg ( 5.5 lb)*
Shipping units: 4*
Shipping weight: 10.6 kg ( 23.3 lb)*
Shipping box: 300x160x230 mm ( 11.8 x 6.3 x 9.1 in)*
Replacement Diaphragm: MMD3CTN8M
