Geekworm NASPi 2.5 inch SATA HDD/SSD NAS Storage Kit for Raspberry Pi 4 Model B(Not Include Raspberry Pi 4)

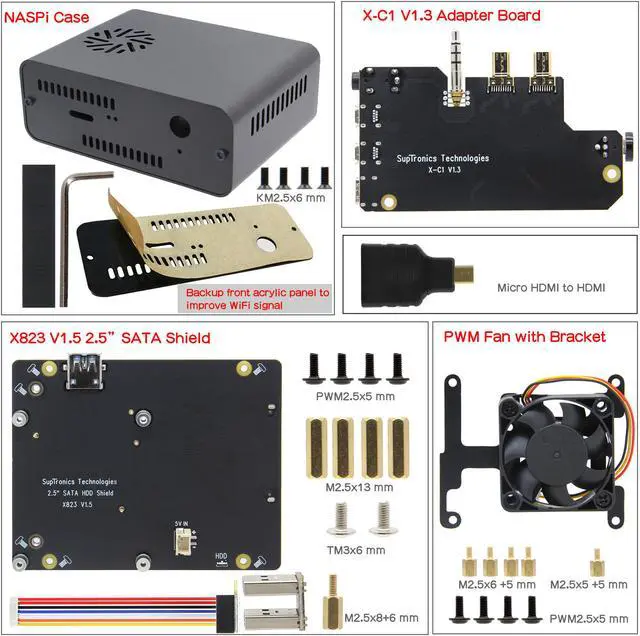

- 1. NASPI is composed of three parts: X823 storage shield, X-C1 adapter board, heat dissipation system(include X823-A3 metal fan bracket and 4010 PWM fan), and they will be packed into a ALU-case to get a complete NASPi;
- 2. Power supply: 5Vdc +/-5% , =3A (Via Type-C Port of X-C1); Recommend that you use Raspberry Pi Foundation official Type-C power adapter.
- 3. SSD thickness description: NASPi supports SSD with a thickness not exceeding 9.8mm, most 2.5" HDD/SSD on the market are only 7mm thick.
- 4. Button switch operation: Press button 1~2 seconds to reboot, 3 seconds to safe shutdown, 8 seconds to force shutdown (need to install shell script firstly)
- 5. Wifi description: 5G WiFi is stable enough, recommend using Ethernet or 5G WiFi.

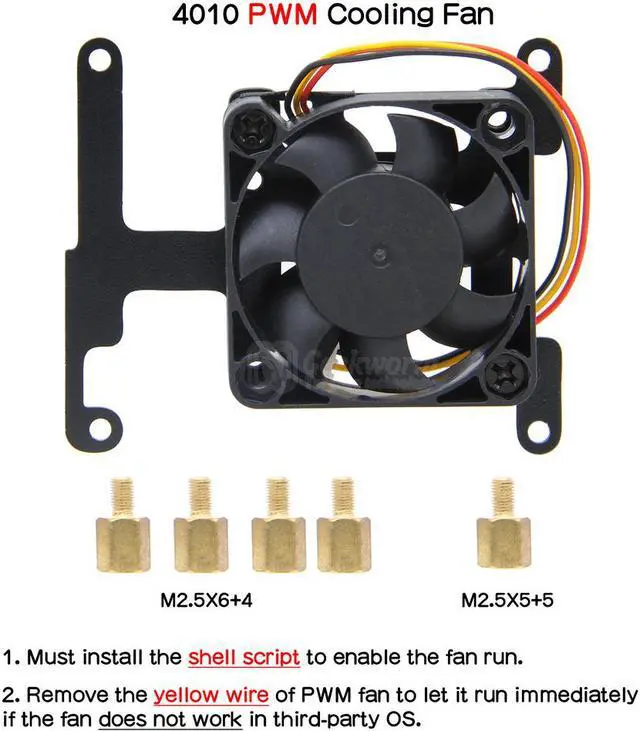

- 6.How to Make the Fan Work: PWM fan needs a PWM signal to start working, so need to install shell script (refer to above wiki), If the fan does not work in third-party OS, only remove the yellow wire of fan to let the fan run immediately.
+
+
Overview
Specs
Reviews
Note: The NASPi kit does not include the Raspberry Pi 4 motherboard, TF card and 2.5" SATA SSD/HDD.
[Overview]
NASPi is a NUC-style NAS storage solution based on the latest Raspberry Pi 4. It supports 2.5-inch sata HDD/SSD. All the Raspberry Pi 4 interfaces are adjusted to the back through the X-C1 adapter board, build in software safety shutdown function, using PWM fan can dynamically adjust the speed of the fan according to the temperature of the CPU. The shell is made of all aluminum alloy, CNC processing method, surface anodizing treatment.(raspberry pi 4 nas kit)

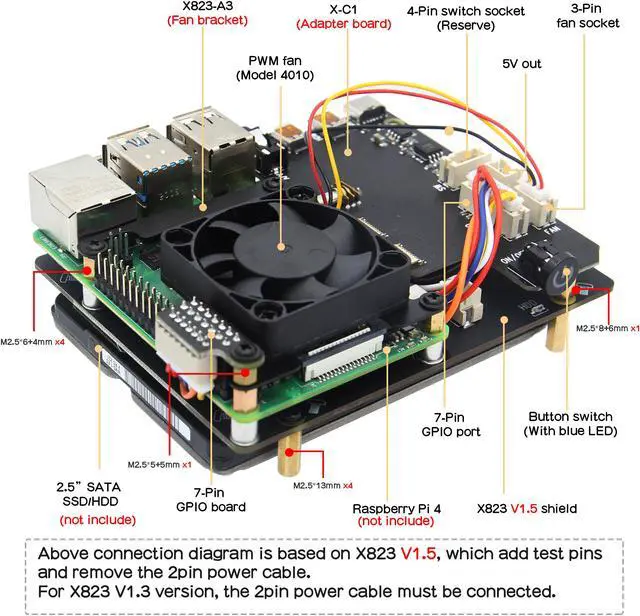

NASPI adopts modular design, and NASPI is composed of three parts: X823 storage shield, X-C1 adapter board, heat dissipation system(include X823-A3 metal fan bracket and 4010 PWM fan), and they will be packed into a ALU-case to get a complete NASPi;
X823 provides 2.5 inch HDD/SSD storage function(UASP supported);
X-C1 provides power management, interface adapter and safe shutdown function
For the heat dissipation system, we chose a relatively simple and practical heat dissipation solution: a custom metal bracket and a PWM fan to achieve it. in fact, you can use P165-B to get same function, but maybe P165-B will have a slight impact on WIFI.
X-C1 provides power management, interface adapter and safe shutdown function For the heat dissipation system, we choose a relatively simple and practical heat dissipation solution: a custom metal bracket and a PWM fan to achieve it. In fact, you can use P165-B to get same function, but maybe P165-B will have a slight impact on WIFI.
[WiKi for Document]
wiki.geekworm.com/NASPi
wiki.geekworm.com/X-C1_Software
Key Features
Ideal storage solution for Raspberry Pi 4 - NASPi 2.5" SATA HDD/SSD Kit
Only compatible with Raspberry Pi 4 Model B
UASP Supported Only for Raspberry Pi 4
Compatible with single 2.5 inch SATA hard disk drives (HDD) / solid-state drive (SSD)
Support Max 9.8mm thickness 2.5 inch HDD/SSD (The thickness of 2.5" HDD/SSD on the market is generally 7mm, 9.5mm, 12.5 and 15mm,You only can choose 7mm or 9.5mm thickness HDD/SSD)
Allows booting OS from your HDD/SSD for faster app opens, web serving and file copying
Press button switch to turn on
Press button switch and hold for 1~2 seconds to reboot
Press button switch and hold for 3 seconds to implement safe shutdown
Press button switch and hold for more than 8 seconds to force shutdown
Integrated USB 3.1 Gen1 to SATA 6Gb/s bridge controllers
USB3.1 Gen1 6Gb/s connectivity offers plug-and-play functionality on your Raspberry Pi 4
LED red indicator indicates powered status and blue indicator indicates drive status
Small and exquisite aluminum alloy case reserve the power button port, type-C power supply port for use

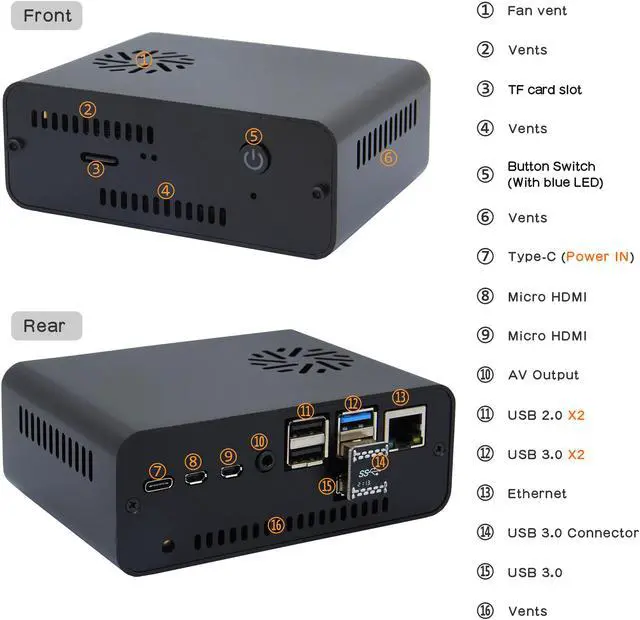

All the ports of the Raspberry Pi 4 are available to use for the NASPi case
Power supply
Power supply: 5Vdc +/-5% , =3A (Via Type-C Port)
We recommend that you use Raspberry Pi official type-c power adapter.
FAQ

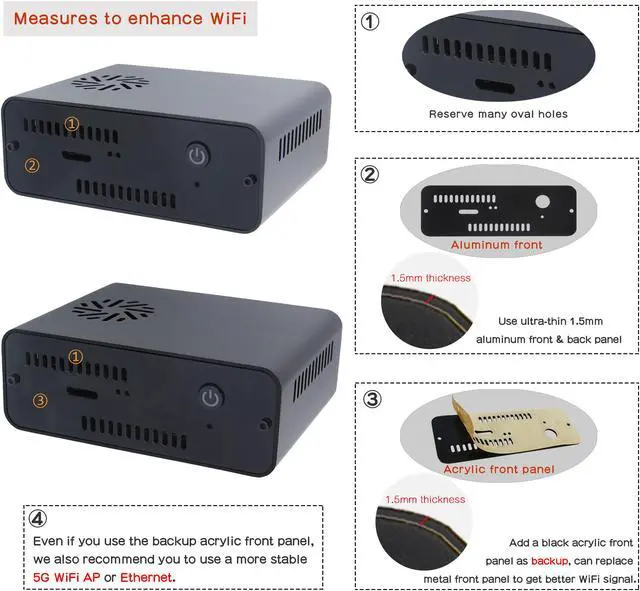

Q1. Will the Alu case affect the WIFI?
A: As our test, 2.4G WIFI AP was usable. But different Raspberry Pi individuals have different degrees of WIFI interference. As well as aluminum alloy case will interfere with pi 4’s WIFI to a certain extent. 2.4G WIFI maybe unstable. So it is strongly recommend to use Ethernet or 5G AP. Refer to 5G WiFi test video: youtu.be/LKJVIBQFYXs

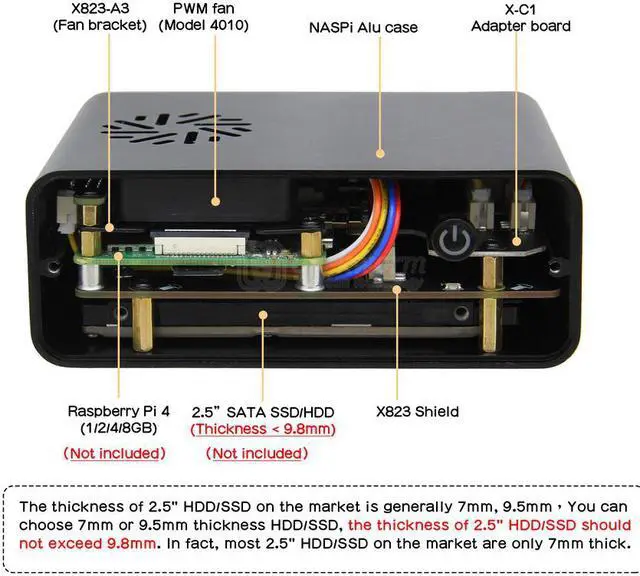

Q2: What is the thickness of a 2.5" HDD/SSD that can be accommodated?
A: The thickness of 2.5" HDD/SSD on the market is generally 7mm, 9.5mm, 12.5 and 15mm,You only can choose 7mm or 9.5mm thickness HDD/SSD, NASPi is not compatible with 12.5mm and 15mm thickness 2.5" HDD/SSD.The thickness of 2.5" HDD/SSD should not exceed 9.8mm. In fact, most 2.5" HDD/SSD on the market are only 7mm thick.
Q3: Is it OK to use wirless keyboard or mouse?
A: According to our test, it is OK to use the keyboard and mouse. Refer to video: youtu.be/LKJVIBQFYXs, we use the wireless logitech K520 keyboard and mouse.
Q4: How to find and use the Raspberry Pi 4 5G AP?
A: Please refer to here foll
[Overview]
NASPi is a NUC-style NAS storage solution based on the latest Raspberry Pi 4. It supports 2.5-inch sata HDD/SSD. All the Raspberry Pi 4 interfaces are adjusted to the back through the X-C1 adapter board, build in software safety shutdown function, using PWM fan can dynamically adjust the speed of the fan according to the temperature of the CPU. The shell is made of all aluminum alloy, CNC processing method, surface anodizing treatment.(raspberry pi 4 nas kit)
NASPI adopts modular design, and NASPI is composed of three parts: X823 storage shield, X-C1 adapter board, heat dissipation system(include X823-A3 metal fan bracket and 4010 PWM fan), and they will be packed into a ALU-case to get a complete NASPi;
X823 provides 2.5 inch HDD/SSD storage function(UASP supported);
X-C1 provides power management, interface adapter and safe shutdown function
For the heat dissipation system, we chose a relatively simple and practical heat dissipation solution: a custom metal bracket and a PWM fan to achieve it. in fact, you can use P165-B to get same function, but maybe P165-B will have a slight impact on WIFI.
X-C1 provides power management, interface adapter and safe shutdown function For the heat dissipation system, we choose a relatively simple and practical heat dissipation solution: a custom metal bracket and a PWM fan to achieve it. In fact, you can use P165-B to get same function, but maybe P165-B will have a slight impact on WIFI.
[WiKi for Document]
wiki.geekworm.com/NASPi
wiki.geekworm.com/X-C1_Software
Key Features
Ideal storage solution for Raspberry Pi 4 - NASPi 2.5" SATA HDD/SSD Kit
Only compatible with Raspberry Pi 4 Model B
UASP Supported Only for Raspberry Pi 4
Compatible with single 2.5 inch SATA hard disk drives (HDD) / solid-state drive (SSD)
Support Max 9.8mm thickness 2.5 inch HDD/SSD (The thickness of 2.5" HDD/SSD on the market is generally 7mm, 9.5mm, 12.5 and 15mm,You only can choose 7mm or 9.5mm thickness HDD/SSD)
Allows booting OS from your HDD/SSD for faster app opens, web serving and file copying
Press button switch to turn on
Press button switch and hold for 1~2 seconds to reboot
Press button switch and hold for 3 seconds to implement safe shutdown
Press button switch and hold for more than 8 seconds to force shutdown
Integrated USB 3.1 Gen1 to SATA 6Gb/s bridge controllers
USB3.1 Gen1 6Gb/s connectivity offers plug-and-play functionality on your Raspberry Pi 4
LED red indicator indicates powered status and blue indicator indicates drive status
Small and exquisite aluminum alloy case reserve the power button port, type-C power supply port for use
All the ports of the Raspberry Pi 4 are available to use for the NASPi case
Power supply
Power supply: 5Vdc +/-5% , =3A (Via Type-C Port)
We recommend that you use Raspberry Pi official type-c power adapter.
FAQ
Q1. Will the Alu case affect the WIFI?
A: As our test, 2.4G WIFI AP was usable. But different Raspberry Pi individuals have different degrees of WIFI interference. As well as aluminum alloy case will interfere with pi 4’s WIFI to a certain extent. 2.4G WIFI maybe unstable. So it is strongly recommend to use Ethernet or 5G AP. Refer to 5G WiFi test video: youtu.be/LKJVIBQFYXs
Q2: What is the thickness of a 2.5" HDD/SSD that can be accommodated?
A: The thickness of 2.5" HDD/SSD on the market is generally 7mm, 9.5mm, 12.5 and 15mm,You only can choose 7mm or 9.5mm thickness HDD/SSD, NASPi is not compatible with 12.5mm and 15mm thickness 2.5" HDD/SSD.The thickness of 2.5" HDD/SSD should not exceed 9.8mm. In fact, most 2.5" HDD/SSD on the market are only 7mm thick.
Q3: Is it OK to use wirless keyboard or mouse?
A: According to our test, it is OK to use the keyboard and mouse. Refer to video: youtu.be/LKJVIBQFYXs, we use the wireless logitech K520 keyboard and mouse.
Q4: How to find and use the Raspberry Pi 4 5G AP?
A: Please refer to here foll
