Feature

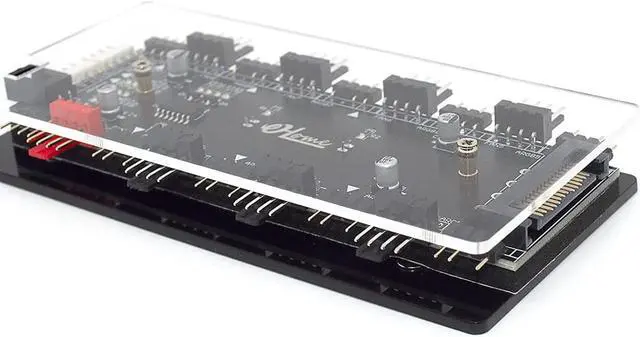

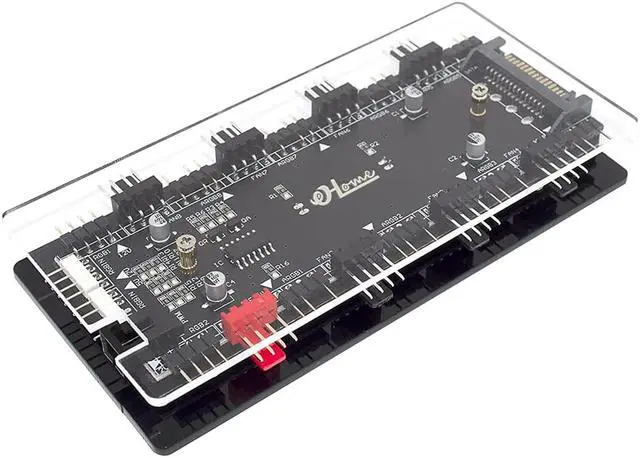

- RGB & PWM 2-in-1 Converter Controller Hub
- Convert Motherboard 4Pin RGB to 8 ports 5V 3pin ARGB heads and 2 ports 12V 4pin RGB header
- Support Motherboard 5V 3Pin ARGB sync automatic when the ARGB cable connected to motherboard
- Built in high quality 5V ARGB controlling chipset, running all kinds of ARGB light effect automatic if motherboard does not support RGB function.
- Support 8 sets PWM 12V 4pin fan powe
- Compatible with the 3PIN interface RGB products of mainstream M/B brands like ASUS, Gigabyte and MSI.
- 5V ADD-RGB equipment can be compatible with 12V RGB motherboard via the convertor, to achieve synchronous lighting compatibility. (Rainbow and breathing mode for some motherboard models are not compatible).

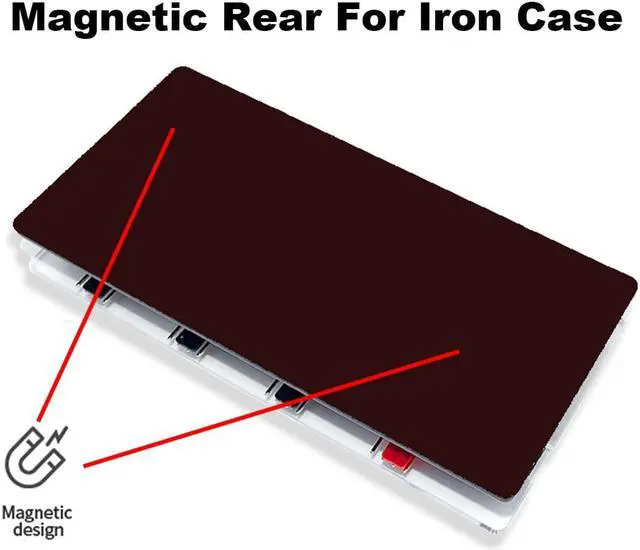

- Magnetic standoff design for easily fixing the hub in the chassis
PMMA case offers solid protection
Package Contents
- PWM & RGB Controller
- 1.64FT Motherboard PWM RPM feedback cable
- 1.64FT Motherboard 4pin RGB cable
- 1.64FT Motherboard 3pin ARGB cable
.
- Convert Motherboard 4Pin RGB to 8 ports 5V 3pin ARGB & 2 ports 12V RGB header
- Support Motherboard 5V 3Pin ARGB sync automatic
- Built in high quality 5V ARGB controlling chipset,
- Built in high quality 5V ARGB controlling chipset, running all kinds of ARGB light effect automatic
- Magnetic standoff design
8 Ports PWM fan Hub
Up to 8 ports PWM fan speed control by motherboard sync such as AUSU Fan Xpert,MSI CENTER.etc.

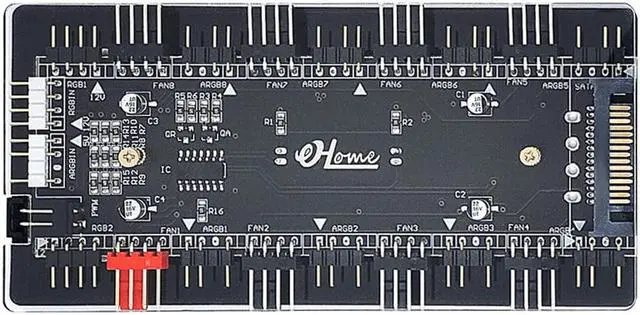

The Red header can read fan speed , is special for CPU 4pin Cooler, request to connect PWM fan priority always
Mode-1 - Motherboard 12V 4Pin RGB to 5V ARGB 3pin Header Convert
- Convert Motherboard 12V 4-Pin RGB header to 8 ports 5V 3-Pin ARGB headers and 2 ports 12V 4-Pin RGB headers
- Supports all 10 ports RGB devices running synchronization
- 2 ports 12V 4Pin RGB devices
- 8 ports 5V 3pin ARGB devices
- Provide 12V RGB lighting effect only
- Does not support ARGB effect controlling
- SATA Power is necessary
- Motherboard 4Pin RGB header connection is necessary
Mode-2 - Motherboard 5V 3Pin ARGB sync
- Works as a 8 Ports 5V ARGB Hub Splitter
- Connects to the 3-pin 5V addressable RGB header or controller on your motherboard,
- Allows you to add 8 ARGB fans or strips for lighting synchronization via motherboard software.
- It is compatible with ASUS AURA SYNC, GIGABYTE RGB Fusion, MSI Mystic Light and ASRock RGB LED.
- SATA Power is necessary
- Motherboard 4Pin RGB header connection is necessary
- Please do not connect any 12V RGB devices to the controller in this mode
Mode-3 - 5V 3Pin ARGB Automatic running
- Built in high quality 5V ARGB controlling chipset, running all kinds of ARGB light effect automatic if motherboard does not support RGB function
- No Motherboard connect is needed
- Allows you to add 8 ARGB fans or strips for lighting synchronization
- SATA Power is necessary
- Motherboard 4Pin RGB header connection is necessary
- Please do not connect any 12V RGB devices to the controller in this mode
Specification
| Type | RGB & PWM 2-In-1 Controller |
|---|---|
| Feature -1 | Convert 12V RGB 4Pin header to 5V 3Pin ARGB Header |
| Feature -2 | Split MB 12V RGB to 8 Ports 5V ARGB and 2 Ports 12V RGB |
| Feature -3 | 8 Ports 5V ARGB Sync |
| Feature -4 | 5V ARGB Controller( No Motherboard Connection is needed) |
| Feature -5 | 8 Ports PWM Fan Header Splitter |
| Powered by | SATA Power header |
| Cables include | PWM, RGB 4Pin and ARGB 3pin Extension Cables |
| Cable Length | 1.64FT |
