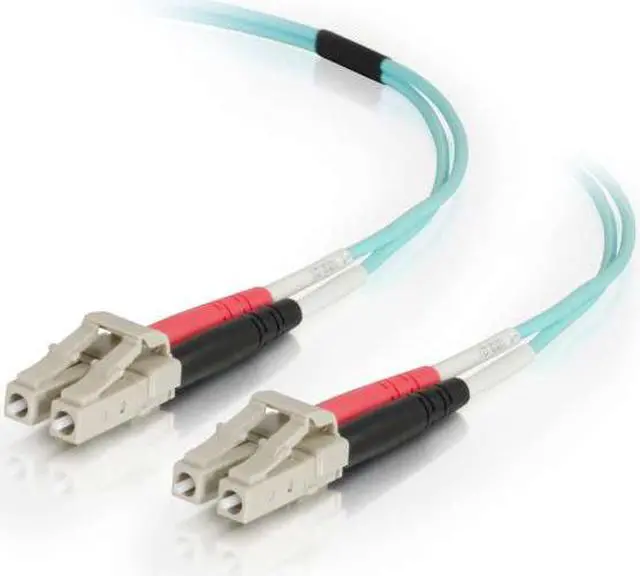

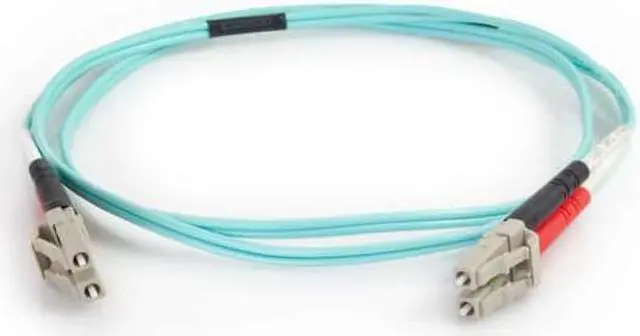

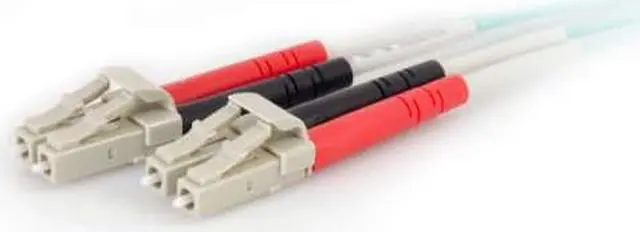

C2G 2m LC-LC 50/125 OM4 Duplex Multimode PVC Aqua Fiber Optic Cable Model 00998
- Fiber optic cable designed 10GBaseSR and 40GBase BiDi applications.
+
+
Overview
Specs
Reviews
Manufacturer: C2G
Manufacturer Part Number: 00998
Manufacturer Website Address: www.cablestogo.com
Brand Name: C2G
Product Name: 2m LC-LC 50/125 OM4 Duplex Multimode PVC Fiber Optic Cable - Aqua
Marketing Information:
This OM4 Duplex Multimode Fiber Optic Cable is ideal for connecting 40GBase-SR4 and 100GBase-SR10, SFP+ and QSFP+ transceivers for 40 and 100 Gigabit network connections. This cable provides backward compatibility with existing 50/125 equipment and the performance headroom required to support LED and VCSEL laser light sources, and 40 or 100 gigabit Ethernet applications in a datacenter or wiring closet..
Product Type: Network Cable
Technical Information
Cable Type: Fiber Optic
Fiber Optic Mode: Multi-mode
Core/Cladding Diameter: 50/125 µm
Cable Length: 6.56 ft
Connector on First End: 1 x LC Male Network
Connector on Second End: 1 x LC Male Network
Device Supported: Network Device
Fiber Code - T
Performance Option Code - 90
Optical Fiber Type - 50 Multimode
ISO/IEC 11801 Nomenclature - OM3
Wavelength (nm) - 850/1300
Maximum Attenuation (dB/km) - 3.0/1.0
Minimum Over Filled Launch (OFL) - 1500/500 MHz km
Minimum Effective Modal - 4700/— (MHz km)
Serial 1 Gigabit Ethernet Distance (m) - 1000/600
Serial 10 Gigabit Ethernet Distance (m) - 550/—
Physical Characteristics
Color: Aqua
Material: Polyvinyl Chloride (PVC)
Fiber Count - 2
Nominal Weight kg/km (lb/1000ft) - 3.4 (2.3)
Nominal Outside Diameter mm (in) - 2.0 (0.08)
Minimum Bend Radius Loaded cm (in) - 3.0 (1.2)
Minimum Bend Radius Installed cm (in) - 1.0 (0.4)
Maximum Tensile Loads Short-Term N (lbf) - 220 (48)
Maximum Tensile Loads Long-Term N (lbf) - 66 (15)
Storage Temperature - -40°C to 70°C
Installation Temperature - 0°C to 60°C
Oper[ation Temperature - 0°C to 70°C
Approvals - NEC, OFNP, CSA FT-6, ICEA S-83-596
Warranty
Limited Warranty: Lifetime
Manufacturer Part Number: 00998
Manufacturer Website Address: www.cablestogo.com
Brand Name: C2G
Product Name: 2m LC-LC 50/125 OM4 Duplex Multimode PVC Fiber Optic Cable - Aqua
Marketing Information:
This OM4 Duplex Multimode Fiber Optic Cable is ideal for connecting 40GBase-SR4 and 100GBase-SR10, SFP+ and QSFP+ transceivers for 40 and 100 Gigabit network connections. This cable provides backward compatibility with existing 50/125 equipment and the performance headroom required to support LED and VCSEL laser light sources, and 40 or 100 gigabit Ethernet applications in a datacenter or wiring closet..
Product Type: Network Cable
Technical Information
Cable Type: Fiber Optic
Fiber Optic Mode: Multi-mode
Core/Cladding Diameter: 50/125 µm
Cable Length: 6.56 ft
Connector on First End: 1 x LC Male Network
Connector on Second End: 1 x LC Male Network
Device Supported: Network Device
Fiber Code - T
Performance Option Code - 90
Optical Fiber Type - 50 Multimode
ISO/IEC 11801 Nomenclature - OM3
Wavelength (nm) - 850/1300
Maximum Attenuation (dB/km) - 3.0/1.0
Minimum Over Filled Launch (OFL) - 1500/500 MHz km
Minimum Effective Modal - 4700/— (MHz km)
Serial 1 Gigabit Ethernet Distance (m) - 1000/600
Serial 10 Gigabit Ethernet Distance (m) - 550/—
Physical Characteristics
Color: Aqua
Material: Polyvinyl Chloride (PVC)
Fiber Count - 2
Nominal Weight kg/km (lb/1000ft) - 3.4 (2.3)
Nominal Outside Diameter mm (in) - 2.0 (0.08)
Minimum Bend Radius Loaded cm (in) - 3.0 (1.2)
Minimum Bend Radius Installed cm (in) - 1.0 (0.4)
Maximum Tensile Loads Short-Term N (lbf) - 220 (48)
Maximum Tensile Loads Long-Term N (lbf) - 66 (15)
Storage Temperature - -40°C to 70°C
Installation Temperature - 0°C to 60°C
Oper[ation Temperature - 0°C to 70°C
Approvals - NEC, OFNP, CSA FT-6, ICEA S-83-596
Warranty
Limited Warranty: Lifetime
