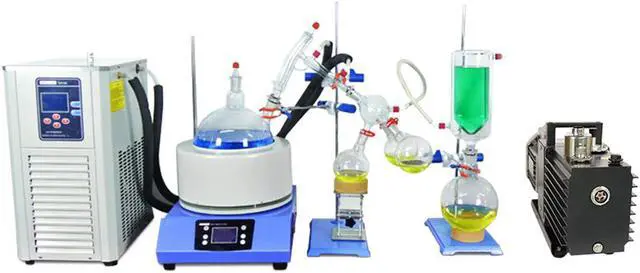

One-Stop Shopping 2L Short Path Distillation Rotary Vane Vacuum Pump Refrigerated Circulating Pump Cooling Chiller HNZXIB Lab instruments SPD-2L 110V including Stirring Heating Mantle Factory Price

————————FEATURES————————
Our products have good chemical stability, electrical insulation properties, and mechanical properties.

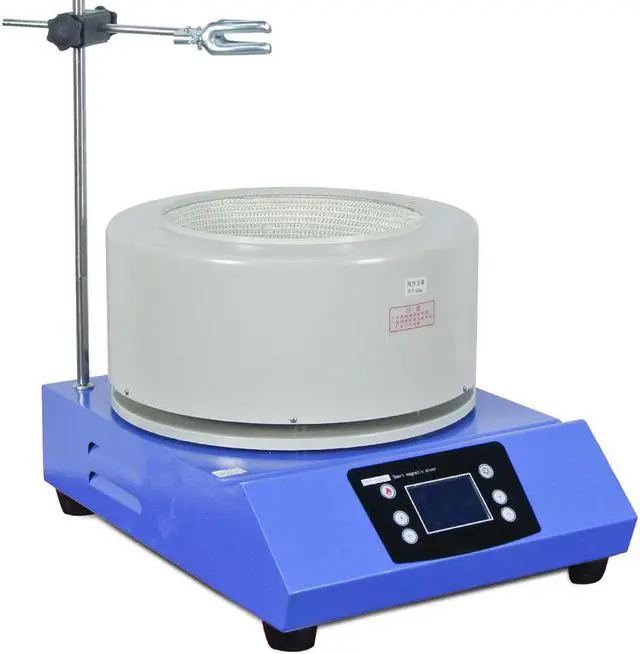

1. It adopts electric heating mantle, no flame, large heating area, and fast heating speed;
2. The electric heating set has a magnetic stirring function and intelligent digital display.
3. The Liner is made of high-temperature alkali-free glass fiber as the insulating material. The resistance wire in the insulation layer is sealed and then woven into a hemispherical heater for good insulation performance.

Note: Glass fiber contains grease and other compounds in the production process, so white smoke and odor appear in the inner casing. The first time heating will change the color of the liner from white to brown, which is normal.

————————PARAMETERS————————

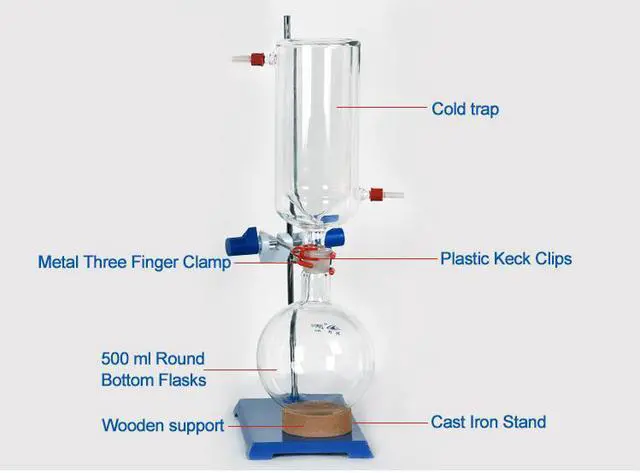

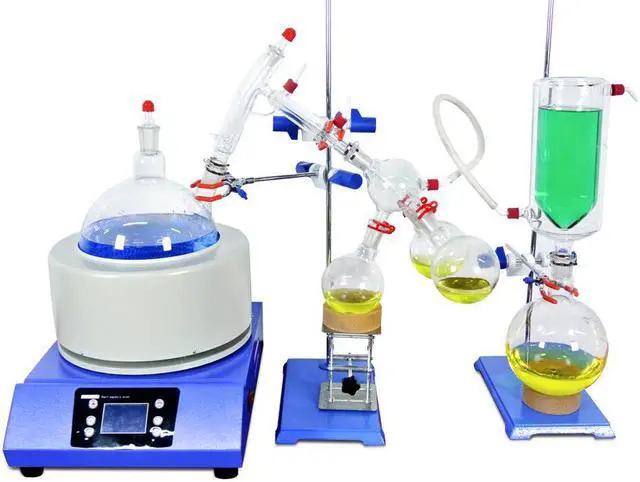

>>>> 2L Short Path Distillation
Model: SPD-2L
Power Supply: 110V/60Hz
Capacity:2L
Stirring Power:20W
Heating Power:450W
Vacuum Degree:0.098Mpa

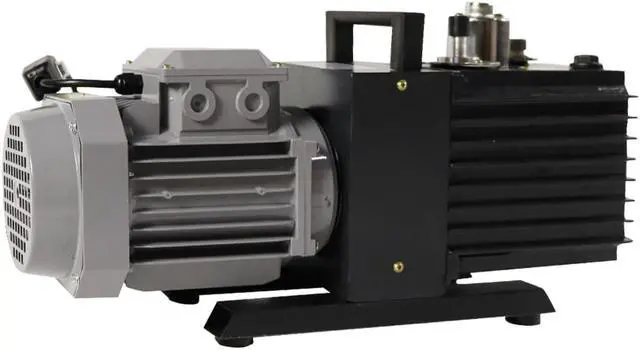

>>>> 2 Stage Rotary Vane Vacuum Pump
Model: 2XZ-2
Exhausting speed(L/S): 2
Ult. vacuum (Pa): Without gas ballast =6×10^(-2). With gas ballast =1.33
Rotary speed (r/min): 1400
Working Voltage (V): 220 (380V available)
Motor power (Kw): 0.37
Inlet diameter (mm): F25
Temp. rise of pump oil (°C): =45
Oil capacity (L): 0.8
Size(W*D*H,mm): 488*145*280
Weight (kg) (with 3-phase motor): 20
Noise (db): =60
Vibration reference number (u): =80

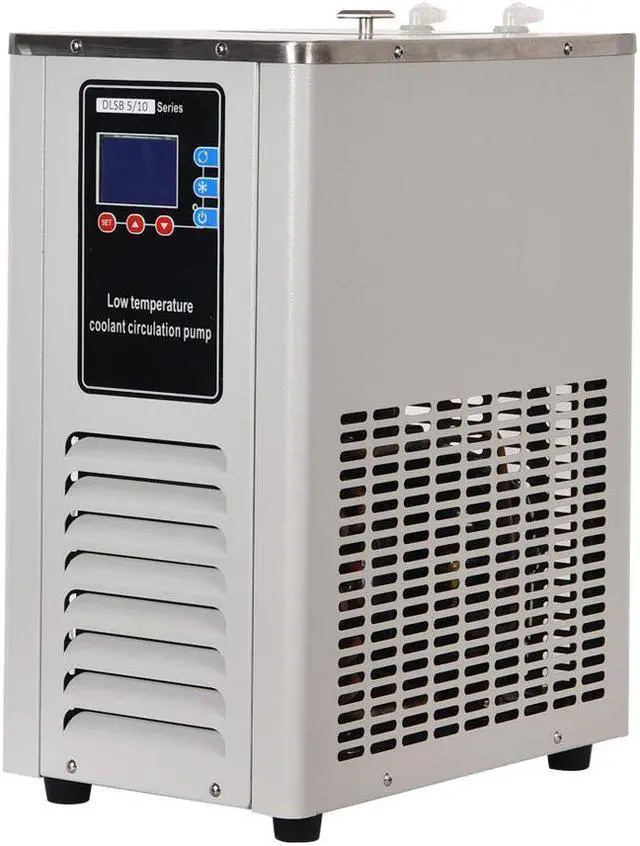

>>>> Chiller
Model:DLSB-5/10
Volume: 5L
No load minimum temperature: -15°C
Refrigerant Capacity: 1328-319W
Flow: 20L/min
Lift: 4-6m
Tmeperature Range: -10°C
Temperature Precision: ±0.2°C
Power Supply: 110V
Environment Temperature: 25°C
Environment Humidity: 60-80% Ventilation
Machine Dimension: 500*370*540(mm)
