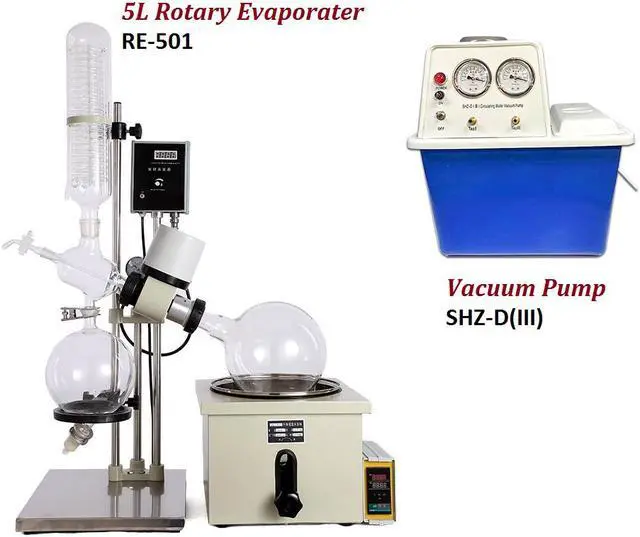

HNXZIB 5L Rotary Evaporater suit RE-501 Rotavap and Vacuum Pump water circulating SHZ-D(III) Promotion combination

Rotary evaporators are distillation units that incorporate an efficient condenser with a rotary flask system. As the flask containing the solvent is rotated it continually transfers a thin layer of liquid over the entire inner surface. This gives a very large surface area for evaporation that is effected by heating from the accessory water or oil bath.
The solvent steam is cooled by a high efficiency glass condenser and recovered in the collection bottle, which greatly improves the evaporation efficiency, especially for the concentration and purification of the biologic which are easily decomposed at high temperature.

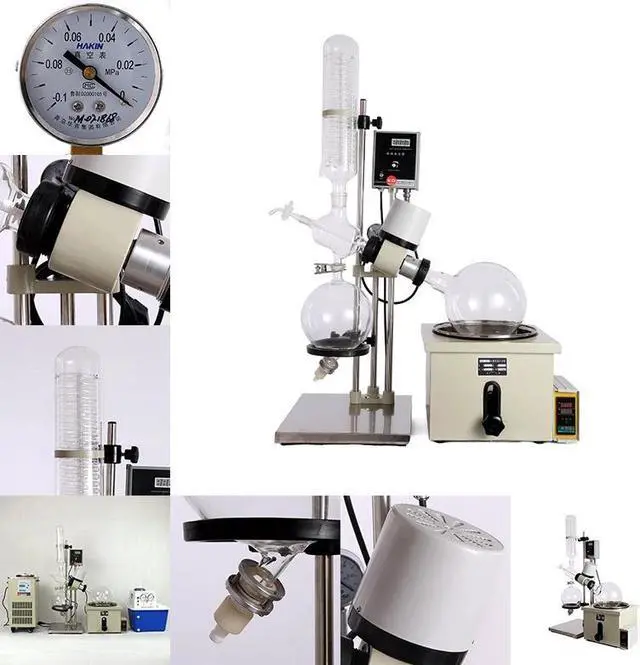

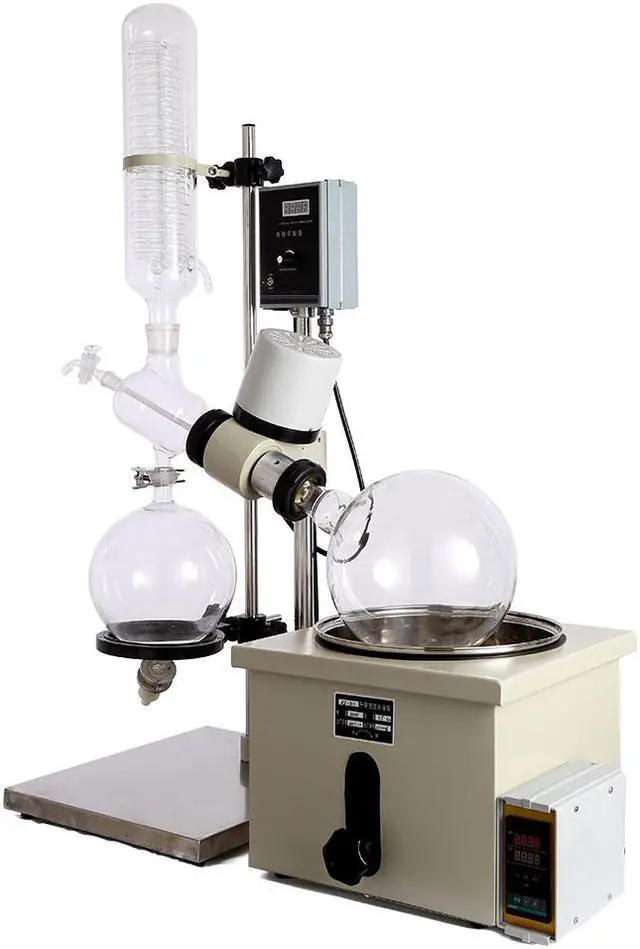

>>>> 5L Rotary Evaporator
Model Number: RE-501
Voltage: 110V/60HZ (220V optional)
Plug Type: US Plug
Evaporating Flask: 5L
Receiving Flask: 3L
Motor Power: 40W(Stepless Speed Regulation)
Rotating Speed: 0-120 r/min, Digital Display
Lifiting Mode: Screw Rod Manual Lifting
Lifting Height: 0-150mm
Water/Oil Bath Power: 1500W
Temperature Accurancy: ±1°C
Water Bath Size: f28*17cm
Vacuum degree: 0.098Mpa
Glassware:High borosilicate
Sealing Mode: PTFE, fluoro Rubber sealing
Condensor: The double backflow integration standard condenser.
Certification: CE ISO
Explosion-Proof Optional
Evaporation Rate: not less than 1 L/H, H2O
External Size: 680*590*670(mm)

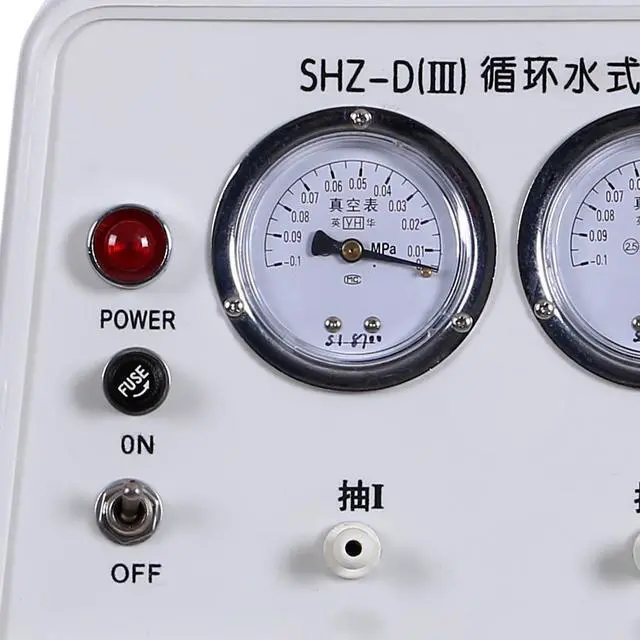

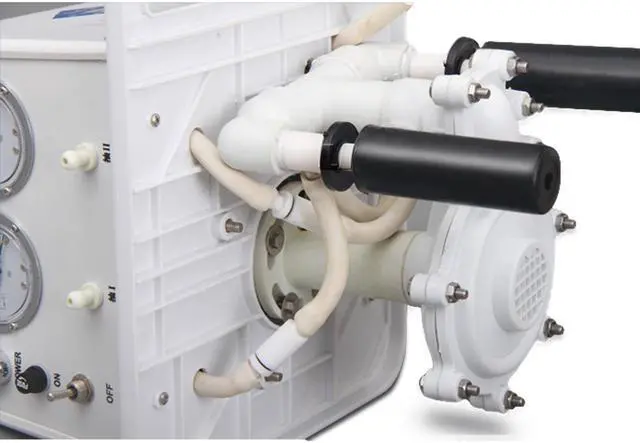

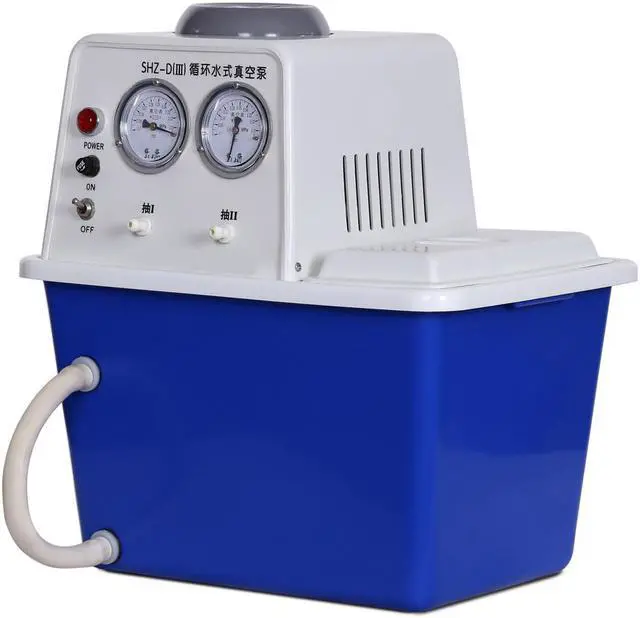

>>>> Double-tap Vacuum Pump
Model: SHZ-D(III) 110V Double-gauge/Double-tap
Voltage: 110V/60Hz(220V optional)
Flow: 60 L/m, Lift: 8 m
Max. Vacuum Degree: 0.098 MPa
Sucking Rate for Each Tap: 10 L/min
Tank Capacity: 15 L, Power: 180W
Body material:Anti-corrosive Material, static spraying
