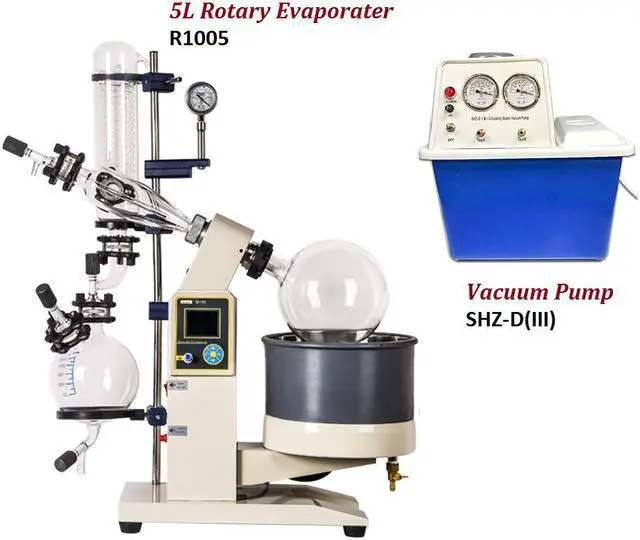

HNXZIB 5L Automated Lifting Rotary Evaporater Promotion combination R1005 Rotavap + water circulating vacuum pump SHZ-D(III)
- R1005(110V) + Vacuum Pump SHZ-D(III)2TAP(110V)
- Teflon (PTFE) and fluorine rubber double rotating seal, patent technology to ensure high vacuum.
- The temperature control system, accurate and reliable.
- In does not affect the system and solution under the condition of vacuum distillation, continuous collection.
- The PTFE discharge valve, corrosion resistance, no pollution.
- Shipping:We Use Wooden Case Packaging,7-14 Working Days Arrived;One Year Warranty.
+
+
Overview
Specs
Reviews

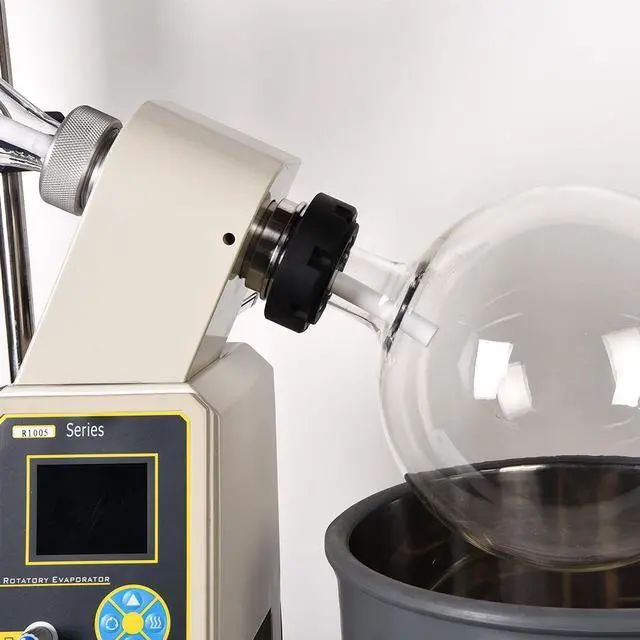

Rotary evaporators are distillation units that incorporate an efficient condenser with a rotary flask system. As the flask containing the solvent is rotated it continually transfers a thin layer of liquid over the entire inner surface. This gives a very large surface area for evaporation that is effected by heating from the accessory water or oil bath.
The solvent steam is cooled by a high efficiency glass condenser and recovered in the collection bottle, which greatly improves the evaporation efficiency, especially for the concentration and purification of the biologic which are easily decomposed at high temperature.

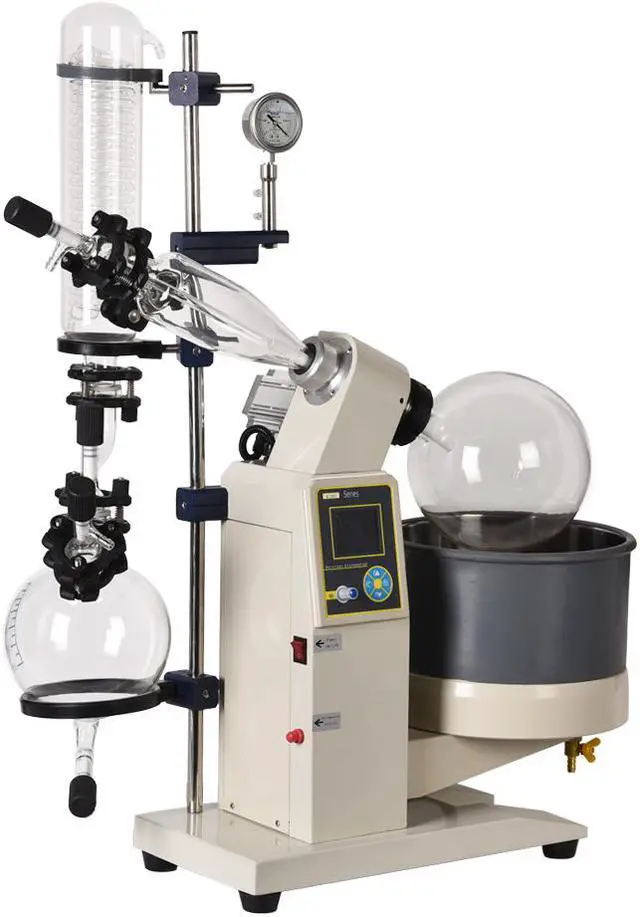

5L Rotary Evaporator
>>>> Model R1005
Working power supply (V/Hz):Single phase 110/60
condenser tube:Vertical double coil
Evaporation capacity (L/h):The water is more than 2 Alcohol is more than 4
Water bath pot material:stainless steel
Lifting function:Electric lift
Optimum ambient temperature (c):5~35
Lift stroke (mm):0~100
Whole power (Kw):2.0
Outline dimension (mm):660×400×1020
Main engine speed (RPM):20~140
Rotary electric machine (W):100
Main engine speed control:Digital frequency conversion stepless speed regulation

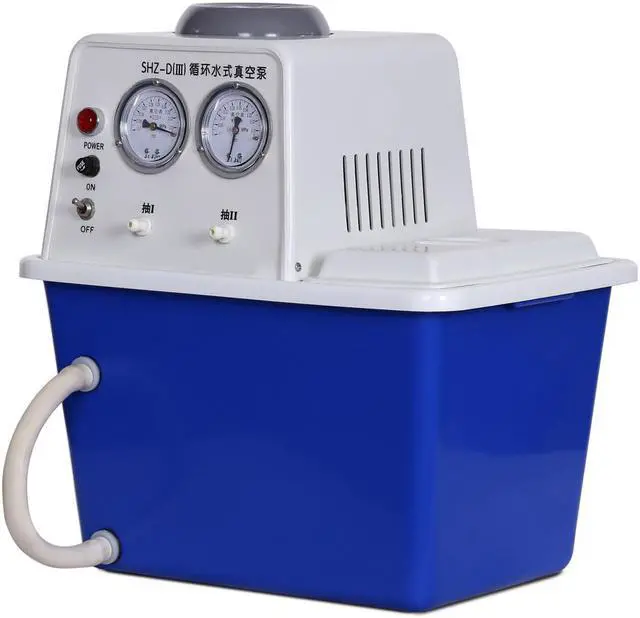

>>>> Double-tap Vacuum Pump
Power Supply(V/HZ):110V/60Hz
Flow(L/min):60
Lift(m):8
Body material:Anti-corrosive
Material:static spraying
Max. pressure (M Pa):0.098
Sucking Rate for Single Tap:10L/min
Quantity of tap (Pcs):2
Tank Capacity:15L
The solvent steam is cooled by a high efficiency glass condenser and recovered in the collection bottle, which greatly improves the evaporation efficiency, especially for the concentration and purification of the biologic which are easily decomposed at high temperature.
5L Rotary Evaporator
>>>> Model R1005
Working power supply (V/Hz):Single phase 110/60
condenser tube:Vertical double coil
Evaporation capacity (L/h):The water is more than 2 Alcohol is more than 4
Water bath pot material:stainless steel
Lifting function:Electric lift
Optimum ambient temperature (c):5~35
Lift stroke (mm):0~100
Whole power (Kw):2.0
Outline dimension (mm):660×400×1020
Main engine speed (RPM):20~140
Rotary electric machine (W):100
Main engine speed control:Digital frequency conversion stepless speed regulation
>>>> Double-tap Vacuum Pump
Power Supply(V/HZ):110V/60Hz
Flow(L/min):60
Lift(m):8
Body material:Anti-corrosive
Material:static spraying
Max. pressure (M Pa):0.098
Sucking Rate for Single Tap:10L/min
Quantity of tap (Pcs):2
Tank Capacity:15L
