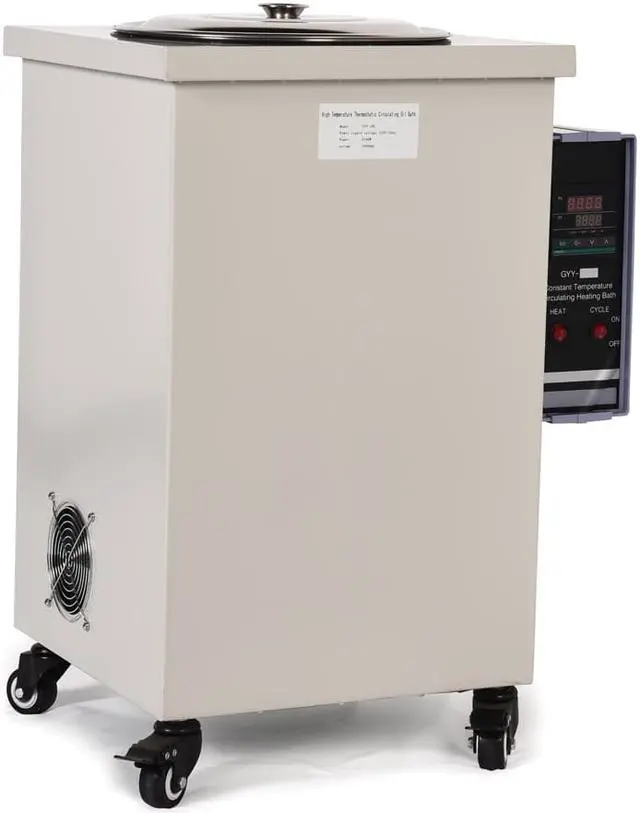

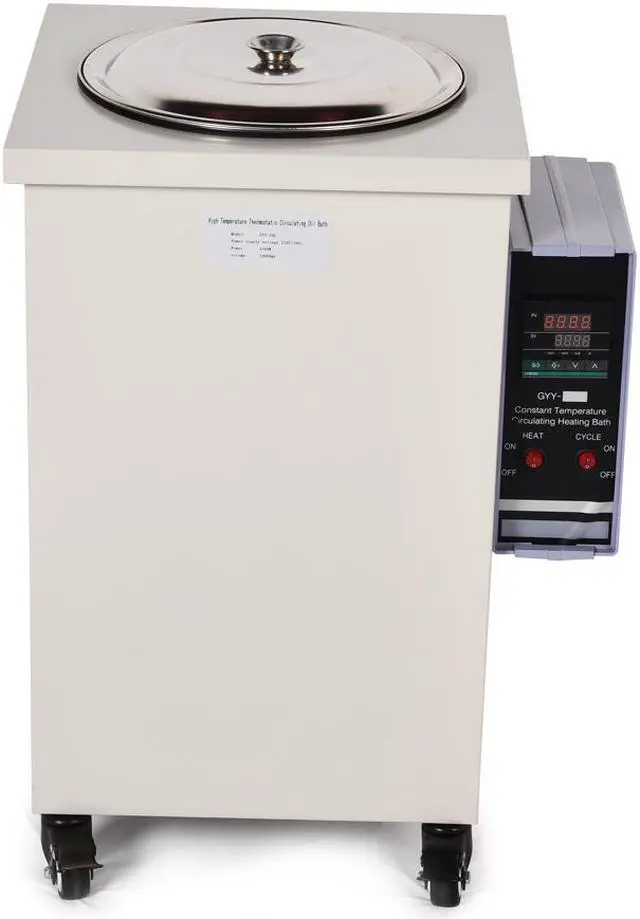

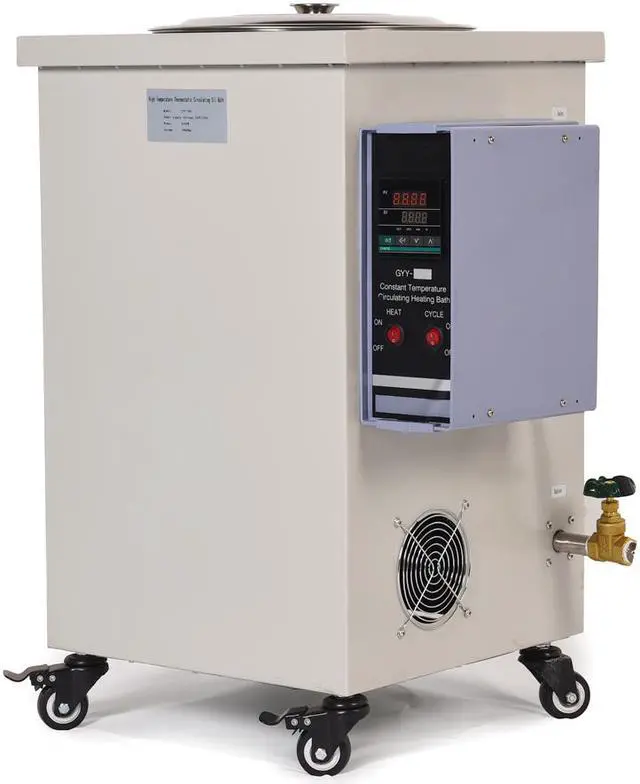

HNZXIB 50L oil bath 200°C heating high temperature circulator digital temperature control thermostatic circulating pump water bath GYY-50L
- This machine is designed to provide thermostatic circulation heat sources.
- Reservoir Volume(L): 50L
- Heating power (kW) : 5.5
- Cycling Flow rate(L/min): 20-25
- Shipping:We Use Wooden Case Packaging,7-14 Working Days Arrived;One Year Warranty
+
+
Overview
Specs
Reviews
> FEATURE
1. This product adopts imported stainless steel plate materials for the tank. Choose high quality plate electrostatic spraying plastics for shell.

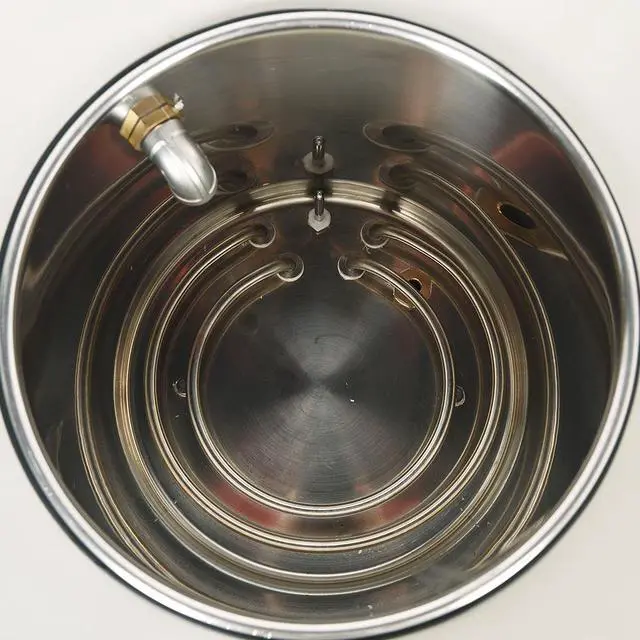

2. Electric heating tube will be immersed in the oil, quick heating, high thermal efficiency, power saving, and electronic constant temperature.
3. There are insulating the cotton between shell and liner, excellent heat preservation effect. Available for all kinds of the same high temperature bath pot.
4. High temperature circulating pump adopts full stainless steel magnetic pump, has a stable performance, reliable quality, no leakage, etc.

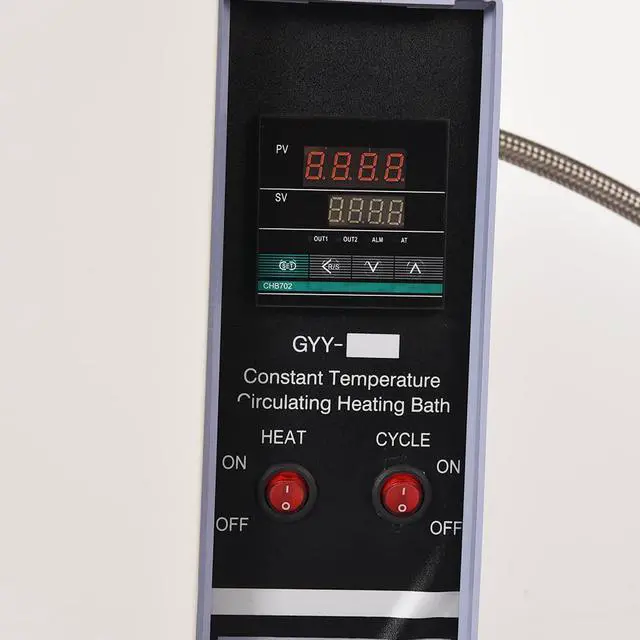

5. Digital display temperature control, simple operation, eye-catching.
6. The PID control, there have advantage temperature control accuracy and small temperature stamping.
7. The circulatory system is made by stainless steel, copper; anti-rust, anti-corrosion, etc.
8. The solid state relay control circuit, contact-less, halogen-light, increase longevity.
9. Vertical structure, with trundle, mobile convenience.
SPECIFICATIONS Model: GYY-50L Liquid
Storage Volume: 50 L No-load Max. Temp.: 200°C
Heating Power: 5.5 kW
Voltage: 220V 50/60Hz
Ampere: 10
A Cycling Pressure: 1.45 Mpa
Cycle Method: Sealed Magnetic Pump Cycles
Flow Rate: 20-25 L/min
Temperature control range: Water
bath: RT~99°C, Oil
bath: RT~250°C
Temperature control accuracy: =
Ambient Humidity:
HTF Viscosity:
C·S·t Heating Tube: 3
Liner Size: 45*35 cm
Overall Dimensions: 75*58*85 cm
Weight: 75 kg
1. This product adopts imported stainless steel plate materials for the tank. Choose high quality plate electrostatic spraying plastics for shell.
2. Electric heating tube will be immersed in the oil, quick heating, high thermal efficiency, power saving, and electronic constant temperature.
3. There are insulating the cotton between shell and liner, excellent heat preservation effect. Available for all kinds of the same high temperature bath pot.
4. High temperature circulating pump adopts full stainless steel magnetic pump, has a stable performance, reliable quality, no leakage, etc.
5. Digital display temperature control, simple operation, eye-catching.
6. The PID control, there have advantage temperature control accuracy and small temperature stamping.
7. The circulatory system is made by stainless steel, copper; anti-rust, anti-corrosion, etc.
8. The solid state relay control circuit, contact-less, halogen-light, increase longevity.
9. Vertical structure, with trundle, mobile convenience.
SPECIFICATIONS Model: GYY-50L Liquid
Storage Volume: 50 L No-load Max. Temp.: 200°C
Heating Power: 5.5 kW
Voltage: 220V 50/60Hz
Ampere: 10
A Cycling Pressure: 1.45 Mpa
Cycle Method: Sealed Magnetic Pump Cycles
Flow Rate: 20-25 L/min
Temperature control range: Water
bath: RT~99°C, Oil
bath: RT~250°C
Temperature control accuracy: =
Ambient Humidity:
HTF Viscosity:
C·S·t Heating Tube: 3
Liner Size: 45*35 cm
Overall Dimensions: 75*58*85 cm
Weight: 75 kg
