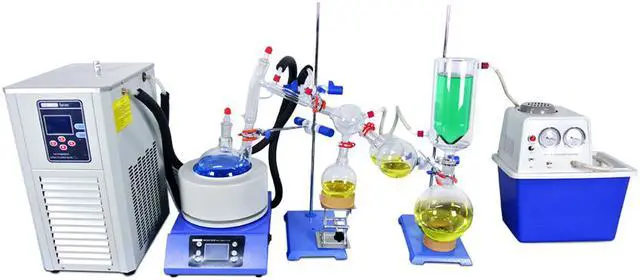

HNZXIB 2L Short Path Distillation instruments 220V SPD-2L + Cold Trap + Stirring Heating Mantle + Desktop Water Circulating Vacuum Pump + Refrigerated Circulator(Chiller)

————————FEATURES————————
Our products have good chemical stability, electrical insulation properties, and mechanical properties.

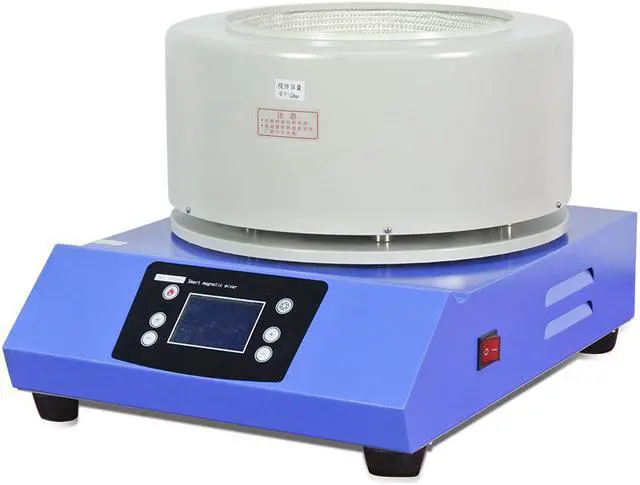

1. It adopts electric heating mantle, no flame, large heating area, and fast heating speed;
2. The electric heating set has a magnetic stirring function and intelligent digital display.
3. The Liner is made of high-temperature alkali-free glass fiber as the insulating material. The resistance wire in the insulation layer is sealed and then woven into a hemispherical heater for good insulation performance.

Note: Glass fiber contains grease and other compounds in the production process, so white smoke and odor appear in the inner casing. The first time heating will change the color of the liner from white to brown, which is normal.

————————PARAMETERS————————

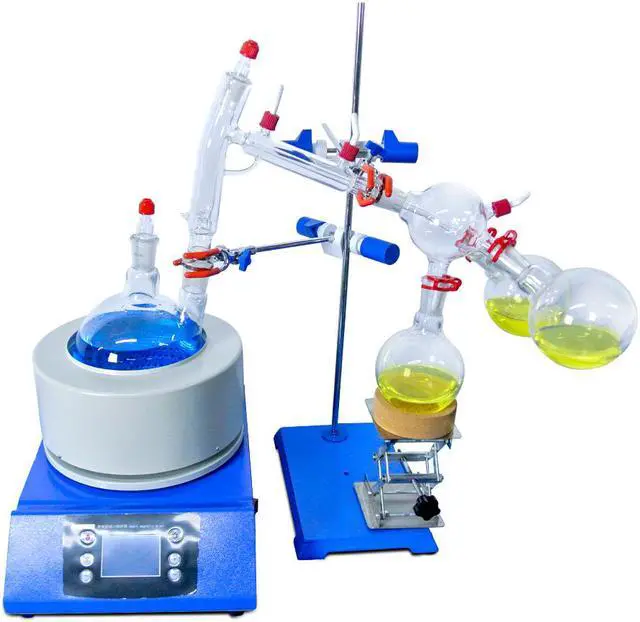

>>>> 2L Short Path Distillation
Model: SPD-2L
Power Supply: 220V
Capacity:2L
Stirring Power:20W
Heating Power:450W
Vacuum Degree:0.098Mpa

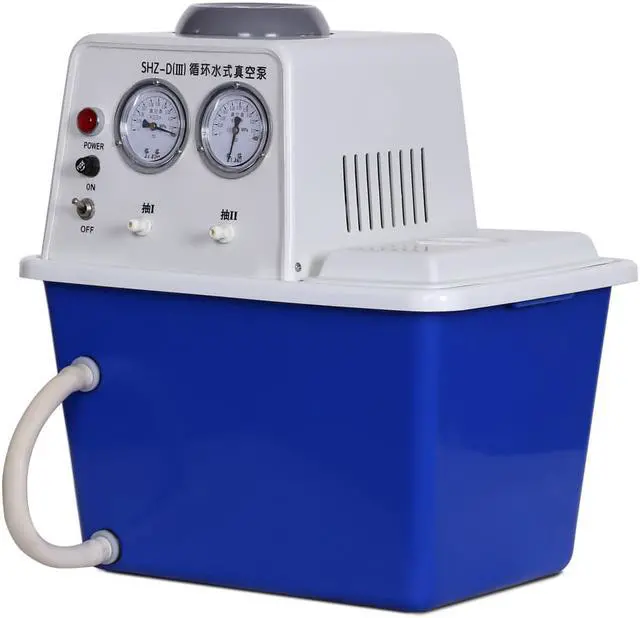

>>>> Double-tap Vacuum Pump
Model: SHZ-D(III) 220V Double-gauge/Double-tap
Voltage: 220V/60Hz(110V optional)
Flow: 60 L/m, Lift: 8 m
Max. Vacuum Degree: 0.098 MPa
Sucking Rate for Each Tap: 10 L/min
Tank Capacity: 15 L, Power: 180W
Body material:Anti-corrosive Material, static spraying

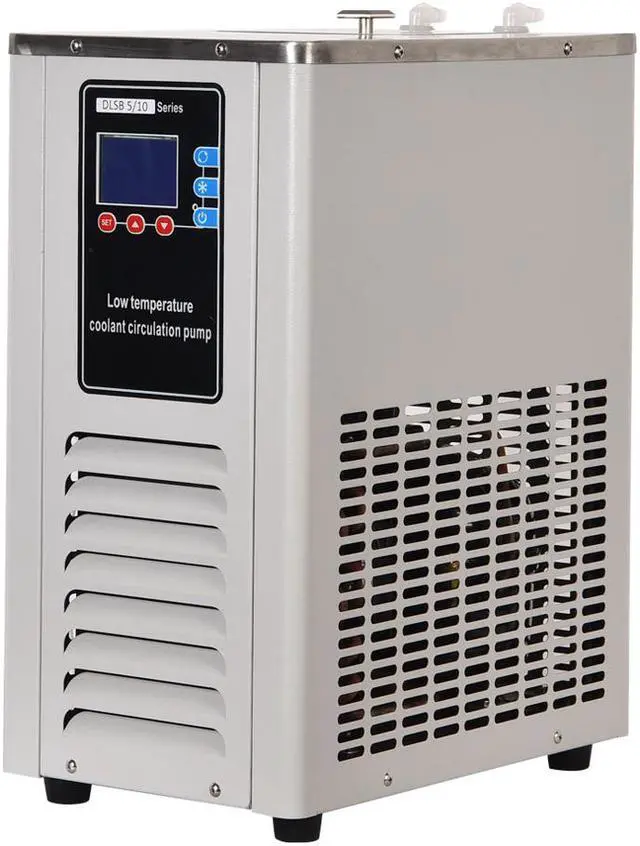

>>>> Chiller
Model:DLSB-5/10
Volume: 5L
No load minimum temperature: -15°C
Refrigerant Capacity: 1328-319W
Flow: 20L/min
Lift: 4-6m
Tmeperature Range: -10°C
Temperature Precision: ±0.2°C
Power Supply: 220V
Environment Temperature: 25°C
Environment Humidity: 60-80% Ventilation
Machine Dimension: 500*370*540(mm)
