Brand | ASUS |
---|---|
Model | ProArt B660-CREATOR D4 |
CPU Socket Type | LGA 1700 * Dedicated LGA1700 mounting bracket is required. |
---|---|
CPU Type | Supports 13th / 12th Gen Intel Core Processors, Pentium Gold and Celeron Processors* *May require a BIOS update to boot the 13th gen Intel® Core™ desktop processors. Visit: https://www.asus.com/news/oujwh1old5n6oglf/ * Refer to www.asus.com for CPU support list. |
Supported CPU Technologies | Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0* * Intel Turbo Boost Max Technology 3.0 support depends on the CPU types. |
Chipset | Intel B660 |
---|
Onboard Video Chipset | Supported only by CPU with integrated graphic |
---|
Number of Memory Slots | 4x288pin (DDR4) |
---|---|
Memory Standard | DDR4 5333(OC) / 5000(OC) / 4800(OC) / 4600(OC) / 4400(OC) / 4266(OC) / 4000(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3400(OC) / 3333(OC) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133* * Actual Memory frequency support depends on the CPU types and DRAM modules, for more information refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). |
Maximum Memory Supported | 128GB |
Channel Supported | Dual Channel |

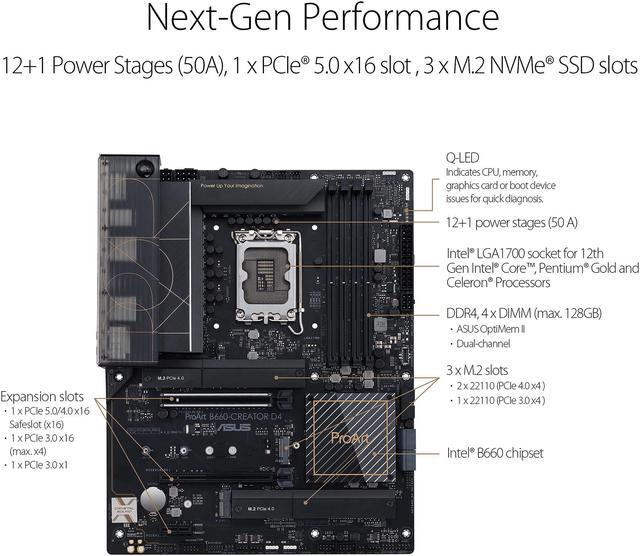

PCI Express 5.0 x16 | 1 x PCI Express 5.0 x16 * Actual support may vary by CPU. |
---|---|
PCI Express 3.0 x16 | 1 x PCI Express 3.0 x16 * Supports x4 mode. |
PCI Express x1 | 1 x PCIe 3.0 x1 slot* * PCIe X1 shares bandwidth with M.2_2. PCIe X1 will be disable when M.2_2 runs at PCIe x4 mode by manually enabled. |
Serial ATA (SATA) | 4 x SATA 6Gb/s |
---|---|
M.2 | Intel 12th Gen Processors: M.2_1 slot (Key M), type 2242/2260/2280/22110 - Intel 12th Gen processors support PCIe 4.0 x4 mode. Intel B660 Chipset*: M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode)** M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) * Intel Rapid Storage Technology supports Intel Optane Memory H Series on PCH attached M.2 slots. ** M.2_2 slot shares bandwidth with PCIe X1 and WiFi Key E. M.2_2 will run at PCI 3.0 x2 mode either a device is detected at PCIe x1 or WiFi Key E slot. |
Intel Optane Ready | Yes |
SATA RAID | 0/1/5/10 |
Audio Chipset | Realtek 7.1 Surround Sound High Definition Audio CODEC* * Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio. * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. |
---|---|
Audio Channels | 7.1 Channels |
LAN Chipset | Realtek 2.5Gb Ethernet |
---|---|
Second LAN Chipset | Intel 1Gb Ethernet |
Max LAN Speed | 2.5Gbps + 1Gbps |

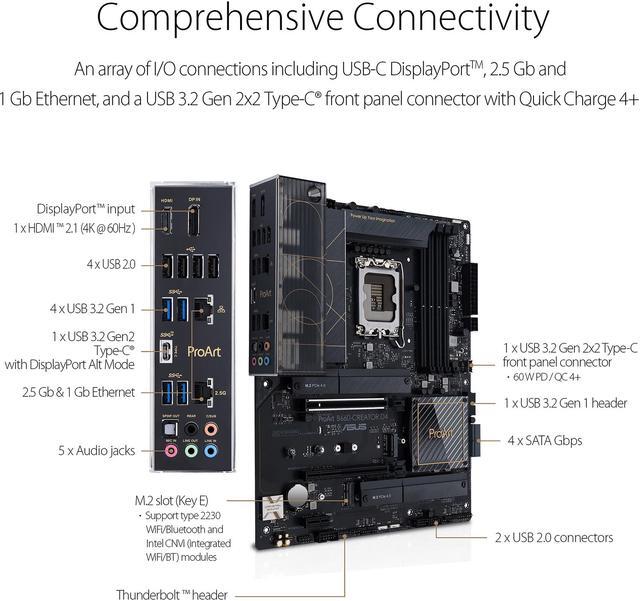

Back I/O Ports | 1 x USB Type-C port supports USB 3.2 Gen2 and DisplayPort output 4 x USB 3.2 Gen 1 ports (4 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 1 x DisplayPort (Input only) 1 x HDMI port 1 x Realtek 2.5Gb Ethernet port 1 x Intel 1Gb Ethernet port 5 x Audio jacks 1 x Optical S/PDIF out port |
---|
Onboard USB | 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C with 60W PD/QC4.0) 1 x USB 3.2 Gen 1 header supports additional 2 x USB 3.2 Gen1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports |
---|---|
Other Connectors | Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers Miscellaneous 3 x Addressable Gen 2 headers 1 x AURA RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x M.2 slot (Key E) 1 x SPI TPM header (14-1pin) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thermal Sensor header 1 x Thunderbolt header |
Windows 11 | Ready |
---|
Form Factor | ATX |
---|---|
LED Lighting | RGB |
Dimensions (W x L) | 12.0" x 9.6" |
Power Pin | 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector |
Features | Special Features: ASUS 5X PROTECTION III - DIGI+ VRM (- Digital power design with DrMOS) - Enhanced DRAM Overcurrent Protection - ESD Guards - LANGuard - Overvoltage Protection - SafeSlot - Stainless-Steel Back I/O ASUS Q-Design - M.2 Q-Latch - Q-Connector - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - Flexible M.2 heatsink - VRM heatsink design ASUS EZ DIY - ProCool - Pre-mounted I/O shield AURA Sync - AURA RGB header - Addressable Gen 2 headers Software Features: ASUS Exclusive Software Armoury Crate - AURA Creator - AURA Sync - Fan Xpert 4 - Two-Way AI Noise Cancelation AI Suite 3 - Performance And Power Saving Utility EPU DIGI+ VRM Turbo app ASUS CPU-Z IT Management software supported - ASUS Control Center Express(ACCE) ProArt Creator Hub CreationFirst Norton Anti-virus software (Free Trial version) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode BIOS: 128 Mb Manageability: WOL by PME, PXE Operating System: Windows 11 64-bit, Windows 10 64-bit |
---|

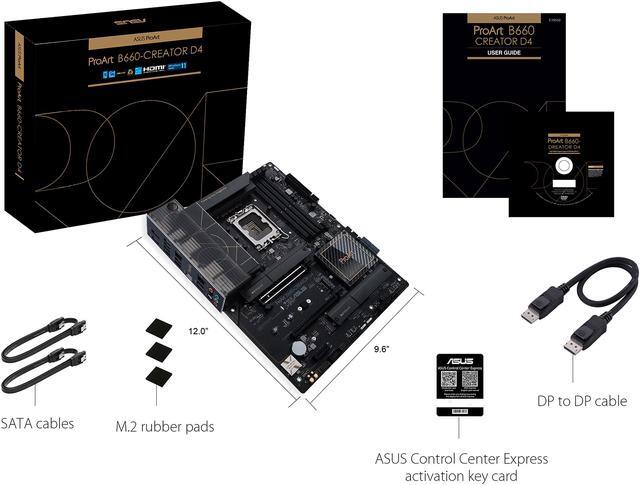

Package Contents | Accessories: Cables 1 x DisplayPort cable 2 x SATA 6Gb/s cables Miscellaneous 3 x M.2 Rubber Packages 1 x Q-connector Installation Media 1 x Support DVD Documentation 1 x ACC Express Activation Key Card 1 x User guide |
---|
Date First Available | January 13, 2022 |
---|
