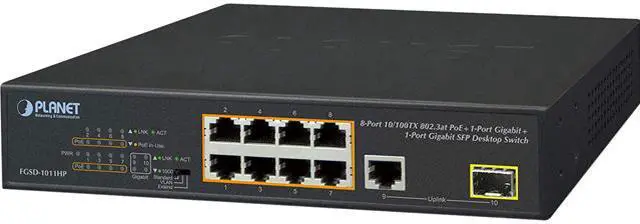

PLANET FGSD-1011HP 8-Port 10/100TX 802.3at/af PoE + 1-Port 10/100/1000T + 1-Port 100/1000X SFP Desktop Switch
- 4K MAC Address Table
- PoE
+
+
Specs
Reviews
Learn more about the PLANET FGSD-1011HP
| Brand | PLANET |
|---|---|
| Model | FGSD-1011HP |
| Format | Desktop |
|---|---|
| Standards | IEEE 802.3 Ethernet IEEE 802.3u Fast Ethernet IEEE 802.3ab Gigabit 1000BASE-T IEEE 802.3z Gigabit SX / LX IEEE 802.3x Flow Control IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet Plus |
| Primary Ports | 8 x 10/100 Mbps Fast Ethernet ports 1 x 10/100/1000BASE-T Gigabit Ethernet port 1 x 1000BASE-X mini-GBIC SFP interface |
|---|
| MAC Address Table | 4K |
|---|---|
| Switching Method | Store and Forward |
| PoE | Yes |
|---|---|
| LEDs | System: Power (Green) 10/100BASE-TX RJ45 Interface: PoE (Orange, Ports 1 to 8) LNK / ACT (Green, Ports 1 to 8) 10/100/1000BASE-T RJ45 Interface: 1000 Mbps LNK / ACT (Green, Port 9) 100/1000BASE-X SFP Interface: 1000 Mbps LNK / ACT (Green, Port 10) |
| Power | Power Requirements: AC 100~240V, 2.5A max. Power Consumption: 135 watts, 463.2 BTU |
| Features | Physical Port: 8 x 10/100 Mbps Fast Ethernet ports 1 x 10/100/1000BASE-T Gigabit Ethernet port 1 x 1000BASE-X mini-GBIC SFP interface Power over Ethernet: Complies with IEEE 802.3af/at Power over Ethernet end-span Up to 8 IEEE 802.3af/2 IEEE 802.3at devices powered Supports PoE power up to 30 watts for each PoE port 120-watt PoE budget 8 ports supporting 52V DC power to PoE powered device (Ports 1 to 8) Hardware DIP switch for "Standard", "VLAN' and "Extend" mode selection; the "Extend" mode features 30-watt PoE transmit distance of 250m at speed of 10Mbps and VLAN isolation Auto detects powered device (PD) Circuit protection prevents power interference between ports Remote power feeding up to 100m in the standard mode Switching: Hardware-based 10/100/1000 Mbps auto-negotiation and auto MDI / MDI-X Flow control for full duplex operation and back pressure for half duplex operation Integrates address look-up engine, supporting 4K absolute MAC addresses Automatic address learning and address aging Solid DIP switch to isolate ports to prevent broadcast storm and defend DHCP spoofing Hardware: 9-inch desktop size, 1U height, mountable LED indicators for PoE ready / activity and LINK / ACT Fanless design Internal AC power supply Support Energy-Efficient Ethernet (EEE) function (IEEE 802.3az) |
|---|
| Dimensions | 1.71" x 8.66" x 5.91" |
|---|---|
| Weight | 2.69 lbs. |
| Temperature | Operating Temperature: 0 ~ 50 degree Celsius Storage Temperature: -10 ~ 70 degree Celsius |
|---|---|
| Humidity | 5% - 95%, Non-condensing |
| First Listed on Newegg | December 28, 2018 |
|---|
