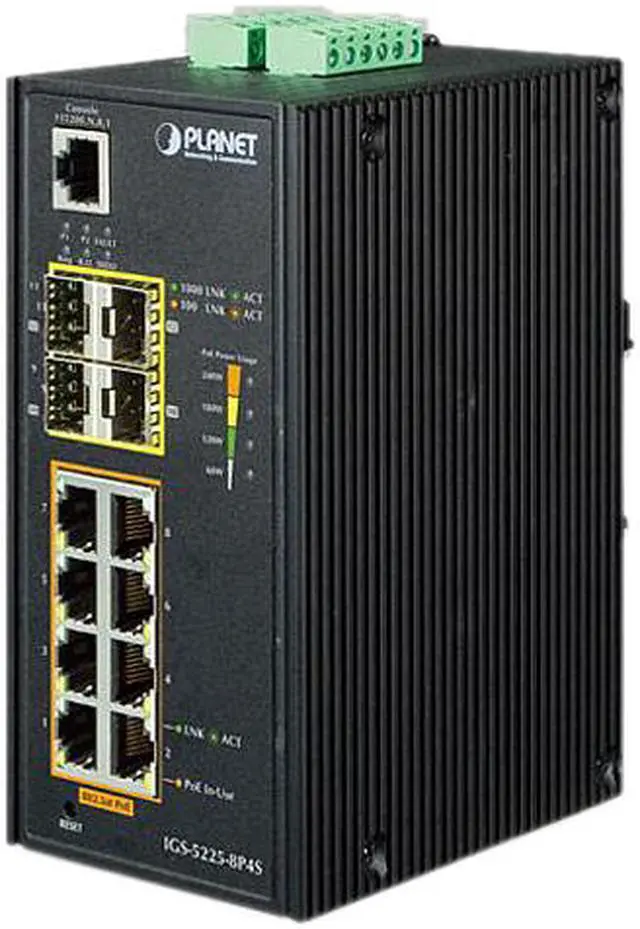

Planet IGS-5225-8P4S Industrial L2+ 8-Port 10/100/1000T 802.3at PoE + 4-Port 100/1000X SFP Managed Ethernet Switch (-40 - 75 degrees C)
- 8K MAC Address Table
- 4MB Buffer Memory
- Managed
- PoE
+
+
Specs
Reviews
Learn more about the PLANET IGS-5225-8P4S
| Brand | PLANET |
|---|---|
| Model | IGS-5225-8P4S |
| Format | DIN Rail Kit and Wall-mount Kit |
|---|---|
| Standards | IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX/100BASE-FX IEEE 802.3z Gigabit SX/LX IEEE 802.3ab Gigabit 1000T IEEE 802.3x flow control and back pressure IEEE 802.3ad port trunk with LACP IEEE 802.1D Spanning Tree Protocol IEEE 802.1w Rapid Spanning Tree Protocol IEEE 802.1s Multiple Spanning Tree Protocol IEEE 802.1p Class of Service IEEE 802.1Q VLAN tagging IEEE 802.1X Port Authentication Network Control IEEE 802.1ab LLDP IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet Plus RFC 768 UDP RFC 793 TFTP RFC 791 IP RFC 792 ICMP RFC 2068 HTTP RFC 1112 IGMP v1 RFC 2236 IGMP v2 |
| Network Management Type | Managed |
| Primary Ports | 8 x RJ45 + 4 x SFP |
|---|---|
| Primary Port Speed | 10/100/1000Mbps |
| MAC Address Table | 8K |
|---|---|
| Switching Method | Store and Forward |
| VLAN Support | 802.1Q tagged based VLAN, up to 255 VLAN groups Q-in-Q tunneling Private VLAN Edge (PVE) MAC-based VLAN Protocol-based VLAN Voice VLAN MVR (Multicast VLAN Registration) Up to 255 VLAN groups, out of 4094 VLAN IDs |
| Jumbo Frames | 9000 bytes |
| Buffer Memory | 4MB |
|---|---|
| Protocols | Routing Protocols: IPv4 software static routing IPv6 software static routing |
| Security | IEEE 802.1X Port-based / MAC-based network access authentication Built-in RADIUS client to cooperate with the RADIUS servers TACACS+ login users access authentication RADIUS / TACACS+ users access authentication IP-based Access Control List (ACL) MAC-based Access Control List Source MAC/IP address binding DHCP snooping to filter distrusted DHCP messages Dynamic ARP Inspection discards ARP packets with invalid MAC address to IP address binding IP Source Guard prevents IP spoofing attacks IP address access management to prevent unauthorized intruder |
| PoE | PoE Standard: IEEE 802.3at Power over Ethernet Plus/PSE PoE Power Supply Type: End-span PoE Power Output IEEE 802.3af Standard: Per port 48V - 51V DC (depending on the power supply), max. 15.4 watts IEEE 802.3at Standard: Per port 51V - 56V DC (depending on the power supply), max. 36 watts Power Pin Assignment: 1/2 (+), 3/6 (-) PoE Power Budget: Dual power input: 240W maximum (depending on power input) Max. number of Class 2 PDs: 8 Max. number of Class 3 PDs: 8 Max. number of Class 4 PDs: 8 |
| SNMP | Yes |
| QoS | Traffic classification based, strict priority and WRR 8-level priority for switching: Port number 802.1p priority 802.1Q VLAN tag DSCP / ToS field in IP packet |
| LACP | Yes |
| Layer | 3 |
| Port Mirroring | 1-to-1 monitor |
| LEDs | System: Power 1 (Green) Power 2 (Green) Fault Alarm (Red) Ring (Green) Ring Owner (Green) DIDO ( Red ) Per 10/100/1000T RJ45 PoE+ Ports: PoE-in-Use (Orange) LNK/ACT (Green) Per SFP Interface: 100 LNK/ACT (Orange) 1000 LNK/ACT (Green) |
| Button | Reset Button: < 5 sec: System reboot > 5 sec: Factory default |
| Power | Dual 48 - 56V DC (>53V DC for PoE+ output recommended) Max. 10.1 watts / 34.44BTU (Power on without any connection) Max. 255.9 watts / 872.62BTU (Full loading with PoE function) |
| Features | Physical Port: 8 10/100/1000BASE-T Gigabit Ethernet RJ45 ports with IEEE 802.3at PoE+ Injector 4 100/1000BASE-X mini-GBIC/SFP slots for SFP type auto detection 1 RJ45 console interface for basic management and setup Industrial Case & Installation: IP30 aluminum case Supports 6000V DC Ethernet ESD protection Digital Input & Digital Output: 2 Digital Input (DI) 2 Digital Output (DO) Integrate sensors into auto alarm system Transfer alarm to IP network via email and SNMP trap Layer 2 Features: Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex) High performance of Store-and-Forward architecture, and runt/CRC filtering eliminates erroneous packets to optimize the network bandwidth Storm Control support Supports VLAN Supports Spanning Tree Protocol Supports Link Aggregation Provides port mirror (1-to-1) Port mirroring to monitor the incoming or outgoing traffic on a particular port Loop protection to avoid broadcast loops Layer 3 IP Routing Features: Supports maximum 32 static routes and route summarization Multicast: Supports IGMP snooping v1, v2 and v3 Supports MLD snooping v1 and v2 Querier mode support IGMP snooping port filtering MLD snooping port filtering MVR (Multicast VLAN Registration) Management: Switch Management Interfaces Four RMON groups (history, statistics, alarms, and events) IPv6 IP address/NTP/DNS management Built-in Trivial File Transfer Protocol (TFTP) client BOOTP and DHCP for IP address assignment Firmware upload/download via HTTP/TFTP DHCP Relay DHCP Option 82 User Privilege levels control Network Time Protocol (NTP) Link Layer Discovery Protocol (LLDP) SFP-DDM (Digital Diagnostic Monitor) Cable diagnostic technology provides the mechanism to detect and report potential cabling issues Reset button for system reboot or reset to factory default PLANET Smart Discovery Utility for deployment management |
|---|
| Dimensions | 5.98" x 2.83" x 4.21" |
|---|---|
| Weight | 2.35 lbs. |
| Temperature | Operating: -40 - 75 degree Celsius Storage: -40 - 85 degree Celsius |
|---|---|
| Humidity | 5% - 95%, Non-condensing |
| First Listed on Newegg | June 30, 2017 |
|---|
