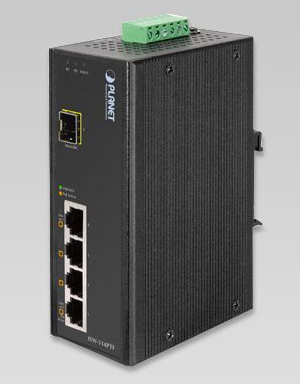

PLANET ISW-514PTF IP30 Industrial Ethernet Switch 4-Port 10/100 Mbps with PoE + 1-Port 100Base-FX (MM, SC, 2 Km) - Wide Temperature

The PLANET ISW-514PT series PoE switch is designed to deliver power and data transmission to remote PoE devices through one Ethernet cable. These switch features four 10/100Mbps copper ports compliant with IEEE 802.3af Power over Ethernet standard, for delivering a maximum of 15.4 Watts of power each port to remote IEEE 802.3af powered devices (PDs). They also feature one 100Base-FX fiber optic interface that offers stable and high speed long range data transmission to the remote core network. These industrial Ethernet switches come with a rugged IP-30 rated rugged strong case to withstand heavy industrial demanding environments. The ISW-514PT series is an ideal solution to deploying surveillance system and wireless service in climatically demanding wide temperature range (-40 to 75 Degree C) environments.

IEEE 802.3af Power over Ethernet PSE Industrial Switch

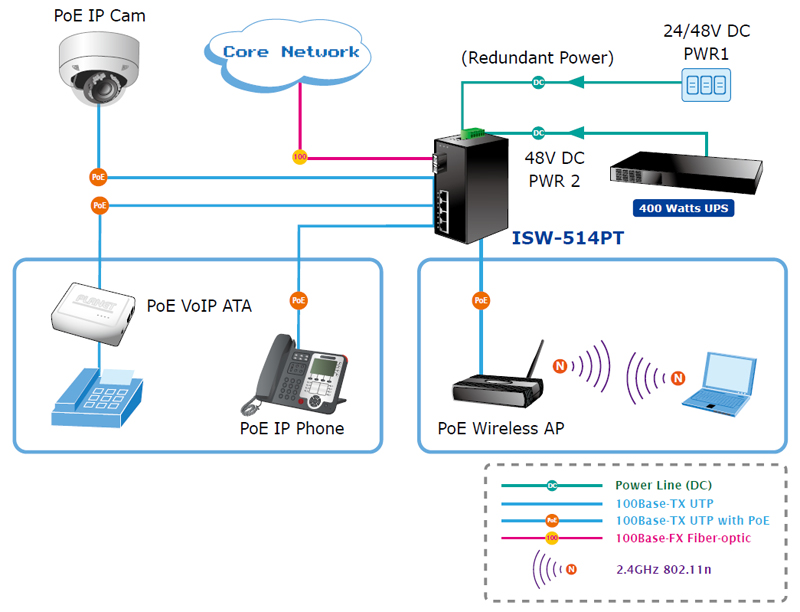

PoE feature is more often supported in the industrial Ethernet devices for efficient operation in harsh environments. The ISW-514PT series in-line power follows standard IEEE 802.3af and allows to supply power to 4 PoE compliant devices at the distance up to 100 meters through the 4-pair Cat 5 / 5e UTP wire. With Data and Power over Ethernet from one unit, the ISW-514PT series can reduce cables deployment and eliminates the need for dedicated electrical outlets on the wall, ceiling or any unreachable place. A wire that carries both data and power results in lowering the installation costs, simplifying the installation effort and eliminating the need for electricians or extension cords. Furthermore, there is only 24V DC input in some industrial environments, the ISW-514PT series supports 24V DC or 48V DC dual voltages input and able to provide more wide range of industrial IEEE 802.3af PoE applications.

Fiber Optic Link Capability for Flexible Distance Extension

The ISW-514PT series is equipped with one 100Base-FX port that provides more flexibility for Transportation, Manufacturing, Security and Surveillance on distance extension without any limitation. The ISW-514PT series offers high performance switch architecture as shown below:

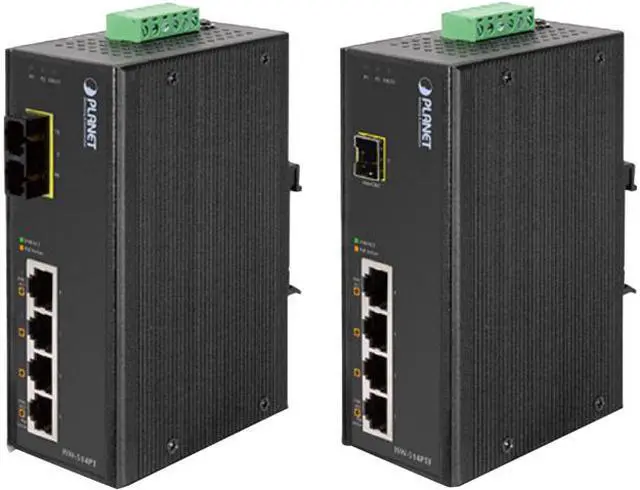

• ISW-514PT:comes with 4 10/100Mbps UTP ports and 1 100FX (SC interface within 2km)
• ISW-514PT15:comes with 4 10/100Mbps UTP ports and 1 100FX (SC interface within 15km)
• ISW-514PTF:comes with 4 10/100Mbps UTP ports and 1 100FX (LC interface within optional of Single / Multi-Mode SFP module)


Fiber optic uplink capability makes the ISW-514PT series a suitable model for long distance network deployment. Users can choose the suitable model for network deployment if required.

Wide Temperature Makes Installation Suitable for Harsh Environments

The ISW-514PT series provides a high level of immunity against electromagnetic interference and heavy electrical surges which are usually found on plant floors or in curbside traffic control cabinets. Being able to operate under wide temperature range from -40 to 75 Degree C, the ISW-514PT series can be placed in almost any difficult environment. It also offers dual-redundant, reversible polarity 24V DC or 48V DC power inputs for high availability applications requiring or backup power inputs.

Robust Switch performance

The ISW-514PT series provides non-blocking switch fabric, wire-speed throughput as high as 1Gbps and the 2K MAC Address table. It also performs wire-speed packets transfer without risk of packet loss and the Flow Control function is default enabled to provide fast and reliable data transfer. All of the RJ-45 copper interfaces support 10/100Mbps auto-negotiation for optimal speed detection through RJ-45 Category 3, 4, 5, 5e or 6 cable. The standard auto-MDI/MDI-X support can detect the type of connection to any Ethernet device without requiring special straight or crossover cables.

Application

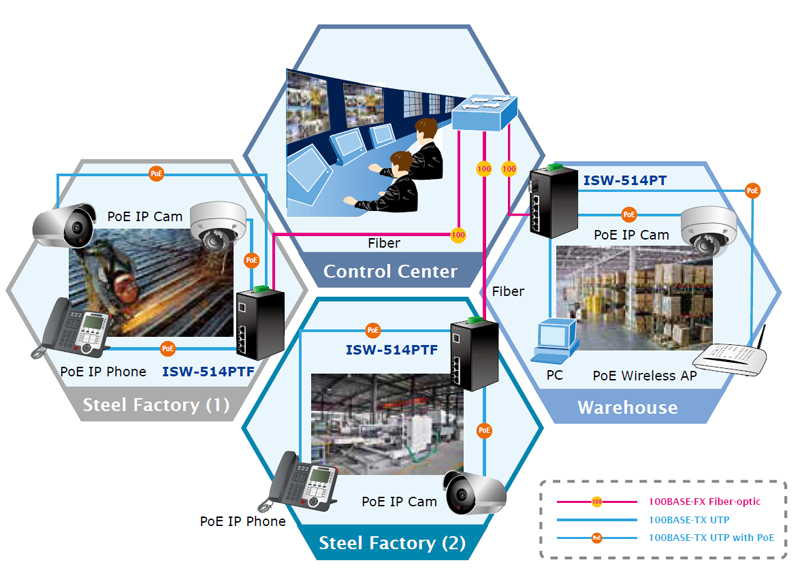

Industrial Area Department / Workgroup PoE Switch

Providing up to 4 PoE, in-line power interface, the ISW-514PT / ISW-514PT15 / ISW-514PTF can easily build a power central-controlled IP phone system, IP camera system, or wireless AP group for industrial network. For instance, 4 cameras or wireless access points can be easily installed around the corner in the industrial environment for surveillance demands or for a wireless roaming network. Without the power-socket limitation, the ISW-514PT series makes the installation of IP cameras or WLAN AP easier and efficiently.
