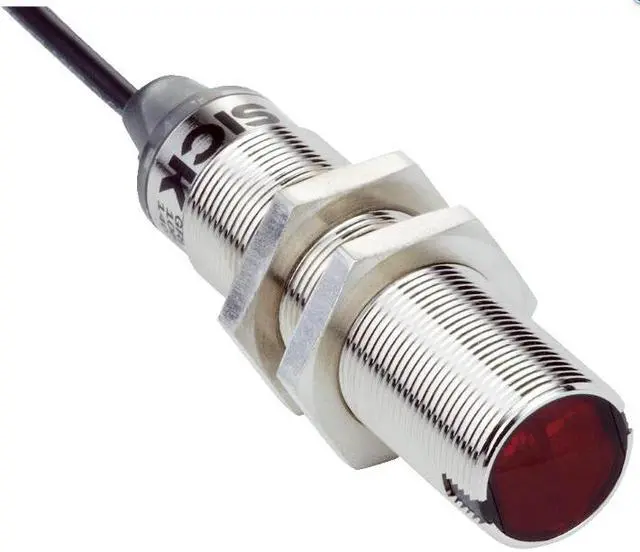

SICK GRTE18-P1112 Cylindrical photoelectric sensors ,PNP,New
- SICK GRTE18-P1112 Cylindrical photoelectric sensors ,PNP,New
+
+
Overview
Specs
Reviews
FEATURES
Sensor/ detection principle Photoelectric proximity sensor, energetic
Housing design (light emission) Cylindrical
Thread diameter (housing) M18 x 1
Optical axis Axial
Sensing range max. 3 mm ... 115 mm 1)
Sensing range 5 mm ... 100 mm 1)
Type of light Visible red light
Light source PinPoint LED 2)
Light spot size (distance) Ø 8 mm (100 mm)
Wave length 650 nm
Adjustment Potentiometer
Potentiometer
MECHANICS/ELECTRONICS
Supply voltage 10 V DC ... 30 V DC 1)
Ripple ± 5 Vpp 2)
Power consumption 30 mA
Switching output PNP
Output function Complementary
Switching mode Light/dark switching
Signal voltage PNP HIGH/LOW VS - (= 3 V) / approx. 0 V
Output current Imax. 100 mA 3)
Response time < 1,000 µs 4)
Switching frequency 500 Hz 5)
Connection type Cable, 4-wire, 2 m 6)
Cable material PVC
Circuit protection
A 7)
B 8)
D 9)
Protection class III
Housing material Metal, Nickel-plated brass and ABS
Optics material Plastic, PMMA
Enclosure rating IP67

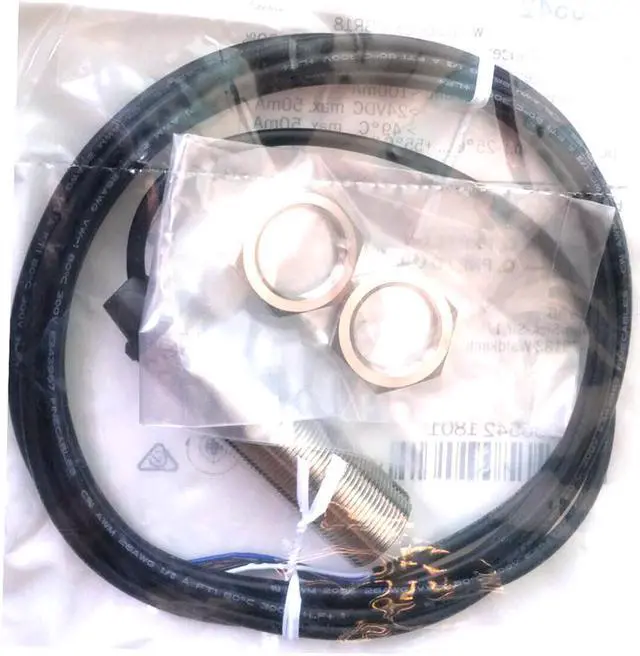

Items supplied Fastening nuts (2 x)
EMC EN 60947-5-2
Ambient operating temperature –25 °C ... +55 °C 10)
Ambient storage temperature –40 °C ... +70 °C
UL File No. E348498
Sensor/ detection principle Photoelectric proximity sensor, energetic
Housing design (light emission) Cylindrical
Thread diameter (housing) M18 x 1
Optical axis Axial
Sensing range max. 3 mm ... 115 mm 1)
Sensing range 5 mm ... 100 mm 1)
Type of light Visible red light
Light source PinPoint LED 2)
Light spot size (distance) Ø 8 mm (100 mm)
Wave length 650 nm
Adjustment Potentiometer
Potentiometer
MECHANICS/ELECTRONICS
Supply voltage 10 V DC ... 30 V DC 1)
Ripple ± 5 Vpp 2)
Power consumption 30 mA
Switching output PNP
Output function Complementary
Switching mode Light/dark switching
Signal voltage PNP HIGH/LOW VS - (= 3 V) / approx. 0 V
Output current Imax. 100 mA 3)
Response time < 1,000 µs 4)
Switching frequency 500 Hz 5)
Connection type Cable, 4-wire, 2 m 6)
Cable material PVC
Circuit protection
A 7)
B 8)
D 9)
Protection class III
Housing material Metal, Nickel-plated brass and ABS
Optics material Plastic, PMMA
Enclosure rating IP67
Items supplied Fastening nuts (2 x)
EMC EN 60947-5-2
Ambient operating temperature –25 °C ... +55 °C 10)
Ambient storage temperature –40 °C ... +70 °C
UL File No. E348498
