Specifications | Standards IEEE 802.3 IEEE 802.3u IEEE 802.3x IEEE 802.3ab IEEE 802.3af IEEE 802.3at

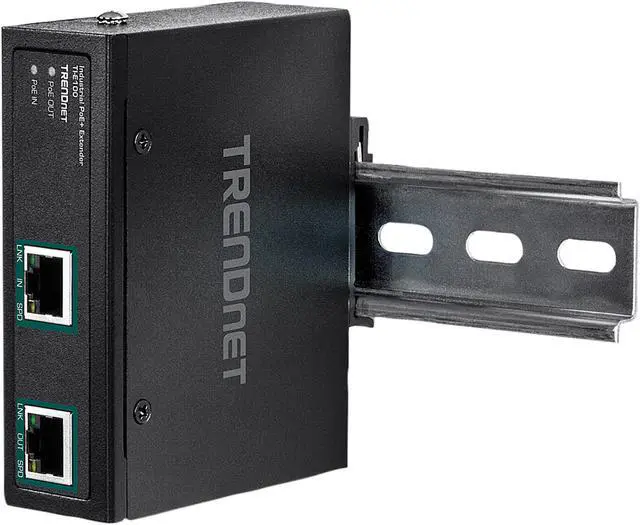

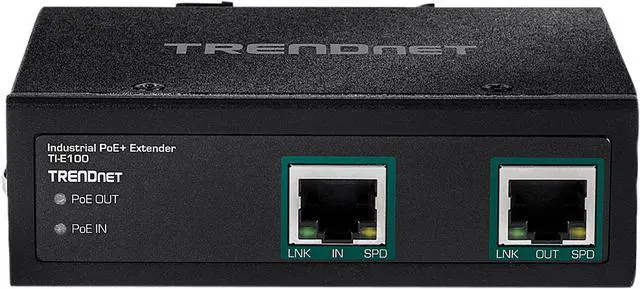

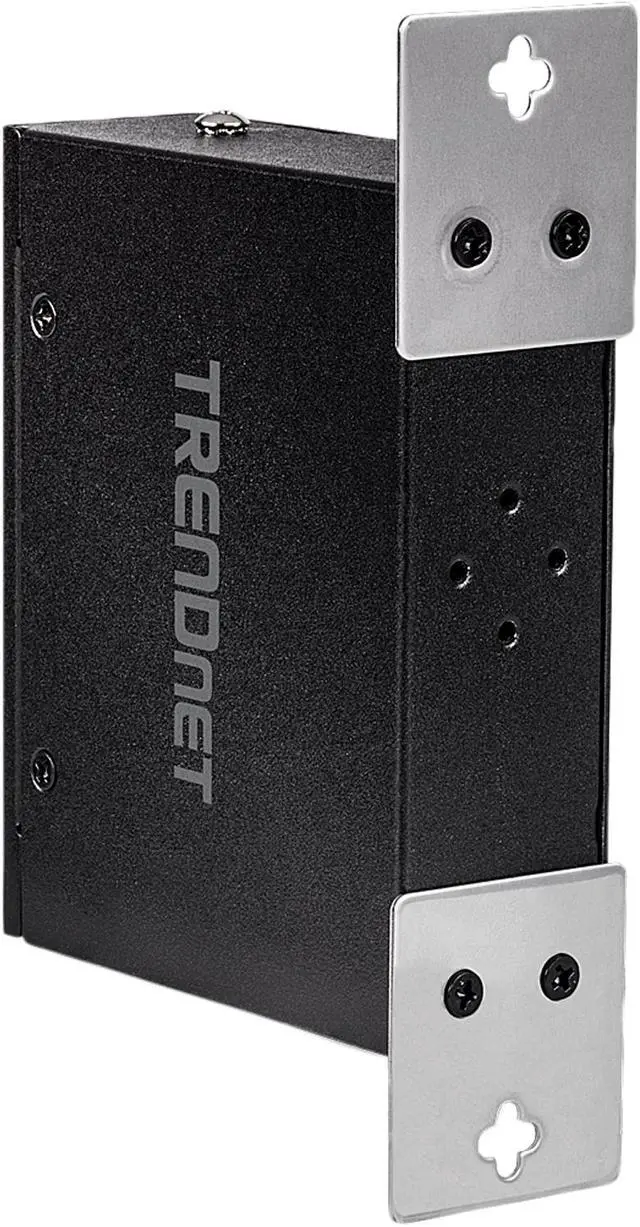

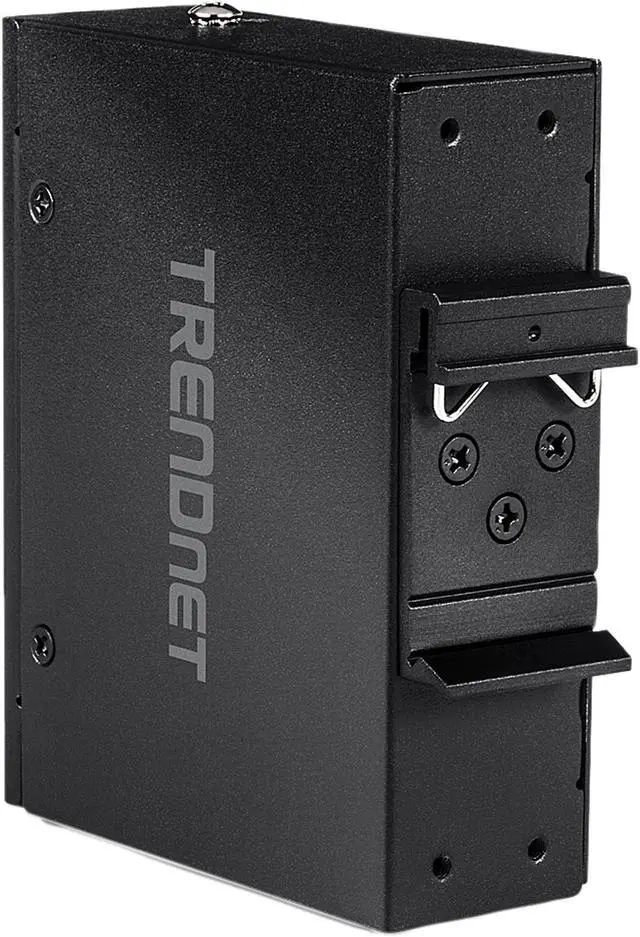

Device Interface 1 x Gigabit PoE+ in port 1 x Gigabit PoE+ out port LED indicators DIN-Rail mount Wall mount Grounding point
Data Transfer Rate Ethernet: 10Mbps (half duplex), 20Mbps (full duplex) Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex) Gigabit: 2000Mbps (full duplex)
Performance Data RAM Buffer: 128KB MAC Address Table: 2K Jumbo Frame: 9KB
Housing IP30 metal case DIN-Rail mount Wall mount Grounding point Contact 6kV, Air 8kV ESD protection 2kV surge protection
Operating Temperature - 40° — 75° C (-40° — 167° F)
Operating Humidity Max. 90% non-condensing |
---|
