Tripp Lite PDU ATS / Metered 120V 1.92kW 20A 16 5-15/20R Dual L5-20P 1URM
- 16 NEMA 5-15/20R 120V outlets distribute AC power to connected equipment
- Digital ammeter for on-site realtime load monitoring helps prevent power overloads
- Dual 12 ft. cords with NEMA L5-20P inputs connect to separate
- power sources
- Installs in 1U of space in EIAstandard 19 in. racks using included mounting brackets
- Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
+
+
Specs
Reviews
Learn more about the Tripp Lite PDUMH20ATS
| Brand | Tripp Lite |
|---|---|
| Model | PDUMH20ATS |
| Type | Auto-Transfer Switch; Metered |
|---|---|
| Rack Size | 1U |
| Style | Horizontal |
| Certifications | Tested to UL 60950-1 (USA), CSA (Canada), Class A (Emissions), NOM (Mexico), RoHS Compliant, TAA Compliant |
| Input Voltage | 120V |
|---|---|
| Maximum Input Current | 20A |
| Cord Length | 12 ft |
| Output Voltage | 100; 120; 127 |
|---|---|
| Output Frequency | 50/60Hz |
| Output Watts (VA) | 2.03kW (127V), 1.92kW (120V), 1.6kW (100V) |
| Storage Temperature | -30°C to +50°C (-22°F to +122°F) |
|---|---|
| Storage Relative Humidity | 5 - 95% |
| Features | Single-Phase 20A ATS PDU Distributes and Monitors Network-Grade Power in Real Time This metered PDU provides real-time local reporting of the total load level via its built-in digital current metering. Ideal for network IT applications, small computer rooms and other equipment rack applications, the PDUMH20ATS features 16 NEMA 5-15/20R 120V outlets for connecting equipment. Dual 12-foot (3.7- meter) power cords with NEMA L5-20P inputs (two 5-20P adapters are included) connect to separate primary and secondary mains circuits, backup generators, UPS systems or utility power grids, including out-of-phase sources. Switches from Primary to Secondary Power Source in Milliseconds Automatic transfer switching (ATS) allows the PDU to switch to the secondary source within 2-7 milliseconds, should the primary source fail or become unstable, to ensure your connected equipment operates without interruption. An on-board ATS processor constantly evaluates the power quality of both input sources. It prevents switching if the secondary source is unavailable or of lower quality than the primary source. Digital Load Meter Helps Prevent Potentially Expensive Overloads A digital ammeter reports the total load for all connected equipment. Monitoring amperage helps ensure load levels remain well below maximum capacity with no danger of overload that could lead to costly downtime or damaged equipment. Maintaining proper load levels, even while adding new equipment, can keep your TCO (total cost of ownership) low. Mounts into 1U of Rack Space or on a Wall Use the included mounting hardware to install the all-metal housing into 1U of space in an EIA-standard 19-inch rack. You may also use the mounting brackets to secure the PDU to a wall or under a counter. |
|---|
| Dimensions | 1.75" x 17.50" x 14.50" |
|---|---|
| Weight | 12.20 lbs. |

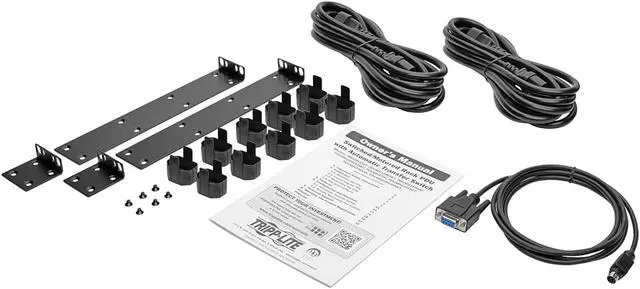

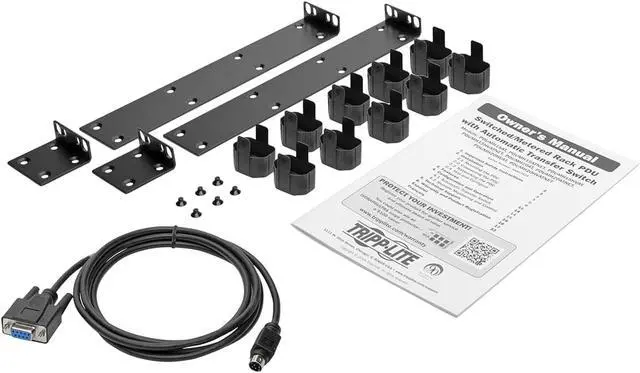

| Package Includes | PDUMH20ATS 1.92kW SinglePhase ATS/Metered PDU Detachable C19 to NEMA L5-20P secondary input cord, 12 ft. (3.7 m) (2) L5-20R to 5-20P plug adapters Cable Retention Kit Rack-mounting hardware Owner's manual |
|---|
| First Listed on Newegg | September 25, 2024 |
|---|
