Tyan server board S5642AGMNRE, Intel Xeon SP 3rd Generation, PCIE Gen 4

Be the first to review this product...
  • SSI CEB form factor and optional dual port Intel X550 10GBase-T Ethernet.
  • Intel Ice Lake SP Xeon Processor with TDP up to 270W
  • Chipset
  • Intel C621A PCH
  • Memory
  • (8) DDR4 DIMM slots (8 memory channels)
  • Supporting up to 2TB RDIMM/LRDIMM DDR4-3200
  • PCIe Expansion Slots
  • Slot 1: PCIe Gen 4.0 x0 or x8 (MUX with Slot 2)
  • Slot 2: PCIe Gen 4.0 x16 or x8 (MUX with Slot 1)
  • Slot 3: PCIe Gen 4.0 x4
  • Slot 4: PCIe Gen 4.0 x16
  • Slot 5: PCIe Gen 4.0 x16
  • Network
  • (2) 10GBase-T LAN Ports (Intel X550-AT2) (Optional)
  • (1) 1000Base-T LAN Port (Intel i210)
  • (1) 1000Base-T Dedicated IPMI Port (Realtek TRL8211 PHY)
  • Storage
  • (14) SATA 6G w/ Intel RSTe 5.0 RAID support
  • (2) PCIe Gen 4.0 NVMe ports across one PCIe x8 Slimline connector
  • (2) 2280/22110 PCIe Gen 3.0 x2 NVMe M.2 ports (from PCH)
  • Optional TPM 1.2 & 2.0 modules
  • AST2500 BMC /w IPMI, iKVM, and Redfish Support
+
+
Specs
Reviews

Learn more about the TYAN S5642AGMNRE

Model
Brand TYAN
Model S5642AGMNRE
Supported CPU
CPU Socket Type LGA 4189
CPU Type Supports 3rd Gen Intel Xeon Scalable Processor
Number of Processor Support 1
Chipsets
North Bridge Intel C621A
Memory
Number of DDR4 Slots 8 x 288-pin
DDR4 Standard DDR4 ECC RDIMM /LRDIMM 3200
Maximum Memory Supported Up to 1,024GB RDIMM / 2,048GB LRDIMM / 2,048GB RDIMM 3DS/LRDIMM 3DS *Follow latest Intel DDR4 Memory POR
Channel Supported Eight Channel
ECC Supported Yes
Expansion Slots
PCI Express 4.0 x16 (1) PCIe Gen.4 x16 slot (#3 w/x8 link)
(2) PCIe Gen.4 x16 slots (#5,#6)
PCI Express x8 (1) PCIe Gen.4 x8 slot (#4 w/x4 link)
(1) PCe Gen.4 x8 slot (#2 via MUX)
Storage Devices
SATA 14 x SATA 6.0Gb/s
SATA RAID RAID 0/1/10/5 (Intel RSTe)
M.2 Connector (M.2): (2) 22110/2280 (by PCIe Gen.3 interface)
Connector (U.2): (1) SFF-8654 for (2) NVMe ports
Onboard Video
Onboard Video Chipset Aspeed AST2500
Onboard Audio
Audio Chipset Realtek ALC888S
Audio Channels 2.1 Channels
Onboard LAN
LAN Chipset Intel I210
LAN Speed 10/100/1000Mbps
Max LAN Speed 1Gbps

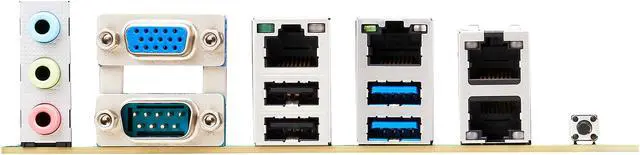

Rear Panel Ports
Back I/O Ports (2) USB2.0 ports (@ rear)
(2) USB3.0 ports (@ rear)
(2) USB3.0 ports (via cable)
(1) DB-9 COM Connector
(1) D-Sub 15-pin VGA port (@ rear)
(1) GbE ports + (1) GbE dedicated for IPMI
(1) 2x12-pin SSI front panel header
(1) 2x5-pin header / (1) 3 holes Audio Jack connector
Dimensions
Form Factor SSI CEB
Dimensions (W x L) 12.0" x 10.5"
