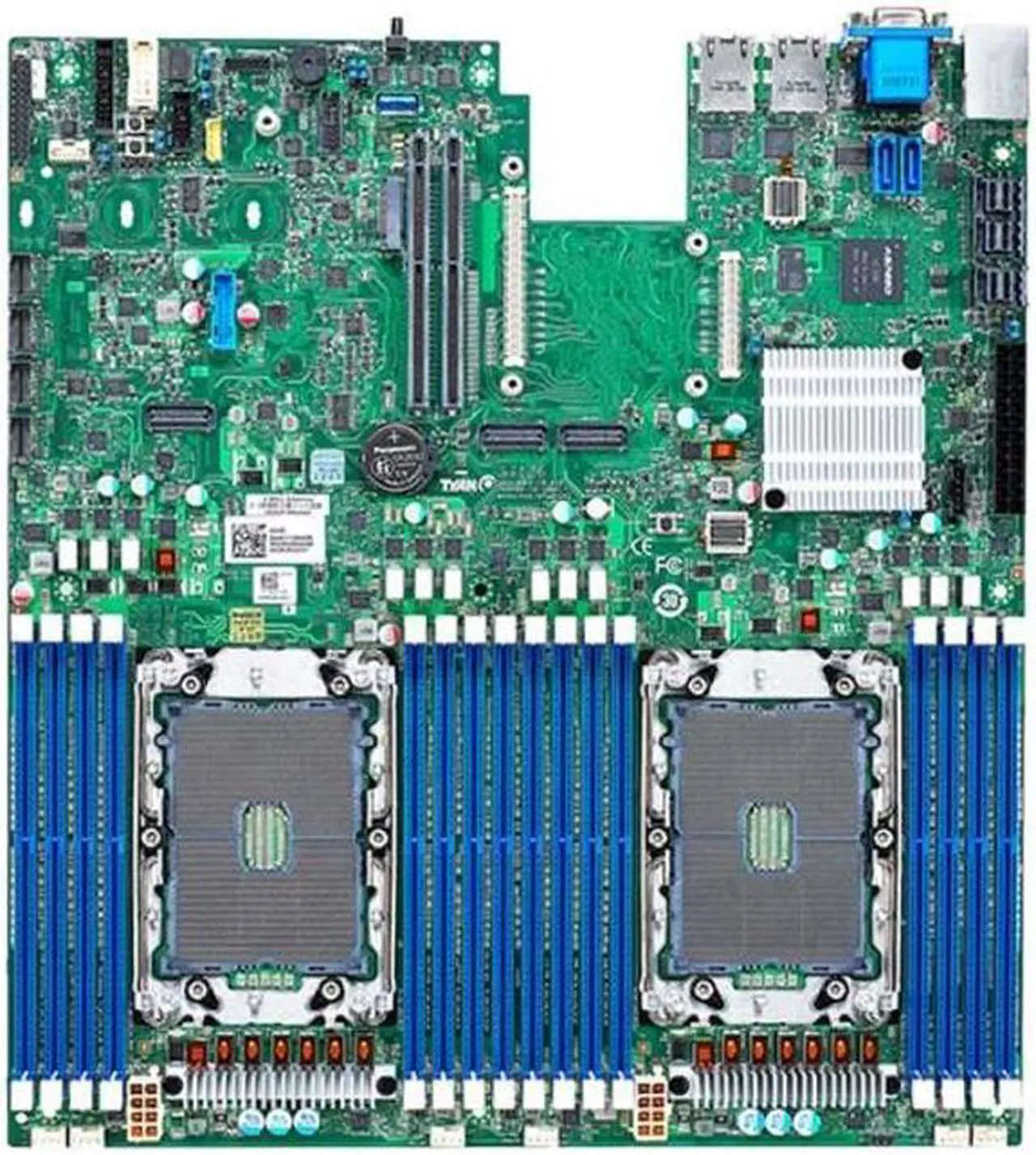

TYAN S7126GM2NRE Extended ATX Server Motherboard LGA 4189 Intel C621A
- LGA 4189
- Intel C621A
+
+
Specs
Reviews
Learn more about the TYAN S7126GM2NRE
| Brand | TYAN |
|---|---|
| Model | S7126GM2NRE |
| CPU Socket Type | LGA 4189 |
|---|---|
| CPU Type | Supports 3rd Gen Intel Xeon Scalable Processor |
| Number of Processor Support | 2 |
| CPU Features | Max up to 220W (TDP) |
| North Bridge | Intel C621A |
|---|
| Number of DDR4 Slots | 16 x 288-pin |
|---|---|
| DDR4 Standard | DDR4 3200 |
| Maximum Memory Supported | Up to 2,048GB RDIMM/ 4,096GB LRDIMM/ 4,096GB RDIMM 3DS/LRDIMM 3DS *Follow latest Intel DDR4 Memory POR |
| Channel Supported | Eight Channel |
| ECC Supported | Yes |
| PCI Express 4.0 x16 | (2) PCIe Gen.3/Gen.4 x32 slots (slot #6.5, #6) |
|---|---|
| PCI Express 3.0 x16 | (1) PCIe Gen.3 x16 OCP 2.0 mezzanine slot (conn.A+conn.B) |
| SATA | 14 x SATA 6.0Gb/s |
|---|---|
| SATA RAID | RAID 0/1/10/5 (Intel RSTe) |
| M.2 | Connector (M.2): (1) 22110/2280/2242 (by PCIe interface) Connector (U.2): (4) SFF-8654 for (8) NVMe ports |
| Onboard Video Chipset | Aspeed AST2500 |
|---|
| LAN Chipset | Intel I210-AT |
|---|---|
| LAN Speed | 10/100/1000Mbps |
| Max LAN Speed | 1Gbps |
| Back I/O Ports | (1) USB3.0 ports (via cable) / (2) USB3.0 ports ( @ rear) (1) DB-9 COM Connector (1) D-Sub 15-pin VGA port (@ rear) (2) GbE ports + (1) GbE dedicated for IPMI (2) SATA-III connectors / (3) Mini-SAS HD (4-in-1) connectors |
|---|
| Form Factor | Extended ATX |
|---|---|
| Dimensions (W x L) | 12" x 13.1" |
| Package Contents | (1) S7126 Motherboard (1) Quick Installation Guide (1) I/O Shield (2) SATA signal cables |
|---|
| Date First Available | July 22, 2024 |
|---|
