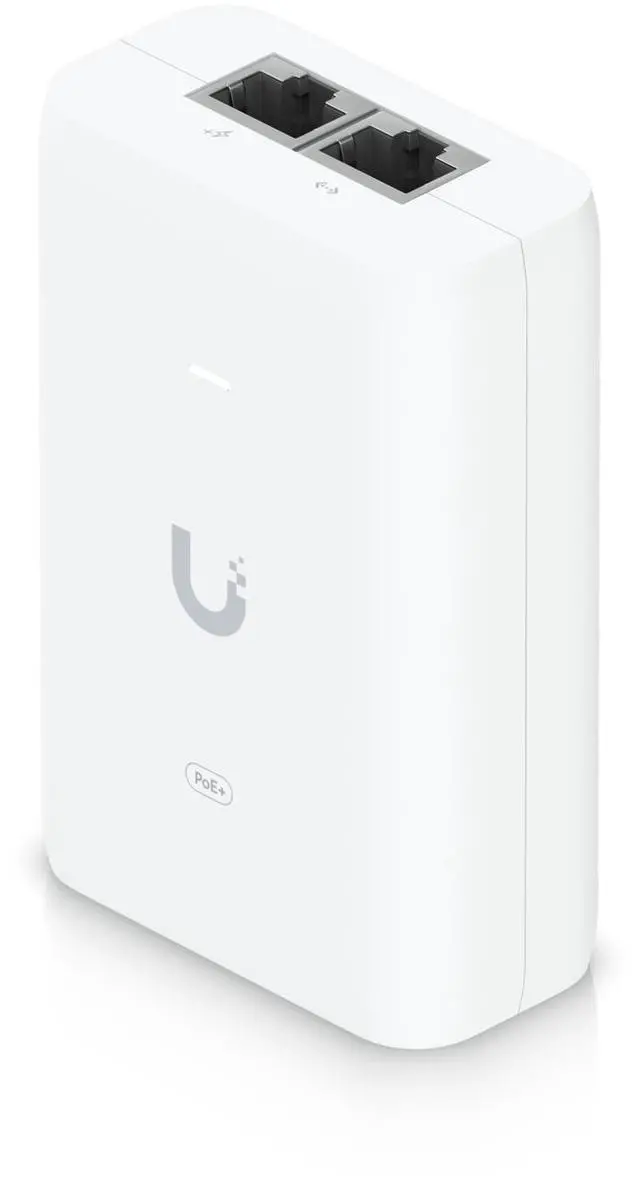

Ubiquiti PoE+ Adapter (30W) (U-PoE+)

Option: U-POE+ (30W)

Delivers up to 30W of PoE+
Surge, peak pulse, and overcurrent protection

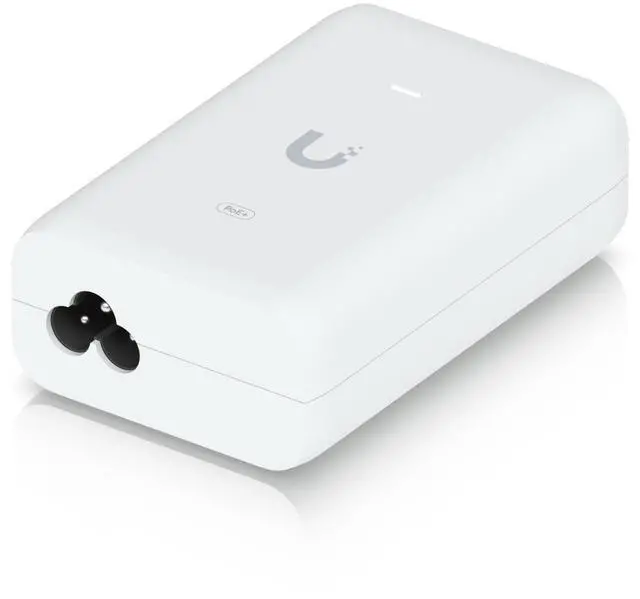

Contains RJ45 data input, AC cable with earth ground, and PoE+ output
LED indicator for status monitoring
Compatibility: U6-LR, UVC-G5-PTZ, U6-IW, UVC-AI-DSLR, UVC-AI-Pro, UDB-Pro, UTP-G3-Touch-Wall, UTP-TouchMax, UA-Ultra

Specs

Reviews

Learn more about the Ubiquiti Networks PoE+ Adapter

Details
Type	PoE Adapter
Color	White

Features
Features	Dimensions: 93 x 62 x 35 mm (3.7 x 2.4 x 1.4") Weight: 156 g (5.5 oz) Output voltage: 48V DC @ 0.65A Gigabit LAN port Rated voltage: 100—240V AC @ 50/60Hz Input current: 0.75A max. Inrush current: <100A peak at 26°C Efficiency: 87% Output ripple: 1% max. Switching frequency: 70 kHz max. Line regulation = 3% Load regulation = 5% 2-pair powering Pins: 4, 5 (+) and 7, 8 (-) AC connector: IEC-320 C6 Data In / PoE: RJ45 shielded socket Surge protection: Difference and common mode Clamping protection: 11V data, 60V power Max. surge discharge: 1500A (8/20 µs) power Peak pulse current: 36A (10/1000 µs) data Shunt capacitance: <5 pF data Response time: <1 ns Ambient operating temperature: 0 to 40° C (32 to 104° F) Storage temperature: -30 to 70°C (-22 to 158° F) Ambient operating humidity: 10 to 95% noncondensing Certifications: CE, FCC, IC, UL

Additional Information
First Listed on Newegg	January 26, 2024
