Wenglor Retro-Reflex Sensors XM98PAH2 PNP New
- Wenglor Retro-Reflex Sensors XM98PAH2 PNP New
+
+
Overview
Specs
Reviews

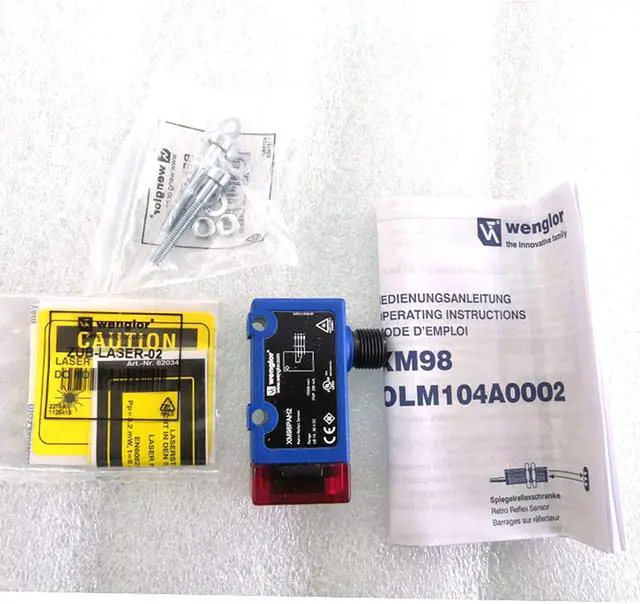

Wenglor Retro-Reflex Sensors XM98PAH2 PNP New
Range 15000 mm
Reference Reflector/Reflector Foil RQ100BA
Min. Distance to Reflector 80 mm
Smallest Recognizable Part > 2500 µm
Switching Hysteresis < 15 %
Light Source Laser (red)
Wavelength 655 nm
Polarization Filter yes
Service Life (T = +25 °C) 100000 h
Laser Class (EN 60825-1) 2
Max. Ambient Light 10000 Lux
Opening Angle 0,6 °
Light Spot Diameter see Table 1
Two-Lens Optic yes
Supply Voltage 10...30 V DC
Current Consumption (Ub = 24 V) < 30 mA
Switching Frequency 3 kHz
Response Time 166 µs
Off-Delay 5 ms
Temperature Drift < 10 %
Temperature Range -10...60 °C
Switching Output Voltage Drop < 2,5 V
PNP Switching Output/Switching Current 200 mA
Short Circuit Protection yes
Reverse Polarity Protection yes
Protection Class III
Setting Method Potentiometer
Housing Material Plastic
Full Encapsulation yes
Degree of Protection IP67
Connection M12 × 1; 4-pin
PNP NO/NC antivalent yes
Range 15000 mm
Reference Reflector/Reflector Foil RQ100BA
Min. Distance to Reflector 80 mm
Smallest Recognizable Part > 2500 µm
Switching Hysteresis < 15 %
Light Source Laser (red)
Wavelength 655 nm
Polarization Filter yes
Service Life (T = +25 °C) 100000 h
Laser Class (EN 60825-1) 2
Max. Ambient Light 10000 Lux
Opening Angle 0,6 °
Light Spot Diameter see Table 1
Two-Lens Optic yes
Supply Voltage 10...30 V DC
Current Consumption (Ub = 24 V) < 30 mA
Switching Frequency 3 kHz
Response Time 166 µs
Off-Delay 5 ms
Temperature Drift < 10 %
Temperature Range -10...60 °C
Switching Output Voltage Drop < 2,5 V
PNP Switching Output/Switching Current 200 mA
Short Circuit Protection yes
Reverse Polarity Protection yes
Protection Class III
Setting Method Potentiometer
Housing Material Plastic
Full Encapsulation yes
Degree of Protection IP67
Connection M12 × 1; 4-pin
PNP NO/NC antivalent yes
