Wenglor Reflex Sensors HB03PBT7K PNP New
- Wenglor Reflex Sensors HB03PBT7K PNP New
+
+
Overview
Specs
Reviews

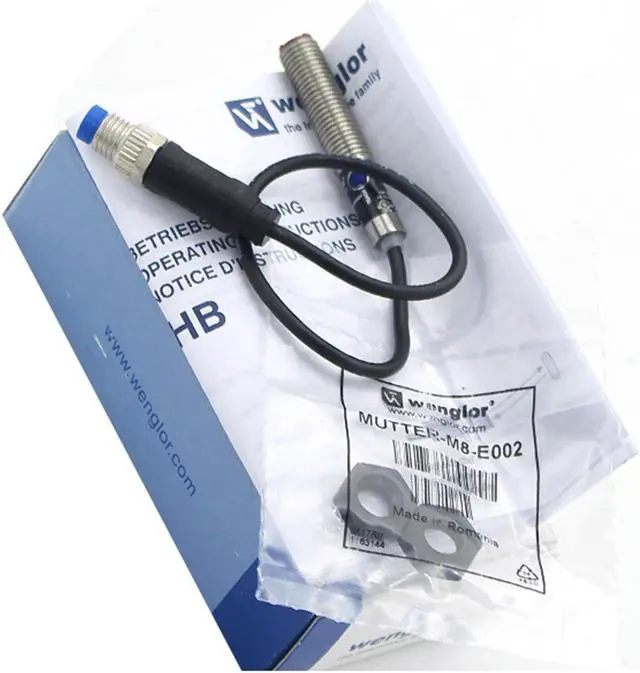

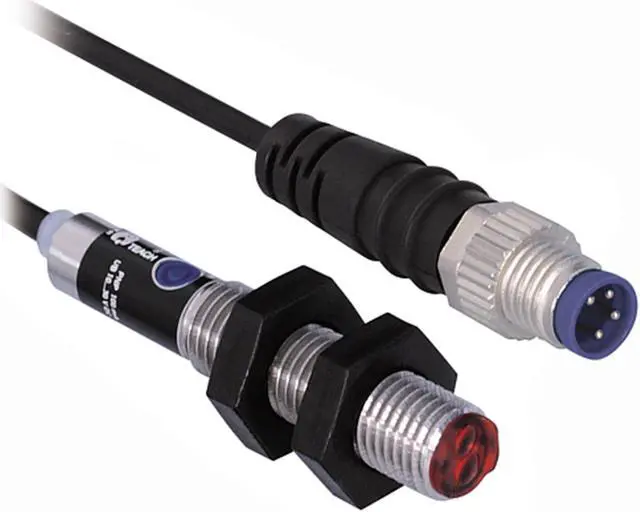

Wenglor Reflex Sensors HB03PBT7K PNP New
Range 30 mm
Adjustable Range 10...30 mm
Switching Hysteresis < 10 %
Light Source Red Light
Service Life (T = +25 °C) 100000 h
Max. Ambient Light 10000 Lux
Light Spot Diameter 2 mm
Supply Voltage 10...30 V DC
Current Consumption (Ub = 24 V) < 25 mA
Switching Frequency 600 Hz
Response Time 833 µs
Temperature Drift < 5 %
Temperature Range -25...60 °C
Switching Output Voltage Drop < 2,5 V
PNP Switching Output/Switching Current 100 mA
Short Circuit Protection yes
Reverse Polarity Protection yes
Overload Protection yes
Protection Class III
Setting Method Teach-In
Housing Material Stainless Steel
Full Encapsulation yes
Degree of Protection IP67

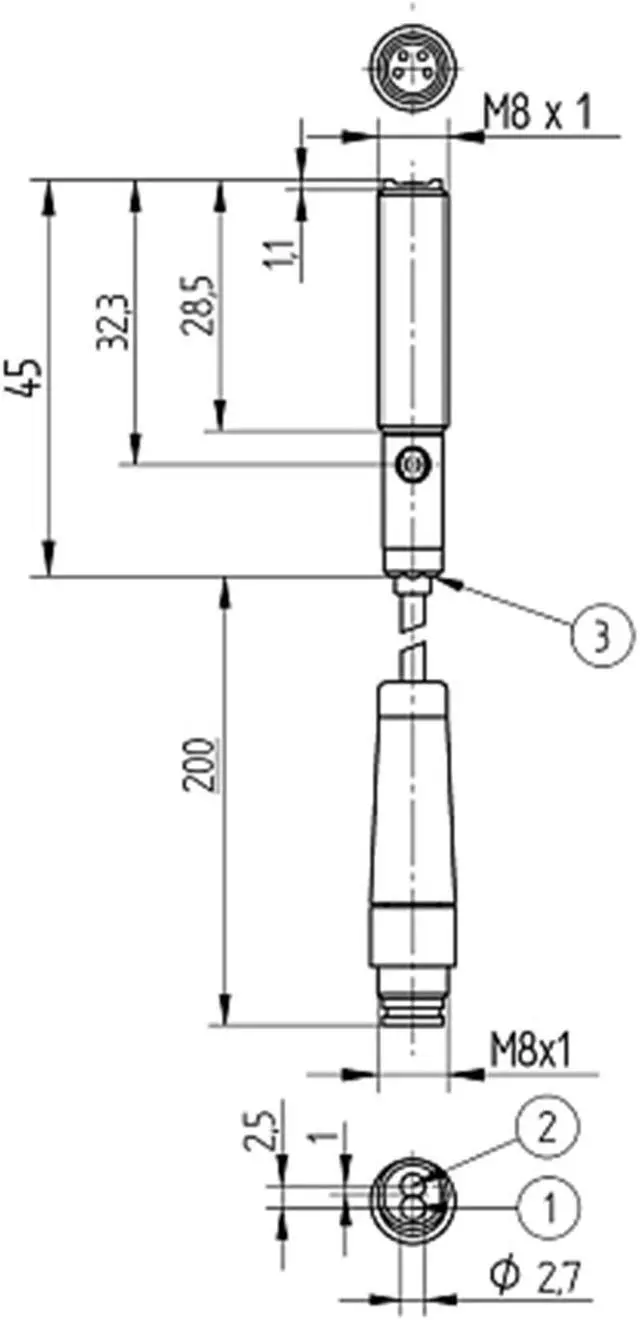

Connection M8 × 1; 4-pin
Cable Length 20 cm
PNP NO yes
Range 30 mm
Adjustable Range 10...30 mm
Switching Hysteresis < 10 %
Light Source Red Light
Service Life (T = +25 °C) 100000 h
Max. Ambient Light 10000 Lux
Light Spot Diameter 2 mm
Supply Voltage 10...30 V DC
Current Consumption (Ub = 24 V) < 25 mA
Switching Frequency 600 Hz
Response Time 833 µs
Temperature Drift < 5 %
Temperature Range -25...60 °C
Switching Output Voltage Drop < 2,5 V
PNP Switching Output/Switching Current 100 mA
Short Circuit Protection yes
Reverse Polarity Protection yes
Overload Protection yes
Protection Class III
Setting Method Teach-In
Housing Material Stainless Steel
Full Encapsulation yes
Degree of Protection IP67
Connection M8 × 1; 4-pin
Cable Length 20 cm
PNP NO yes
