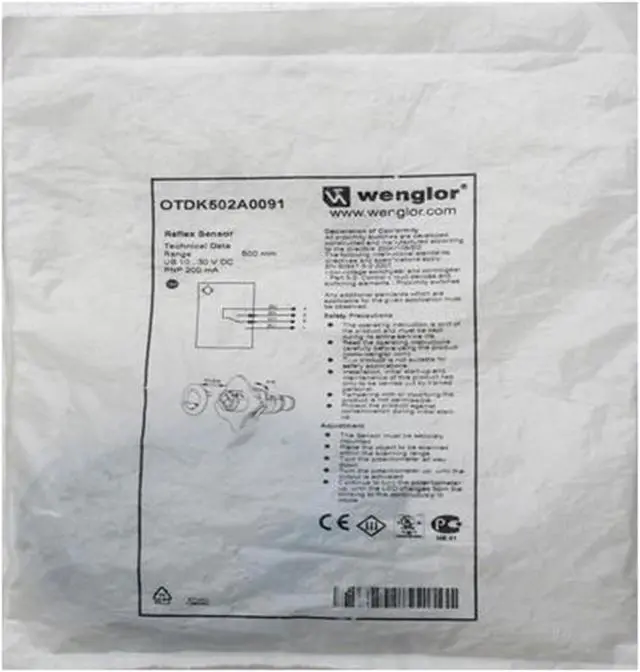

Wenglor OTDK502A0091 Reflex Sensors PNP New
- Wenglor OTDK502A0091 Reflex Sensors PNP New
+
+
Overview
Specs
Reviews
Wenglor OTDK502A0091 Reflex Sensors PNP New
Range 500 mm
Switching Hysteresis < 15 %
Light Source Infrared Light
Service Life (T = +25 °C) 100000 h
Max. Ambient Light 10000 Lux
Opening Angle 5 °
Light Spot Diameter see Table 1
Supply Voltage 10...30 V DC
Current Consumption (Ub = 24 V) < 30 mA
Switching Frequency 500 Hz
Response Time 1 ms
Temperature Drift < 10 %
Temperature Range -25...60 °C
Switching Output Voltage Drop < 2,5 V
PNP Switching Output/Switching Current 200 mA
Residual Current Switching Output < 50 µA
Short Circuit Protection yes
Reverse Polarity Protection yes
Overload Protection yes
Protection Class III
Setting Method Potentiometer
Housing Material Plastic
Degree of Protection IP67
Connection Cable, 4-wire, 2 m
Scope of delivery Mounting Console
PNP NO/NC antivalent yes
Range 500 mm
Switching Hysteresis < 15 %
Light Source Infrared Light
Service Life (T = +25 °C) 100000 h
Max. Ambient Light 10000 Lux
Opening Angle 5 °
Light Spot Diameter see Table 1
Supply Voltage 10...30 V DC
Current Consumption (Ub = 24 V) < 30 mA
Switching Frequency 500 Hz
Response Time 1 ms
Temperature Drift < 10 %
Temperature Range -25...60 °C
Switching Output Voltage Drop < 2,5 V
PNP Switching Output/Switching Current 200 mA
Residual Current Switching Output < 50 µA
Short Circuit Protection yes
Reverse Polarity Protection yes
Overload Protection yes
Protection Class III
Setting Method Potentiometer
Housing Material Plastic
Degree of Protection IP67
Connection Cable, 4-wire, 2 m
Scope of delivery Mounting Console
PNP NO/NC antivalent yes
