Wenglor Fiber-Optic Cable Sensors UF55MG3 New
- Wenglor Fiber-Optic Cable Sensors UF55MG3 New
+
+
Overview
Specs
Reviews

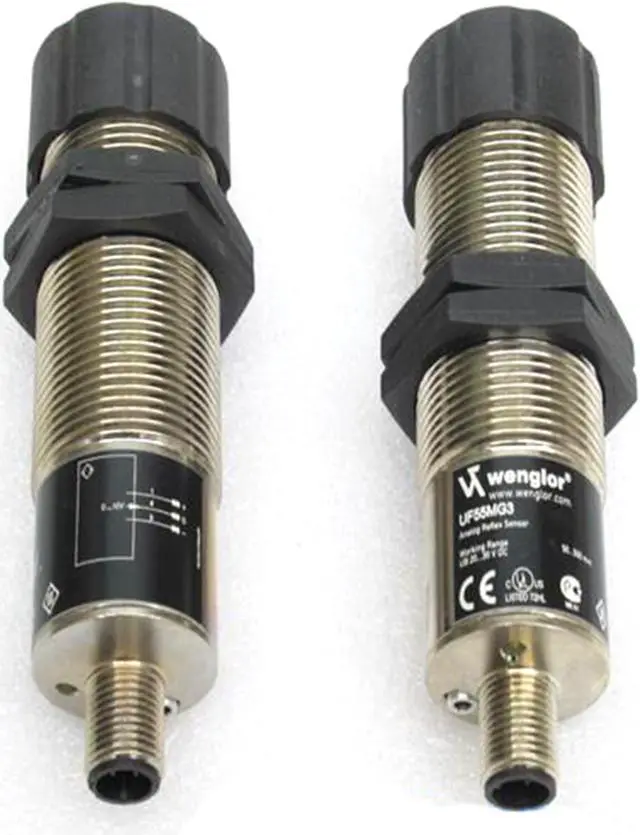

Wenglor Fiber-Optic Cable Sensors UF55MG3 New
Working Range 50...500 mm
Measuring Range 450 mm
Resolution 10 mm
Linearity 5 %
Light Source Infrared Light
Wavelength 880 nm
Service Life (T = +25 °C) 100000 h
Max. Ambient Light 10000 Lux
Opening Angle 12 °
Supply Voltage 20...30 V DC
Current Consumption (Ub = 24 V) < 40 mA
Switching Frequency 50 Hz
Response Time 10 ms
Temperature Drift 1 mm/K
Temperature Range -10...60 °C
Analog Output 0...10 V DC
Output Resistance Analog Output 1 kOhm
Short Circuit Protection yes
Reverse Polarity Protection yes
Protection Class III
Setting Method Potentiometer
Housing Material CuZn, nickel-plated
Full Encapsulation yes
Degree of Protection IP65
Connection M12 × 1; 4-pin
Analog Output yes
Working Range 50...500 mm
Measuring Range 450 mm
Resolution 10 mm
Linearity 5 %
Light Source Infrared Light
Wavelength 880 nm
Service Life (T = +25 °C) 100000 h
Max. Ambient Light 10000 Lux
Opening Angle 12 °
Supply Voltage 20...30 V DC
Current Consumption (Ub = 24 V) < 40 mA
Switching Frequency 50 Hz
Response Time 10 ms
Temperature Drift 1 mm/K
Temperature Range -10...60 °C
Analog Output 0...10 V DC
Output Resistance Analog Output 1 kOhm
Short Circuit Protection yes
Reverse Polarity Protection yes
Protection Class III
Setting Method Potentiometer
Housing Material CuZn, nickel-plated
Full Encapsulation yes
Degree of Protection IP65
Connection M12 × 1; 4-pin
Analog Output yes
