Wenglor Photoelectronic Sensors YN44PA3 NPN New
- Wenglor Photoelectronic Sensors YN44PA3 NPN New
+
+
Overview
Specs
Reviews

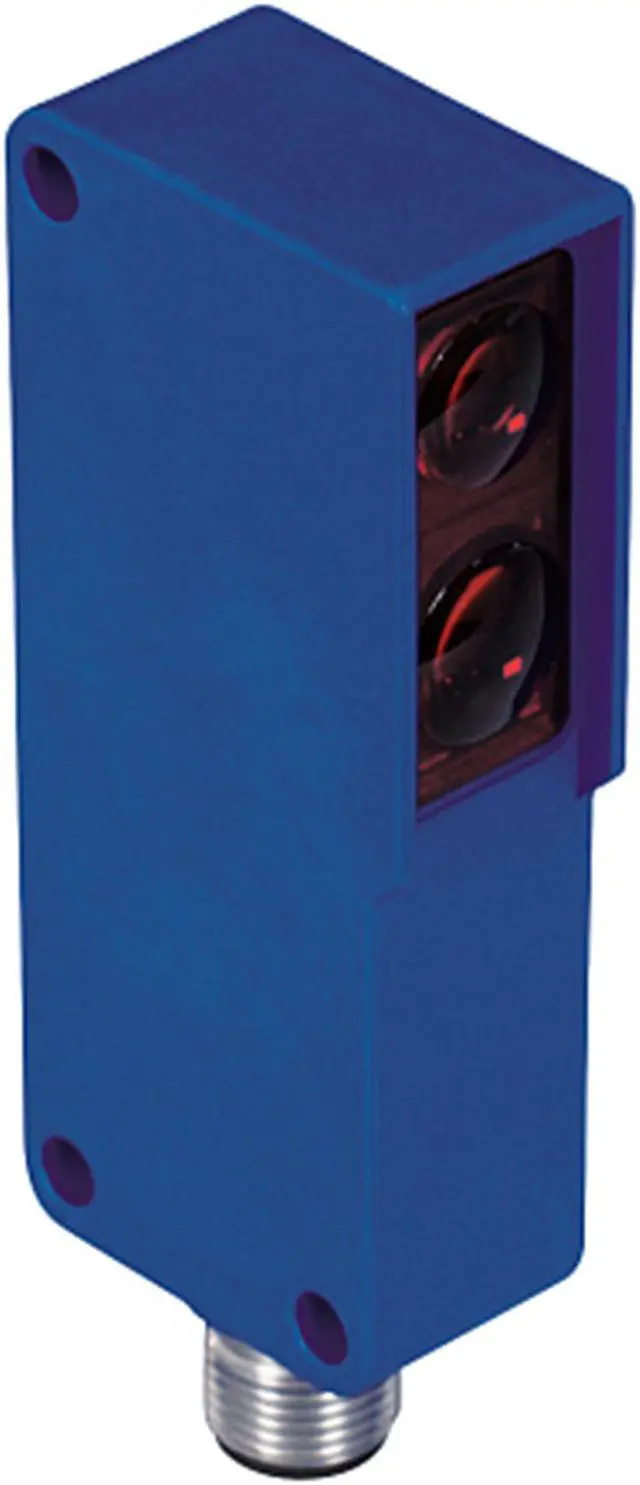

Wenglor Photoelectronic Sensors YN44PA3 NPN New
Range 400 mm
Adjustable Range 65...400 mm
Switching Hysteresis < 1 %
Light Source Laser (red)
Wavelength 655 nm
Service Life (T = +25 °C) 100000 h
Laser Class (EN 60825-1) 2
Max. Ambient Light 10000 Lux
Light Spot Diameter see Table 1
Supply Voltage 10...30 V DC
Current Consumption (Ub = 24 V) < 20 mA
Switching Frequency 600 Hz
Response Time 833 µs
Temperature Drift < 2 %
Temperature Range -25...60 °C
Switching Output Voltage Drop < 2,5 V
PNP Switching Output/Switching Current 200 mA
Short Circuit Protection yes
Reverse Polarity Protection yes
Overload Protection yes
Protection Class III
Setting Method Potentiometer
Housing Material Plastic
Degree of Protection IP67
Connection M12 × 1; 4-pin
MTTFd (EN ISO 13849-1) 1930,46 a
PNP NO/NC antivalent yes
Range 400 mm
Adjustable Range 65...400 mm
Switching Hysteresis < 1 %
Light Source Laser (red)
Wavelength 655 nm
Service Life (T = +25 °C) 100000 h
Laser Class (EN 60825-1) 2
Max. Ambient Light 10000 Lux
Light Spot Diameter see Table 1
Supply Voltage 10...30 V DC
Current Consumption (Ub = 24 V) < 20 mA
Switching Frequency 600 Hz
Response Time 833 µs
Temperature Drift < 2 %
Temperature Range -25...60 °C
Switching Output Voltage Drop < 2,5 V
PNP Switching Output/Switching Current 200 mA
Short Circuit Protection yes
Reverse Polarity Protection yes
Overload Protection yes
Protection Class III
Setting Method Potentiometer
Housing Material Plastic
Degree of Protection IP67
Connection M12 × 1; 4-pin
MTTFd (EN ISO 13849-1) 1930,46 a
PNP NO/NC antivalent yes
