Asrock Rack 1U2LW-X570 1U Rackmount Server Barebone 2 Bays Single Socket AM4 PGA 1331 AMD Ryzen 5000 Series
- 1U Rackmount with 315W PSU, 100-240V, 50-60Hz
- Support AMD Ryzen 5000 Series Desktop Processors
- Support 2 x fixed 3.5" drive bays
- Support 1 x FHHL PCIe4.0 x16
- Support 2 x M.2 (PCIe4.0 x4)
- Support 4 x DDR4 ECC/ non-ECC UDIMM, up to 32GB each
- Support 2 x RJ45 (1GbE) by Intel i210 + 1 x dedicated IPMI
- SMB and Web Hosting
+
+
Specs
Reviews (1)
Learn more about the ASRock Rack 1U2LW-X570
| Brand | ASRock Rack |
|---|---|
| Model | 1U2LW-X570 |
| Form Factor | 1U Rackmount |
| Workload | Edge Server |
| CPU Type | Supports: AMD Ryzen 5000 and 3000 Series Desktop Processors AMD Ryzen 4000 and 3000 G-Series Desktop Processors with Radeon Graphics AMD Ryzen PRO 5000, 4000 and 3000 Series Desktop Processors |
|---|---|
| CPU Socket | AM4 |
| Installed CPU | No CPU Installed |
| North Bridge | AMD X570 |
|---|
| Memory Slots | 4 x 288Pin |
|---|---|
| Installed Memory Size | No Memory Installed |
| Memory Type Supported | Up to 3200 MHz* * AMD Ryzen 3000 G-Series Desktop Processors with Radeon Graphics support up to 2666 MHz |
| Installed HDD | No Storage Installed |
|---|
| GPU/VPU | Aspeed AST2500 |
|---|
| PCI Express | Supports 1 FHHL PCIe4.0 x16* via RB1UX16_G4 *Supports PCIe3.0 x8 when using AMD Ryzen 3000 G-Series Desktop Processors with Radeon Graphics *Supports PCIe3.0 x16 when using AMD Ryzen 4000 G-Series Desktop Processors with Radeon Graphics |
|---|
| First LAN | Intel I210 |
|---|---|
| Max. LAN Speed | 1 Gigabit |
| 3.5" Bays | 2 fixed 3.5" SATA drive bays or 1 fixed 3.5" and 1 fixed 2.5" SATA drive bays 1 M-key (PCIe4.0* x4 or SATA 6Gb/s); Form factor: 22110/2280/2260/2242 [CPU] 1 M-key (PCIe4.0* x4 or SATA 6Gb/s); Form factor: 2280/2260/2242 [FCH] *Supports PCIe3.0 when using AMD Ryzen 4000 and 3000 G-Series Desktop Processors with Radeon Graphics |
|---|
| Front USB | 2 x USB 3.2 Gen1 Type-A |
|---|---|
| VGA | 1 |
| Rear USB | 2 x USB 3.2 Gen2 Type-A |
| RJ45 | 2 RJ45(1GbE) by Intel i210 1 dedicated IPMI |
| Max. Power | 315W Single PSU, 80-PLUS Gold, 100-240V, 50-60Hz |
|---|
| Temperature | Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C |
|---|---|
| Humidity | Non operation humidity: 20% ~ 90% ( Non condensing) |

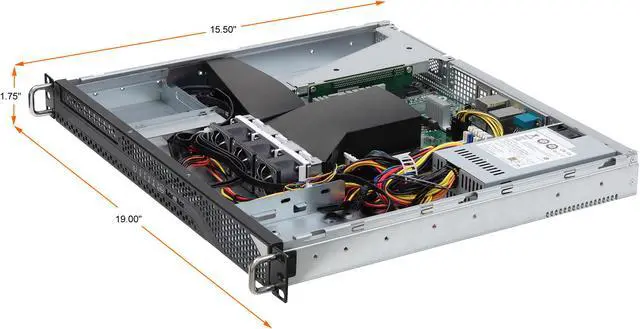

| Dimensions | 1.75" x 15.50" x 19.00" |
|---|
| First Listed on Newegg | September 02, 2025 |
|---|
