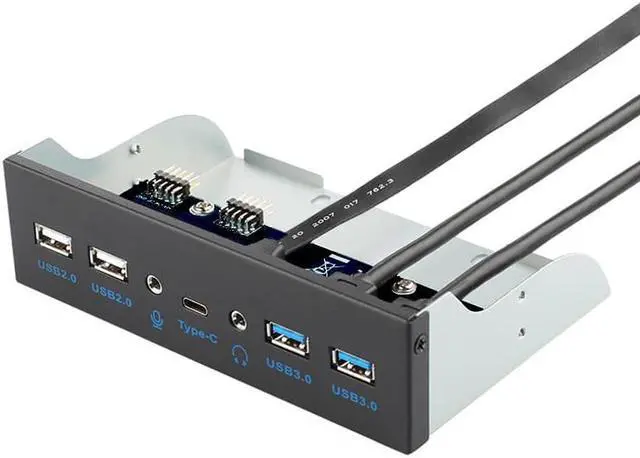

5.25 Inch Front Panel 5 Ports USB Hub w/ HD Audio Output Port & Microphone Input, USB 3.2 Gen 2(10Gbps) Type-C+2 x USB 3.0 & 2 x USB 2.0 w/ USB 3.2 20Pin(aka Type-E),USB 3.0 20-Pin Header Cable
- 5 Ports USB Hub 5.25 Front-Panel w/ HD Audio & Mic
- USB Type-C Gen 2(10Gbps) + 2 x USB 3.0 & 2 x USB 2.0

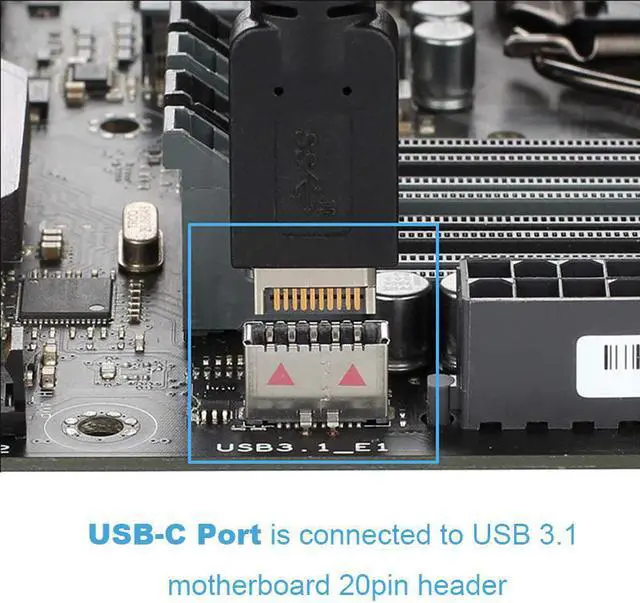

- USB 3.1 20pin Motherboard header (aka Type-E) is needed for USB-C Expansion
- One 20 pin USB 3.0 and 10pin USB 2.0 header on motherboard are needed for USB 3.0 and USB 2.0 ports expansion
- AC97/HD Audio 10pin header on motherboard is needed for audio and mic. port
- Cable lengths are 2.6FT
+
+
Specs
Reviews (1)
Learn more about the EN-Labs 525FPU32U22UCA
| Brand | EN-Labs |
|---|---|
| Model | 525FPU32U22UCA |
| Type | USB |
|---|---|
| Transfer Rate | Up to 5 Gbps |
| Color | Black |

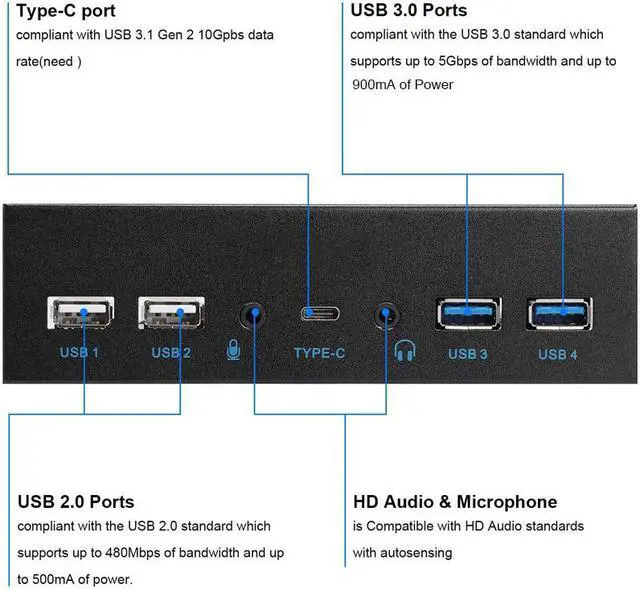

| Features | 5.25-inch Front Bay to 5-Port USB Panel Hub and 1 HD Audio Port/1 Microphone Port turns any available 5.25-inch computer case front bay into a 5 Port USB hub, USB 3.1 Gen 1 Type-C,2 ports USB 3.0 and 2 ports USB 2.0 This front panel hub adds five easily accessible USB ports to the front of your computer case through a 5.25-inch bay Type-C port, compliant with USB 3.1 Gen 1 5Gpbs data rate USB 3.0 Ports, compliant with the USB 3.0 standard which supports up to 5Gbps of bandwidth and up to 900mA of power. USB 2.0 Ports, compliant with the USB 2.0 standard which supports up to 480Mbps of bandwidth and up to 500mA of power. HD Audio & Microphone is Compatible with AC 97 or HD Audio standards with autosensing Installation is quick and easy, and the unit is plug and play. Simply fit the bay into the space with the screws provided, plug the bay into the USB 3.0 19/20 pin connector and USB 2.0 10pin connector on the motherboard, and you're all set. Features: Ports: USB Type-C+2 x USB 3.0 & 2 x USB 2.0 Female Supports 3.5mm stereo HD audio outout Supports 3.5mm microphone input USB Data Transfer Rate: Up to 5Gb/s USB 3.0 Supper Speed and USB 2.0 480Mbps Built with USB 3.0 to SATA III chipset, works for 2.5" hard disk drive HDD & SSD, no extra power is needed Fits: 5.25" Open Bay Space Compatible with Windows XP/Vista/7/8/8.1 Plug and Play Hot Swappable Backwards compatible with USB 1.1,USB 2.0 Cable length: 20pin USB 3.0 extension cable - 2.6ft/80CM 9pin USB 2.0 extension cable - 2.6ft/80CM SATA 22pin data& power combo cable - 8 inches/20CM HD audio extension cable - 2.6ft/80CM SATA to molex 4pin power adapter cable - 6 inches/15CM |
|---|

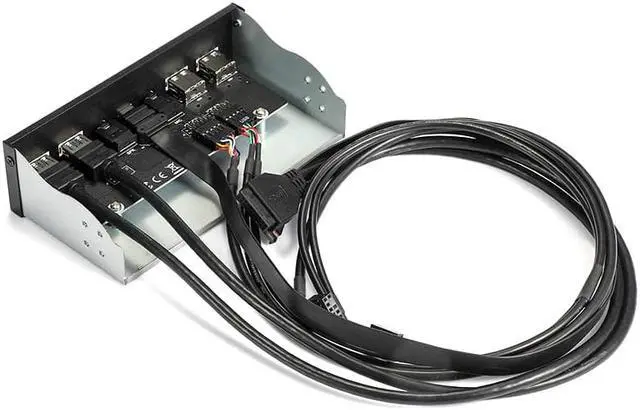

| Package Contents | 1x USB Front Panel Bay 1x Pack of Screws Kits of cables |
|---|
