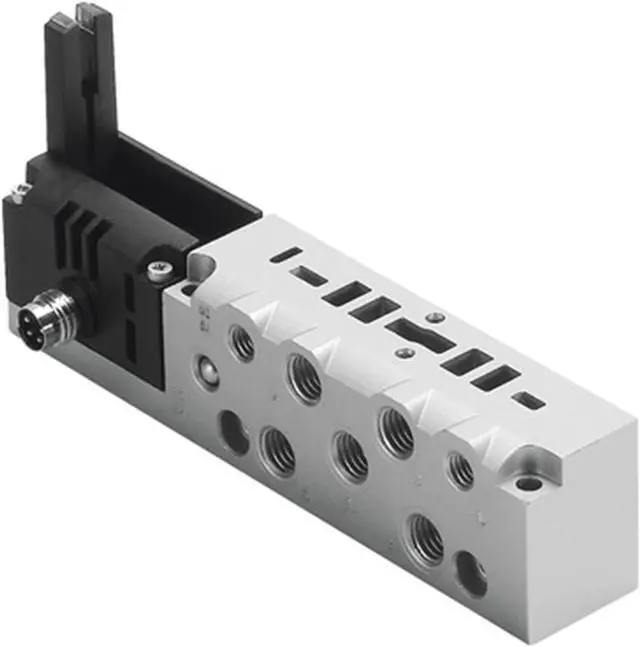

FESTO VMPA1-IC-AP-S-1 533395 Sub-base New
- FESTO VMPA1-IC-AP-S-1 533395 Sub-base New
+
+
Overview
Specs
Reviews
KC characters
KC EMC
Width
20.2 mm
Length
107.3 mm
Width dimension
10.5 mm
Type code
VMPA1
Operating pressure
-0.9 bar ... 10 bar
Pilot pressure
3 bar ... 8 bar
CE marking (see declaration of conformity)
As per EU EMC directive
Corrosion resistance class (CRC)
0 - No corrosion stress
Ambient temperature
-5 °C ... 50 °C
Certification
c UL us - Recognized (OL)
Product weight
92 g
Electrical connection
Plug M8
Sub-base mounting type
With through-hole
Pilot air port 12/14
M5
Pilot exhaust air port 82/84
M5
Pneumatic connection 1
M7
Pneumatic connection 2
M7
Pneumatic connection 3
M7
Pneumatic connection 4
M7
Pneumatic connection 5
M7
Note on materials
RoHS-compliant
Material of sub-base
Die-cast aluminum
KC EMC
Width
20.2 mm
Length
107.3 mm
Width dimension
10.5 mm
Type code
VMPA1
Operating pressure
-0.9 bar ... 10 bar
Pilot pressure
3 bar ... 8 bar
CE marking (see declaration of conformity)
As per EU EMC directive
Corrosion resistance class (CRC)
0 - No corrosion stress
Ambient temperature
-5 °C ... 50 °C
Certification
c UL us - Recognized (OL)
Product weight
92 g
Electrical connection
Plug M8
Sub-base mounting type
With through-hole
Pilot air port 12/14
M5
Pilot exhaust air port 82/84
M5
Pneumatic connection 1
M7
Pneumatic connection 2
M7
Pneumatic connection 3
M7
Pneumatic connection 4
M7
Pneumatic connection 5
M7
Note on materials
RoHS-compliant
Material of sub-base
Die-cast aluminum
