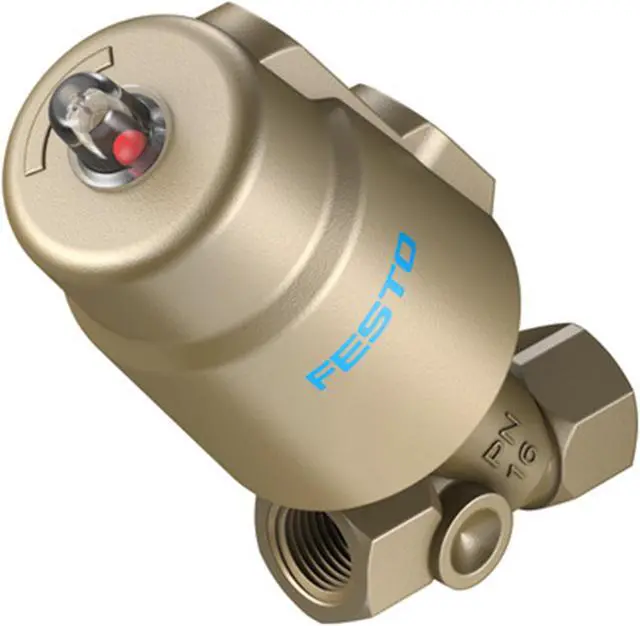

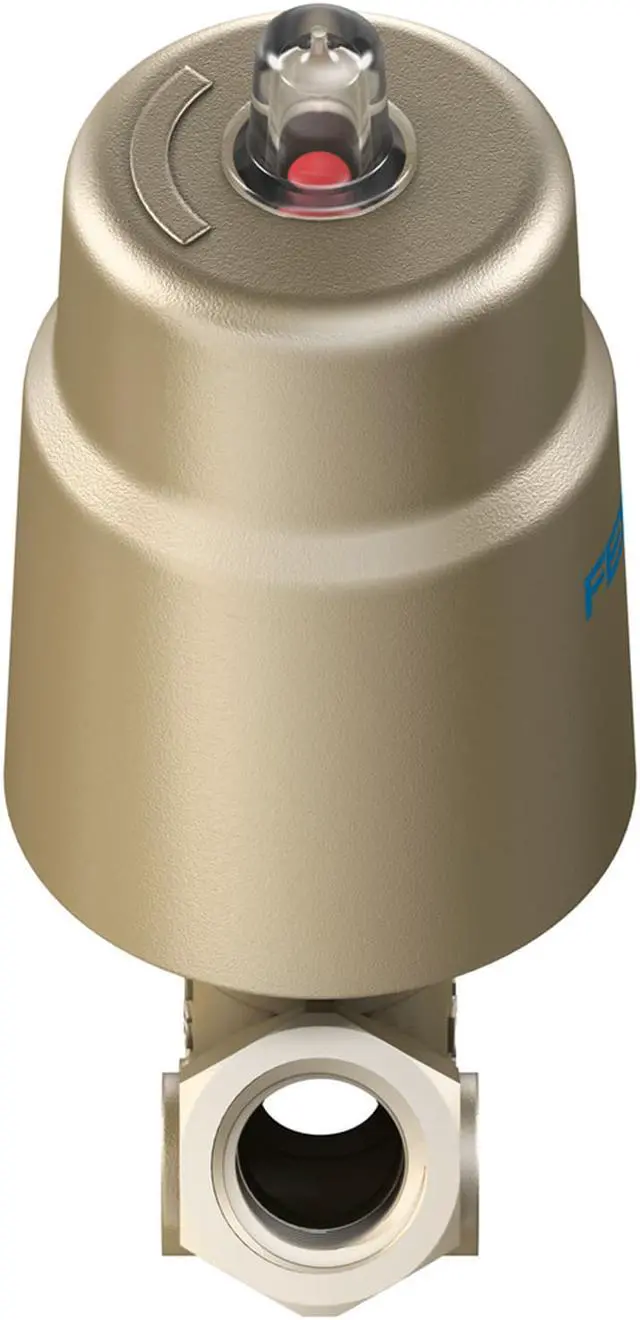

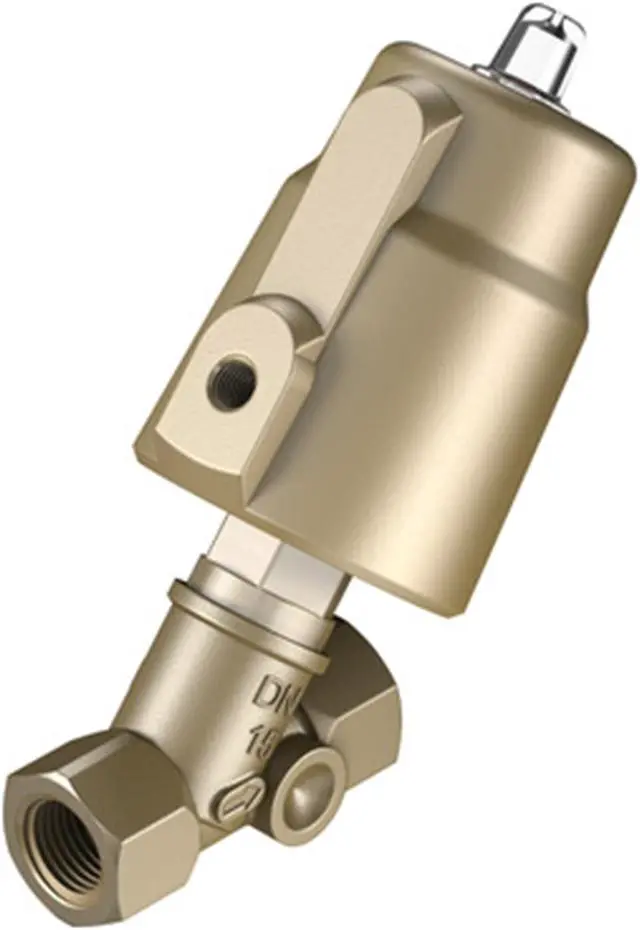

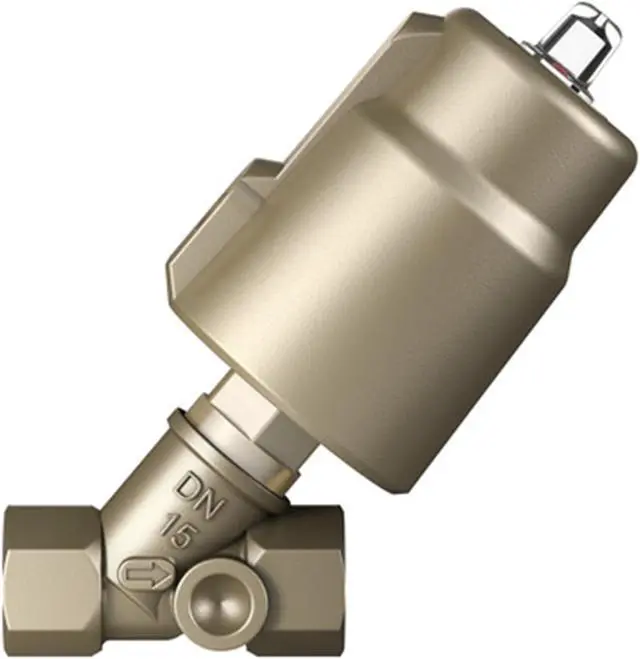

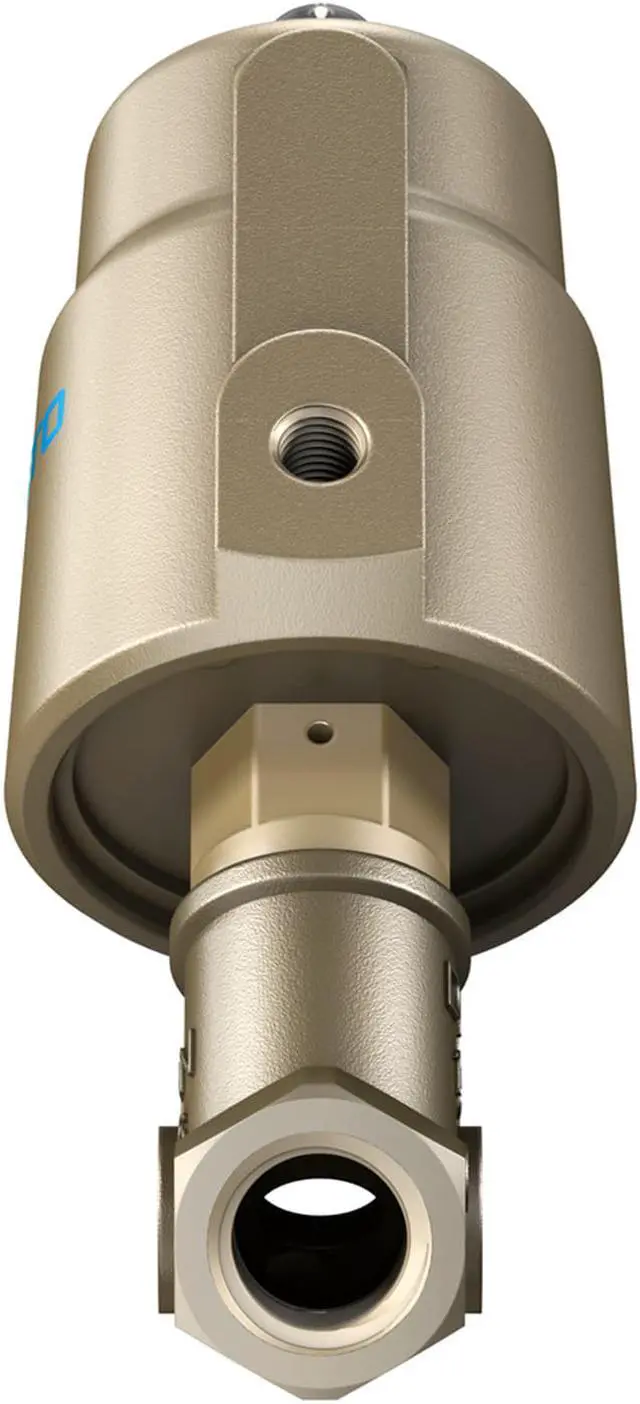

FESTO Vzxf-L-M22C-M-B-G12-120-M1-H3B1T-50-16 Angle Seat Valve 3535620
- FESTO Vzxf-L-M22C-M-B-G12-120-M1-H3B1T-50-16 Angle Seat Valve 3535620
+
+
Overview
Specs
Reviews
Type code VZXF
Design Poppet valve with piston actuator
Actuation type Pneumatic
Sealing principle Soft
Mounting position Any
Type of mounting Line installation
Cable connection Threaded sleeve G1/2 as per DIN ISO 228
Nominal width 12 mm
Valve function 2/2, closed, monostable
Flow direction Non-reversible
Medium pressure 0 bar ... 16 bar
Nominal pressure of fitting PN 16
Exhaust air function Without flow control option
Reset method Mechanical spring
Type of control Externally controlled
Pneumatic connection Internal thread G1/8
Operating pressure 6 bar ... 10 bar
Symbol 00991367
low direction Under valve seat, for gaseous and liquid media
Operating medium Compressed air as per ISO 8573-1:2010 [7:4:4]
Max. viscosity 600 mm2/s
Temperature of medium -40 °C ... 200 °C
Ambient temperature -10 °C ... 60 °C
Flow rate Kv 3.7 m3/h
Note on materials RoHS-compliant
Contains paint-wetting impairment substances
Valve housing material Red brass
Material number, fitting housing CC499K
Spindle seal material PTFE
Seat seal material PTFE
Product weight 1200 g
Design Poppet valve with piston actuator
Actuation type Pneumatic
Sealing principle Soft
Mounting position Any
Type of mounting Line installation
Cable connection Threaded sleeve G1/2 as per DIN ISO 228
Nominal width 12 mm
Valve function 2/2, closed, monostable
Flow direction Non-reversible
Medium pressure 0 bar ... 16 bar
Nominal pressure of fitting PN 16
Exhaust air function Without flow control option
Reset method Mechanical spring
Type of control Externally controlled
Pneumatic connection Internal thread G1/8
Operating pressure 6 bar ... 10 bar
Symbol 00991367
low direction Under valve seat, for gaseous and liquid media
Operating medium Compressed air as per ISO 8573-1:2010 [7:4:4]
Max. viscosity 600 mm2/s
Temperature of medium -40 °C ... 200 °C
Ambient temperature -10 °C ... 60 °C
Flow rate Kv 3.7 m3/h
Note on materials RoHS-compliant
Contains paint-wetting impairment substances
Valve housing material Red brass
Material number, fitting housing CC499K
Spindle seal material PTFE
Seat seal material PTFE
Product weight 1200 g
